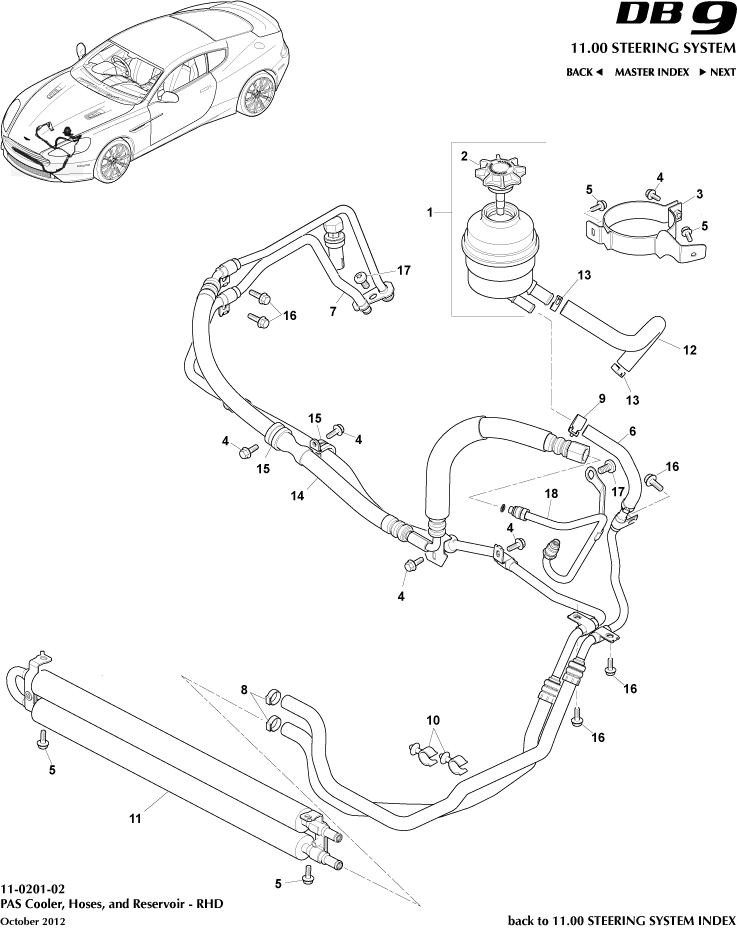

| # | 部品詳細 | 価格 （各） | 図の数量 | カートに追加 |
|---|---|---|---|---|
| 1 |
4G433R700AA Reservoir & Cap Assembly - |
- | 1 | Enquire |
| 2 |
AD2334006AA Cap, PAS Reservoir - |
$28.26 | 1 | |
| 3 |
4G433489AD Bracket, PAS Reservoir - |
$44.77 | 1 | |
| 4 |
703203 Screw, Flange Head M6x20 - IN STOCK |
$0.34 | 4 | |
| 5 |
703265 ネジ、M6 X 16なべ頭 - IN STOCK |
$0.59 | 4 | |
| 6 |
CD333A713AB HOSE, OIL COOLER, RETURN - |
$264.21 | 1 | |
| 7 |
CD333F558BA HOSE, OIL COOLER, RETURN - |
$194.91 | 1 | |
| 9 |
701349 HOSE CLAMP, 20mm DIA - |
$1.01 | 1 | |
| 10 |
4G436C727AA PIPE CLIP, OIL COOLER - IN STOCK |
$3.56 | 2 | |
| 11 |
CD333D746AA OIL COOLER ASSEMBLY - |
$537.68 | 1 | |
| 12 |
DG433E525AA Hose, PAS Reservoir To Pump - |
$41.48 | 1 | |
| 13 |
699545 ホースクランプ - |
$3.54 | 2 | |
| 14 |
4G433A719BE Hose assy, PWR steering pump to GR LH - |
$962.92 | 1 | |
| 15 |
699711 P CLIP, 23x15xM6 - |
$1.99 | 2 | |
| 16 |
703121 SCREW, M8x2,0 HEX FLG - IN STOCK |
$0.49 | 5 | |
| 17 |
703141 Screw, pan head - IN STOCK |
$2.86 | 2 | |
| 18 |
DG433494AA Tube Assy, Outlet Tube, High Pressure - |
$100.42 | 1 |
