IP Harness of Aston Martin Aston Martin GT RAPIDE (2010-2019)

すべて見る

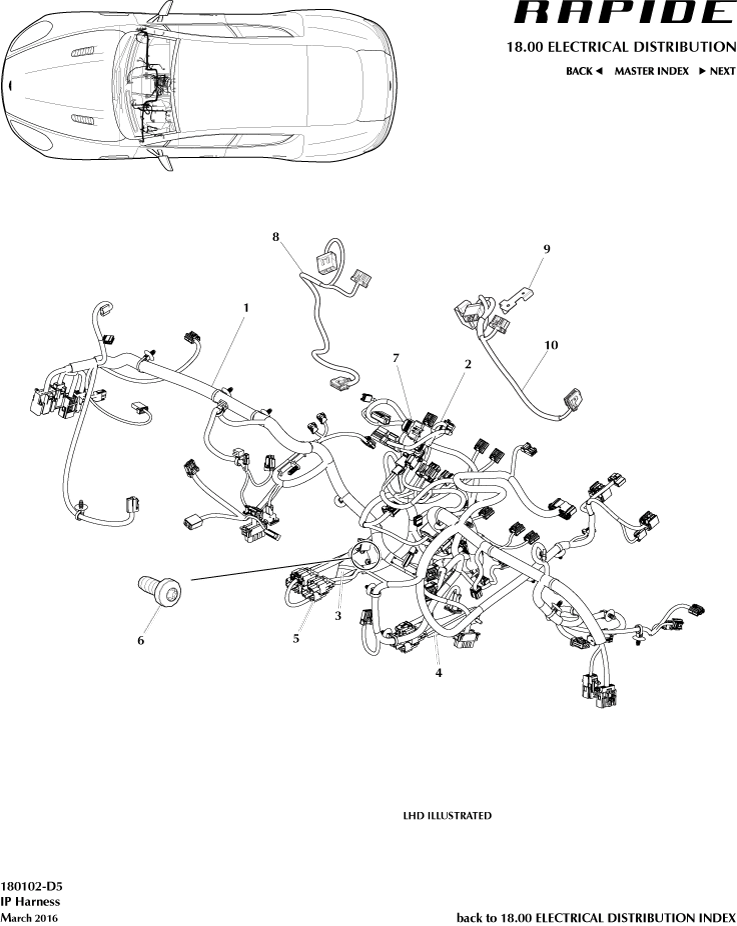

Aston Martin GT RAPIDE (2010-2019) - IPハーネス

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	CD4314401CC	Harness Assembly, Facia, LHD	CD4314401CC Harness Assembly, Facia, LHD From 12MY to 14MY, Rapide	$967.27	1
-	DG4314401AD	Harness Assembly, Facia, LHD	DG4314401AD Harness Assembly, Facia, LHD From 14MY, Rapide S	-	1	Enquire
-	KD43-14K024-BB	Harness Assembly, Facia, LHD	KD43-14K024-BB Harness Assembly, Facia, LHD From 19MY, Rapide AMR. ASK Audio	-	1	Enquire
-	KD4314401AB	Harness Assembly, Facia, LHD	KD4314401AB Harness Assembly, Facia, LHD From 19MY, Rapide AMR. B and O	$10,895.92	1
-	AD4314401AC	Harness Assembly, Facia, RHD	AD4314401AC Harness Assembly, Facia, RHD Up To 12MY	$904.60	1
-	CD4314401AC	Harness Assembly, Facia, RHD	CD4314401AC Harness Assembly, Facia, RHD From 12MY to 14MY, Rapide	$888.34	1
-	DG4314K024AD	Harness Assembly, Facia, RHD	DG4314K024AD Harness Assembly, Facia, RHD From 14MY, Rapide S	$921.22	1
-	KD43-14K024-AB	Harness Assembly, Facia, RHD	KD43-14K024-AB Harness Assembly, Facia, RHD From 19MY, Rapide AMR. B and O	-	1	Enquire
-	KD43-14401-BB	Harness Assembly, Facia, RHD	KD43-14401-BB Harness Assembly, Facia, RHD From 19MY, Rapide AMR. ASK Audio	-	1	Enquire
-	CD4314B079AC	Harness Assembly, Centre Stack	CD4314B079AC Harness Assembly, Centre Stack From 12MY To 14MY, Rapide	$523.26	1
-	DD4314B079AC	Harness, Centre Stack	DD4314B079AC Harness, Centre Stack From 14MY To 16MY, Rapide S	$491.58	1
-	GD4314B079AC	Harness, Centre Stack	GD4314B079AC Harness, Centre Stack From 16MY	$2,187.57	1
-	KD43-14B079-AB	Harness, Centre Stack	KD43-14B079-AB Harness, Centre Stack From 19MY, Rapide AMR	-	1	Enquire
-	7784981PK	Anti Rattle Foam	7784981PK Anti Rattle Foam Pack of 10	$33.36	1
1	AD4314401CC	Harness Assembly, Facia, LHD	AD4314401CC Harness Assembly, Facia, LHD Up To 12MY	$914.19	1
2	8D339137BA	Harness Assembly, Key Reader Link	8D339137BA Harness Assembly, Key Reader Link -	$35.34	1
3	9D3314N003AA	Inline bracket, IP, RHS	9D3314N003AA Inline bracket, IP, RHS -	$26.48	1
4	9D3314N003BA	Bracket, LHS Connector	9D3314N003BA Bracket, LHS Connector -	$26.48	1
5	AD4314B079AC	Harness Assembly, Centre Stack	AD4314B079AC Harness Assembly, Centre Stack Up To 12MY	$580.33	1
6	703735	SCREW, M5x12, PAN HEAD	703735 SCREW, M5x12, PAN HEAD -	$0.55	4
7	CG4314D454BC	Harness Assembly, Satnav Screen	CG4314D454BC Harness Assembly, Satnav Screen Up to 16MY	$208.69	1
8	DD339137AB	Link Assy, Tracker	DD339137AB Link Assy, Tracker -	$63.38	1
9	HG3314B544AB	Bracket, Cobra Tracker Fuse	HG3314B544AB Bracket, Cobra Tracker Fuse From 17MY	$34.18	1
10	HG439137AA	LINK HARNESS, TRACKER	HG439137AA LINK HARNESS, TRACKER From 17MY	$106.62	1
