Electrical Wiring & Protection - Engine Bay Fusebox of Aston Martin Aston Martin GT VANQUISH (2013-2018)

すべて見る

Aston Martin GT VANQUISH (2013-2018) - Electrical Wiring & Protection - Engine Bay Fusebox

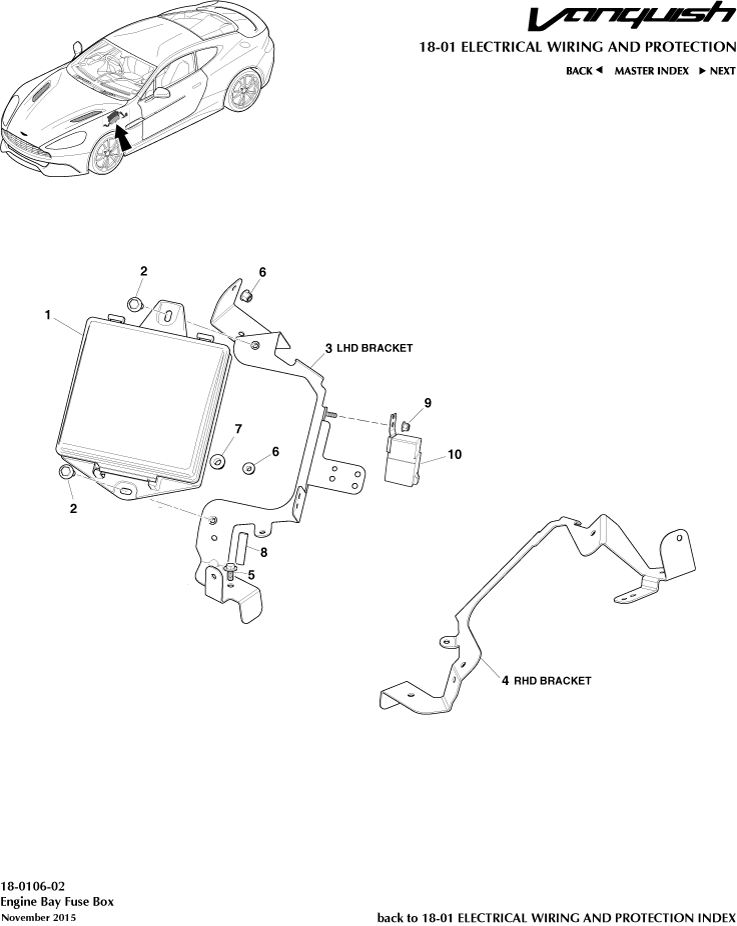

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	FD4314A173CA	Bracket, Engine Bay Fuse Box, LHD	FD4314A173CA Bracket, Engine Bay Fuse Box, LHD From VIN: J01746. For vehicles with A/C Gas R134a only	$180.32	1
-	FD4314A173CB	BRACKET, ENGINE BAYFUSEBOX	FD4314A173CB BRACKET, ENGINE BAYFUSEBOX For vehicles with A/C Gas HFO1234a only	$180.54	1
-	FD43-14A173-BA	Bracket, Engine Bay Fuse Box, RHD	FD43-14A173-BA Bracket, Engine Bay Fuse Box, RHD From VIN: J01770. For vehicles with A/C Gas R134a only	-	1	Enquire
-	FD4314A173BB	BRACKET, ENGINE BAYFUSEBOX	FD4314A173BB BRACKET, ENGINE BAYFUSEBOX For vehicles with A/C Gas HFO1234a only	$180.54	1
-	4G433710962	FUSE, 80 amp, MIDI	4G433710962 FUSE, 80 amp, MIDI -	$18.97	1
-	3723422	FUSE, 5 amp	3723422 FUSE, 5 amp -	$1.93	1
-	3723424	FUSE, 10 amp	3723424 FUSE, 10 amp -	$1.93	1
-	3723425	FUSE, 15 amp	3723425 FUSE, 15 amp -	$1.93	1
-	3723426	FUSE, 20 amp	3723426 FUSE, 20 amp -	$1.93	1
-	3723427	FUSE, 25 amp	3723427 FUSE, 25 amp -	$1.87	1
-	3723428	FUSE, 30 amp	3723428 FUSE, 30 amp -	$4.33	1
-	HY533710002	FUSE, 40 amp	HY533710002 FUSE, 40 amp -	$2.80	1
1	BG3314A173AB	Fusebox assy, Engine Bay	BG3314A173AB Fusebox assy, Engine Bay -	$491.33	1
2	702839PK	Screw and Washer M6x20 Hex	702839PK Screw and Washer M6x20 Hex -	$6.81	2
3	4G4314A173CH	Bracket, Engine Bay Fuse Box, LHD	4G4314A173CH Bracket, Engine Bay Fuse Box, LHD -	$173.78	1
4	DG4314A173BA	Bracket, Engine Bay Fuse Box, RHD	DG4314A173BA Bracket, Engine Bay Fuse Box, RHD -	$64.68	1
5	703151	Nut/washr, M6	703151 Nut/washr, M6 -	$0.89	1
6	703164	Nut M6 Hex flg plastic	703164 Nut M6 Hex flg plastic -	$0.78	2
7	701342PK	LOCK-NUT	701342PK LOCK-NUT Pack of 5	$13.12	1
8	4G43L41041AA	Edge Strip, Black 2 x 40, Panel Air Vent	4G43L41041AA Edge Strip, Black 2 x 40, Panel Air Vent -	$12.69	1
9	703165	Nut, M05	703165 Nut, M05 -	$0.34	1
10	6G3314N089BA	RELAY, SECONDARY AIRINJECTION	6G3314N089BA RELAY, SECONDARY AIRINJECTION -	$28.33	1
