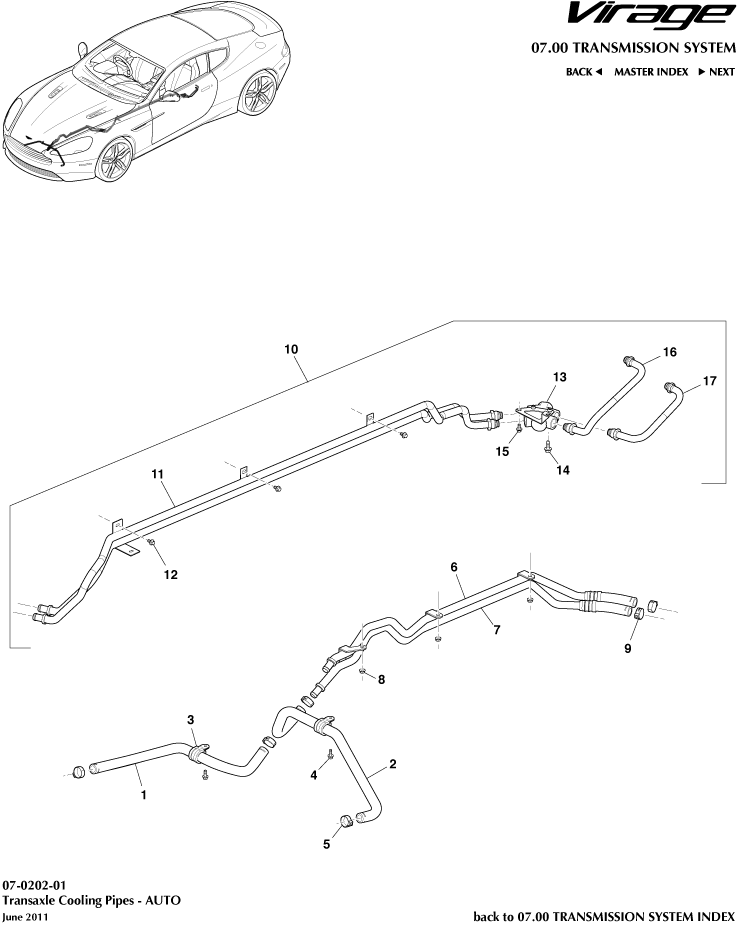

| # | 部品詳細 | 価格 （各） | 図の数量 | カートに追加 |
|---|---|---|---|---|
| 1 |
9D337F120BB HOSE ASSEMBLY, HX INLET incl. P clips |
$241.79 | 1 | |
| 2 |
9D337F120AB HOSE ASSEMBLY, HX OUTLET incl. P clips |
$299.15 | 1 | |
| 3 |
NSS ウォッシャー - |
- | 2 | Enquire |
| 4 |
703729 Screw, M6x16, Hex Flange Hd - |
$0.25 | 2 | |
| 5 |
9G438777CA Clamp, Oetiker 25.5 - 1008R - IN STOCK |
$7.11 | 4 | |
| 6 |
9G437W093AA Pipe Assy, Engine Bay, Inlet - |
$151.04 | 1 | |
| 7 |
9G437W093BA Pipe Assy, Engine Bay, Outlet - |
$227.10 | 1 | |
| 8 |
702944 Nut, M6 flg - IN STOCK |
$1.83 | 3 | |
| 9 |
9G438777CA Clamp, Oetiker 25.5 - 1008R - IN STOCK |
$7.11 | 2 | |
| 10 |
9G43321363AA Oil Pipe Assy Rear Transmission - |
$978.96 | 1 | |
| 11 |
9G43-7D353-AA Tube & Brkt Assy, Trans Oil Fill - |
- | 1 | Enquire |
| 12 |
700606 SCREW, M6x12, HEX HD - IN STOCK |
$0.34 | 3 | |
| 13 |
4G436L635AA Thermostat, Auto Trans Oil Control - |
$1,102.29 | 1 | |
| 14 |
702298 Screw, flg, M8 x 16, duct - |
$0.16 | 1 | |
| 15 |
700606 SCREW, M6x12, HEX HD - IN STOCK |
$0.34 | 1 | |
| 16 |
4G43-35568-BA Pipe, Trans Oil, Inlet - |
- | 1 | Enquire |
| 17 |
4G43-35568-AA Pipe, Trans Oil, Outlet - |
- | 1 | Enquire |
