Name: 2 - MID STRUCTURES - 2.1 - MONOCOQUE
Rating: 4.7 (1 reviews)

2 - MID STRUCTURES - 2.1 - MONOCOQUE of McLaren McLaren McLaren 570S Coupe

すべて見る

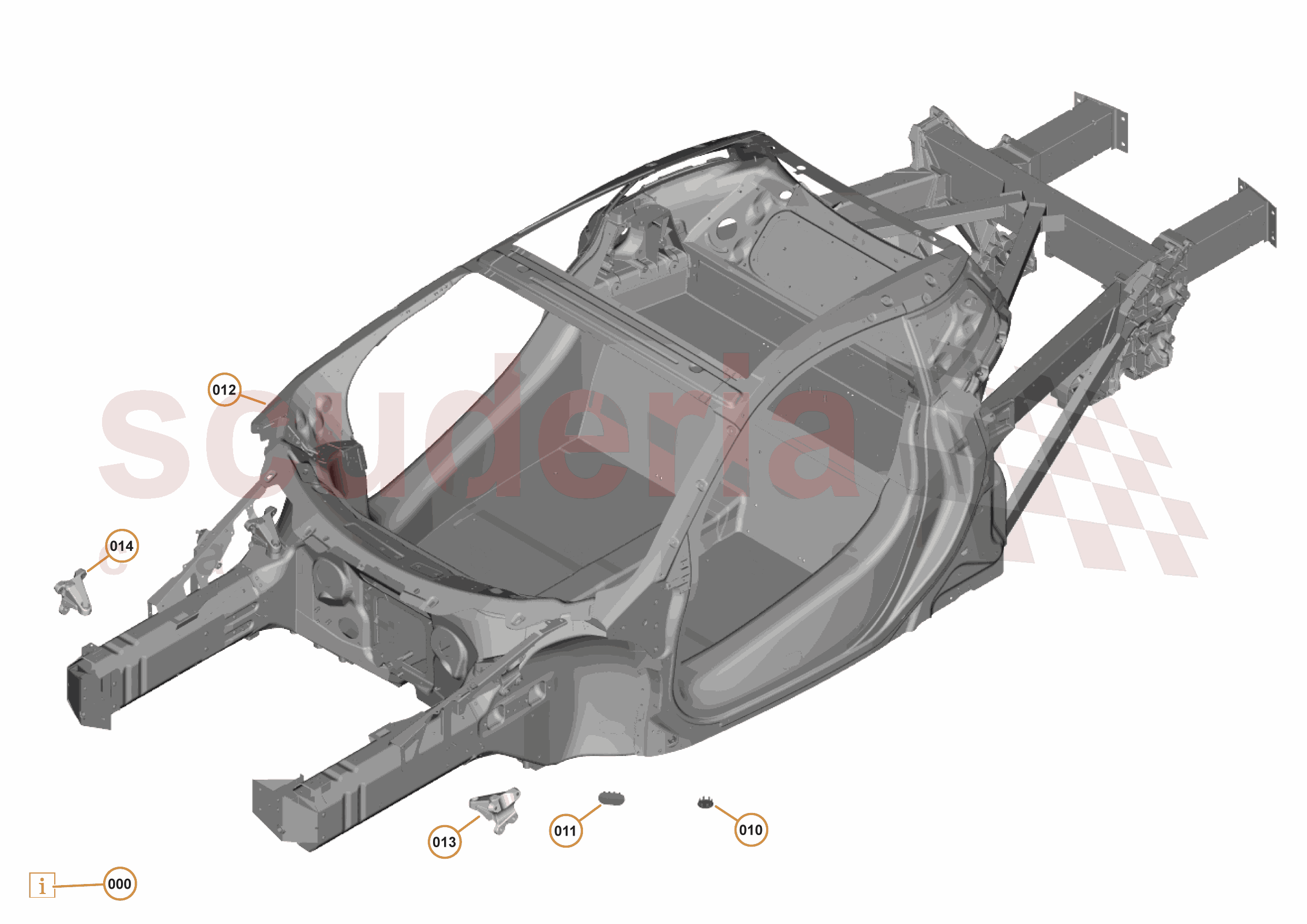

McLaren McLaren 570S Coupe - 2 - MID STRUCTURES - 2.1 - MONOCOQUE

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

写真	部品番号	説明	価格(各)	ストック
	11A4759CP	RIVNUT - M4 - 1.75-2.50 - 2330-704-0250	$8.47	注文するには
	11A4761CP	RIVNUT - M5 - 1.00-2.00 - 2330-705-0020	$5.01	注文するには
	11A4762CP	HELICOIL - M6X1D - 1084-6CNW060	$8.95	注文するには

...and 19 more part variants. See table on right for more details.

写真	部品番号	説明	価格(各)	ストック
	11A5734CP	BLANKING PLUG - CIRCULAR - 42MM	$9.85	注文するには

写真	部品番号	説明	価格(各)	ストック
	11A5735CP	BLANKING PLUG - OVAL - 74MM X 37MM	$9.85	注文するには

写真	部品番号	説明	価格(各)	ストック
	11A7142CP	BRACKET - DAMPER MOUNTING - LH	$194.06	注文するには

写真	部品番号	説明	価格(各)	ストック
	11A7143CP	BRACKET - DAMPER MOUNTING - RH	$194.06	注文するには

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量
000	11A4759CP	RIVNUT - M4 - 1.75-2.50 - 2330-704-0250	11A4759CP RIVNUT - M4 - 1.75-2.50 - 2330-704-0250 Row ID: ID_CAAB0103_11A4759CP_ContPgHS; Resolution: Available;	$8.47	1
000	11A4761CP	RIVNUT - M5 - 1.00-2.00 - 2330-705-0020	11A4761CP RIVNUT - M5 - 1.00-2.00 - 2330-705-0020 Row ID: ID_CAAB0105_11A4761CP_ContPgHS; Resolution: Available;	$5.01	1
000	11A4762CP	HELICOIL - M6X1D - 1084-6CNW060	11A4762CP HELICOIL - M6X1D - 1084-6CNW060 Row ID: ID_CAAB0106_11A4762CP_ContPgHS; Resolution: Available;	$8.95	1
000	11A4763CP	HELICOIL - M8X1.5D - 1084-8CNW120	11A4763CP HELICOIL - M8X1.5D - 1084-8CNW120 Row ID: ID_CAAB0107_11A4763CP_ContPgHS; Resolution: Available;	$10.17	1
000	11A4766CP	HELICOIL - M10X2D - 1084-10CNW200	11A4766CP HELICOIL - M10X2D - 1084-10CNW200 Row ID: ID_CAAB0110_11A4766CP_ContPgHS; Resolution: Available;	$4.93	1
000	11A4768CP	HELICOIL - M12X2D - 1084-12CNW240	11A4768CP HELICOIL - M12X2D - 1084-12CNW240 Row ID: ID_CAAB0111_11A4768CP_ContPgHS; Resolution: Available;	$10.09	1
000	11A4769CP	Rivet Stud - M5x15 - 3 15-3732-705-0115	11A4769CP Rivet Stud - M5x15 - 3 15-3732-705-0115 Row ID: ID_CAAB0112_11A4769CP_ContPgHS; Resolution: Available;	$5.38	1
000	11A4770CP	HELICOIL - M16X1.5D - 3745-16CNW240	11A4770CP HELICOIL - M16X1.5D - 3745-16CNW240 Row ID: ID_CAAB0113_11A4770CP_ContPgHS; Resolution: Available;	$14.47	1
000	11A4771CP	Rivet - 2.0-9.5 - HKLP-R8-6	11A4771CP Rivet - 2.0-9.5 - HKLP-R8-6 Row ID: ID_CAAB0114_11A4771CP_ContPgHS; Resolution: Available;	$5.46	1
000	11A4772CP	Rivnut - M8 - 2.0-3.5 - 2330-708-0035	11A4772CP Rivnut - M8 - 2.0-3.5 - 2330-708-0035 Row ID: ID_CAAB0115_11A4772CP_ContPgHS; Resolution: Available;	$5.28	1
000	11A4773CP	Rivnut - M5 - 3.0 - 4.0 - 2330-705-0040	11A4773CP Rivnut - M5 - 3.0 - 4.0 - 2330-705-0040 Row ID: ID_CAAB0116_11A4773CP_ContPgHS; Resolution: Available;	$4.93	1
000	11A4774CP	Rivnut - M6 - 1.50-3.00 - 2330-706-0030	11A4774CP Rivnut - M6 - 1.50-3.00 - 2330-706-0030 Row ID: ID_CAAB0117_11A4774CP_ContPgHS; Resolution: Available;	$4.93	1
000	11A4775CP	Rivnut - M6 - 3.0-4.5 - 2330.706-0045	11A4775CP Rivnut - M6 - 3.0-4.5 - 2330.706-0045 Row ID: ID_CAAB0118_11A4775CP_ContPgHS; Resolution: Available;	$4.93	1
000	11A4776CP	Rivnut - M5 - 2.0-3.0 - 2330.705-0030	11A4776CP Rivnut - M5 - 2.0-3.0 - 2330.705-0030 Row ID: ID_CAAB0119_11A4776CP_ContPgHS; Resolution: Available;	$5.15	1
000	11A4778CP	Clip - Jetpress - EPF233	11A4778CP Clip - Jetpress - EPF233 Row ID: ID_CAAB0120_11A4778CP_ContPgHS; Resolution: Available;	$6.50	1
000	11A4781CP	Helicoil - M8x2D - 1084-8CNW160	11A4781CP Helicoil - M8x2D - 1084-8CNW160 Row ID: ID_CAAB0122_11A4781CP_ContPgHS; Resolution: Available;	$7.00	1
000	11A4782CP	Rivet Stud - M6x20 - 3 15-3732-706-0120	11A4782CP Rivet Stud - M6x20 - 3 15-3732-706-0120 Row ID: ID_CAAB0123_11A4782CP_ContPgHS; Resolution: Available;	$5.98	1
000	11A4783CP	Rivnut - M6 - 3.0-5.5 - 2330-706-0255	11A4783CP Rivnut - M6 - 3.0-5.5 - 2330-706-0255 Row ID: ID_CAAB0124_11A4783CP_ContPgHS; Resolution: Available;	$4.93	1
000	11A4791CP	Rivnut - M6 - 0.7-1.5 - 2330.706-0015	11A4791CP Rivnut - M6 - 0.7-1.5 - 2330.706-0015 Row ID: ID_CAAB0130_11A4791CP_ContPgHS; Resolution: Available;	$6.39	1
000	11A4870CP	Rivnut - M4 - 1.0-2.0 - 2330-104-0020	11A4870CP Rivnut - M4 - 1.0-2.0 - 2330-104-0020 Row ID: ID_CAAB0133_11A4870CP_ContPgHS; Resolution: Available;	$1.82	1
000	11A4871CP	Rivnut - M5 - 0.5-3.0 - 2330-105-0030	11A4871CP Rivnut - M5 - 0.5-3.0 - 2330-105-0030 Row ID: ID_CAAB0134_11A4871CP_ContPgHS; Resolution: Available;	$1.35	1
000	11A4872CP	Rivnut - M6 - 0.5-3.0 - 2332-906-0519	11A4872CP Rivnut - M6 - 0.5-3.0 - 2332-906-0519 Row ID: ID_CAAB0135_11A4872CP_ContPgHS; Resolution: Available;	$4.71	1
010	11A5734CP	BLANKING PLUG - CIRCULAR - 42MM	11A5734CP BLANKING PLUG - CIRCULAR - 42MM Row ID: ID_CAAB0137_11A5734CP_ContPgHS; Resolution: Available;	$9.85	6
011	11A5735CP	BLANKING PLUG - OVAL - 74MM X 37MM	11A5735CP BLANKING PLUG - OVAL - 74MM X 37MM Row ID: ID_CAAB0138_11A5735CP_ContPgHS; Resolution: Available;	$9.85	4
013	11A7142CP	BRACKET - DAMPER MOUNTING - LH	11A7142CP BRACKET - DAMPER MOUNTING - LH Row ID: ID_CAAB0146_11A7142CP_ContPgHS; Resolution: Available;	$194.06	1
014	11A7143CP	BRACKET - DAMPER MOUNTING - RH	11A7143CP BRACKET - DAMPER MOUNTING - RH Row ID: ID_CAAB0147_11A7143CP_ContPgHS; Resolution: Available;	$194.06	1

2 - Mid Structures - 2.1 - Monocoque

McLaren McLaren 570S Coupe

McLaren McLaren 570S Coupe - 2 - MID STRUCTURES - 2.1 - MONOCOQUE
