McLaren McLaren 720S Coupe 36 - ENGINE OIL SYSTEM - 36.3 - ENGINE OIL FILL SYSTEM 部品

自分の役割を見つける

36 - ENGINE OIL SYSTEM - 36.3 - ENGINE OIL FILL SYSTEM of McLaren McLaren McLaren 720S Coupe

すべて見る

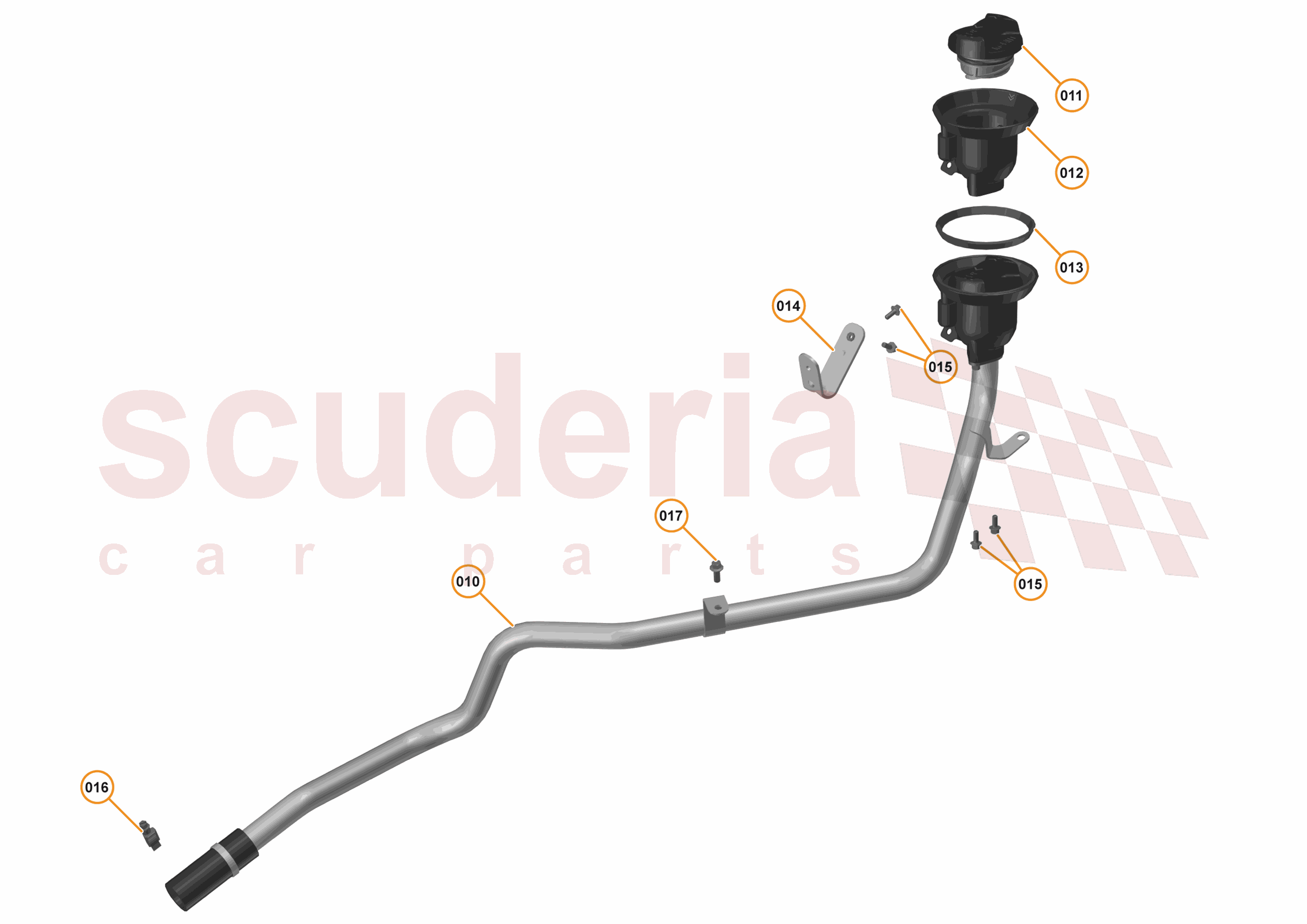

McLaren McLaren 720S Coupe - 36 - ENGINE OIL SYSTEM - 36.3 - ENGINE OIL FILL SYSTEM

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

IN

在庫あり

AS

もうすぐ到着します

TO

注文するには

PE

お問い合わせください

写真	部品番号	説明	価格(各)	ストック
	14FA223CP	OIL TANK FILLER ASSY	$406.43	注文するには

写真	部品番号	説明	価格(各)	ストック
	14FA211CP	CAP - ENGINE - OIL FILLER	$57.92	注文するには

写真	部品番号	説明	価格(各)	ストック
	11F1595CP	BOWL - OIL FILLER - COUPE	$209.00	注文するには

写真	部品番号	説明	価格(各)	ストック
	11F0895CP	SEAL - OIL FILLER BOWL	$60.06	注文するには

写真	部品番号	説明	価格(各)	ストック
	14F0092CP	BRACKET - OIL FILLER NECK	$22.91	注文するには

写真	部品番号	説明	価格(各)	ストック
	00RA064	BOLT - M5X12 - HEX	お問い合わせ	注文するには

写真	部品番号	説明	価格(各)	ストック
	00RB053	HOSE CLAMP - 25-40MM - NORMA TORRO	お問い合わせ	注文するには

写真	部品番号	説明	価格(各)	ストック
	00RA556	BOLT - HEX - FLANGED - M6X16	お問い合わせ	注文するには

すべて見る

36 - ENGINE OIL SYSTEM - 36.3 - ENGINE OIL FILL SYSTEM of McLaren McLaren McLaren 720S Coupe

ダイアグラムタップして拡大します

0 部品 ($0.00)

警告: 同じ部品の複数のバリエーションを項目に対して選択できます。

	#	部品番号	部品説明	部品詳細	価格（各）	図の数量	注文数量	カートに追加
	010	14FA223CP	OIL TANK FILLER ASSY	14FA223CP OIL TANK FILLER ASSY Row ID: ID_DEFC0301_14FA223CP_ContPgHS; Resolution: Available;	$406.43	1
	011	14FA211CP	CAP - ENGINE - OIL FILLER	14FA211CP CAP - ENGINE - OIL FILLER Row ID: ID_DEFC0302_14FA211CP_ContPgHS; Resolution: Available;	$57.92	1
	012	11F1595CP	BOWL - OIL FILLER - COUPE	11F1595CP BOWL - OIL FILLER - COUPE Row ID: ID_DEFC0303_11F1595CP_ContPgHS; Resolution: Available;	$209.00	1
	013	11F0895CP	SEAL - OIL FILLER BOWL	11F0895CP SEAL - OIL FILLER BOWL Row ID: ID_DEFC0304_11F0895CP_ContPgHS; Resolution: Available;	$60.06	1
	014	14F0092CP	BRACKET - OIL FILLER NECK	14F0092CP BRACKET - OIL FILLER NECK Row ID: ID_DEFC0305_14F0092CP_ContPgHS; Resolution: Available;	$22.91	1
	015	00RA064	BOLT - M5X12 - HEX	00RA064 BOLT - M5X12 - HEX Row ID: ID_XXXXXXZV_00RA064_ContPgHS; Resolution: Available;	-	4		Enquire
	016	00RB053	HOSE CLAMP - 25-40MM - NORMA TORRO	00RB053 HOSE CLAMP - 25-40MM - NORMA TORRO Row ID: ID_XXXXXXZX_00RB053_ContPgHS; Resolution: Available;	-	1		Enquire
	017	00RA556	BOLT - HEX - FLANGED - M6X16	00RA556 BOLT - HEX - FLANGED - M6X16 Row ID: ID_XXXXXXZV_00RA556_ContPgHS; Resolution: Available;	-	1		Enquire
