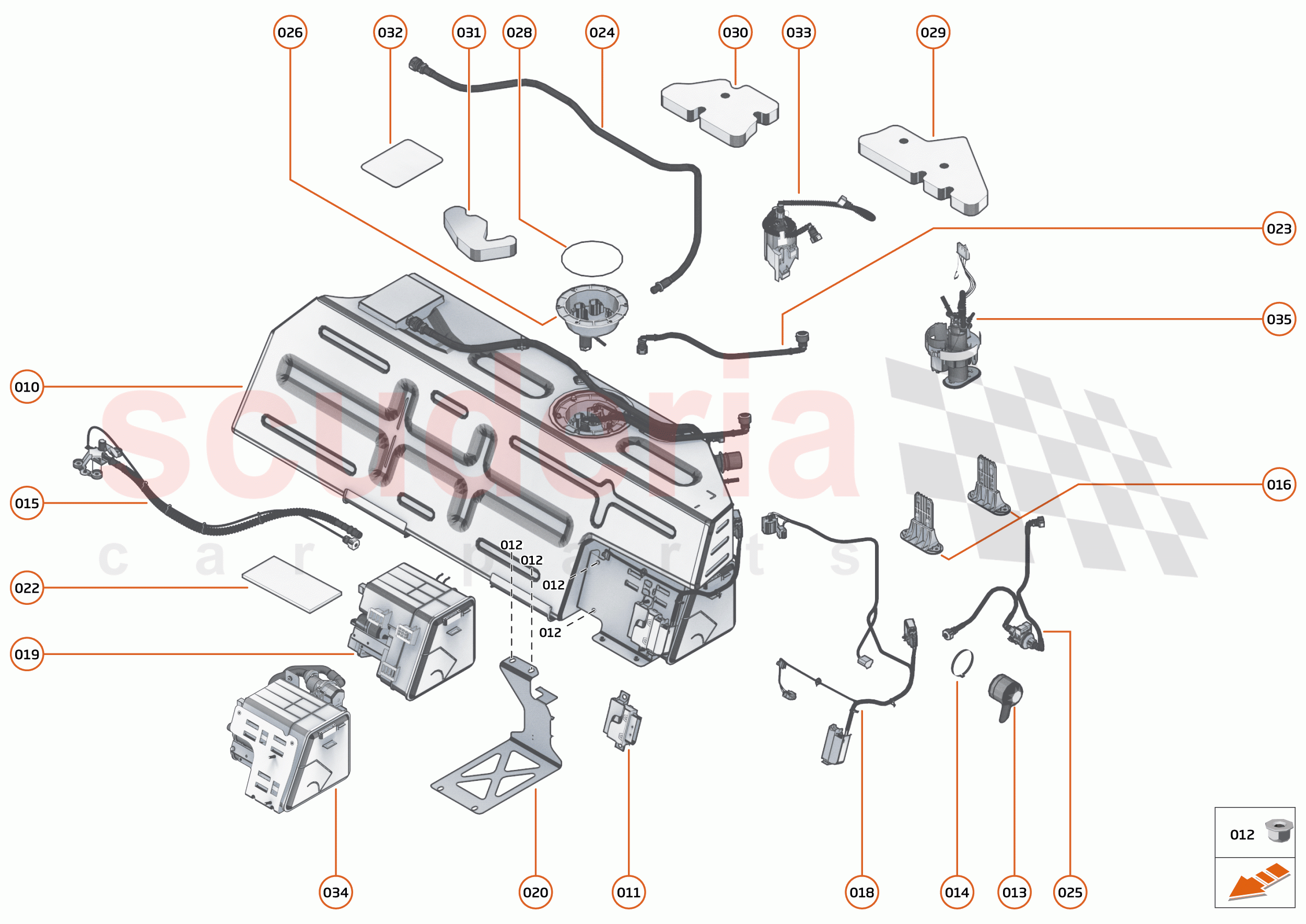

28 - FUEL TANK - 28.1 - FUEL TANK of McLaren McLaren 750S Coupe

すべて見る

McLaren 750S Coupe - 28 - FUEL TANK - 28.1 - FUEL TANK

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
000	00RA087	SCREW - M5X10 - HEX	00RA087 SCREW - M5X10 - HEX	-	2	Enquire
000	00RA129	SCREW - NR8X16	00RA129 SCREW - NR8X16	-	3	Enquire
000	00RB138	HOSE CLAMP - 23.5-706R	00RB138 HOSE CLAMP - 23.5-706R	-	2	Enquire
000	00RL004	FELT TAPE	00RL004 FELT TAPE	-	1	Enquire
010	14KA007RP	ASSY - FUEL TANK - COMPLETE FEDERAL	14KA007RP ASSY - FUEL TANK - COMPLETE FEDERAL	-	1	Enquire
010	15KA052CP	ASSY - FUEL TANK - COMPLETE	15KA052CP ASSY - FUEL TANK - COMPLETE	£3,802.62	1
010	14KA115CP	ASSY - FUEL TANK - COMPLETE - CHINA	14KA115CP ASSY - FUEL TANK - COMPLETE - CHINA	-	1	Enquire
011	14KA056CP	CONTROLLER - FUEL PUMP	14KA056CP CONTROLLER - FUEL PUMP	£253.49	1
012	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX	-	2	Enquire
013	14KA064CP	PIPE - BREATHER - MOULDED - CANISTER	14KA064CP PIPE - BREATHER - MOULDED - CANISTER	£37.58	1
014	00RB147	HOSE CLAMP - STEPLESS EAR - 59 DIA	00RB147 HOSE CLAMP - STEPLESS EAR - 59 DIA	-	1	Enquire
015	15KA035CP	JET PUMP HOSE - FUEL TANK	15KA035CP JET PUMP HOSE - FUEL TANK	£149.11	1
016	14K0087CP	PUMP MOUNT - MOULDED	14K0087CP PUMP MOUNT - MOULDED	£59.63	2
018	15MA102CP	HARNESS - FUEL CELL - FUEL TANK	15MA102CP HARNESS - FUEL CELL - FUEL TANK	£149.11	1
019	14K0053CP	FILTER - CHARCOAL	14K0053CP FILTER - CHARCOAL	£601.48	1
020	14K0123CP	BRACKET - CANISTER SUPPORT	14K0123CP BRACKET - CANISTER SUPPORT	£13.52	1
022	14K0140CP	PAD - FUEL TANK - CANISTER	14K0140CP PAD - FUEL TANK - CANISTER	£8.94	1
023	14K0118CP	ホース-燃料供給	14K0118CP ホース-燃料供給	£82.69	1
024	14KA092CP	HOSE BREATHER - TANK TO CANISTER	14KA092CP HOSE BREATHER - TANK TO CANISTER	-	1	Enquire
024	14KA013CP	BREATHER HOSE - FUEL TANK - CANISTER	14KA013CP BREATHER HOSE - FUEL TANK - CANISTER	£67.09	1
025	14KA088CP	ASSY PIPE PURGE TANK	14KA088CP ASSY PIPE PURGE TANK	-	1	Enquire
025	14K0054CP	PIPE - PURGE - FUEL TANK	14K0054CP PIPE - PURGE - FUEL TANK	£82.69	1
026	15KA004CP	FLANGE - FUEL TANK	15KA004CP FLANGE - FUEL TANK	£90.21	1
026	14K0079CP	FLANGE - FUEL TANK	14K0079CP FLANGE - FUEL TANK	£63.89	1
028	12K0258CP	SEAL - RETAINING RING - FUEL PUMP	12K0258CP SEAL - RETAINING RING - FUEL PUMP	£52.62	1
029	14KA027CP	PAD - FUEL TANK - UPPER - LH	14KA027CP PAD - FUEL TANK - UPPER - LH	£26.08	1
030	14KA028CP	PAD - FUEL TANK - UPPER - CENTRE	14KA028CP PAD - FUEL TANK - UPPER - CENTRE	£48.45	1
031	14KA029CP	PAD - FUEL TANK - UPPER - RH	14KA029CP PAD - FUEL TANK - UPPER - RH	£9.67	1
032	14KA030CP	PAD - FUEL TANK - SEPARATOR	14KA030CP PAD - FUEL TANK - SEPARATOR	£8.19	1
033	12K0196CP	AIR FILTER - DIAGNOSIS MODULE TANK LEAKAGE	12K0196CP AIR FILTER - DIAGNOSIS MODULE TANK LEAKAGE	£56.38	1
034	14KA086CP	CHARCOAL CANISTER - LEV III	14KA086CP CHARCOAL CANISTER - LEV III	-	1	Enquire
035	14KA120CP	ASSY - TWIN FUEL PUMP	14KA120CP ASSY - TWIN FUEL PUMP	£1,202.99	1
035	14KA113CP	ASSY - FUEL PUMP	14KA113CP ASSY - FUEL PUMP	£507.00	1
