McLaren McLaren Artura 12 - GLAZING BODY - 12.3 - QTR GLASS 部品

自分の役割を見つける

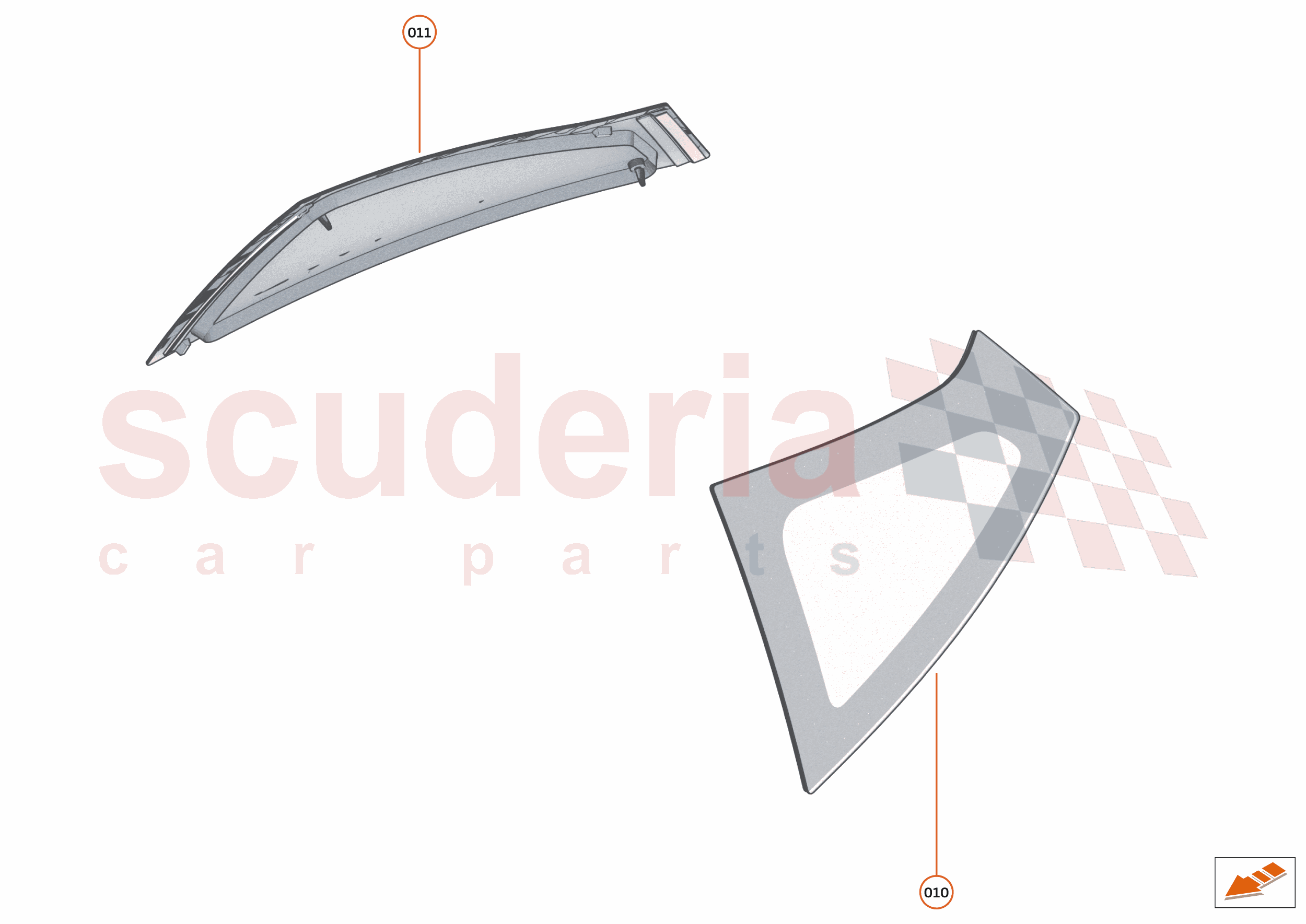

12 - GLAZING BODY - 12.3 - QTR GLASS of McLaren McLaren McLaren Artura

すべて見る

McLaren McLaren Artura - 12 - GLAZING BODY - 12.3 - QTR GLASS

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

IN

在庫あり

AS

もうすぐ到着します

TO

注文するには

PE

お問い合わせください

写真	部品番号	説明	価格(各)	ストック
	16AD530CP	アッセンブリガラスRR QTR 左側	$1,537.63	注文するには

写真	部品番号	説明	価格(各)	ストック
	16AD543CP	アッセンブリガラスRR QTR 右側	$1,537.63	注文するには

すべて見る

12 - GLAZING BODY - 12.3 - QTR GLASS of McLaren McLaren McLaren Artura

ダイアグラムタップして拡大します

0 部品 ($0.00)

警告: 同じ部品の複数のバリエーションを項目に対して選択できます。

	#	部品番号	部品説明	部品詳細	価格（各）	図の数量	注文数量	カートに追加
	010	16AD530CP	アッセンブリガラスRR QTR 左側	16AD530CP アッセンブリガラスRR QTR 左側 Row ID: ID__16AD530CP_ContPgHS; Resolution: Available;	$1,537.63	1
	011	16AD543CP	アッセンブリガラスRR QTR 右側	16AD543CP アッセンブリガラスRR QTR 右側 Row ID: ID__16AD543CP_ContPgHS; Resolution: Available;	$1,537.63	1
