11 - EXTERIOR ORNAMENTATION - 11.6 - REAR BUMPER of McLaren McLaren Ultimate Series McLaren Elva

すべて見る

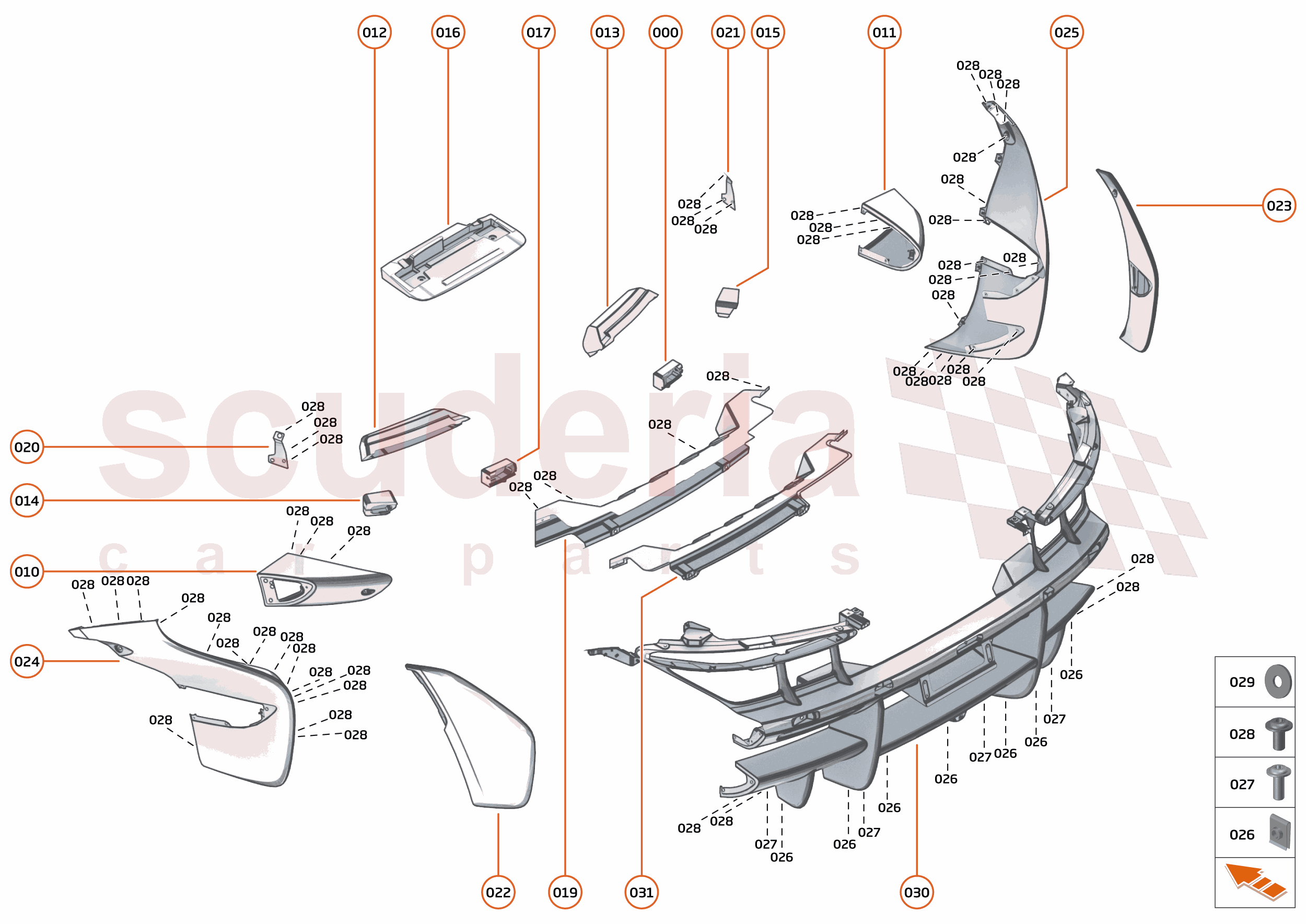

McLaren Ultimate Series McLaren Elva - 11 - EXTERIOR ORNAMENTATION - 11.6 - REAR BUMPER

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
000	26AA144SP	ASSY - BUMPER REAR	26AA144SP ASSY - BUMPER REAR Row ID: ID__26AA144SP_ContPgHS;	-	1	Enquire
010	26AA532SP	ASSY - BUMPER EXTENSION NON - PDC - LH	26AA532SP ASSY - BUMPER EXTENSION NON - PDC - LH Row ID: ID__26AA532SP_ContPgHS;	-	1	Enquire
010	26AB189SP	ASSY - BUMPER EXTENSION PDC - LH	26AB189SP ASSY - BUMPER EXTENSION PDC - LH Row ID: ID__26AB189SP_ContPgHS;	-	1	Enquire
011	26AA538SP	ASSY - BUMPER EXTENSION NON - PDC - RH	26AA538SP ASSY - BUMPER EXTENSION NON - PDC - RH Row ID: ID__26AA538SP_ContPgHS;	-	1	Enquire
011	26AB193SP	ASSY - BUMPER EXTENSION PDC - RH	26AB193SP ASSY - BUMPER EXTENSION PDC - RH Row ID: ID__26AB193SP_ContPgHS;	-	1	Enquire
012	26AB081SP	HEATSHIELD REFLECTOR LH	26AB081SP HEATSHIELD REFLECTOR LH Row ID: ID__26AB081SP_ContPgHS;	-	1	Enquire
012	22AC713GP	HEATSHIELD REFLECTOR LH	22AC713GP HEATSHIELD REFLECTOR LH Row ID: ID__22AC713GP_ContPgHS;	-	1	Enquire
013	26AB082SP	HEATSHIELD REFLECTOR RH	26AB082SP HEATSHIELD REFLECTOR RH Row ID: ID__26AB082SP_ContPgHS;	-	1	Enquire
013	22AC714GP	HEATSHIELD REFLECTOR RH	22AC714GP HEATSHIELD REFLECTOR RH Row ID: ID__22AC714GP_ContPgHS;	-	1	Enquire
014	26AB577SP	HEATSHIELD RR PDC OTR LH	26AB577SP HEATSHIELD RR PDC OTR LH Row ID: ID__26AB577SP_ContPgHS;	-	1	Enquire
014	22AC955GP	HEATSHIELD PDC REAR BUMPER LH	22AC955GP HEATSHIELD PDC REAR BUMPER LH Row ID: ID__22AC955GP_ContPgHS;	-	1	Enquire
015	26AB578SP	HEATSHIELD RR PDC OTR RH	26AB578SP HEATSHIELD RR PDC OTR RH Row ID: ID__26AB578SP_ContPgHS;	-	1	Enquire
015	22AC956GP	HEATSHIELD PDC REAR BUMPER RH	22AC956GP HEATSHIELD PDC REAR BUMPER RH Row ID: ID__22AC956GP_ContPgHS;	-	1	Enquire
016	26AB579SP	HEATSHIELD CHMSL FIXED	26AB579SP HEATSHIELD CHMSL FIXED Row ID: ID__26AB579SP_ContPgHS;	-	1	Enquire
017	26AB077SP	HEATSHIELD RR PDC INR LH	26AB077SP HEATSHIELD RR PDC INR LH Row ID: ID__26AB077SP_ContPgHS;	-	1	Enquire
018	26AB078SP	HEATSHIELD RR PDC INR RH	26AB078SP HEATSHIELD RR PDC INR RH Row ID: ID__26AB078SP_ContPgHS;	-	1	Enquire
019	26AB427SP	BUMPER INR STIFFNER PNL FED	26AB427SP BUMPER INR STIFFNER PNL FED Row ID: ID__26AB427SP_ContPgHS;	-	1	Enquire
019	26AC116SP	BUMPER INR STIFFNER PNL ROW	26AC116SP BUMPER INR STIFFNER PNL ROW Row ID: ID__26AC116SP_ContPgHS;	-	1	Enquire
020	26AB724SP	BUMPER BRKT AIRBRAKE LH	26AB724SP BUMPER BRKT AIRBRAKE LH Row ID: ID__26AB724SP_ContPgHS;	-	1	Enquire
021	26AB725SP	BUMPER BRKT AIRBRAKE RH	26AB725SP BUMPER BRKT AIRBRAKE RH Row ID: ID__26AB725SP_ContPgHS;	-	1	Enquire
022	26AB032SP	ASSY - CHEEK BUMPER - LH	26AB032SP ASSY - CHEEK BUMPER - LH Row ID: ID__26AB032SP_ContPgHS;	-	1	Enquire
023	26AB038SP	ASSY - CHEEK BUMPER - RH	26AB038SP ASSY - CHEEK BUMPER - RH Row ID: ID__26AB038SP_ContPgHS;	-	1	Enquire
024	26AC085SP	MACH - BDYSIDE EXTN RR AERO - FIN - LH INR	26AC085SP MACH - BDYSIDE EXTN RR AERO - FIN - LH INR Row ID: ID__26AC085SP_ContPgHS;	-	1	Enquire
025	26AC086SP	MACH - BODYSIDE EXTN RR AERO - FIN - RH OTR	26AC086SP MACH - BODYSIDE EXTN RR AERO - FIN - RH OTR Row ID: ID__26AC086SP_ContPgHS;	-	1	Enquire
026	00RA301	Clip - Spier - M5 - 0.5/2.1-SS	00RA301 Clip - Spier - M5 - 0.5/2.1-SS Row ID: ID__00RA301_ContPgHS;	-	7	Enquire
027	00RA409	BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS	00RA409 BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS Row ID: ID__00RA409_ContPgHS;	-	4	Enquire
028	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Row ID: ID__00RA432_ContPgHS;	-	50	Enquire
029	00RC063	WASHER - M5X20X1	00RC063 WASHER - M5X20X1 Row ID: ID__00RC063_ContPgHS;	-	1	Enquire
030	26AC707SP	ASSY - BUMPER RR CAMERA	26AC707SP ASSY - BUMPER RR CAMERA Row ID: ID__26AC707SP_ContPgHS;	-	1	Enquire
031	26AC116SP	BUMPER INR STIFFNER PNL ROW	26AC116SP BUMPER INR STIFFNER PNL ROW Row ID: ID__26AC116SP_ContPgHS;	-	1	Enquire
