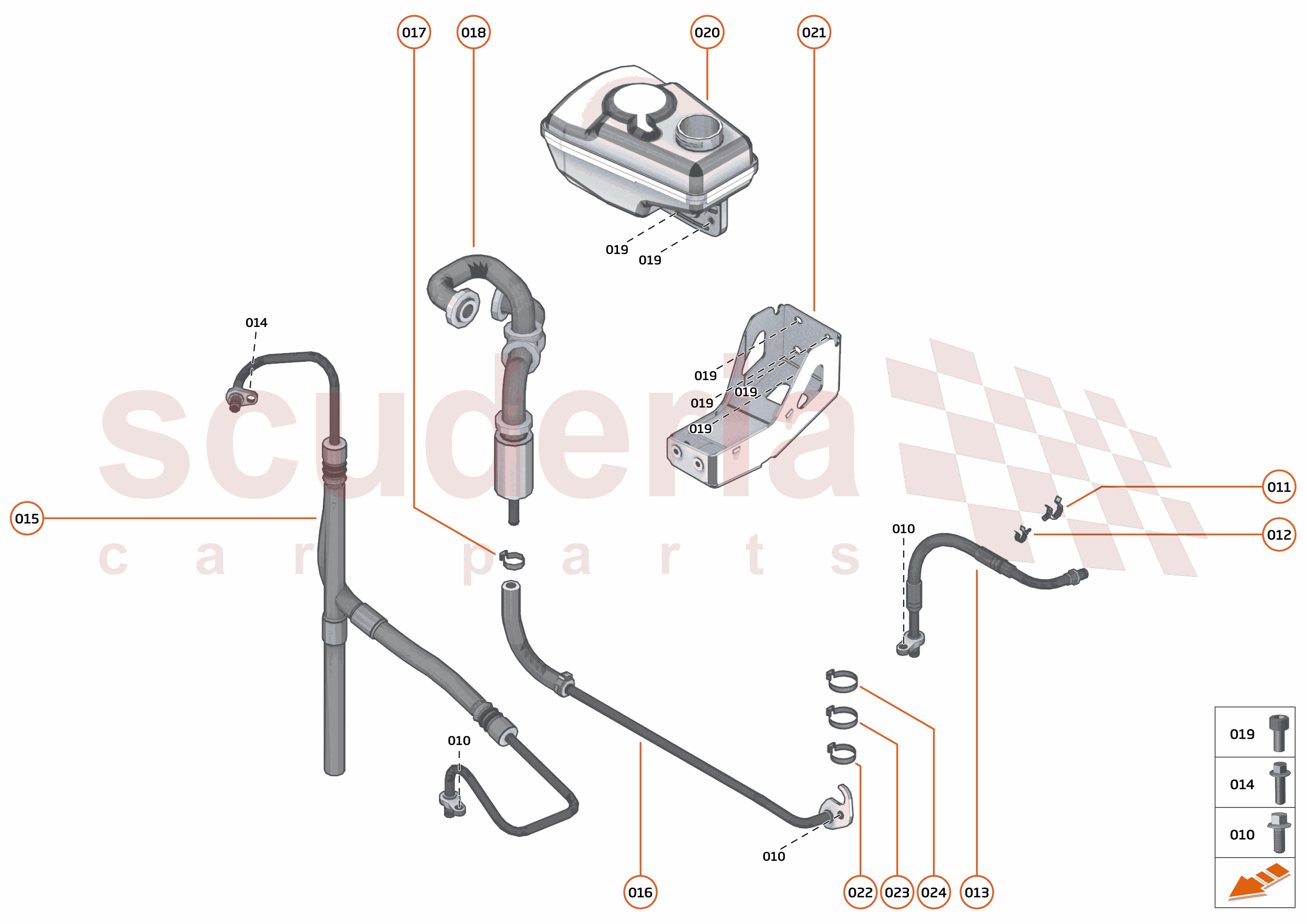

McLaren Ultimate Series McLaren Elva - 19 - STEERING - 19.1 - STEERING FLUID SYSTEM

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
000	00RB007	CLIP - 18-20MM - FEMALE	00RB007 CLIP - 18-20MM - FEMALE Row ID: ID__00RB007_ContPgHS;	-	2	Enquire
010	00RA002	BOLT - M8X20 - HEX	00RA002 BOLT - M8X20 - HEX Row ID: ID__00RA002_ContPgHS;	-	3	Enquire
011	00RB032	CLIP - 13-14MM - FEMALE	00RB032 CLIP - 13-14MM - FEMALE Row ID: ID__00RB032_ContPgHS;	-	1	Enquire
012	00RB045	CLIP - 9.5-10MM - MALE	00RB045 CLIP - 9.5-10MM - MALE Row ID: ID__00RB045_ContPgHS;	-	1	Enquire
013	14D0003CP	ASSY HOSE FEED APMU TO RACK LHD	14D0003CP ASSY HOSE FEED APMU TO RACK LHD Row ID: ID__14D0003CP_ContPgHS;	-	1	Enquire
014	00RA540	SCREW - CAP HEAD - M8X1.25X20-10.9-72	00RA540 SCREW - CAP HEAD - M8X1.25X20-10.9-72 Row ID: ID__00RA540_ContPgHS;	-	1	Enquire
015	14D0100CP	HOSE - PAS PUMP TO APMU - LHD	14D0100CP HOSE - PAS PUMP TO APMU - LHD Row ID: ID__14D0100CP_ContPgHS;	-	1	Enquire
015	14D0101CP	HOSE - PAS PUMP TO APMU - RHD	14D0101CP HOSE - PAS PUMP TO APMU - RHD Row ID: ID__14D0101CP_ContPgHS;	-	1	Enquire
016	13DA004CP	Hose - Filter to Steering Rack - LHD	13DA004CP Hose - Filter to Steering Rack - LHD Row ID: ID__13DA004CP_ContPgHS;	-	1	Enquire
016	14D0070CP	ASSY HOSE FEED APMU TO RACK RHD	14D0070CP ASSY HOSE FEED APMU TO RACK RHD Row ID: ID__14D0070CP_ContPgHS;	$162.46	1
016	13DA006CP	Hose - Filter to Steering Rack - RHD	13DA006CP Hose - Filter to Steering Rack - RHD Row ID: ID__13DA006CP_ContPgHS;	$93.52	1
017	00RB110	OETIKER CLIP - 19.2	00RB110 OETIKER CLIP - 19.2 Row ID: ID__00RB110_ContPgHS;	-	1	Enquire
018	26DA010CP	HOSE RESERVOIR TO FILTER-LHD	26DA010CP HOSE RESERVOIR TO FILTER-LHD Row ID: ID__26DA010CP_ContPgHS;	-	1	Enquire
018	26DA012CP	HOSE-RESERVOIR TO FILTER PUMP-RHD	26DA012CP HOSE-RESERVOIR TO FILTER PUMP-RHD Row ID: ID__26DA012CP_ContPgHS;	-	1	Enquire
019	00RA120	SCREW - M6X25 - HEX	00RA120 SCREW - M6X25 - HEX Row ID: ID__00RA120_ContPgHS;	-	6	Enquire
020	13DA034CP	RESERVOIR - PAS FLUID	13DA034CP RESERVOIR - PAS FLUID Row ID: ID__13DA034CP_ContPgHS;	$72.54	1
021	26DA015SP	BRKT-RESERVOIR-PAS--FLUID_LHD	26DA015SP BRKT-RESERVOIR-PAS--FLUID_LHD Row ID: ID__26DA015SP_ContPgHS;	-	1	Enquire
021	26DA038SP	BRKT-RESERVOIR-PAS-FLUID_RHD	26DA038SP BRKT-RESERVOIR-PAS-FLUID_RHD Row ID: ID__26DA038SP_ContPgHS;	-	1	Enquire
022	00RB113	Hose Clamp - 22.6-706R	00RB113 Hose Clamp - 22.6-706R Row ID: ID__00RB113_ContPgHS;	-	1	Enquire
022	00RB143	CLAMP - 25.6-706R	00RB143 CLAMP - 25.6-706R Row ID: ID__00RB143_ContPgHS;	-	1	Enquire
022	00RB138	HOSE CLAMP - 23.5-706R	00RB138 HOSE CLAMP - 23.5-706R Row ID: ID__00RB138_ContPgHS;	-	1	Enquire
