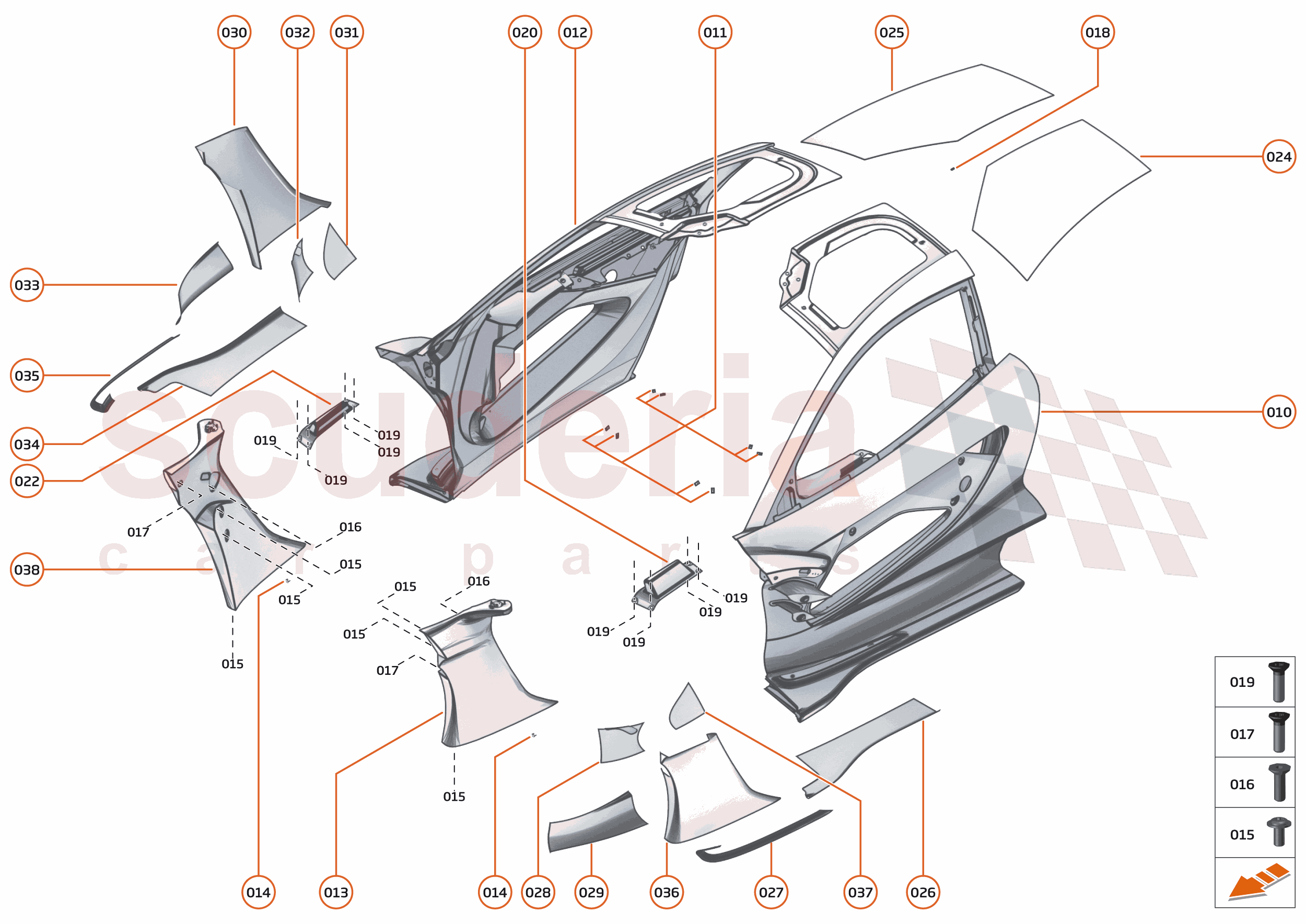

7 - CLOSURES - 7.2 - DOORS STRUCTURE of McLaren McLaren Ultimate Series McLaren Senna

すべて見る

McLaren Ultimate Series McLaren Senna - 7 - CLOSURES - 7.2 - DOORS STRUCTURE

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
010	15AD096CP	DOOR ASSY - LH	15AD096CP DOOR ASSY - LH Superseded parts: 15AC511CP; Row ID: ID_EAAG0101_15AD096CP_ContPgHS;	-	1	Enquire
010	15AD098CP	DOOR ASSY - NON AUDIO - LH	15AD098CP DOOR ASSY - NON AUDIO - LH Superseded parts: 15AC519CP; Row ID: ID_EAAG0112_15AD098CP_ContPgHS;	-	1	Enquire
010	15AA377MP	ASSY DOOR COUPE-NON-AUDIO-LH - VCF	15AA377MP ASSY DOOR COUPE-NON-AUDIO-LH - VCF Row ID: ID__15AA377MP_ContPgHS;	-	1	Enquire
011	00RA301	Clip - Spier - M5 - 0.5/2.1-SS	00RA301 Clip - Spier - M5 - 0.5/2.1-SS Row ID: ID_XXXXXXZY_00RA301_ContPgHS;	-	8	Enquire
012	15AD097CP	DOOR ASSY - RH	15AD097CP DOOR ASSY - RH Superseded parts: 15AC515CP; Row ID: ID_EAAG0103_15AD097CP_ContPgHS;	-	1	Enquire
012	15AD099CP	DOOR ASSY - NON AUDIO - RH	15AD099CP DOOR ASSY - NON AUDIO - RH Superseded parts: 15AC523CP; Row ID: ID_EAAG0113_15AD099CP_ContPgHS;	-	1	Enquire
012	15AA378MP	ASSY DOOR COUPE-NON-AUDIO-RH - VCF	15AA378MP ASSY DOOR COUPE-NON-AUDIO-RH - VCF Row ID: ID__15AA378MP_ContPgHS;	-	1	Enquire
013	15AA682CP	DOOR BLADE - LH	15AA682CP DOOR BLADE - LH Row ID: ID_EAAG0104_15AA682CP_ContPgHS;	-	1	Enquire
014	00RB103	Trim Panel Clip - Raymond - 017842	00RB103 Trim Panel Clip - Raymond - 017842 Row ID: ID_XXXXXXZY_00RB103_ContPgHS;	-	2	Enquire
015	00RA409	BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS	00RA409 BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS Row ID: ID_XXXXXXZV_00RA409_ContPgHS;	-	8	Enquire
016	00RA311	Screw - M6x16 - Hex Socket	00RA311 Screw - M6x16 - Hex Socket Row ID: ID_XXXXXXZV_00RA311_ContPgHS;	-	2	Enquire
018	11A3464CP	SPACER - BULKHEAD GLASS	11A3464CP SPACER - BULKHEAD GLASS Row ID: ID_EAAG0108_11A3464CP_ContPgHS;	$7.35	1
019	00RA635	COUNTERSUNK - TORX HEAD SCREW M5X16	00RA635 COUNTERSUNK - TORX HEAD SCREW M5X16 Row ID: ID_EAAG0109_00RA635_ContPgHS;	-	8	Enquire
020	15AA679CP	ACCESS DOOR PANEL - FRONT - LH	15AA679CP ACCESS DOOR PANEL - FRONT - LH Row ID: ID_EAAG0110_15AA679CP_ContPgHS;	-	1	Enquire
021	15AA886CP	ACCESS DOOR PANEL - FRONT - RH	15AA886CP ACCESS DOOR PANEL - FRONT - RH Row ID: ID_EAAG0111_15AA886CP_ContPgHS;	-	1	Enquire
024	14AB797CP	DOOR PANEL - UPPER - CARBON - FOR PAINT - LH	14AB797CP DOOR PANEL - UPPER - CARBON - FOR PAINT - LH Row ID: ID_EAAG0114_14AB797CP_ContPgHS;	$406.05	1
025	14AB816CP	DOOR PANEL - UPPER - CARBON - FOR PAINT - RH	14AB816CP DOOR PANEL - UPPER - CARBON - FOR PAINT - RH Row ID: ID_EAAG0115_14AB816CP_ContPgHS;	$406.05	1
026	15AC808CP	TAPE - STONE PROTECTION - DOOR SKIRT - TOP LH	15AC808CP TAPE - STONE PROTECTION - DOOR SKIRT - TOP LH Row ID: ID_EAAG0116_15AC808CP_ContPgHS;	-	1	Enquire
027	15AC810CP	TAPE - STONE PROTECTION - DOOR SKIRT - BOTTOM LH	15AC810CP TAPE - STONE PROTECTION - DOOR SKIRT - BOTTOM LH Row ID: ID_EAAG0117_15AC810CP_ContPgHS;	-	1	Enquire
028	15AC804CP	TAPE - STONE PROTECTION - DOOR INNER - TOP LH	15AC804CP TAPE - STONE PROTECTION - DOOR INNER - TOP LH Row ID: ID_EAAG0118_15AC804CP_ContPgHS;	-	1	Enquire
029	15AC806CP	TAPE - STONE PROTECTION - DOOR INNER - BOTTOM LH	15AC806CP TAPE - STONE PROTECTION - DOOR INNER - BOTTOM LH Row ID: ID_EAAG0119_15AC806CP_ContPgHS;	-	1	Enquire
030	15AC812CP	TAPE - STONE PROTECTION - DOOR BLADE - OUTER RH	15AC812CP TAPE - STONE PROTECTION - DOOR BLADE - OUTER RH Row ID: ID_EAAG0120_15AC812CP_ContPgHS;	-	1	Enquire
031	15AC814CP	TAPE - STONE PROTECTION - DOOR GLASS - LOWER RH	15AC814CP TAPE - STONE PROTECTION - DOOR GLASS - LOWER RH Row ID: ID_EAAG0121_15AC814CP_ContPgHS;	-	1	Enquire
032	15AC816CP	TAPE - STONE PROTECTION - DOOR INNER - TOP RH	15AC816CP TAPE - STONE PROTECTION - DOOR INNER - TOP RH Row ID: ID_EAAG0122_15AC816CP_ContPgHS;	-	1	Enquire
033	15AC818CP	TAPE - STONE PROTECTION - DOOR INNER - BOTTOM RH	15AC818CP TAPE - STONE PROTECTION - DOOR INNER - BOTTOM RH Row ID: ID_EAAG0123_15AC818CP_ContPgHS;	-	1	Enquire
034	15AC820CP	TAPE - STONE PROTECTION - DOOR SKIRT - TOP RH	15AC820CP TAPE - STONE PROTECTION - DOOR SKIRT - TOP RH Row ID: ID_EAAG0124_15AC820CP_ContPgHS;	-	1	Enquire
035	15AC822CP	TAPE - STONE PROTECTION - DOOR SKIRT - BOTTOM RH	15AC822CP TAPE - STONE PROTECTION - DOOR SKIRT - BOTTOM RH Row ID: ID_EAAG0127_15AC822CP_ContPgHS;	-	1	Enquire
036	15AC799CP	TAPE - STONE PROTECTION - DOOR BLADE -OUTER LH	15AC799CP TAPE - STONE PROTECTION - DOOR BLADE -OUTER LH Row ID: ID_EAAG0125_15AC799CP_ContPgHS;	-	1	Enquire
037	15AC802CP	TAPE - STONE PROTECTION - DOOR GLASS - LOWER LH	15AC802CP TAPE - STONE PROTECTION - DOOR GLASS - LOWER LH Row ID: ID_EAAG0126_15AC802CP_ContPgHS;	-	1	Enquire
038	15AA683CP	DOOR BLADE - RH	15AA683CP DOOR BLADE - RH Row ID: ID_EAAG0107_15AA683CP_ContPgHS;	-	1	Enquire
