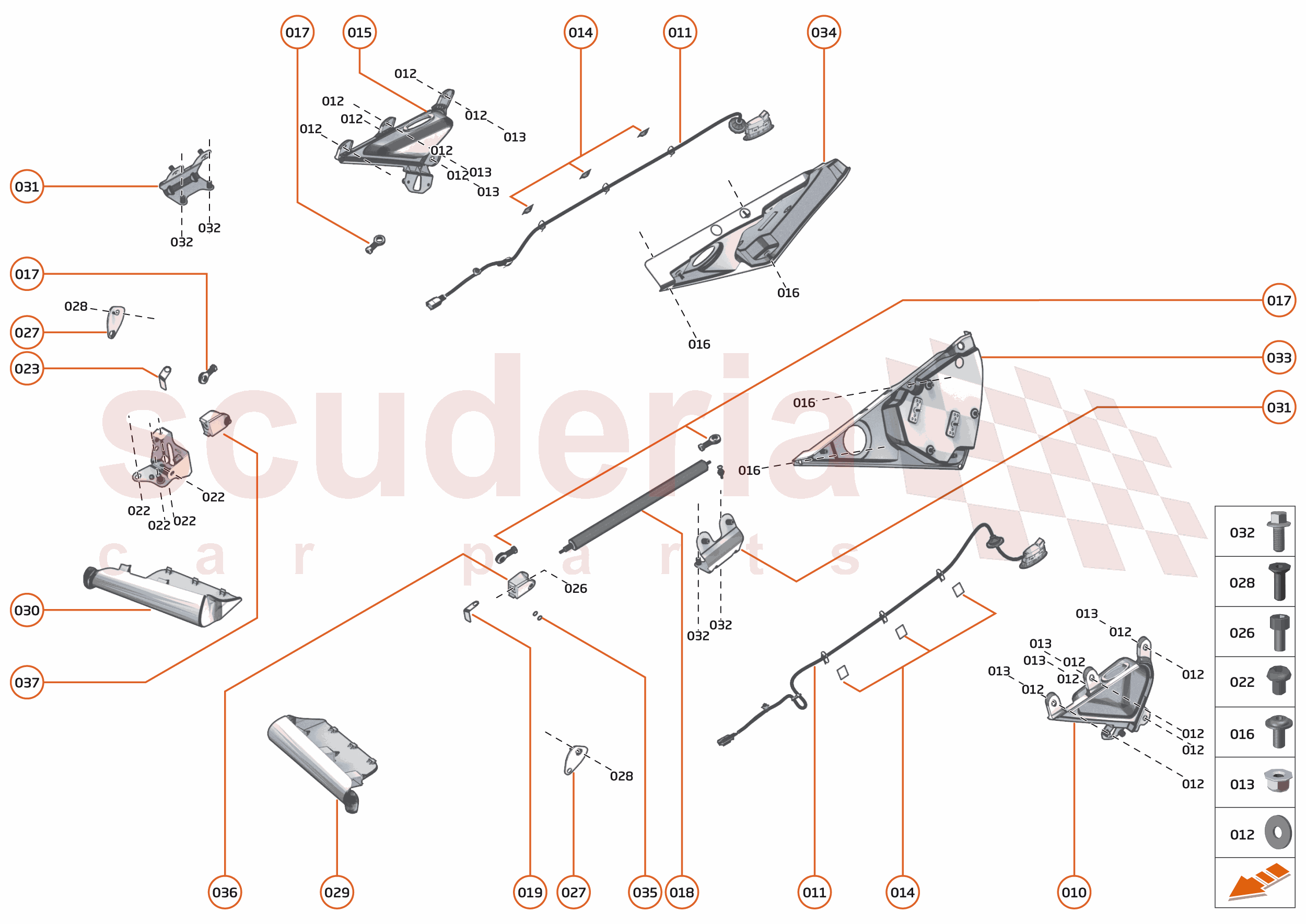

McLaren Ultimate Series McLaren Senna - 10 - CLOSURES ANCILLARIES - 10.3 - DOOR HARDWARE

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
010	15AD251CP	DOOR HANDLE - LH	15AD251CP DOOR HANDLE - LH Row ID: ID_EBAH0601_15AD251CP_ContPgHS;	-	1	Enquire
011	13A4087CP	SWITCH - DOOR RELEASE - PUSH BUTTON	13A4087CP SWITCH - DOOR RELEASE - PUSH BUTTON Row ID: ID_EBAH0602_13A4087CP_ContPgHS;	$88.48	2
012	00RC017	WASHER - M5X15X1.2	00RC017 WASHER - M5X15X1.2 Row ID: ID_XXXXXXZW_00RC017_ContPgHS;	-	16	Enquire
013	00RA555	NUT - M5X0.8 - HEX LOCKED	00RA555 NUT - M5X0.8 - HEX LOCKED Row ID: ID_XXXXXXZV_00RA555_ContPgHS;	-	8	Enquire
014	00RL009	TY-FAST PLATFORM-750-0-C	00RL009 TY-FAST PLATFORM-750-0-C Row ID: ID_XXXXXXZW_00RL009_ContPgHS;	-	6	Enquire
015	15AD252CP	DOOR HANDLE - RH	15AD252CP DOOR HANDLE - RH Row ID: ID_EBAH0604_15AD252CP_ContPgHS;	-	1	Enquire
016	00RA398	SCREW - SOCKET HEAD - FLANGED - M5X10	00RA398 SCREW - SOCKET HEAD - FLANGED - M5X10 Row ID: ID_XXXXXXZV_00RA398_ContPgHS;	-	4	Enquire
017	00RA641	ROD END - GAS STRUT	00RA641 ROD END - GAS STRUT Row ID: ID_EBAH0605_00RA641_ContPgHS;	-	4	Enquire
019	15AC072CP	BRACKET - GAS STRUT - FRONT - LH	15AC072CP BRACKET - GAS STRUT - FRONT - LH Row ID: ID_EBAH0607_15AC072CP_ContPgHS;	-	1	Enquire
022	00RA019	SCREW - M6X12-10.9 - HEX	00RA019 SCREW - M6X12-10.9 - HEX Row ID: ID_XXXXXXZV_00RA019_ContPgHS;	-	8	Enquire
023	15AC073CP	BRACKET - GAS STRUT - FRONT - RH	15AC073CP BRACKET - GAS STRUT - FRONT - RH Row ID: ID_EBAH0611_15AC073CP_ContPgHS;	-	1	Enquire
026	00RA152	Screw - M6x25 - Hex Socket	00RA152 Screw - M6x25 - Hex Socket Row ID: ID_XXXXXXZV_00RA152_ContPgHS;	-	2	Enquire
027	15AB224CP	MOUNTING PLATE - DOOR BLADE	15AB224CP MOUNTING PLATE - DOOR BLADE Row ID: ID_EBAH0614_15AB224CP_ContPgHS;	-	2	Enquire
028	00RA311	Screw - M6x16 - Hex Socket	00RA311 Screw - M6x16 - Hex Socket Row ID: ID_XXXXXXZV_00RA311_ContPgHS;	-	2	Enquire
029	15AA592CP	STONE PROTECTION - DOOR - LH	15AA592CP STONE PROTECTION - DOOR - LH Row ID: ID_EBAH0616_15AA592CP_ContPgHS;	-	1	Enquire
030	15AA850CP	STONE PROTECTION - DOOR - RH	15AA850CP STONE PROTECTION - DOOR - RH Row ID: ID_EBAH0617_15AA850CP_ContPgHS;	-	1	Enquire
031	15AA592CP	STONE PROTECTION - DOOR - LH	15AA592CP STONE PROTECTION - DOOR - LH Row ID: ID_EBAH0618_15AA592CP_ContPgHS;	-	2	Enquire
032	00RA556	BOLT - HEX - FLANGED - M6X16	00RA556 BOLT - HEX - FLANGED - M6X16 Row ID: ID_XXXXXXZV_00RA556_ContPgHS;	-	4	Enquire
033	15AC918CP	ACCESS DOOR PANEL - REAR - LH	15AC918CP ACCESS DOOR PANEL - REAR - LH Row ID: ID_EBAH0619_15AC918CP_ContPgHS;	-	1	Enquire
034	15AC919CP	ACCESS DOOR PANEL - REAR - RH	15AC919CP ACCESS DOOR PANEL - REAR - RH Row ID: ID_EBAH0620_15AC919CP_ContPgHS;	-	1	Enquire
036	15AC841CP	MOUNT - GAS STRUT	15AC841CP MOUNT - GAS STRUT Row ID: ID_EBAH0621_15AC841CP_ContPgHS;	-	1	Enquire
037	15AC842CP	MOUNT - GAS STRUT	15AC842CP MOUNT - GAS STRUT Row ID: ID_EBAH0622_15AC842CP_ContPgHS;	-	1	Enquire
