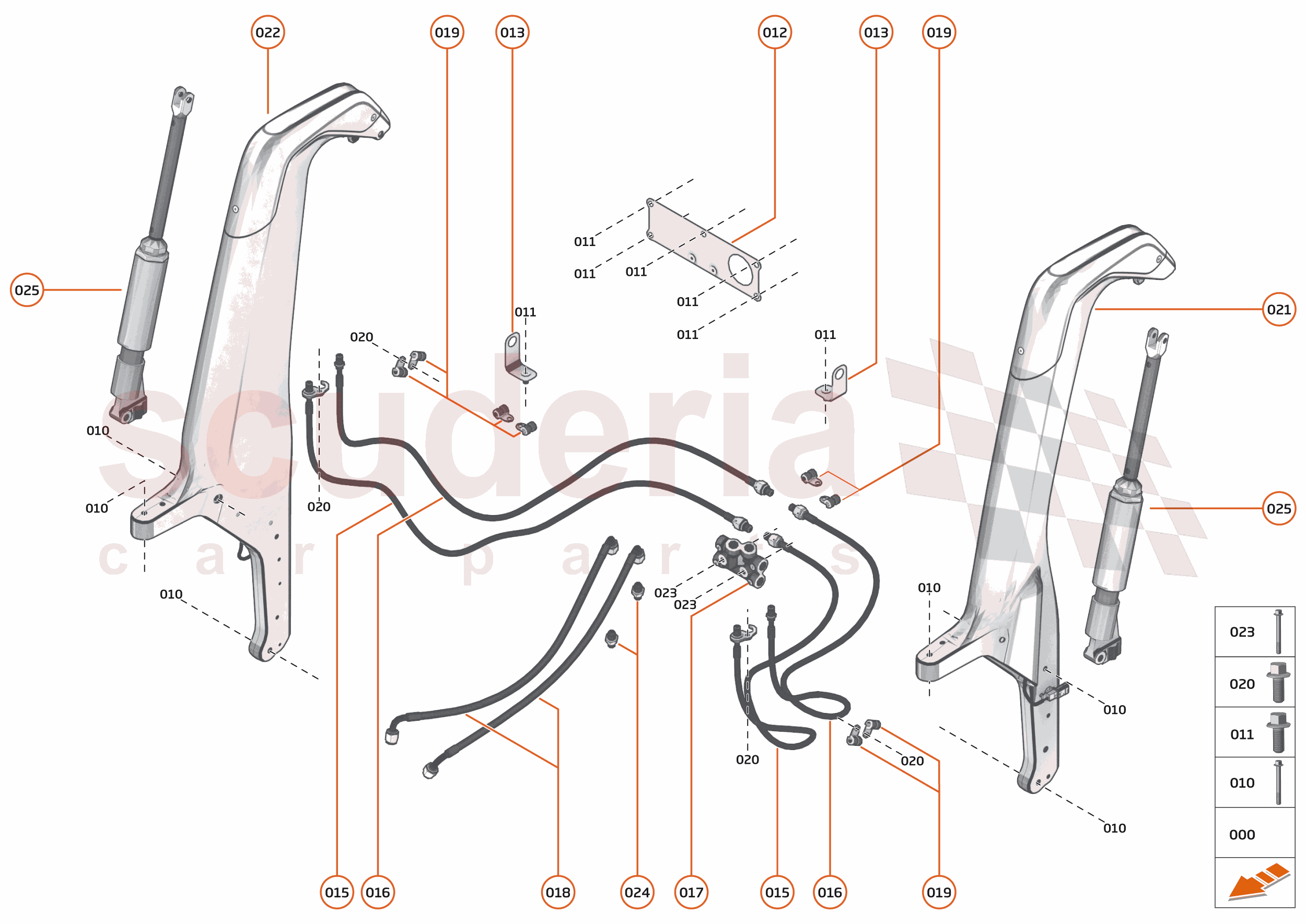

McLaren Ultimate Series McLaren Senna - 19 - AERO MECHANISMS - 19.2 - REAR ACTIVE AERO MECHANISMS

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
010	00RA481	BOLT - HEX HEAD - FLANGED - M8X45	00RA481 BOLT - HEX HEAD - FLANGED - M8X45 Row ID: ID_XXXXXXZV_00RA481_ContPgHS;	-	6	Enquire
011	00RA313	Screw - M6x16 - Hex - Silver	00RA313 Screw - M6x16 - Hex - Silver Row ID: ID_EAAF0366_00RA313_ContPgHS;	-	7	Enquire
012	15AC963CP	BRACKET - AIRBRAKE MANIFOLD	15AC963CP BRACKET - AIRBRAKE MANIFOLD Superseded parts: 15AC102CP; Row ID: ID_ECAT0202_15AC963CP_ContPgHS;	-	1	Enquire
013	15AC097CP	BRACKET - AIRBRAKE HOSE SUPPORT	15AC097CP BRACKET - AIRBRAKE HOSE SUPPORT Row ID: ID_ECAT0203_15AC097CP_ContPgHS;	-	2	Enquire
015	15AC936CP	HOSE - ACTUATOR - UNION MANIFOLD	15AC936CP HOSE - ACTUATOR - UNION MANIFOLD Superseded parts: 15AC207CP; Row ID: ID_ECAT0204_15AC936CP_ContPgHS;	-	2	Enquire
016	15AC937CP	HOSE - ACTUATOR - UNION MANIFOLD	15AC937CP HOSE - ACTUATOR - UNION MANIFOLD Superseded parts: 15AC208CP; Row ID: ID_ECAT0205_15AC937CP_ContPgHS;	-	2	Enquire
017	11A4676CP	HOSE UNION MANIFOLD	11A4676CP HOSE UNION MANIFOLD Row ID: ID_ECAT0206_11A4676CP_ContPgHS;	$164.21	1
018	15AC167CP	HOSE - GEARBOX TO MANIFOLD	15AC167CP HOSE - GEARBOX TO MANIFOLD Row ID: ID_ECAT0207_15AC167CP_ContPgHS;	-	2	Enquire
019	00RB098	P-Clip - Dia 10 - Silicone	00RB098 P-Clip - Dia 10 - Silicone Row ID: ID_ECAT0208_00RB098_ContPgHS;	-	8	Enquire
020	00RA083	SCREW - M6X20 - FLANGE HEX	00RA083 SCREW - M6X20 - FLANGE HEX Row ID: ID_XXXXXXZV_00RA083_ContPgHS;	-	4	Enquire
021	15AD292CP	AIR BRAKE MECHANISMS - LH	15AD292CP AIR BRAKE MECHANISMS - LH Row ID: ID_ECAT0209_15AD292CP_ContPgHS;	-	1	Enquire
022	15AD294CP	AIR BRAKE MECHANISMS - RH	15AD294CP AIR BRAKE MECHANISMS - RH Row ID: ID_ECAT0210_15AD294CP_ContPgHS;	-	1	Enquire
023	00RA594	BOLT - HEX HEAD - FLANGE - M6X1X55-8.8-72	00RA594 BOLT - HEX HEAD - FLANGE - M6X1X55-8.8-72 Row ID: ID_XXXXXXZV_00RA594_ContPgHS;	-	2	Enquire
024	14A0110CP	CONNECTOR HOSE GEARBOX 8MM	14A0110CP CONNECTOR HOSE GEARBOX 8MM Row ID: ID_ECAT0212_14A0110CP_ContPgHS;	$17.19	2
025	15AC825CP	ASSY ACTUATOR - REAR WING	15AC825CP ASSY ACTUATOR - REAR WING Row ID: ID_ECAT0213_15AC825CP_ContPgHS;	-	1	Enquire
026	15AC828CP	POSITION SENSOR RR - ROTARY VERT-X 13E - REAR	15AC828CP POSITION SENSOR RR - ROTARY VERT-X 13E - REAR Row ID: ID__15AC828CP_ContPgHS;	-	1	Enquire
027	15AD331CP	PYLON MECH - COVER BOLT - AEROBRAKE	15AD331CP PYLON MECH - COVER BOLT - AEROBRAKE Row ID: ID__15AD331CP_ContPgHS;	-	1	Enquire
028	15AD333CP	AIR BRAKE MECH KIT	15AD333CP AIR BRAKE MECH KIT Row ID: ID__15AD333CP_ContPgHS;	-	1	Enquire
