22 - Accessories - Chassis - 22.1 - Accessories - Chassis

McLaren Ultimate Series McLaren Senna GTR

自分の役割を見つける

McLaren Ultimate Series McLaren Senna GTR - 22 - ACCESSORIES - CHASSIS - 22.1 - ACCESSORIES - CHASSIS

分解部品図を表示して、探している部品を見つけます:
  • 図をドラッグして位置を変更できます
  • スクロール、ピンチ、または and buttons
  • 部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。
パートキー
IN
在庫あり
AS
もうすぐ到着します
TO
注文するには
PE
お問い合わせください

すべて見る

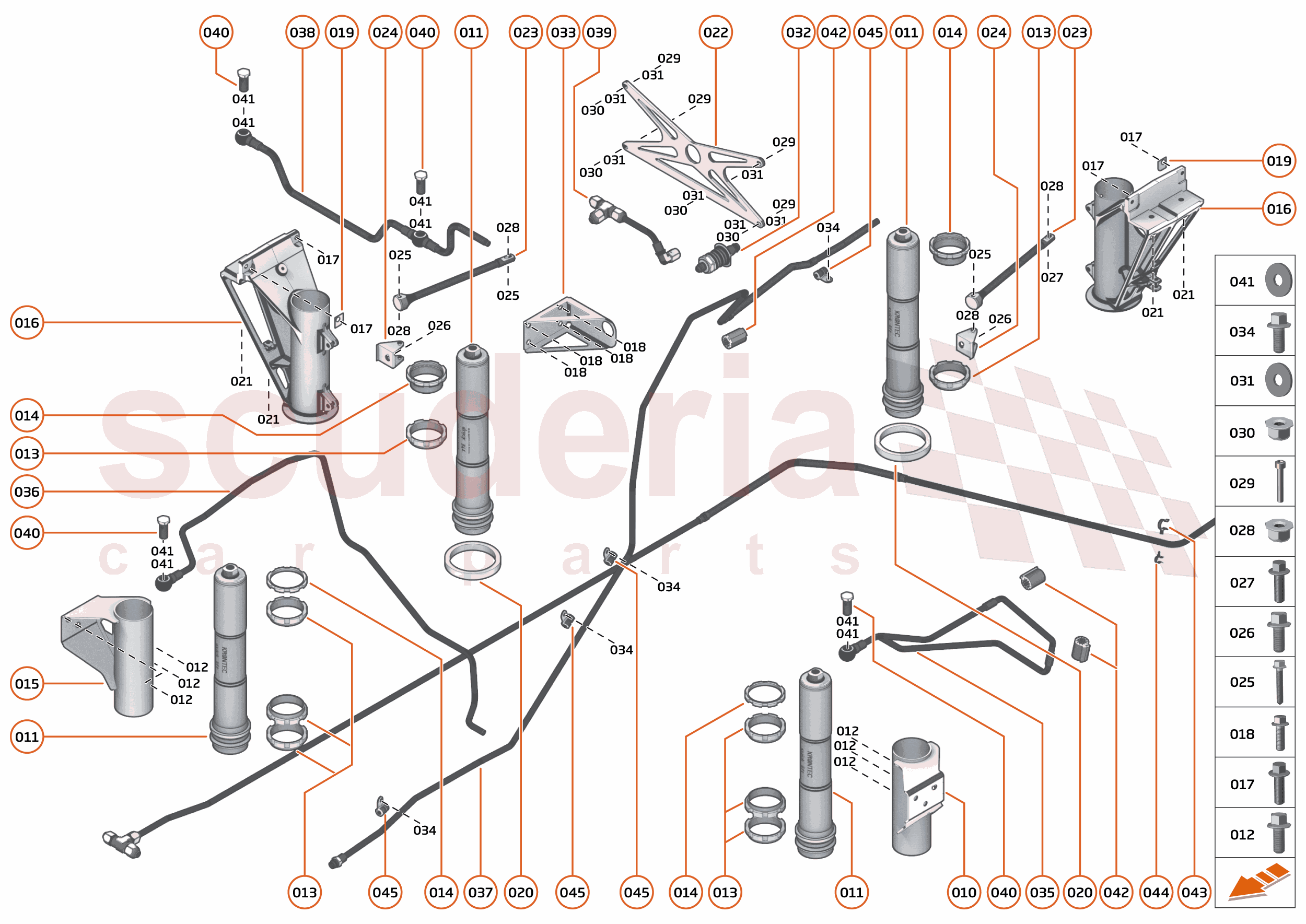

22 - ACCESSORIES - CHASSIS - 22.1 - ACCESSORIES - CHASSIS of McLaren McLaren Ultimate Series McLaren Senna GTR ダイアグラム タップして拡大します
# 部品詳細 価格 （各） 図の数量 カートに追加
010 15CA027RP
BRKT AIRJACK FR LH
Row ID: ID__15CA027RP_ContPgHS; 		- 1 Enquire
011 15CA077RP
AIRJACK KRONTEC LL-32-230
Row ID: ID__15CA077RP_ContPgHS; 		- - Enquire
012 00RA002
BOLT - M8X20 - HEX
Row ID: ID__00RA002_ContPgHS; 		- - Enquire
013 ZZAA007QP
AIRJACK COLLAR NUT 50MM
Row ID: ID__ZZAA007QP_ContPgHS; 		- - Enquire
014 15CA153RP
LOCKNUT M50X1.5
Row ID: ID__15CA153RP_ContPgHS; 		- - Enquire
015 15CA029RP
BRKT AIRJACK FR RH
Row ID: ID__15CA029RP_ContPgHS; 		- 1 Enquire
016 15CA031RP
BRKT AIRJACK RR LH
Row ID: ID__15CA031RP_ContPgHS; 		- - Enquire
017 00RA120
SCREW - M6X25 - HEX
Row ID: ID__00RA120_ContPgHS; 		- - Enquire
018 00RA083
SCREW - M6X20 - FLANGE HEX
Row ID: ID__00RA083_ContPgHS; 		- - Enquire
019 15CA079RP
SPACER AIRJACK BRKT
Row ID: ID__15CA079RP_ContPgHS; 		- - Enquire
020 15BA142RP
FOAM AIRJACK SEALING REAR
Row ID: ID__15BA142RP_ContPgHS; 		- - Enquire
021 00RA557
BOLT - HEX HEAD - M8X1.25X25
Row ID: ID__00RA557_ContPgHS; 		- 2 Enquire
022 15CA035RP
BRACE STAY-RR
Row ID: ID__15CA035RP_ContPgHS; 		- 1 Enquire
023 15CA036RP
BRACE STAY SUBFRAME-RR
Row ID: ID__15CA036RP_ContPgHS; 		- 2 Enquire
024 15CA078RP
CLEVIS AIRJACK BRACE RR
Row ID: ID__15CA078RP_ContPgHS; 		- 2 Enquire
025 00RA349
Bolt - M6X40 - Hex
Row ID: ID__00RA349_ContPgHS; 		- 2 Enquire
026 00RA457
SCREW - M10X30-10.9 - HEX
Row ID: ID__00RA457_ContPgHS; 		- 2 Enquire
027 00RA073
SCREW - M6X30 - HEX
Row ID: ID__00RA073_ContPgHS; 		- - Enquire
028 00RA055
NUT - M6 - LOCKING - HEX
Row ID: ID__00RA055_ContPgHS; 		- - Enquire
029 ZZTA054QP
M6X30 UNBRAKO SHCS
Row ID: ID__ZZTA054QP_ContPgHS; 		- 4 Enquire
030 ZZUA016QP
M6X1.0 6PT KNUT
Row ID: ID__ZZUA016QP_ContPgHS; 		- 4 Enquire
031 00RC097
Washer - 6.4x12x1.6
Row ID: ID__00RC097_ContPgHS; 		- 8 Enquire
032 15BA176RP
AIR JACK VALVE
Row ID: ID__15BA176RP_ContPgHS; 		- 1 Enquire
033 15CA039RP
BRKT AIRJACK VALVE
Row ID: ID__15CA039RP_ContPgHS; 		- 1 Enquire
034 00RA313
Screw - M6x16 - Hex - Silver
Row ID: ID__00RA313_ContPgHS; 		- 4 Enquire
035 15CA041RP
HARDLINE AIRJACK FR LH
Row ID: ID__15CA041RP_ContPgHS; 		- 1 Enquire
036 15CA042RP
HARDLINE AIRJACK FR RH
Row ID: ID__15CA042RP_ContPgHS; 		- 1 Enquire
037 15CA044RP
HARDLINE AIRJACK FR-RR 2
Row ID: ID__15CA044RP_ContPgHS; 		- 1 Enquire
038 15CA046RP
HARDLINE AIRJACK RR RH
Row ID: ID__15CA046RP_ContPgHS; 		- 1 Enquire
039 15CA047RP
HARDLINE AIRJACK FILL
Row ID: ID__15CA047RP_ContPgHS; 		- 1 Enquire
040 15CA140RP
BANJO BOLT M14X1.5
Row ID: ID__15CA140RP_ContPgHS; 		- 4 Enquire
041 15CA141RP
BANJO WASHER 14MM
Row ID: ID__15CA141RP_ContPgHS; 		- 8 Enquire
042 00RA366
PIPE PROTECTOR - 13MM ID
Row ID: ID__00RA366_ContPgHS; 		- 3 Enquire
043 00RB032
CLIP - 13-14MM - FEMALE
Row ID: ID__00RB032_ContPgHS; 		- 1 Enquire
044 00RB045
CLIP - 9.5-10MM - MALE
Row ID: ID__00RB045_ContPgHS; 		- 1 Enquire
045 00RB098
P-Clip - Dia 10 - Silicone
Row ID: ID__00RB098_ContPgHS; 		- - Enquire
