McLaren Ultimate Series McLaren Senna GTR - 23 - ENGINE - 23.5 - FRONT COVER, TIMING GEAR & CRANKSHAFT DAMPER

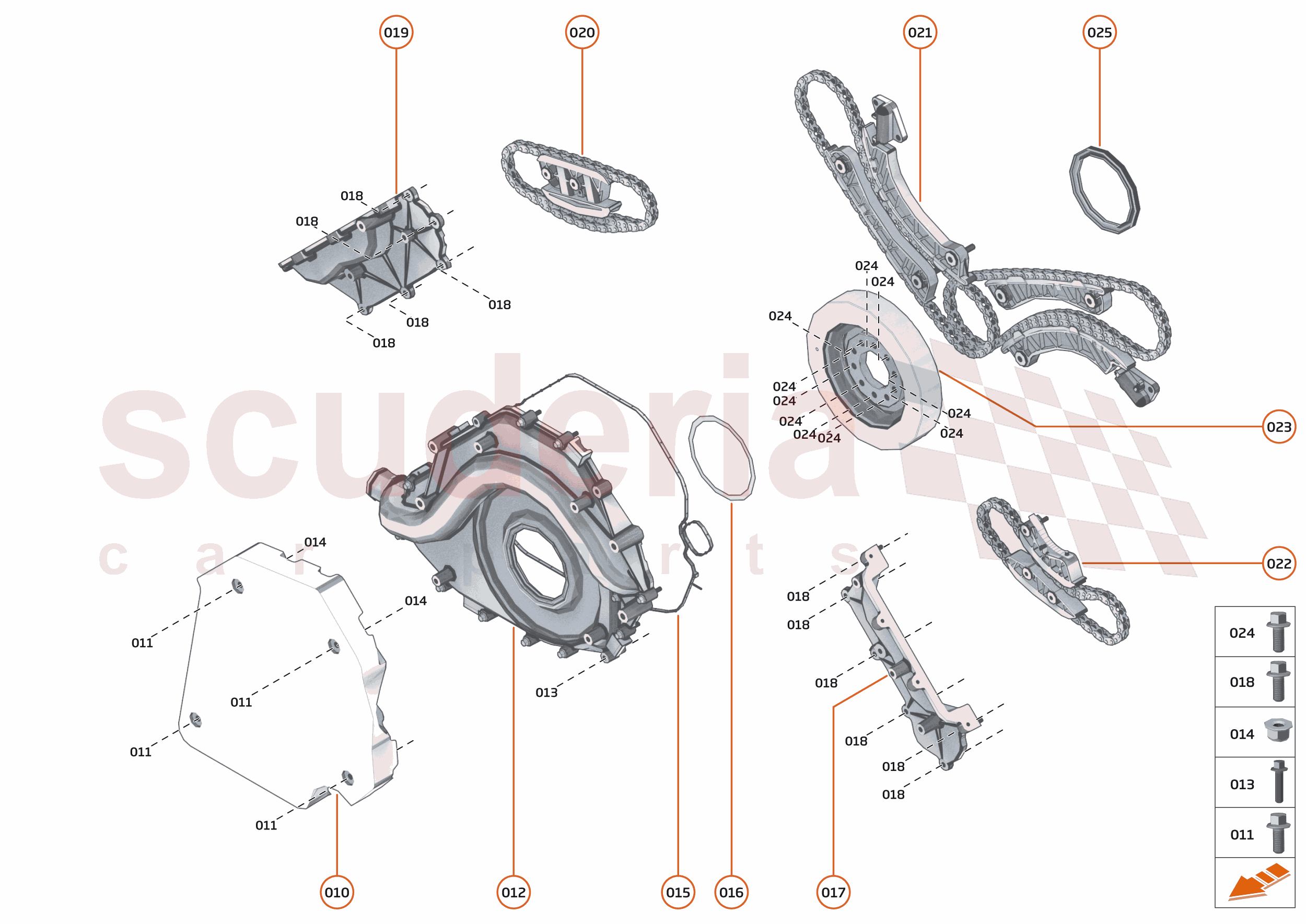

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
010	14F0855CP	NVH - FRONT COVER	14F0855CP NVH - FRONT COVER Row ID: ID__14F0855CP_ContPgHS;	$192.58	1
011	00RA120	SCREW - M6X25 - HEX	00RA120 SCREW - M6X25 - HEX Row ID: ID__00RA120_ContPgHS;	-	4	Enquire
012	14F0851CP	Front Cover - Engine - inc Perimeter Seal - Not Inc Crank Seal	14F0851CP Front Cover - Engine - inc Perimeter Seal - Not Inc Crank Seal Row ID: ID__14F0851CP_ContPgHS;	$377.69	-
013	11F1776CP	Bolt - M6x30 - Engine	11F1776CP Bolt - M6x30 - Engine Row ID: ID__11F1776CP_ContPgHS;	$9.55	14
013	11F0824CP	BOLT - M6X30 - ENGINE	11F0824CP BOLT - M6X30 - ENGINE Row ID: ID__11F0824CP_ContPgHS;	-	-	Enquire
014	11F1904CP	NUT - M6	11F1904CP NUT - M6 NUT - M6; Row ID: ID__11F1904CP_ContPgHS;	$4.38	2
015	11F1393CP	Seal - Engine - Front Cover Perimeter	11F1393CP Seal - Engine - Front Cover Perimeter Row ID: ID__11F1393CP_ContPgHS;	$50.76	1
016	11F2579CP	SEAL - CRANK - FRONT	11F2579CP SEAL - CRANK - FRONT Row ID: ID__11F2579CP_ContPgHS;	$101.53	1
017	11F0977CP	Cover - Cylinder Head Front - LH - Engine	11F0977CP Cover - Cylinder Head Front - LH - Engine Row ID: ID__11F0977CP_ContPgHS;	$138.00	1
018	11F1793CP	BOLT - M6X20 - HEX	11F1793CP BOLT - M6X20 - HEX Row ID: ID__11F1793CP_ContPgHS;	$10.14	16
019	11F0978CP	Cover - Cylinder Head Front - RH - Engine	11F0978CP Cover - Cylinder Head Front - RH - Engine Row ID: ID__11F0978CP_ContPgHS;	$138.00	1
020	11F0722CP	Chain Drive Kit - Engine - Oil Pump	11F0722CP Chain Drive Kit - Engine - Oil Pump Row ID: ID__11F0722CP_ContPgHS;	$198.55	1
021	11F0723CP	Camshaft Drive Kit - Engine	11F0723CP Camshaft Drive Kit - Engine Row ID: ID__11F0723CP_ContPgHS;	$1,210.89	1
022	11F0721CP	Chain Drive Kit - Engine - Water Pump	11F0721CP Chain Drive Kit - Engine - Water Pump Row ID: ID__11F0721CP_ContPgHS;	$235.87	1
023	11F0708CP	Damper - Engine Crankshaft	11F0708CP Damper - Engine Crankshaft Row ID: ID__11F0708CP_ContPgHS;	$582.21	1
024	11F0816CP	Bolt Set - M8x20 - Engine - Crankshaft Damper	11F0816CP Bolt Set - M8x20 - Engine - Crankshaft Damper Row ID: ID__11F0816CP_ContPgHS;	$54.00	1
025	11F2344CP	Seal - Engine Crank - Rear	11F2344CP Seal - Engine Crank - Rear Row ID: ID__11F2344CP_ContPgHS;	$92.16	1
