Wheel & Tyres, Rear of Aston Martin Aston Martin GT DB9 (2004-2017)

すべて見る

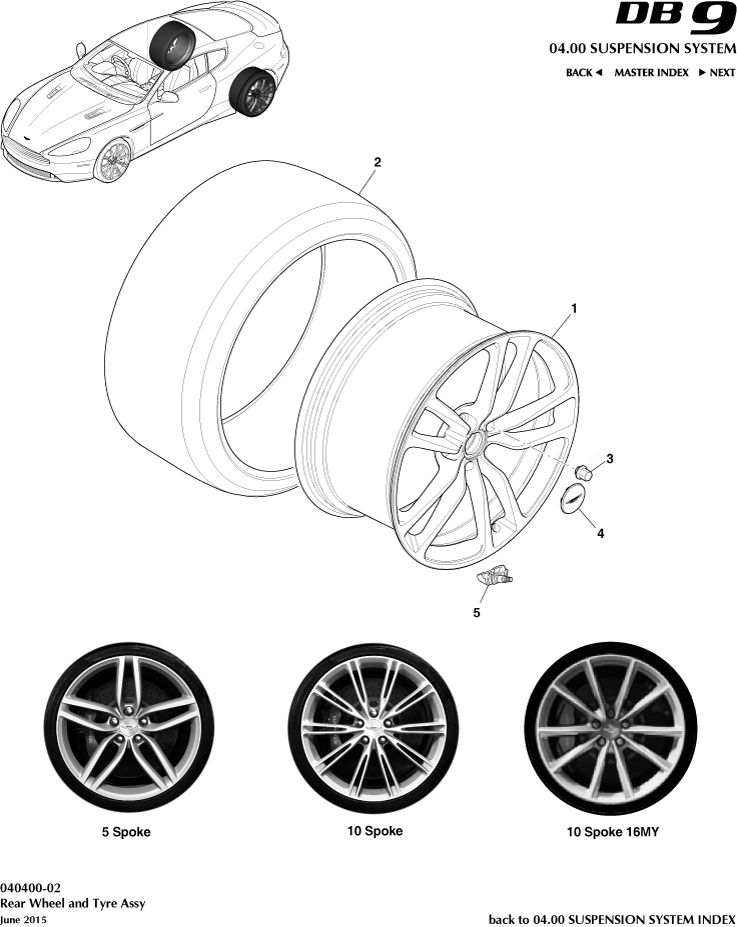

Aston Martin GT DB9 (2004-2017) - Wheel & Tyres, Rear

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	CG439965GGA	Wheel Rear-20 inch - 5 Spoke CFF Silver	CG439965GGA Wheel Rear-20 inch - 5 Spoke CFF Silver Silver	$1,101.19	2
-	GG439965GJA	Wheel, Rear, 20 inch, 5 Spoke	GG439965GJA Wheel, Rear, 20 inch, 5 Spoke From 16MY, Black, DT	$865.59	2
-	CG439965GDB	Wheel Rear-20 inch - 10 Spoke Silver DT Forged	CG439965GDB Wheel Rear-20 inch - 10 Spoke Silver DT Forged From 13MY To 16MY, Silver, DT	$3,077.49	2
-	CG439965GEB	Wheel Rear-20 inch - 10 Spoke Graphite DT Forged	CG439965GEB Wheel Rear-20 inch - 10 Spoke Graphite DT Forged From 13MY To 16MY, Graphite, DT	$3,819.82	2
-	CG439965GKB	Wheel Rear-20 inch - 10 Spoke Satin Black DT Forged	CG439965GKB Wheel Rear-20 inch - 10 Spoke Satin Black DT Forged From 13MY To 16MY, Satin Black, DT	$4,338.56	2
-	CG439965GFB	Wheel Rear-20 inch - 10 Spoke Liquid Silver Forged	CG439965GFB Wheel Rear-20 inch - 10 Spoke Liquid Silver Forged From 13MY To 16MY, Liquid Silver	$3,418.97	2
-	CG439965GLB	Wheel Rear-20 inch - Gloss Black Forged	CG439965GLB Wheel Rear-20 inch - Gloss Black Forged From 13MY To 16MY, Gloss Black	$4,361.79	2
-	GG439965GAA	Wheel, Rear, 20 inch, 10 Spoke	GG439965GAA Wheel, Rear, 20 inch, 10 Spoke From 16MY, Gloss Black, DT	$3,261.82	2
-	GG439965GCA	Wheel, Rear, 20 inch, 10 Spoke	GG439965GCA Wheel, Rear, 20 inch, 10 Spoke From 16MY, Silver, DT	$3,280.30	2
-	No longer available	Engine Assembly, 6.0 ltr V12, New	No longer available Engine Assembly, 6.0 ltr V12, New Refer to Pirelli	-	2	Enquire
-	7G331A096BBPK	Cap, Wheel Centre	7G331A096BBPK Cap, Wheel Centre Graphite Cap/Green Wings, Pack of 4	-	1	Enquire
-	8D331A096ABPK	Cap, Wheel Centre	8D331A096ABPK Cap, Wheel Centre Silver Cap/Black Wings, Pack of 4	-	1	Enquire
-	CD331A096ABPK	Cap, Wheel Centre	CD331A096ABPK Cap, Wheel Centre Black Cap/Black Wings, Pack of 4	-	1	Enquire
-	CD331A096BBPK	Cap, Wheel Centre	CD331A096BBPK Cap, Wheel Centre Black Cap/Green Wings, Pack of 4	-	1	Enquire
-	CD23360671DA	Transmitter/valve (315MHZ)	CD23360671DA Transmitter/valve (315MHZ) 315MHZ	$211.72	1
-	CD237042AA	INFLATION VALVE ASSEMBLY	CD237042AA INFLATION VALVE ASSEMBLY -	-	1	Enquire
-	4G43-1040-BA	ウェイト、カウンターバランス	4G43-1040-BA ウェイト、カウンターバランス Grey	-	-	Enquire
-	ED231040AA	BALANCE WEIGHT, 5g	ED231040AA BALANCE WEIGHT, 5g Black	$2.59	-
-	CG43974747AA	Label, Winter Tyre, Maximum Speeds(When Fitted)	CG43974747AA Label, Winter Tyre, Maximum Speeds(When Fitted) -	$10.67	1
1	CG439965GBA	Wheel Rear-20 inch - 5 Spoke CFF Graphite DT	CG439965GBA Wheel Rear-20 inch - 5 Spoke CFF Graphite DT Up To 16MY, Graphite Diamond Turned	$2,986.11	2
2	FG431508BA	Tyre, Road - 295/30 ZR20	FG431508BA Tyre, Road - 295/30 ZR20 ECE R117	$614.46	2
3	4G431K024BD	Nut assy, Wheel IN STOCK	4G431K024BD Nut assy, Wheel - IN STOCK	$30.47	10
4	6G331A096ABPK	Cap, Wheel Centre	6G331A096ABPK Cap, Wheel Centre Silver Cap/Green Wings, Pack of 4	-	1	Enquire
5	CD23360671CA	Transmitter/valve (433MHZ) IN STOCK	CD23360671CA Transmitter/valve (433MHZ) 433MHZ IN STOCK	$219.48	1
