Air Distribution Components of Aston Martin Aston Martin GT DB9 (2004-2017)

すべて見る

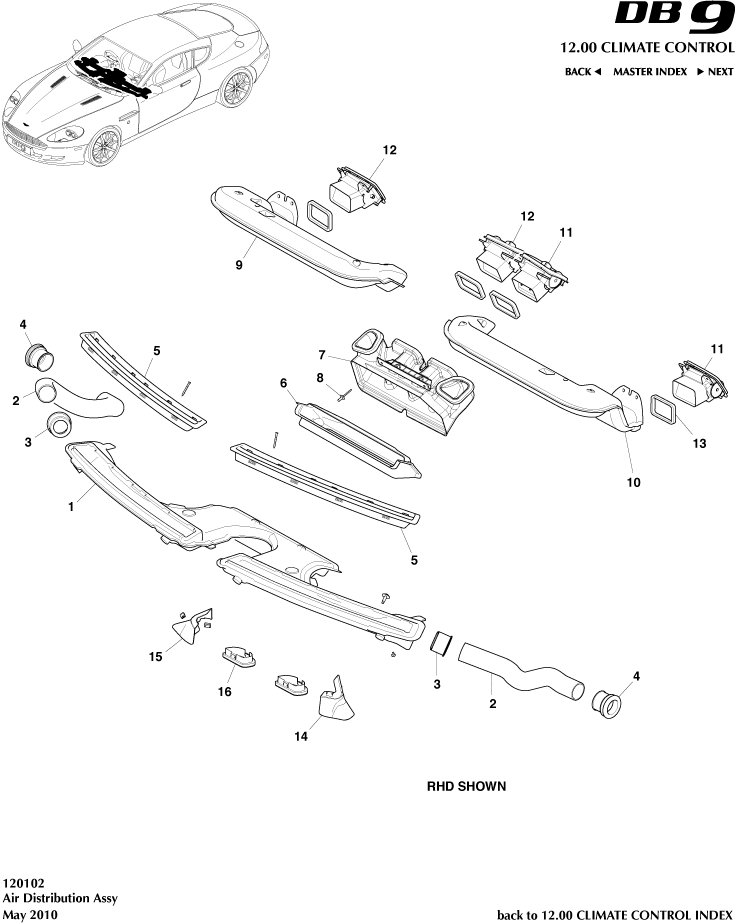

Aston Martin GT DB9 (2004-2017) - 空気分配コンポーネント

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	6G3304432AD	DUCT ASSEMBLY, WINDSCREEN	6G3304432AD DUCT ASSEMBLY, WINDSCREEN -	$145.99	1
-	701433	Screw and Washer, M6 x 18	701433 Screw and Washer, M6 x 18 08MY From (V) A09110	-	4	Enquire
-	701157	Screw st4.2x16 Large Washer Hd	701157 Screw st4.2x16 Large Washer Hd 08MY From (V) A09110	-	6	Enquire
-	6G3379231AA	Screw, M3.5 x 38 Pozi	6G3379231AA Screw, M3.5 x 38 Pozi Window Defrost Grille	-	4	Enquire
-	8G4318D404BB	Duct Assembly, Heater Air Dstr ctr, RHD	8G4318D404BB Duct Assembly, Heater Air Dstr ctr, RHD 08MY From (V) A09110	$86.10	1
-	4G4318D404AD	Duct Assembly, Heater Air Dist, Centre, LHD	4G4318D404AD Duct Assembly, Heater Air Dist, Centre, LHD -	$573.84	1
-	8G4318D404AC	Duct Assembly, Heater Air Dstr ctr, LHD	8G4318D404AC Duct Assembly, Heater Air Dstr ctr, LHD 08MY From (V) A09110	$83.10	1
-	8G4319C804AC	Duct Assembly, Instrument Panel RH	8G4319C804AC Duct Assembly, Instrument Panel RH 08MY From (V) A09110	-	1	Enquire
-	8G4319C805AC	Duct Assembly, Instrument Panel LH	8G4319C805AC Duct Assembly, Instrument Panel LH 08MY From (V) A09110	$73.24	1
-	8D33046B31BB	Register Assembly, LH	8D33046B31BB Register Assembly, LH Iridium Silver with White Symbols	$150.07	2
-	8D33046B30BB	Register Assembly, RH	8D33046B30BB Register Assembly, RH Iridium Silver with White Symbols	$150.07	2
-	703068	SCREW, 4.2x9, LARGEFLANGE	703068 SCREW, 4.2x9, LARGEFLANGE 08MY From (V) A09110	$0.13	12
-	701447	Screw M4x12 Pan collar IN STOCK	701447 Screw M4x12 Pan collar 08MY From (V) A09110 IN STOCK	$0.56	12
-	9D33014K96AA	Duct Assembly, vent air lower, Lwr RH, RHD	9D33014K96AA Duct Assembly, vent air lower, Lwr RH, RHD 09MY	$7.85	1
-	8G43014K96AB	Duct Assembly, vent air lower, Lwr RH, LHD	8G43014K96AB Duct Assembly, vent air lower, Lwr RH, LHD 08MY From (V) A09110	$40.45	1
-	8G43014K97AB	Duct, Assembly Vent Air Lower, LS LHD	8G43014K97AB Duct, Assembly Vent Air Lower, LS LHD 08MY From (V) A09110	$36.23	1
-	9D33014K97AA	Duct Assembly, vent air lower, Lwr LH, LHD	9D33014K97AA Duct Assembly, vent air lower, Lwr LH, LHD 09MY	$7.85	1
-	7G43370807AA	Bracket assy, TPM	7G43370807AA Bracket assy, TPM 07MY	-	1	Enquire
-	7G43370807AB	Bracket Assembly TPM	7G43370807AB Bracket Assembly TPM 08MY From (V) A09110	$82.22	1
1	6G3304432BD	DUCT ASSEMBLY, WINDSCREEN	6G3304432BD DUCT ASSEMBLY, WINDSCREEN -	$145.99	1
2	4G4319E658AC	HOSE, WINDOW DEMISTER	4G4319E658AC HOSE, WINDOW DEMISTER -	$57.75	2
3	4G4319E680AD	CONNECTOR, DEMISTER HOSE	4G4319E680AD CONNECTOR, DEMISTER HOSE -	$9.56	2
4	4G43C046B80AC	SEAL, DEMISTER HOSE	4G43C046B80AC SEAL, DEMISTER HOSE -	$9.56	2
5	4G4318C491AJ	GRILLE, WINDSCREENDEFROST	4G4318C491AJ GRILLE, WINDSCREENDEFROST -	$688.83	2
6	4G4318633BC	Duct Assembly, Heater Outlet	4G4318633BC Duct Assembly, Heater Outlet -	$190.63	1
7	4G4318D404BD	Duct Assembly, Heater Air Dist, Centre, RHD	4G4318D404BD Duct Assembly, Heater Air Dist, Centre, RHD 07MY	$573.84	1
8	702943	Rivet, 3.2x6.5, Blind Aluminium	702943 Rivet, 3.2x6.5, Blind Aluminium 08MY From (V) A09110	$0.07	4
9	6G3319C735AB	Duct, RH, Instrument Panel	6G3319C735AB Duct, RH, Instrument Panel 07MY	$40.80	1
10	6G3319C850AB	Duct, LH, Instrument Panel	6G3319C850AB Duct, LH, Instrument Panel 07MY	$57.14	1
11	4G43046B31BB	Register Assembly, LH	4G43046B31BB Register Assembly, LH Graphite with White Symbols	$146.95	2
12	4G43046B30BB	Register Assembly, RH	4G43046B30BB Register Assembly, RH Graphite with White Symbols	$149.98	2
13	4G4318D404CA	SEAL, AIR DUCT	4G4318D404CA SEAL, AIR DUCT -	$2.53	4
14	8G43014K96BB	Duct, Assembly Vent Air Lower, RS, RHD	8G43014K96BB Duct, Assembly Vent Air Lower, RS, RHD 08MY From (V) A09110	$35.60	1
15	8G43014K97BB	Duct Assembly, vent air lower, Lwr LH, RHD	8G43014K97BB Duct Assembly, vent air lower, Lwr LH, RHD 08MY From (V) A09110	$40.45	1
16	7G43014K00AA	PLUG, FOOTWELL DUCT	7G43014K00AA PLUG, FOOTWELL DUCT -	$13.54	1
