HVAC Unit of Aston Martin Aston Martin GT DB9 (2004-2017)

すべて見る

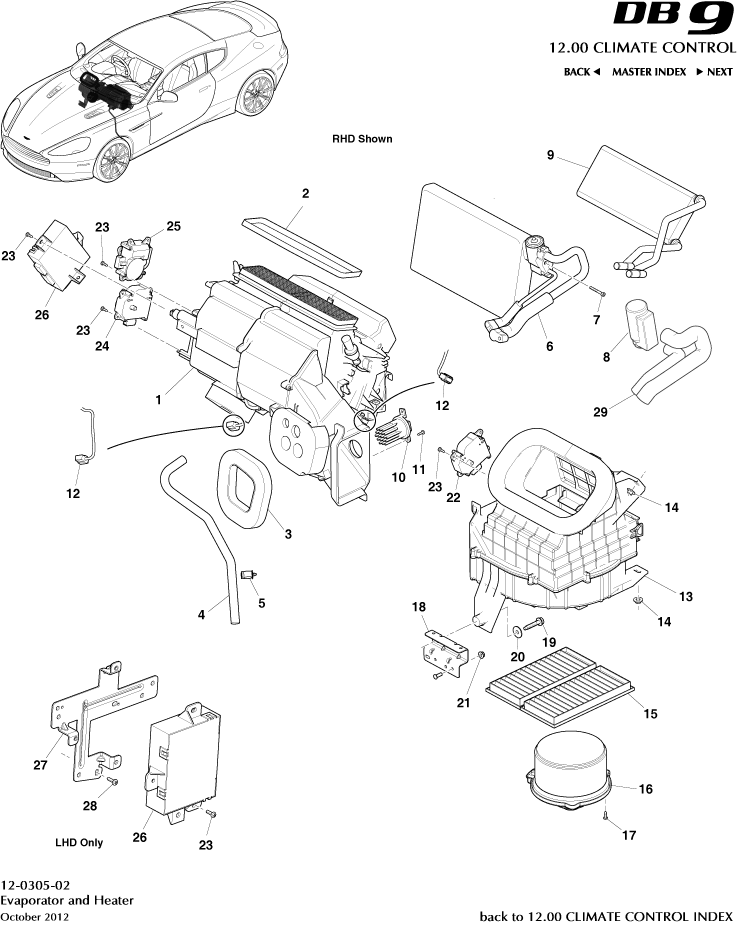

Aston Martin GT DB9 (2004-2017) - HVACユニット

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	4G4318N407AD	HVAC ASSEMBLY & ECU	4G4318N407AD HVAC ASSEMBLY & ECU -	$2,426.13	1
-	703151	Nut/washr, M6	703151 Nut/washr, M6 -	$0.89	2
-	4G4319A699AB	DRAIN TUBE ASSEMBLY	4G4319A699AB DRAIN TUBE ASSEMBLY LHD	$27.26	1
-	4G4319A889AA	Evaporator, A/C	4G4319A889AA Evaporator, A/C LHD	$1,286.39	1
-	4G4319862AA	Tube Assy, Evaporator	4G4319862AA Tube Assy, Evaporator RHD	$180.41	1
-	4G4319F616AA	Tube Assy, Evaporator	4G4319F616AA Tube Assy, Evaporator LHD	$173.56	1
-	4G4319849AA	Valve assy A/C evp exp	4G4319849AA Valve assy A/C evp exp -	$84.90	1
-	4G4318D673AA	Sealing, htr core tube to htr case	4G4318D673AA Sealing, htr core tube to htr case LHD	$14.23	1
-	4G4318D671AA	HEATER CORE ASSEMBLY	4G4318D671AA HEATER CORE ASSEMBLY -	$178.72	1
-	4G4319F613AA	BLOWER MOTOR ASSEMBLY	4G4319F613AA BLOWER MOTOR ASSEMBLY -	$231.78	1
-	4G4318535AE	BRACKET, BLOWER MOUNTING	4G4318535AE BRACKET, BLOWER MOUNTING -	$68.68	1
-	4G4318A251AA	SERVO ASSEMBLY,FRESH/RECIRCULATE AIR	4G4318A251AA SERVO ASSEMBLY,FRESH/RECIRCULATE AIR -	$355.70	1
-	4G4318D675AA	SERVO ASSEMBLY, AIR MIX	4G4318D675AA SERVO ASSEMBLY, AIR MIX -	$355.70	1
-	4G4318E247AA	SERVO ASSEMBLY, HEATERMODE	4G4318E247AA SERVO ASSEMBLY, HEATERMODE -	$355.70	1
-	4G4318D669AA	Sealing,htr core	4G4318D669AA Sealing,htr core -	$21.20	1
1	4G4318N407BC	HVAC ASSEMBLY & ECU	4G4318N407BC HVAC ASSEMBLY & ECU -	$2,426.13	1
2	4G4319N574AA	Seal, air duct	4G4319N574AA Seal, air duct -	$1.64	1
3	4G43-19D692-A	Seal Foam, Sealing Plate	4G43-19D692-A Seal Foam, Sealing Plate -	-	1	Enquire
4	4G4319A699BB	DRAIN TUBE ASSEMBLY	4G4319A699BB DRAIN TUBE ASSEMBLY RHD	$25.32	1
5	701172	CLIP, 16.0x2.8-3.3	701172 CLIP, 16.0x2.8-3.3 -	$0.78	1
6	4G4319850AA	Evaporator, A/C	4G4319850AA Evaporator, A/C RHD	$982.25	1
7	4G43ALR8679AA	SCREW, M5x40, HEX SKT	4G43ALR8679AA SCREW, M5x40, HEX SKT -	$2.12	2
9	4G4318A271BA	HEATER CORE ASSEMBLY	4G4318A271BA HEATER CORE ASSEMBLY -	$484.37	1
10	4G4319F615AA	RESISTOR, AIRCON	4G4319F615AA RESISTOR, AIRCON -	$404.95	1
11	4G43104084AA	Screw, M4 x 16, Pan Hd	4G43104084AA Screw, M4 x 16, Pan Hd -	-	2	Enquire
12	4G4319F598AA	SENSOR, EVAPORATORTEMPERATURE	4G4319F598AA SENSOR, EVAPORATORTEMPERATURE -	$20.95	2
14	703612	Nut and Washer, M6 Hex	703612 Nut and Washer, M6 Hex -	$0.82	5
15	4G4313ZE1AAPK	花粉フィルター	4G4313ZE1AAPK 花粉フィルター -	$83.64	1
16	4G4319F612AA	BLOWER MOTOR ASSEMBLY	4G4319F612AA BLOWER MOTOR ASSEMBLY -	$773.47	1
17	4G43N104301AA	SCREW, M5x16, HX SPECIAL	4G43N104301AA SCREW, M5x16, HX SPECIAL -	$0.20	3
18	4G4318535BF	BRACKET, BLOWER MOUNTING	4G4318535BF BRACKET, BLOWER MOUNTING -	$68.68	1
19	703745	Bolt, M8x35, HVAC to heater	703745 Bolt, M8x35, HVAC to heater -	$0.75	1
20	697452	ワッシャ、M8、空調～ブラケット	697452 ワッシャ、M8、空調～ブラケット -	$7.49	2
21	702944	Nut, M6 flg	702944 Nut, M6 flg -	$1.82	2
22	4G4318A250AA	SERVO ASSEMBLY,FRESH/RECIRCULATE AIR	4G4318A250AA SERVO ASSEMBLY,FRESH/RECIRCULATE AIR -	$355.70	1
23	4G43104084AA	Screw, M4 x 16, Pan Hd	4G43104084AA Screw, M4 x 16, Pan Hd -	-	12	Enquire
24	4G4318D674AA	SERVO ASSEMBLY, AIR MIX	4G4318D674AA SERVO ASSEMBLY, AIR MIX -	$355.70	1
25	4G4318E246AA	SERVO ASSEMBLY, HEATERMODE	4G4318E246AA SERVO ASSEMBLY, HEATERMODE -	$355.70	1
26	NSS	ウォッシャー	NSS ウォッシャー Part of item 1	-	1	Enquire
27	4G43-19C715-AA	Bracket, ECU mounting	4G43-19C715-AA Bracket, ECU mounting LHD	-	1	Enquire
28	4G43-N014120-AA	Screw, M4x12mm, Pan Head	4G43-N014120-AA Screw, M4x12mm, Pan Head -	-	3	Enquire
29	4G43-18C676-AA	Sealing,htr core	4G43-18C676-AA Sealing,htr core -	-	1	Enquire
