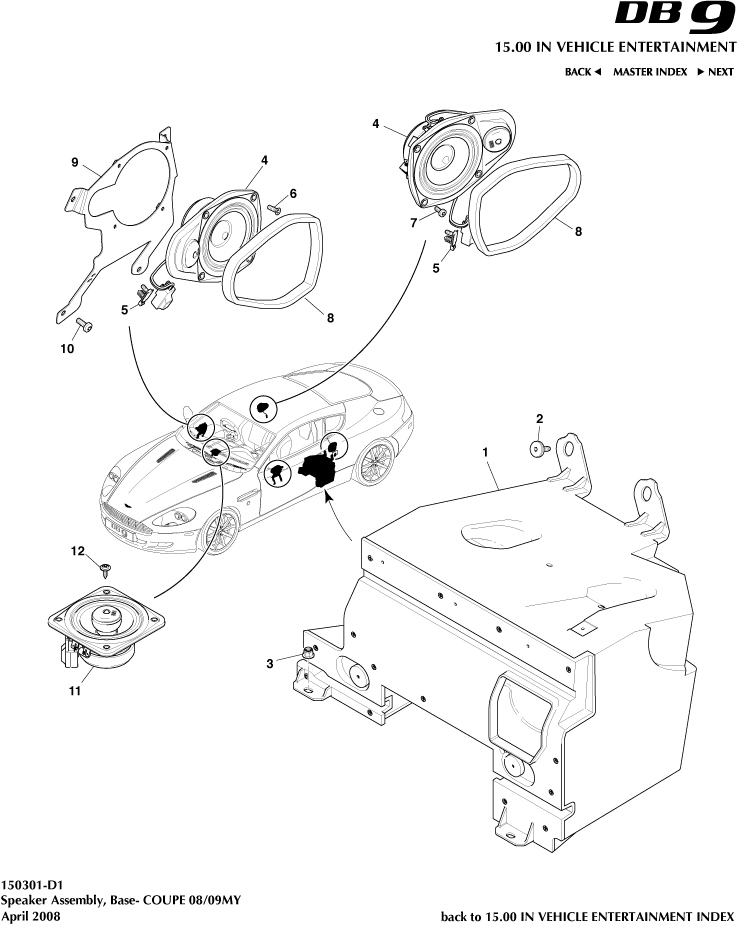

分解部品図を表示して、探している部品を見つけます:

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	9G4318808GC	サブウーファー＆シールド	9G4318808GC サブウーファー＆シールド 09MY	$759.67	1
-	6G3318808JB	Speaker, LH side	6G3318808JB Speaker, LH side -	-	2	Enquire
-	6G3318808LC	Bracket, Front Speaker, LH	6G3318808LC Bracket, Front Speaker, LH -	$31.15	1
1	8G4318808GA	Sub woofer and enclosure	8G4318808GA Sub woofer and enclosure 08MY	-	1	Enquire
2	6G33FA0115AB	Screw and Washer M6x19 Pan Int	6G33FA0115AB Screw and Washer M6x19 Pan Int -	-	2	Enquire
3	703164	Nut M6 Hex flg plastic	703164 Nut M6 Hex flg plastic -	$0.78	2
4	6G3318808MA	Speaker, RH side	6G3318808MA Speaker, RH side -	$151.03	2
5	6G430110042	リテーナー	6G430110042 リテーナー -	$0.62	4
6	6G33503967AA	SCREW, M5x15, TORX	6G33503967AA SCREW, M5x15, TORX -	$0.50	8
7	703735	SCREW, M5x12, PAN HEAD	703735 SCREW, M5x12, PAN HEAD -	$0.55	8
8	6G3318808EB	Spacer, Front Board	6G3318808EB Spacer, Front Board -	$5.47	4
9	6G3318808KC	Bracket, Front Speaker, RH	6G3318808KC Bracket, Front Speaker, RH -	$31.15	1
10	701553	Screw, M6 x 16 pan hd, hood release handle to bracket	701553 Screw, M6 x 16 pan hd, hood release handle to bracket -	$0.30	8
11	9G4318808FA	Speaker, Premium Centre	9G4318808FA Speaker, Premium Centre -	$148.37	1
12	701157	Screw st4.2x16 Large Washer Hd	701157 Screw st4.2x16 Large Washer Hd -	-	4	Enquire
