Electrical Wiring - Cabin - Coupe of Aston Martin Aston Martin GT DB11 (2017-2023)

すべて見る

Aston Martin GT DB11 (2017-2023) - Electrical Wiring - Cabin - Coupe

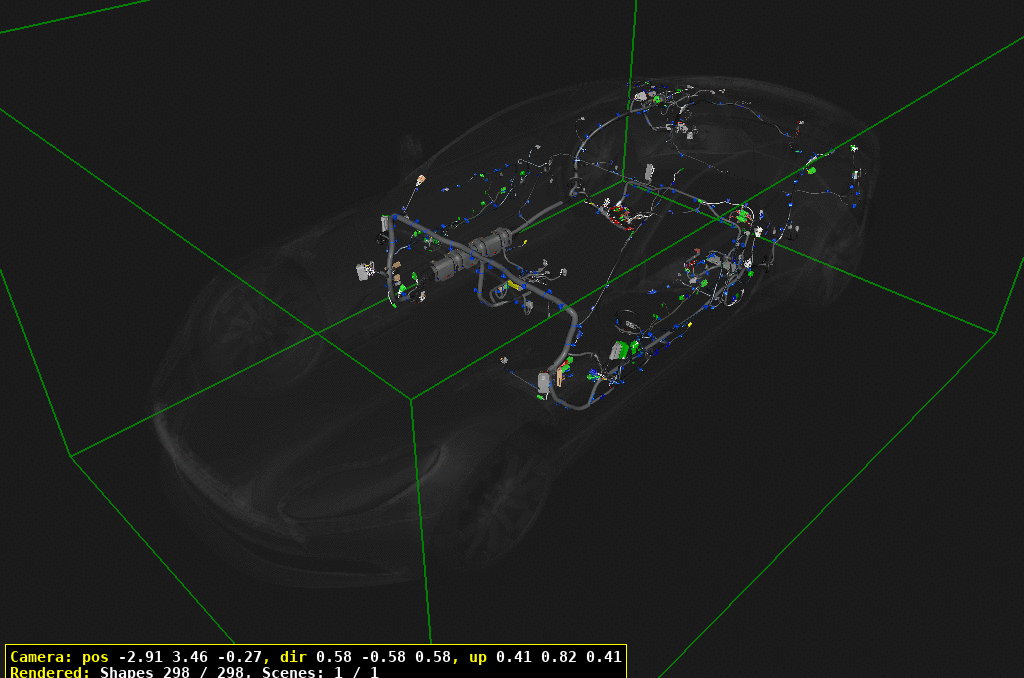

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	~O~	バッテリー	~O~ バッテリー	-	-	Enquire
20	HY5314A005AC	HARNESS, CABIN	HY5314A005AC HARNESS, CABIN ->18.5MY, LHD	$8,499.57	1
21	HY5314A005BB	HARNESS, CABIN	HY5314A005BB HARNESS, CABIN -> VIN L02504, RHD, B+O	$7,241.59	1
22	HY5314A005BC	HARNESS, CABIN	HY5314A005BC HARNESS, CABIN L02505-> 18.5MY, RHD, B+O	$5,836.79	1
23	JY5314A005AB	HARNESS, CABIN	JY5314A005AB HARNESS, CABIN 17MY-> 18.5MY, LHD, RoW,ASK	$6,564.81	1
24	JY5314A005AC	HARNESS, CABIN	JY5314A005AC HARNESS, CABIN 18.5MY-> VIN L04921, LHD,RoW, ASK	$6,610.35	1
25	JY5314A005AD	HARNESS, CABIN	JY5314A005AD HARNESS, CABIN VIN L04922-> 19MY, LHD,RoW, ASK	$6,564.89	1
26	JY5314A005BB	HARNESS, CABIN	JY5314A005BB HARNESS, CABIN 17MY-> 18.5MY, RHD, RoW,ASK	$6,564.81	1
27	JY5314A005BC	HARNESS, CABIN	JY5314A005BC HARNESS, CABIN 18.5MY-> VIN L04803, RHD,RoW, ASK	$6,610.35	1
28	JY5314A005BD	HARNESS, CABIN	JY5314A005BD HARNESS, CABIN VIN L04804-> 19MY, RHD,RoW, ASK	$6,564.89	1
29	JY5314A005CB	HARNESS, CABIN	JY5314A005CB HARNESS, CABIN 18.5MY-> 19MY, LHD, RoW,B+O	$6,564.89	1
30	JY5314A005DB	HARNESS, CABIN	JY5314A005DB HARNESS, CABIN 18.5MY->19MY, RHD, RoW,B+O	$6,564.89	1
31	JY5314A005EB	HARNESS, CABIN	JY5314A005EB HARNESS, CABIN 18.5MY-> 19MY, LHD,Japan, B+O	$6,564.89	1
32	JY5314A005FB	HARNESS, CABIN	JY5314A005FB HARNESS, CABIN 18.5MY-> 19MY, RHD,Japan, B+O	$6,564.89	1
33	JY5314A005GB	HARNESS, CABIN	JY5314A005GB HARNESS, CABIN 18.5MY-> 19MY, LHD,Japan, ASK	$6,564.89	1
34	JY5314A005HB	HARNESS, CABIN	JY5314A005HB HARNESS, CABIN 18.5MY-> 19MY, RHD,Japan, ASK	$6,564.89	1
35	LY53-14A005-IA	HARNESS, CABIN	LY53-14A005-IA HARNESS, CABIN 20MY-> 22MY, LHD, RoW,ASK	-	1	Enquire
36	LY5314A005IB	HARNESS, CABIN	LY5314A005IB HARNESS, CABIN 22MY-> LHD, RoW, ASK	$6,564.89	1
37	LY5314A005JA	HARNESS, CABIN	LY5314A005JA HARNESS, CABIN 20MY-> 22MY, RHD, RoW,ASK	$6,565.75	1
38	LY5314A005JB	HARNESS, CABIN	LY5314A005JB HARNESS, CABIN 22MY-> RHD, RoW, ASK	$6,564.89	1
39	LY53-14A005-KA	HARNESS, CABIN	LY53-14A005-KA HARNESS, CABIN 20MY-> 22MY, LHD, RoW,B+O	-	1	Enquire
40	LY5314A005KB	HARNESS, CABIN	LY5314A005KB HARNESS, CABIN 22MY->, LHD, RoW, B+O	$6,564.89	1
41	LY5314A005LA	HARNESS, CABIN	LY5314A005LA HARNESS, CABIN 20MY-> 22MY, RHD, RoW,B+O	$6,037.12	1
42	LY5314A005LB	HARNESS, CABIN	LY5314A005LB HARNESS, CABIN 22MY->, RHD, RoW, B+O	$6,564.89	1
43	LY53-14A005-MA	HARNESS, CABIN	LY53-14A005-MA HARNESS, CABIN 20MY-> 22MY, LHD, Japan,B+O	-	1	Enquire
44	LY5314A005MB	HARNESS, CABIN	LY5314A005MB HARNESS, CABIN 22MY->, LHD, Japan, B+O	$6,564.63	1
45	LY5314A005NA	HARNESS, CABIN	LY5314A005NA HARNESS, CABIN 20MY-> 22MY, RHD, Japan,B+O	$5,775.98	1
46	LY5314A005NB	HARNESS, CABIN	LY5314A005NB HARNESS, CABIN 22MY->, RHD, Japan, B+O	$6,564.89	1
47	LY53-14A005-OA	HARNESS, CABIN	LY53-14A005-OA HARNESS, CABIN 20MY-> 22MY, LHD, Japan,ASK	-	1	Enquire
48	LY5314A005OB	HARNESS, CABIN	LY5314A005OB HARNESS, CABIN 22MY->, LHD, Japan, ASK	$6,564.63	1
49	LY5314A005PB	HARNESS, CABIN	LY5314A005PB HARNESS, CABIN 20MY-> 22MY, RHD, Japan,ASK	$6,564.89	1
50	LY53-14A005-PA	HARNESS, CABIN	LY53-14A005-PA HARNESS, CABIN 22MY->, RHD, Japan, ASK	-	1	Enquire
150	HY5314A301BA	BRACKET, CABIN FUSEBOX,REAR, LH	HY5314A301BA BRACKET, CABIN FUSEBOX,REAR, LH -> VIN L02963	$44.73	1
151	HY5314A301BB	BRACKET, CABIN FUSEBOX,REAR, LH	HY5314A301BB BRACKET, CABIN FUSEBOX,REAR, LH VIN L02964->	$45.18	1
160	HY5314N003AA	BRACKET, INLINE, LH, REAR	HY5314N003AA BRACKET, INLINE, LH, REAR	$42.32	1
170	HY539137HA	LINK HARNESS, TAIL LAMP	HY539137HA LINK HARNESS, TAIL LAMP Federal	$35.64	2
180	HY5314024AB	LINK HARNESS, DRIVERSDOOR	HY5314024AB LINK HARNESS, DRIVERSDOOR -> VIN L02267	$139.81	1
181	HY5314024AD	LINK HARNESS, DRIVERSDOOR	HY5314024AD LINK HARNESS, DRIVERSDOOR VIN L02268->	$139.83	1
190	HY5314025AB	LINK HARNESS, PASSENGERDOOR	HY5314025AB LINK HARNESS, PASSENGERDOOR -> VIN L02267	$129.83	1
191	HY5314025AD	LINK HARNESS, PASSENGERDOOR	HY5314025AD LINK HARNESS, PASSENGERDOOR VIN L02268->	$139.83	1
200	HY5314631BB	HARNESS, DRIVERS DOOR	HY5314631BB HARNESS, DRIVERS DOOR -> VIN L02267, LHD	$423.14	1
201	HY5314631BC	HARNESS, DRIVER'S DOOR	HY5314631BC HARNESS, DRIVER'S DOOR VIN L02268->, LHD	$425.01	1
202	HY5314630AC	HARNESS, PASSENGER DOOR	HY5314630AC HARNESS, PASSENGER DOOR VIN L02268->, RHD	$400.11	1
210	HY5314630BB	HARNESS, PASSENGER DOOR	HY5314630BB HARNESS, PASSENGER DOOR -> VIN L02267, LHD	$424.97	1
211	HY5314630BC	HARNESS, PASSENGER DOOR	HY5314630BC HARNESS, PASSENGER DOOR VIN L02268->, LHD	$425.01	1
212	HY5314631AB	HARNESS, DRIVERS DOOR	HY5314631AB HARNESS, DRIVERS DOOR -> VIN L02267, RHD	$398.48	1
213	HY5314631AC	HARNESS, DRIVER'S DOOR	HY5314631AC HARNESS, DRIVER'S DOOR VIN L02268->, RHD	$363.82	1
220	703264	Screw, M6 x 14 Flg Hd	703264 Screw, M6 x 14 Flg Hd	-	1	Enquire
230	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 IN STOCK	$0.34	2
240	701553	Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	701553 Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	$0.31	6
250	702522	Nut, M5 Hex flg hd	702522 Nut, M5 Hex flg hd	$0.61	1
260	702840	Nut & Washer M6 Hex Flg	702840 Nut & Washer M6 Hex Flg	$0.36	8
280	ED230173008AA	NUT COVER, M6	ED230173008AA NUT COVER, M6	$0.57	1
290	7G4314A666AA	BLANKING PLUG, DMTL	7G4314A666AA BLANKING PLUG, DMTL	$15.31	1
400	3723422	FUSE, 5 amp	3723422 FUSE, 5 amp	$1.94	A/R
410	3723423	FUSE, 7.5 amp	3723423 FUSE, 7.5 amp	$2.12	A/R
420	3723424	FUSE, 10 amp	3723424 FUSE, 10 amp	$1.94	A/R
430	3723425	FUSE, 15 amp	3723425 FUSE, 15 amp	$1.94	A/R
440	3723426	FUSE, 20 amp	3723426 FUSE, 20 amp	$1.94	A/R
450	3723427	FUSE, 25 amp	3723427 FUSE, 25 amp	$1.89	A/R
500	4G433710578PK	Fuse, Mini 5A	4G433710578PK Fuse, Mini 5A Pack of 10	$33.29	A/R
510	4G433710580PK	Fuse, Mini 10A	4G433710580PK Fuse, Mini 10A Pack of 10	$56.50	A/R
520	4G433710581PK	Fuse, Mini 15A	4G433710581PK Fuse, Mini 15A Pack of 10	$25.51	A/R
530	4G433710583PK	Fuse, Mini 25A	4G433710583PK Fuse, Mini 25A Pack of 10	$25.51	A/R
600	HY533710087	FUSE, 20 amp, J CASE	HY533710087 FUSE, 20 amp, J CASE Blue	$14.26	2
610	HY533710085	FUSE, 30 amp, J CASE	HY533710085 FUSE, 30 amp, J CASE Pink	$13.80	4
620	HY533710086	FUSE, 40 amp, J CASE	HY533710086 FUSE, 40 amp, J CASE Green	$14.26	6
630	HY533710088	FUSE, 50 amp, J CASE	HY533710088 FUSE, 50 amp, J CASE Red	$14.26	9
640	HY53-37-100889	FUSE, 60 amp, J CASE	HY53-37-100889 FUSE, 60 amp, J CASE Yellow	-	2	Enquire
700	HY5315692AA	POWER RELAY, 1FA,1N 12VDC	HY5315692AA POWER RELAY, 1FA,1N 12VDC	$24.18	2
710	HY533710163	RELAY, POWER, FA7,LATCHING, PINK	HY533710163 RELAY, POWER, FA7,LATCHING, PINK	$78.47	2
720	HY533710084	RELAY, CHANGE OVER 5-WAY,MICRO	HY533710084 RELAY, CHANGE OVER 5-WAY,MICRO	$52.89	4
