Electrical Wiring - Cabin - Volante of Aston Martin Aston Martin GT DB11 (2017-2023)

すべて見る

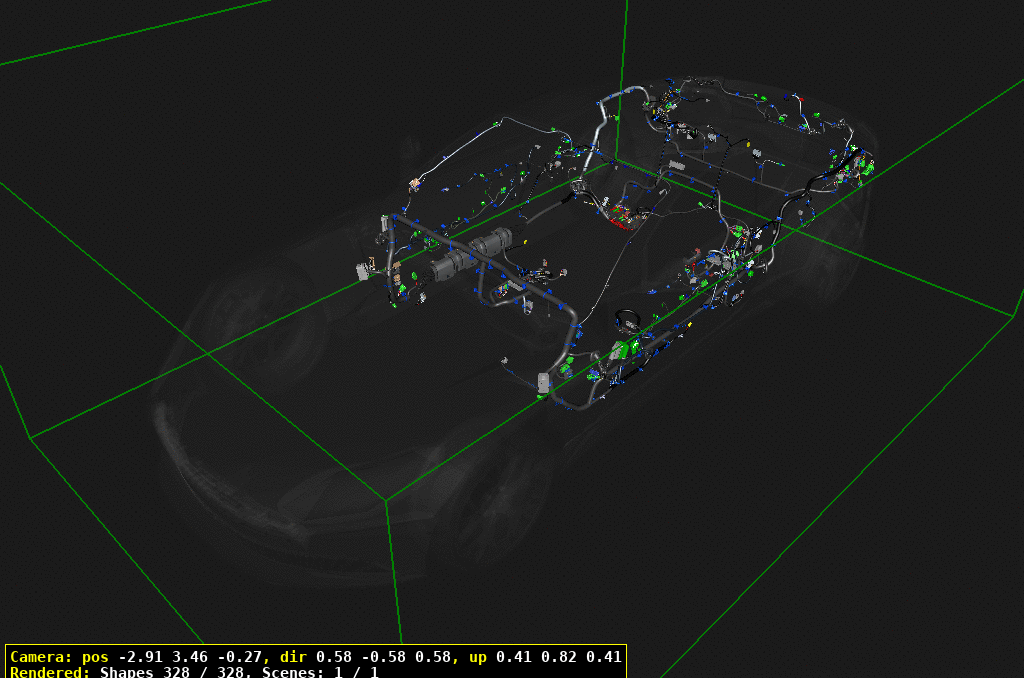

Aston Martin GT DB11 (2017-2023) - Electrical Wiring - Cabin - Volante

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	~O~	バッテリー	~O~ バッテリー	-	-	Enquire
20	KY5314A005AB	HARNESS, CABIN	KY5314A005AB HARNESS, CABIN LHD, -> 19MY, B&O	$7,603.78	1
21	KY5314A005CB	HARNESS, CABIN	KY5314A005CB HARNESS, CABIN LHD, -> 19MY, ASK	$6,691.37	1
22	KY5314A005EB	HARNESS, CABIN	KY5314A005EB HARNESS, CABIN LHD, -> 19MY, Japan, B&O	$7,603.78	1
23	KY5314A005GB	HARNESS, CABIN	KY5314A005GB HARNESS, CABIN LHD, -> 19MY, Japan, ASK	$7,603.78	1
24	KY5314A005BB	HARNESS, CABIN	KY5314A005BB HARNESS, CABIN RHD, -> 19MY, B&O	$7,603.78	1
25	KY5314A005DB	HARNESS, CABIN	KY5314A005DB HARNESS, CABIN RHD, -> 19MY, ASK	-	1	Enquire
26	KY5314A005FB	HARNESS, CABIN	KY5314A005FB HARNESS, CABIN RHD, -> 19MY, Japan, B&O	$7,603.78	1
27	KY5314A005HB	HARNESS, CABIN	KY5314A005HB HARNESS, CABIN RHD, -> 19MY, Japan, ASK	$7,603.78	1
30	LY53-14A005-AA	HARNESS, CABIN	LY53-14A005-AA HARNESS, CABIN LHD, 20MY-> 22MY, B&O	-	1	Enquire
31	LY5314A005AB	HARNESS, CABIN	LY5314A005AB HARNESS, CABIN LHD, 22MY->, B&O	$6,564.89	1
32	LY53-14A005-BA	HARNESS, CABIN	LY53-14A005-BA HARNESS, CABIN RHD, 20MY-> 22MY, B&O	-	1	Enquire
33	LY5314A005BB	HARNESS, CABIN	LY5314A005BB HARNESS, CABIN RHD, 22MY->, B&O	$6,564.63	1
34	LY53-14A005-CA	HARNESS, CABIN	LY53-14A005-CA HARNESS, CABIN LHD, 20MY-> 22MY, ASK	-	1	Enquire
35	LY5314A005CB	HARNESS, CABIN	LY5314A005CB HARNESS, CABIN LHD, 22MY->, ASK	$10,148.74	1
36	LY5314A005DA	HARNESS, CABIN	LY5314A005DA HARNESS, CABIN RHD, 20MY-> 22MY, ASK	$7,713.91	1
37	LY5314A005DB	HARNESS, CABIN	LY5314A005DB HARNESS, CABIN RHD, 22MY->, ASK	$11,644.64	1
38	LY53-14A005-EA	HARNESS, CABIN	LY53-14A005-EA HARNESS, CABIN LHD, 20MY-> 22MY, Japan,B&O	-	1	Enquire
39	LY5314A005EB	HARNESS, CABIN	LY5314A005EB HARNESS, CABIN LHD, 22MY->, Japan	$6,564.63	1
40	LY53-14A005-FA	HARNESS, CABIN	LY53-14A005-FA HARNESS, CABIN RHD, 20MY-> 22MY, Japan,B&O	-	1	Enquire
41	LY5314A005FB	HARNESS, CABIN	LY5314A005FB HARNESS, CABIN RHD, 22MY->, Japan, B&O	$6,564.63	1
42	LY53-14A005-GA	HARNESS, CABIN	LY53-14A005-GA HARNESS, CABIN LHD, 20MY-> 22MY, Japan,ASK	-	1	Enquire
43	LY5314A005GB	HARNESS, CABIN	LY5314A005GB HARNESS, CABIN LHD, 22MY->, Japan, ASK	$6,564.63	1
44	LY53-14A005-HA	HARNESS, CABIN	LY53-14A005-HA HARNESS, CABIN RHD, 20MY-> 22MY, Japan,ASK	-	1	Enquire
45	LY5314A005HB	HARNESS, CABIN	LY5314A005HB HARNESS, CABIN RHD, 22MY->, Japan, ASK	$6,564.63	1
100	HY5314A301BB	BRACKET, CABIN FUSEBOX,REAR, LH	HY5314A301BB BRACKET, CABIN FUSEBOX,REAR, LH	$45.18	1
110	KY5314N102AA	BRACKET, HEADER PODHARNESS	KY5314N102AA BRACKET, HEADER PODHARNESS	$34.78	1
120	HY539137HA	LINK HARNESS, TAIL LAMP	HY539137HA LINK HARNESS, TAIL LAMP Federal	$35.64	2
130	HY5314024AD	LINK HARNESS, DRIVERSDOOR	HY5314024AD LINK HARNESS, DRIVERSDOOR	$139.83	1
140	HY5314025AD	LINK HARNESS, PASSENGERDOOR	HY5314025AD LINK HARNESS, PASSENGERDOOR	$139.83	1
150	KY5314631DA	HARNESS, DRIVERS DOOR	KY5314631DA HARNESS, DRIVERS DOOR LHD	$510.84	1
151	KY5314630DA	HARNESS, PASSENGER DOOR	KY5314630DA HARNESS, PASSENGER DOOR RHD	$510.84	1
160	KY5314630CA	HARNESS, PASSENGER DOOR	KY5314630CA HARNESS, PASSENGER DOOR LHD	$514.27	1
161	KY5314631CA	HARNESS, DRIVERS DOOR	KY5314631CA HARNESS, DRIVERS DOOR RHD	$514.27	1
170	KY53519E04AA	HARNESS, HEADER POD	KY53519E04AA HARNESS, HEADER POD -> VIN L06647, RoW	$134.55	1
171	KY53519E04AB	HARNESS, HEADER POD	KY53519E04AB HARNESS, HEADER POD VIN L06648->, ROW	$136.29	1
172	KY53519E04BA	HARNESS, HEADER POD	KY53519E04BA HARNESS, HEADER POD -> VIN L06647, Japan	$135.65	1
173	KY53519E04BB	HARNESS, HEADER POD	KY53519E04BB HARNESS, HEADER POD VIN L06648->, Japan	$136.29	1
180	ED230173008AA	NUT COVER, M6	ED230173008AA NUT COVER, M6	$0.57	1
190	KY5314A225AB	HARNESS, DECKLID, LH	KY5314A225AB HARNESS, DECKLID, LH RoW	$609.01	1
191	KY5314A225BA	HARNESS, DECKLID, LH	KY5314A225BA HARNESS, DECKLID, LH Federal	$220.04	1
192	KY5314A225CA	HARNESS, DECKLID, LH	KY5314A225CA HARNESS, DECKLID, LH Japan	$221.59	1
200	KY5314A227AB	HARNESS, DECKLID, RH	KY5314A227AB HARNESS, DECKLID, RH	$309.05	1
210	703264	Screw, M6 x 14 Flg Hd	703264 Screw, M6 x 14 Flg Hd	-	1	Enquire
220	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 IN STOCK	$0.34	2
230	701553	Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	701553 Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	$0.31	6
250	702840	Nut & Washer M6 Hex Flg	702840 Nut & Washer M6 Hex Flg	$0.36	6
270	7G4314A666AA	BLANKING PLUG, DMTL	7G4314A666AA BLANKING PLUG, DMTL	$15.31	1
500	3723422	FUSE, 5 amp	3723422 FUSE, 5 amp	$1.94	A/R
510	3723423	FUSE, 7.5 amp	3723423 FUSE, 7.5 amp	$2.12	A/R
520	3723424	FUSE, 10 amp	3723424 FUSE, 10 amp	$1.94	A/R
530	3723425	FUSE, 15 amp	3723425 FUSE, 15 amp	$1.94	A/R
540	3723426	FUSE, 20 amp	3723426 FUSE, 20 amp	$1.94	A/R
550	3723427	FUSE, 25 amp	3723427 FUSE, 25 amp	$1.89	A/R
600	4G433710578PK	Fuse, Mini 5A	4G433710578PK Fuse, Mini 5A Pack of 10	$33.29	A/R
610	4G433710580PK	Fuse, Mini 10A	4G433710580PK Fuse, Mini 10A Pack of 10	$56.50	A/R
620	4G433710581PK	Fuse, Mini 15A	4G433710581PK Fuse, Mini 15A Pack of 10	$25.51	A/R
630	4G433710583PK	Fuse, Mini 25A	4G433710583PK Fuse, Mini 25A Pack of 10	$25.51	A/R
700	HY533710087	FUSE, 20 amp, J CASE	HY533710087 FUSE, 20 amp, J CASE Blue	$14.26	2
710	HY533710085	FUSE, 30 amp, J CASE	HY533710085 FUSE, 30 amp, J CASE Pink	$13.80	4
720	HY533710086	FUSE, 40 amp, J CASE	HY533710086 FUSE, 40 amp, J CASE Green	$14.26	6
730	HY533710088	FUSE, 50 amp, J CASE	HY533710088 FUSE, 50 amp, J CASE Red	$14.26	9
740	HY533710089	FUSE, 60 amp, J CASE	HY533710089 FUSE, 60 amp, J CASE Yellow	$13.80	2
800	HY5315692AA	POWER RELAY, 1FA,1N 12VDC	HY5315692AA POWER RELAY, 1FA,1N 12VDC	$24.18	2
810	HY533710163	RELAY, POWER, FA7,LATCHING, PINK	HY533710163 RELAY, POWER, FA7,LATCHING, PINK	$78.47	2
820	HY533710084	RELAY, CHANGE OVER 5-WAY,MICRO	HY533710084 RELAY, CHANGE OVER 5-WAY,MICRO	$52.89	4
