Aston Martin GT DBS (2007-2012) - 空気分配コンポーネント

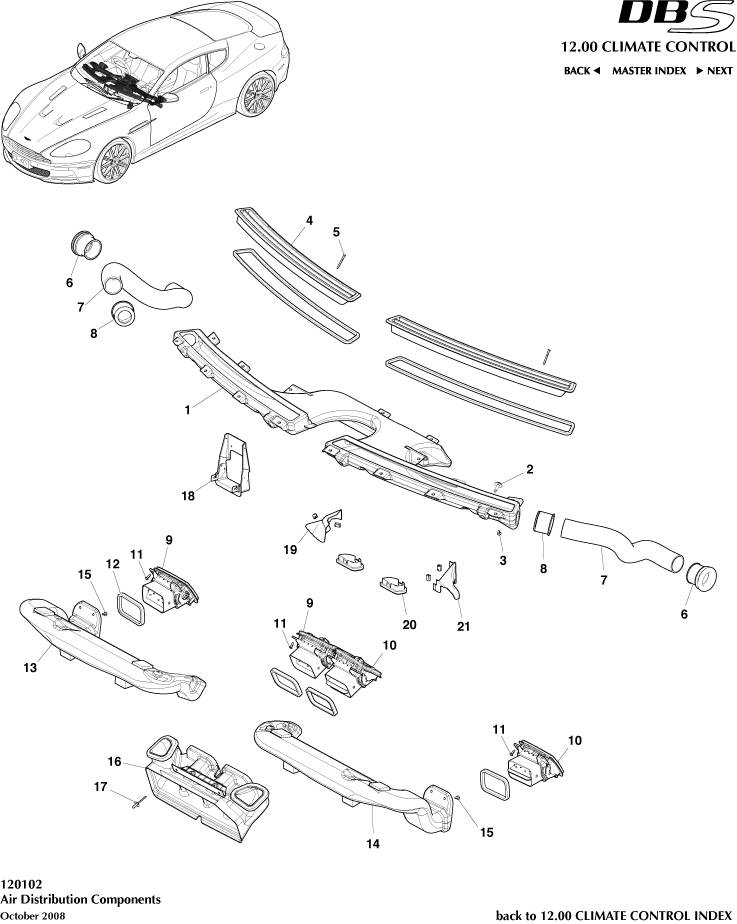

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	6G3304432AD	DUCT ASSEMBLY, WINDSCREEN	6G3304432AD DUCT ASSEMBLY, WINDSCREEN LHD	$144.90	1
-	701157PK	Screw, 4.2 x 13	701157PK Screw, 4.2 x 13 -	$3.05	2
-	4G43046B30BB	Register Assembly, RH	4G43046B30BB Register Assembly, RH Graphite with White Symbols	$148.85	2
-	4G43046B31BA	Register Assembly, LH	4G43046B31BA Register Assembly, LH Graphite with White Symbols	-	2	Enquire
-	8G4318D404AC	Duct Assembly, Heater Air Dstr ctr, LHD	8G4318D404AC Duct Assembly, Heater Air Dstr ctr, LHD LHD	$82.48	1
-	6G33C608313AA	Pop Rivet, 3.2 x 11.5	6G33C608313AA Pop Rivet, 3.2 x 11.5 TPM bracket	$0.29	4
-	8G43014K97BB	Duct Assembly, vent air lower, Lwr LH, RHD	8G43014K97BB Duct Assembly, vent air lower, Lwr LH, RHD -	$40.15	1
-	8D3360302BA	Edge Clip, 8.7 x 12.7 A/Con	8D3360302BA Edge Clip, 8.7 x 12.7 A/Con -	$0.62	1
1	6G3304432BD	DUCT ASSEMBLY, WINDSCREEN	6G3304432BD DUCT ASSEMBLY, WINDSCREEN RHD	$144.90	1
2	703156	Screw / Washer, M6 x 18	703156 Screw / Washer, M6 x 18 -	$1.37	4
3	703068	SCREW, 4.2x9, LARGEFLANGE	703068 SCREW, 4.2x9, LARGEFLANGE -	$0.12	14
4	4G4318C491AJ	GRILLE, WINDSCREENDEFROST	4G4318C491AJ GRILLE, WINDSCREENDEFROST -	$683.65	2
5	6G3379231AA	Screw, M3.5 x 38 Pozi	6G3379231AA Screw, M3.5 x 38 Pozi Screen Defog Grille	-	4	Enquire
6	4G43C046B80AC	SEAL, DEMISTER HOSE	4G43C046B80AC SEAL, DEMISTER HOSE -	$9.48	4
7	4G4319E658AC	HOSE, WINDOW DEMISTER	4G4319E658AC HOSE, WINDOW DEMISTER -	$57.32	2
8	4G4319E680AD	CONNECTOR, DEMISTER HOSE	4G4319E680AD CONNECTOR, DEMISTER HOSE -	$9.48	2
9	8D33046B30BB	Register Assembly, RH	8D33046B30BB Register Assembly, RH Iridium Silver with White Symbols	$148.94	2
10	8D33046B31BB	Register Assembly, LH	8D33046B31BB Register Assembly, LH Iridium Silver with White Symbols	$148.94	2
11	4G4318D404CA	SEAL, AIR DUCT	4G4318D404CA SEAL, AIR DUCT -	$2.51	4
12	701447	Screw M4x12 Pan collar	701447 Screw M4x12 Pan collar Register to IP	$0.55	12
13	8G4319C804AC	Duct Assembly, Instrument Panel RH	8G4319C804AC Duct Assembly, Instrument Panel RH -	-	1	Enquire
14	8G4319C805AC	Duct Assembly, Instrument Panel LH	8G4319C805AC Duct Assembly, Instrument Panel LH -	$72.69	1
15	6G33RA610123AA	POP RIVET, 4.8, ALUMINIUM	6G33RA610123AA POP RIVET, 4.8, ALUMINIUM Duct to mldg	$0.50	10
16	8G4318D404BB	Duct Assembly, Heater Air Dstr ctr, RHD	8G4318D404BB Duct Assembly, Heater Air Dstr ctr, RHD RHD	$85.45	1
17	4G4317A873AA	POP RIVET, 4.8x12.0	4G4317A873AA POP RIVET, 4.8x12.0 -	$1.89	4
18	9G43370807AA	Bracket Assembly, tpm (LH)	9G43370807AA Bracket Assembly, tpm (LH) LHD	$11.77	1
19	9D33014K96AA	Duct Assembly, vent air lower, Lwr RH, RHD	9D33014K96AA Duct Assembly, vent air lower, Lwr RH, RHD -	$7.79	1
20	7G43014K00AA	PLUG, FOOTWELL DUCT	7G43014K00AA PLUG, FOOTWELL DUCT -	$13.44	1
21	9D33014K97AA	Duct Assembly, vent air lower, Lwr LH, LHD	9D33014K97AA Duct Assembly, vent air lower, Lwr LH, LHD -	$7.79	1
