Electrical Wiring - Cabin - Coupe of Aston Martin Aston Martin GT DBS SUPERLEGGERA (2019-2023)

すべて見る

Aston Martin GT DBS SUPERLEGGERA (2019-2023) - Electrical Wiring - Cabin - Coupe

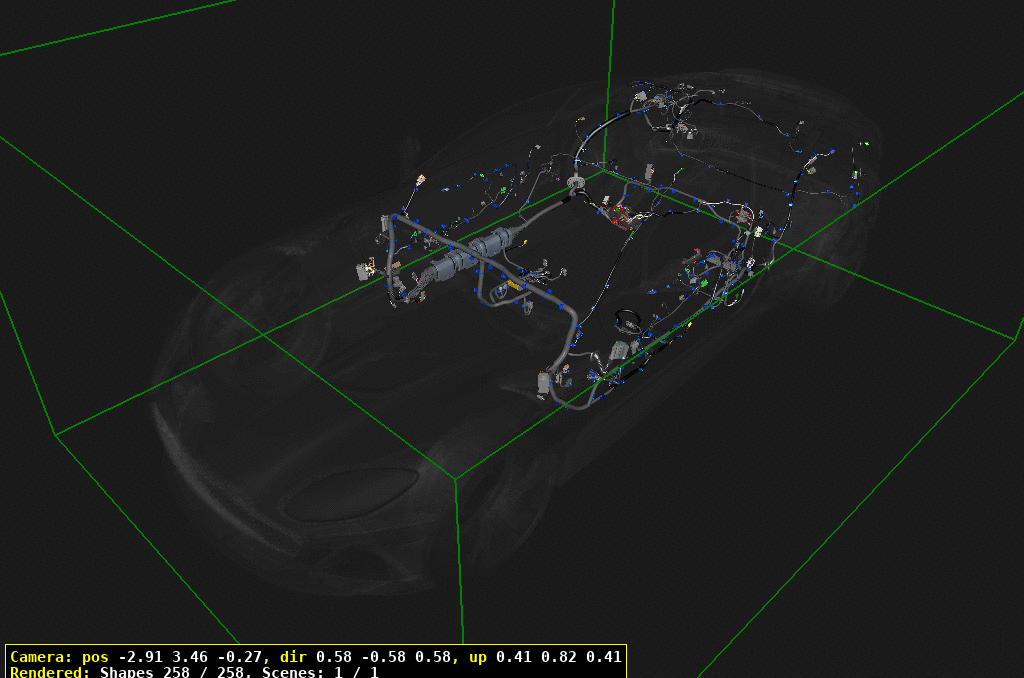

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	~O~	バッテリー	~O~ バッテリー	-	-	Enquire
20	KY7314A005AB	HARNESS, CABIN	KY7314A005AB HARNESS, CABIN LHD, -> 19MY, B&O, RoW	$9,380.43	1
21	LY7314A005IA	HARNESS, CABIN	LY7314A005IA HARNESS, CABIN LHD, 20MY->, B&O, RoW. ->VIN R02431	$6,438.67	1
22	LY7314A005IB	HARNESS, CABIN	LY7314A005IB HARNESS, CABIN LHD, 20MY->, B&O, RoW.VIN R02432->	$6,564.89	1
23	KY7314A005BB	HARNESS, CABIN	KY7314A005BB HARNESS, CABIN RHD, -> 19MY, B&O, RoW	$9,677.95	1
24	LY7314A005JA	HARNESS, CABIN	LY7314A005JA HARNESS, CABIN RHD, 20MY->, B&O, RoW. ->VIN R02434	$6,438.67	1
25	LY7314A005JB	HARNESS, CABIN	LY7314A005JB HARNESS, CABIN RHD, 20MY->, B&O, RoW.VIN R02435->	$6,564.89	1
26	KY7314A005CB	HARNESS, CABIN	KY7314A005CB HARNESS, CABIN LHD, -> 19MY, ASK, RoW	$6,438.60	1
27	LY7314A005KA	HARNESS, CABIN	LY7314A005KA HARNESS, CABIN LHD, 20MY->, ASK, RoW. ->VIN R02433	$6,438.67	1
28	LY7314A005KB	HARNESS, CABIN	LY7314A005KB HARNESS, CABIN LHD, 20MY->, ASK, RoW.VIN R02433->	$6,564.89	1
29	KY7314A005EB	HARNESS, CABIN	KY7314A005EB HARNESS, CABIN LHD, -> 19MY, B&O, Japan	$6,438.60	1
30	LY7314A005MA	HARNESS, CABIN	LY7314A005MA HARNESS, CABIN LHD, 20MY->, B+O, Japan.-> VIN R02433	$6,438.67	1
31	LY7314A005MB	HARNESS, CABIN	LY7314A005MB HARNESS, CABIN LHD, 20MY->, B+O, Japan.VIN R02434->	$6,564.89	1
32	KY7314A005GB	HARNESS, CABIN	KY7314A005GB HARNESS, CABIN LHD, -> 19MY, ASK, Japan	$6,438.60	1
33	LY7314A005OA	HARNESS, CABIN	LY7314A005OA HARNESS, CABIN LHD, 20MY->, ASK, Japan.-> VIN R02577	$6,438.67	1
34	LY7314A005OB	HARNESS, CABIN	LY7314A005OB HARNESS, CABIN LHD, 20MY-> ASK, Japan.VIN R02578->	$6,438.40	1
41	KY7314A005DB	HARNESS, CABIN	KY7314A005DB HARNESS, CABIN RHD, -> 19MY, ASK, RoW	$6,438.60	1
42	LY7314A005LA	HARNESS, CABIN	LY7314A005LA HARNESS, CABIN RHD, 20MY->, ASK, RoW. ->VIN R02436	$10,032.68	1
43	LY7314A005LB	HARNESS, CABIN	LY7314A005LB HARNESS, CABIN RHD, 20MY->, ASK, RoW.VIN R02437->	$6,564.89	1
44	KY7314A005FB	HARNESS, CABIN	KY7314A005FB HARNESS, CABIN RHD, -> 19MY, B&O, Japan	$6,438.60	1
45	LY7314A005NA	HARNESS, CABIN	LY7314A005NA HARNESS, CABIN RHD, 20MY->, B&O, Japan.-> VIN R02581	$6,438.67	1
46	LY7314A005NB	HARNESS, CABIN	LY7314A005NB HARNESS, CABIN RHD, 20MY->, B&O, Japan.VIN R02582->	$6,438.40	1
47	KY7314A005HB	HARNESS, CABIN	KY7314A005HB HARNESS, CABIN RHD, -> 19MY, ASK, Japan	$6,438.60	1
48	LY7314A005PA	HARNESS, CABIN	LY7314A005PA HARNESS, CABIN RHD, 20MY->, ASK, Japan.-> VIN R02433	$6,438.67	1
49	LY7314A005PB	HARNESS, CABIN	LY7314A005PB HARNESS, CABIN RHD, 20MY->, ASK, Japan.VIN R02434->	$6,564.89	1
50	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 IN STOCK	$0.34	2
60	701553	Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	701553 Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	$0.31	6
70	702522	Nut, M5 Hex flg hd	702522 Nut, M5 Hex flg hd	$0.61	1
80	702840	Nut & Washer M6 Hex Flg	702840 Nut & Washer M6 Hex Flg	$0.36	8
100	HY5314A301BB	BRACKET, CABIN FUSEBOX,REAR, LH	HY5314A301BB BRACKET, CABIN FUSEBOX,REAR, LH	$45.18	1
110	HY5314N003AA	BRACKET, INLINE, LH, REAR	HY5314N003AA BRACKET, INLINE, LH, REAR	$42.32	1
120	KY7313507BA	LINK HARNESS, REAR LAMP	KY7313507BA LINK HARNESS, REAR LAMP Federal	$55.44	2
121	KY7313507AA	LINK HARNESS, REAR LAMP	KY7313507AA LINK HARNESS, REAR LAMP RoW	$55.44	2
130	HY5314024AD	LINK HARNESS, DRIVERSDOOR	HY5314024AD LINK HARNESS, DRIVERSDOOR	$139.83	1
140	HY5314025AD	LINK HARNESS, PASSENGERDOOR	HY5314025AD LINK HARNESS, PASSENGERDOOR	$139.83	1
150	HY5314631BC	HARNESS, DRIVER'S DOOR	HY5314631BC HARNESS, DRIVER'S DOOR LHD	$425.01	1
151	HY5314630AC	HARNESS, PASSENGER DOOR	HY5314630AC HARNESS, PASSENGER DOOR RHD	$400.11	1
160	HY5314630BC	HARNESS, PASSENGER DOOR	HY5314630BC HARNESS, PASSENGER DOOR LHD	$425.01	1
161	HY5314631AC	HARNESS, DRIVER'S DOOR	HY5314631AC HARNESS, DRIVER'S DOOR RHD	$363.82	1
170	703264	Screw, M6 x 14 Flg Hd	703264 Screw, M6 x 14 Flg Hd	-	1	Enquire
180	7G4314A666AA	BLANKING PLUG, DMTL	7G4314A666AA BLANKING PLUG, DMTL	$15.31	1
200	3723422	FUSE, 5 amp	3723422 FUSE, 5 amp	$1.94	A/R
210	3723423	FUSE, 7.5 amp	3723423 FUSE, 7.5 amp	$2.12	A/R
220	3723424	FUSE, 10 amp	3723424 FUSE, 10 amp	$1.94	A/R
230	3723425	FUSE, 15 amp	3723425 FUSE, 15 amp	$1.94	A/R
240	3723426	FUSE, 20 amp	3723426 FUSE, 20 amp	$1.94	A/R
250	3723427	FUSE, 25 amp	3723427 FUSE, 25 amp	$1.89	A/R
300	4G433710578PK	Fuse, Mini 5A	4G433710578PK Fuse, Mini 5A Pack of 10	$33.29	A/R
310	4G433710580PK	Fuse, Mini 10A	4G433710580PK Fuse, Mini 10A Pack of 10	$56.50	A/R
320	4G433710581PK	Fuse, Mini 15A	4G433710581PK Fuse, Mini 15A Pack of 10	$25.51	A/R
330	4G433710583PK	Fuse, Mini 25A	4G433710583PK Fuse, Mini 25A Pack of 10	$25.51	A/R
340	ED230173008AA	NUT COVER, M6	ED230173008AA NUT COVER, M6	$0.57	1
400	HY533710087	FUSE, 20 amp, J CASE	HY533710087 FUSE, 20 amp, J CASE Blue	$14.26	2
410	HY533710085	FUSE, 30 amp, J CASE	HY533710085 FUSE, 30 amp, J CASE Pink	$13.80	4
420	HY533710086	FUSE, 40 amp, J CASE	HY533710086 FUSE, 40 amp, J CASE Green	$14.26	6
430	HY533710088	FUSE, 50 amp, J CASE	HY533710088 FUSE, 50 amp, J CASE Red	$14.26	9
440	HY533710089	FUSE, 60 amp, J CASE	HY533710089 FUSE, 60 amp, J CASE Yellow	$13.80	2
500	HY5315692AA	POWER RELAY, 1FA,1N 12VDC	HY5315692AA POWER RELAY, 1FA,1N 12VDC	$24.18	2
510	HY533710163	RELAY, POWER, FA7,LATCHING, PINK	HY533710163 RELAY, POWER, FA7,LATCHING, PINK	$78.47	2
520	HY533710084	RELAY, CHANGE OVER 5-WAY,MICRO	HY533710084 RELAY, CHANGE OVER 5-WAY,MICRO	$52.89	4
