Electrical Wiring - Cabin - Volante of Aston Martin Aston Martin GT DBS SUPERLEGGERA (2019-2023)

すべて見る

Aston Martin GT DBS SUPERLEGGERA (2019-2023) - Electrical Wiring - Cabin - Volante

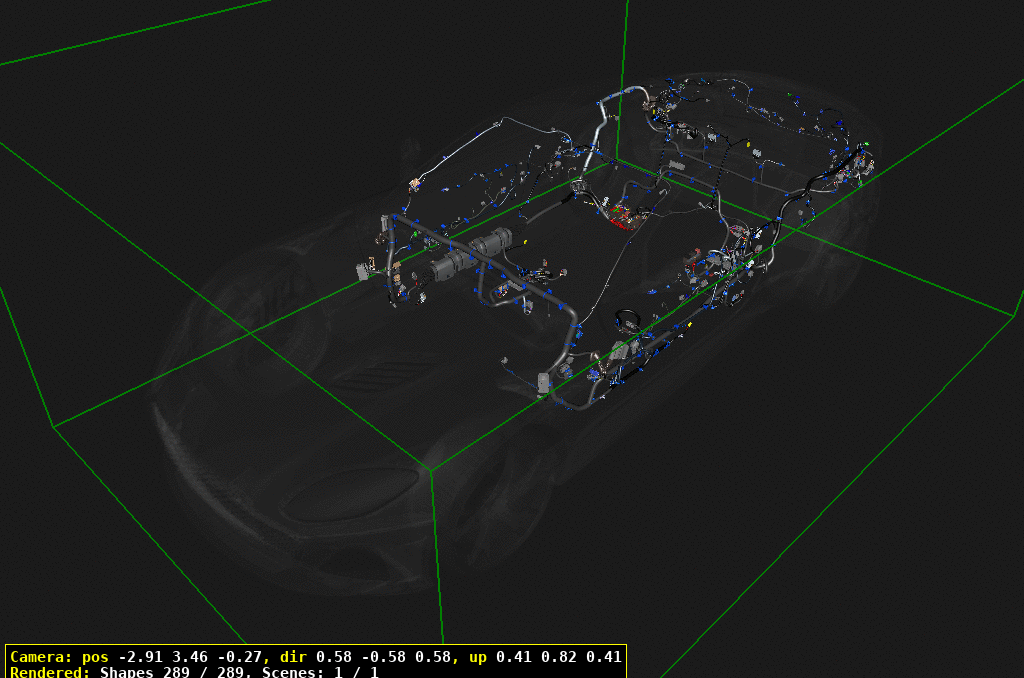

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	~O~	バッテリー	~O~ バッテリー	-	-	Enquire
20	LY7314A005AA	HARNESS, CABIN	LY7314A005AA HARNESS, CABIN LHD, B&O. -> VIN T02435	$10,263.88	1
21	LY7314A005AB	HARNESS, CABIN	LY7314A005AB HARNESS, CABIN LHD, B&O. VIN T02446->	$7,895.11	1
22	LY7314A005CA	HARNESS, CABIN	LY7314A005CA HARNESS, CABIN LHD, ASK. -> VIN T02442	$6,438.67	1
23	LY7314A005CB	HARNESS, CABIN	LY7314A005CB HARNESS, CABIN LHD, ASK. VIN T02443->	$6,564.89	1
24	LY7314A005EA	HARNESS, CABIN	LY7314A005EA HARNESS, CABIN LHD, Japan, B&O, -> VINT02560	$6,438.67	1
25	LY7314A005EB	HARNESS, CABIN	LY7314A005EB HARNESS, CABIN LHD, Japan, B&O, VINT02561->	$6,438.40	1
26	LY7314A005GA	HARNESS, CABIN	LY7314A005GA HARNESS, CABIN LHD, Japan, ASK, -> VINT02560	$6,438.67	1
27	LY7314A005GB	HARNESS, CABIN	LY7314A005GB HARNESS, CABIN LHD, Japan, ASK, VINT02561->	$6,438.40	1
30	LY7314A005BA	HARNESS, CABIN	LY7314A005BA HARNESS, CABIN RHD, B&O. -> VIN T02449	$12,465.73	1
31	LY7314A005BB	HARNESS, CABIN	LY7314A005BB HARNESS, CABIN RHD, B&O. VIN T02450->	$6,564.89	1
32	LY7314A005DA	HARNESS, CABIN	LY7314A005DA HARNESS, CABIN RHD, ASK. -> VIN T02486	$10,379.62	1
33	LY7314A005DB	HARNESS, CABIN	LY7314A005DB HARNESS, CABIN RHD, ASK. VIN T02487->	$6,438.40	1
34	LY7314A005FA	HARNESS, CABIN	LY7314A005FA HARNESS, CABIN RHD, Japan, B&O, -> VINT02560	$6,438.67	1
35	LY7314A005FB	HARNESS, CABIN	LY7314A005FB HARNESS, CABIN LHD, Japan, B&O, VINT02561->	$6,438.40	1
36	LY7314A005HA	HARNESS, CABIN	LY7314A005HA HARNESS, CABIN RHD, Japan, ASK, -> VINT02560	$6,438.67	1
37	LY7314A005HB	HARNESS, CABIN	LY7314A005HB HARNESS, CABIN RHD, Japan, B&O, VINT02561->	$6,438.40	1
50	HY5314A301BB	BRACKET, CABIN FUSEBOX,REAR, LH	HY5314A301BB BRACKET, CABIN FUSEBOX,REAR, LH	$45.18	1
60	KY5314N102AA	BRACKET, HEADER PODHARNESS	KY5314N102AA BRACKET, HEADER PODHARNESS	$34.78	1
70	KY7313507AA	LINK HARNESS, REAR LAMP	KY7313507AA LINK HARNESS, REAR LAMP RoW	$55.44	2
71	KY7313507BA	LINK HARNESS, REAR LAMP	KY7313507BA LINK HARNESS, REAR LAMP Federal	$55.44	2
80	HY5314024AD	LINK HARNESS, DRIVERSDOOR	HY5314024AD LINK HARNESS, DRIVERSDOOR	$139.83	1
90	HY5314025AD	LINK HARNESS, PASSENGERDOOR	HY5314025AD LINK HARNESS, PASSENGERDOOR	$139.83	1
100	KY5314631DB	HARNESS, DRIVERS DOOR	KY5314631DB HARNESS, DRIVERS DOOR LHD, LH	$530.83	1
101	KY5314630DB	HARNESS, PASSENGER DOOR	KY5314630DB HARNESS, PASSENGER DOOR RHD, LH	$530.83	1
110	KY5314630CB	HARNESS, PASSENGER DOOR	KY5314630CB HARNESS, PASSENGER DOOR LHD, RH	$530.83	1
111	KY5314631CB	HARNESS, DRIVERS DOOR	KY5314631CB HARNESS, DRIVERS DOOR RHD, RH	$530.83	1
120	KY53519E04AB	HARNESS, HEADER POD	KY53519E04AB HARNESS, HEADER POD RoW	$136.29	1
121	KY53519E04BB	HARNESS, HEADER POD	KY53519E04BB HARNESS, HEADER POD Japan	$136.29	1
130	ED230173008AA	NUT COVER, M6	ED230173008AA NUT COVER, M6	$0.57	1
140	LY7314A225AA	HARNESS, DECKLID, LH	LY7314A225AA HARNESS, DECKLID, LH RoW	$438.03	1
141	LY7314A225BA	HARNESS, DECKLID, LH	LY7314A225BA HARNESS, DECKLID, LH Federal	$438.03	1
142	LY7314A225CA	HARNESS, DECKLID, LH	LY7314A225CA HARNESS, DECKLID, LH Japan	$438.03	1
150	LY7314A227AA	HARNESS, DECKLID, RHS	LY7314A227AA HARNESS, DECKLID, RHS	$438.03	1
160	703264	Screw, M6 x 14 Flg Hd	703264 Screw, M6 x 14 Flg Hd	-	1	Enquire
170	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 IN STOCK	$0.34	2
180	701553	Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	701553 Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	$0.31	6
200	702840	Nut & Washer M6 Hex Flg	702840 Nut & Washer M6 Hex Flg	$0.36	9
210	7G4314A666AA	BLANKING PLUG, DMTL	7G4314A666AA BLANKING PLUG, DMTL	$15.31	1
300	3723422	FUSE, 5 amp	3723422 FUSE, 5 amp	$1.94	A/R
310	3723423	FUSE, 7.5 amp	3723423 FUSE, 7.5 amp	$2.12	A/R
320	3723424	FUSE, 10 amp	3723424 FUSE, 10 amp	$1.94	A/R
330	3723425	FUSE, 15 amp	3723425 FUSE, 15 amp	$1.94	A/R
340	3723426	FUSE, 20 amp	3723426 FUSE, 20 amp	$1.94	A/R
350	3723427	FUSE, 25 amp	3723427 FUSE, 25 amp	$1.89	A/R
400	4G433710578PK	Fuse, Mini 5A	4G433710578PK Fuse, Mini 5A Pack of 10	$33.29	A/R
410	4G433710580PK	Fuse, Mini 10A	4G433710580PK Fuse, Mini 10A Pack of 10	$56.50	A/R
420	4G433710581PK	Fuse, Mini 15A	4G433710581PK Fuse, Mini 15A Pack of 10	$25.51	A/R
430	4G433710583PK	Fuse, Mini 25A	4G433710583PK Fuse, Mini 25A Pack of 10	$25.51	A/R
500	HY533710087	FUSE, 20 amp, J CASE	HY533710087 FUSE, 20 amp, J CASE Blue	$14.26	2
510	HY533710085	FUSE, 30 amp, J CASE	HY533710085 FUSE, 30 amp, J CASE Pink	$13.80	4
520	HY533710086	FUSE, 40 amp, J CASE	HY533710086 FUSE, 40 amp, J CASE Green	$14.26	6
530	HY533710088	FUSE, 50 amp, J CASE	HY533710088 FUSE, 50 amp, J CASE Red	$14.26	9
540	HY533710089	FUSE, 60 amp, J CASE	HY533710089 FUSE, 60 amp, J CASE Yellow	$13.80	2
600	HY5315692AA	POWER RELAY, 1FA,1N 12VDC	HY5315692AA POWER RELAY, 1FA,1N 12VDC	$24.18	2
610	HY533710163	RELAY, POWER, FA7,LATCHING, PINK	HY533710163 RELAY, POWER, FA7,LATCHING, PINK	$78.47	2
620	HY533710084	RELAY, CHANGE OVER 5-WAY,MICRO	HY533710084 RELAY, CHANGE OVER 5-WAY,MICRO	$52.89	2
