Wheel & Tyres, Rear from 13MY of Aston Martin Aston Martin GT RAPIDE (2010-2019)

すべて見る

Aston Martin GT RAPIDE (2010-2019) - Wheel & Tyres, Rear from 13MY

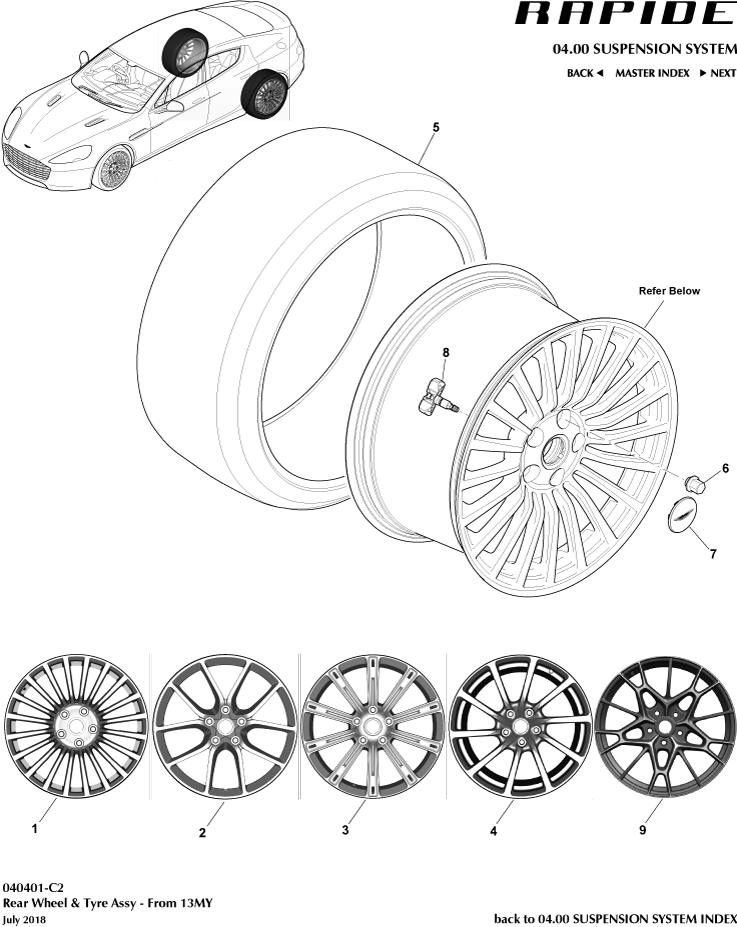

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	AD431007TA	Wheel, 20 Inch, Multispoke	AD431007TA Wheel, 20 Inch, Multispoke From 16MY, Silver, Not DT, Rapide	$3,215.99	2
-	CD439965GAA	Wheel, 20 Inch, Multispoke	CD439965GAA Wheel, 20 Inch, Multispoke Black, Diamond Turned	$3,348.57	2
-	DD439965GFA	Wheel, 20 Inch, 10 Spoke	DD439965GFA Wheel, 20 Inch, 10 Spoke Black, Diamond Turned	$3,142.32	2
-	FD439965GHA	Wheel, Directional RH, 20 Inch, 10 Spoke	FD439965GHA Wheel, Directional RH, 20 Inch, 10 Spoke From 15MY, Champagne, Diamond Turned	$3,621.44	1
-	FD439965GEA	Wheel, Directional LH, 20 Inch, 10 Spoke	FD439965GEA Wheel, Directional LH, 20 Inch, 10 Spoke From 15MY, Graphite, Diamond Turned	$3,802.48	1
-	FD439965GFA	Wheel, Directional RH, 20 Inch, 10 Spoke	FD439965GFA Wheel, Directional RH, 20 Inch, 10 Spoke From 15MY, Graphite, Diamond Turned	$3,802.48	1
-	KD431508BA	Road Tyre, Rear, 295/30 R21	KD431508BA Road Tyre, Rear, 295/30 R21 AMR, From 19MY. Standard	$1,038.01	2
-	AD431508DA	Winter Tyre, Rear, 295/35 R20	AD431508DA Winter Tyre, Rear, 295/35 R20 -	$747.98	2
-	KD431K024AA	Wheel Nut, M14x2.0	KD431K024AA Wheel Nut, M14x2.0 AMR, Black	$20.66	10
-	7G331A096BBPK	Cap, Wheel Centre	7G331A096BBPK Cap, Wheel Centre Graphite Cap/Green Wings, Pack of 4	-	2	Enquire
-	CD331A096BBPK	Cap, Wheel Centre	CD331A096BBPK Cap, Wheel Centre Black Cap/Green Wings, Up to 17MY. Pack of 4	-	2	Enquire
-	HY531A096DAPK	Cap, Wheel Centre IN STOCK	HY531A096DAPK Cap, Wheel Centre Anthracite Cap/Green Wings, From 18MY. Pack of 4 IN STOCK	$104.71	2
-	CD23360671DA	Transmitter/valve (315MHZ)	CD23360671DA Transmitter/valve (315MHZ) 315Mhz	$211.72	2
-	4G43-1040-AA	ウェイト、カウンターバランス	4G43-1040-AA ウェイト、カウンターバランス Silver	-	A/R	Enquire
-	4G43-1040-BA	ウェイト、カウンターバランス	4G43-1040-BA ウェイト、カウンターバランス Grey	-	A/R	Enquire
-	ED231040AA	BALANCE WEIGHT, 5g	ED231040AA BALANCE WEIGHT, 5g Black	$2.59	A/R
-	CG43974747AA	Label, Winter Tyre, Maximum Speeds(When Fitted)	CG43974747AA Label, Winter Tyre, Maximum Speeds(When Fitted) -	$10.67	1
-	KD431007TA	Wheel, 21x11J ET47.9	KD431007TA Wheel, 21x11J ET47.9 From 19MY, AMR, Plain Black	$4,867.45	2
1	AD431007NA	Wheel, 20 Inch, Multispoke	AD431007NA Wheel, 20 Inch, Multispoke Silver, Diamond Turned, Rapide S	$3,208.54	2
2	DD439965GDA	Wheel, 20 Inch, 10 Spoke	DD439965GDA Wheel, 20 Inch, 10 Spoke Silver, Diamond Turned	$2,932.22	2
3	BD439965GAA	Wheel, 20 Inch, 10 Spoke	BD439965GAA Wheel, 20 Inch, 10 Spoke Up to 15MY, Silver, Polished	$4,280.66	2
4	FD439965GGA	Wheel, Directional LH, 20 Inch, 10 Spoke	FD439965GGA Wheel, Directional LH, 20 Inch, 10 Spoke From 15MY, Champagne, Diamond Turned	$3,730.09	1
5	FD431508BA	Road Tyre, Rear, 295/35 R20	FD431508BA Road Tyre, Rear, 295/35 R20 Standard. R117 Specification	-	2	Enquire
6	4G431K024BD	Nut assy, Wheel IN STOCK	4G431K024BD Nut assy, Wheel - IN STOCK	$30.47	10
7	6G331A096ABPK	Cap, Wheel Centre	6G331A096ABPK Cap, Wheel Centre Silver Cap/Green Wings, Up to 17MY. Pack of 4	-	2	Enquire
8	CD23360671CA	Transmitter/valve (433MHZ) IN STOCK	CD23360671CA Transmitter/valve (433MHZ) 433Mhz IN STOCK	$219.48	2
9	KD431007CA	Wheel, 21x11J ET47.9 DT	KD431007CA Wheel, 21x11J ET47.9 DT From 19MY, AMR, Black, Diamond Turned	$4,429.73	2
