Front Brake System of Aston Martin Aston Martin GT RAPIDE (2010-2019)

すべて見る

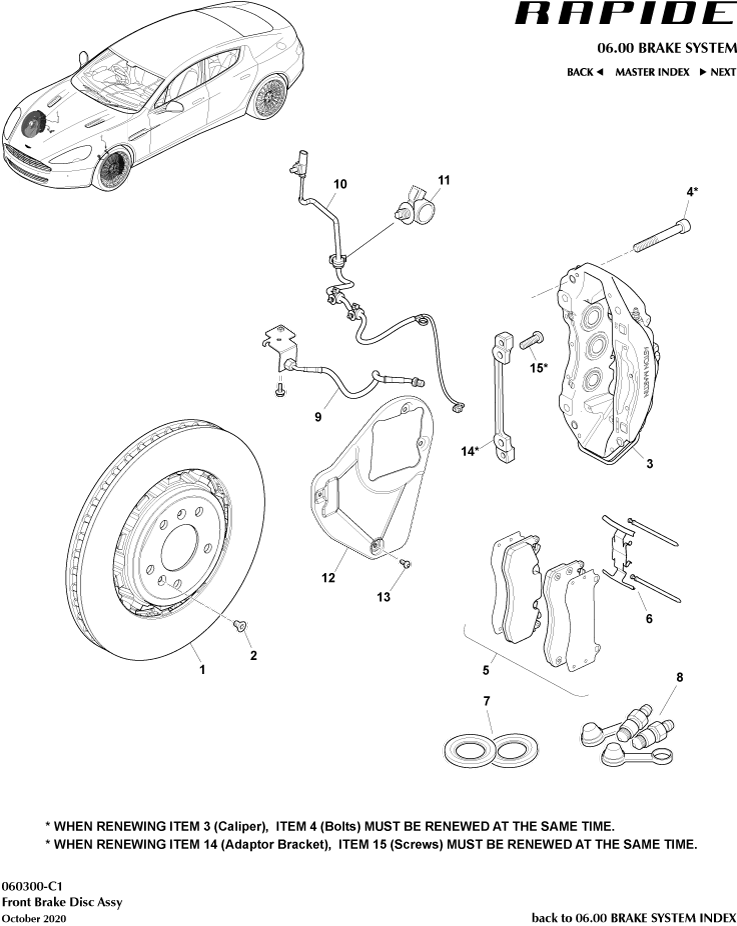

Aston Martin GT RAPIDE (2010-2019) - Front Brake System

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	AD431125AB	Disc, Brake	AD431125AB Disc, Brake From VIN F02201 To 15MY, 390mm Grooved Disc	$876.40	2
-	FD431125AB	Disc, Brake	FD431125AB Disc, Brake From 15MY, 400mm Grooved Disc	$845.68	2
-	AY931125AA	Disc, Brake	AY931125AA Disc, Brake AMR	$13,862.39	2
-	AD432C462AA	Caliper, Less Pads, RH	AD432C462AA Caliper, Less Pads, RH Up To 15MY, Grey	$1,279.03	1
-	AD432C463CA	Caliper, Less Pads, LH	AD432C463CA Caliper, Less Pads, LH Up To 15MY, Black	$1,224.63	1
-	AD432C462CA	Caliper, Less Pads, RH	AD432C462CA Caliper, Less Pads, RH Up To 15MY, Black	$1,224.63	1
-	AD432C463DA	Caliper, Less Pads, LH	AD432C463DA Caliper, Less Pads, LH Up To 15MY, Red	$1,279.03	1
-	AD432C462DA	Caliper, Less Pads, RH	AD432C462DA Caliper, Less Pads, RH Up To 15MY, Red	$1,279.03	1
-	AD432C463EA	Caliper, Less Pads, LH	AD432C463EA Caliper, Less Pads, LH Up To 15MY, Silver	$1,279.03	1
-	AD432C462EA	Caliper, Less Pads, RH	AD432C462EA Caliper, Less Pads, RH Up To 15MY, Silver	$1,279.03	1
-	AD432C463FA	Caliper, Less Pads, LH	AD432C463FA Caliper, Less Pads, LH Up To 15MY, Yellow	$1,279.03	1
-	AD432C462FA	Caliper, Less Pads, RH	AD432C462FA Caliper, Less Pads, RH Up To 15MY, Yellow	$1,279.03	1
-	FD432C463AA	Caliper, Less Pads, LH	FD432C463AA Caliper, Less Pads, LH From 15MY, Grey	$1,662.68	1
-	FD432C462AA	Caliper, Less Pads, RH	FD432C462AA Caliper, Less Pads, RH From 15MY, Grey	$1,662.68	1
-	FD432C463CA	Caliper, Less Pads, LH	FD432C463CA Caliper, Less Pads, LH From 15MY, Black	$1,603.05	1
-	FD432C462CA	Caliper, Less Pads, RH	FD432C462CA Caliper, Less Pads, RH From 15MY, Black	$1,603.05	1
-	FD432C463DA	Caliper, Less Pads, LH	FD432C463DA Caliper, Less Pads, LH From 15MY, Red	$1,662.68	1
-	FD432C462DA	Caliper, Less Pads, RH	FD432C462DA Caliper, Less Pads, RH From 15MY, Red	$1,662.68	1
-	FD432C463EA	Caliper, Less Pads, LH	FD432C463EA Caliper, Less Pads, LH From 15MY, Silver	$1,662.68	1
-	FD432C462EA	Caliper, Less Pads, RH	FD432C462EA Caliper, Less Pads, RH From 15MY, Silver	$1,662.68	1
-	FD432C463FA	Caliper, Less Pads, LH	FD432C463FA Caliper, Less Pads, LH From 15MY, Yellow	$1,662.68	1
-	FD432C462FA	Caliper, Less Pads, RH	FD432C462FA Caliper, Less Pads, RH From 15MY, Yellow	$1,662.68	1
-	FD432C463JA	Caliper, Less Pads, LH	FD432C463JA Caliper, Less Pads, LH From 15MY, Black Anodised	$1,498.80	1
-	FD432C462JA	Caliper, Less Pads, RH	FD432C462JA Caliper, Less Pads, RH From 15MY, Black Anodised	$1,498.80	1
-	8D33CD60AA	SCREW, FRONT ADAPTERBRACKET to CALIPER ARRIVING SOON	8D33CD60AA SCREW, FRONT ADAPTERBRACKET to CALIPER AMR,Always Replace, Do Not Re-use ARRIVING SOON	$10.68	2
-	AD43-2D007-AC	Kit, Brake Pads, Axle Set, CCC	AD43-2D007-AC Kit, Brake Pads, Axle Set, CCC China	-	1	Enquire
-	CD332D007AA	KIT, BRAKE PADS, FRONT	CD332D007AA KIT, BRAKE PADS, FRONT AMR	$1,628.70	1
-	8D332C588AA	KIT, SPRINGS & PINS	8D332C588AA KIT, SPRINGS & PINS AMR, Per Caliper	$82.49	1
-	8D3332180AA	Kit, Dust Boot	8D3332180AA Kit, Dust Boot AMR	$62.51	1
-	AD432078BD	Hose Assembly, Flexible, RH	AD432078BD Hose Assembly, Flexible, RH Per Caliper	$131.70	1
-	CD332K005AA	SHIELD, FRONT BRAKE, LH	CD332K005AA SHIELD, FRONT BRAKE, LH AMR	$221.97	1
-	4G43-2K004-AA	Shield, Disc, RH	4G43-2K004-AA Shield, Disc, RH -	-	1	Enquire
-	CD332K004AA	SHIELD, FRONT BRAKE, RH	CD332K004AA SHIELD, FRONT BRAKE, RH AMR	$221.97	1
1	AD431125AA	Disc, Brake	AD431125AA Disc, Brake Up To VIN F02200, Plain Disc	-	2	Enquire
2	4G432N389AA	Screw, M8 x 14, Flat Hd Csk	4G432N389AA Screw, M8 x 14, Flat Hd Csk -	$0.45	4
3	AD432C463AA	Caliper, Less Pads, LH	AD432C463AA Caliper, Less Pads, LH Up To 15MY, Grey	$1,279.03	1
4	8D332C564AA	Bolt, caliper to knuckle	8D332C564AA Bolt, caliper to knuckle Always Replace, Do Not Re-use	$12.05	2
5	AD432D007AB	Kit, Brake Pads, Axle Set	AD432D007AB Kit, Brake Pads, Axle Set RoW	$1,162.42	1
6	AD432C588AA	Kit, Pad Spring and Pin	AD432C588AA Kit, Pad Spring and Pin Per Caliper	$110.15	1
9	AD432078AD	Hose Assembly, Flexible, LH	AD432078AD Hose Assembly, Flexible, LH Per Caliper	$231.79	1
10	8D332L507AA	SENSOR, BRAKE WEAR, FRONT ARRIVING SOON	8D332L507AA SENSOR, BRAKE WEAR, FRONT - ARRIVING SOON	$67.36	2
11	4G436510059PK	Firtree clip, pad wear lead attch	4G436510059PK Firtree clip, pad wear lead attch Pack of 100	$73.95	6
12	4G43-2K005-AA	Shield, Disc, LH	4G43-2K005-AA Shield, Disc, LH -	-	1	Enquire
13	4G4313D026AA	SCREW, M6x1.6x14	4G4313D026AA SCREW, M6x1.6x14 -	$1.00	4
14	ED232D204AB	ADAPTOR BRACKET	ED232D204AB ADAPTOR BRACKET AMR only	$933.36	2
15	8D33YA64AA	SCREW, ADAPTOR BRACKET toKNUCKLE	8D33YA64AA SCREW, ADAPTOR BRACKET toKNUCKLE AMR only,Always Replace, Do Not Re-use	$10.41	4
