Rear Brake System of Aston Martin Aston Martin GT RAPIDE (2010-2019)

すべて見る

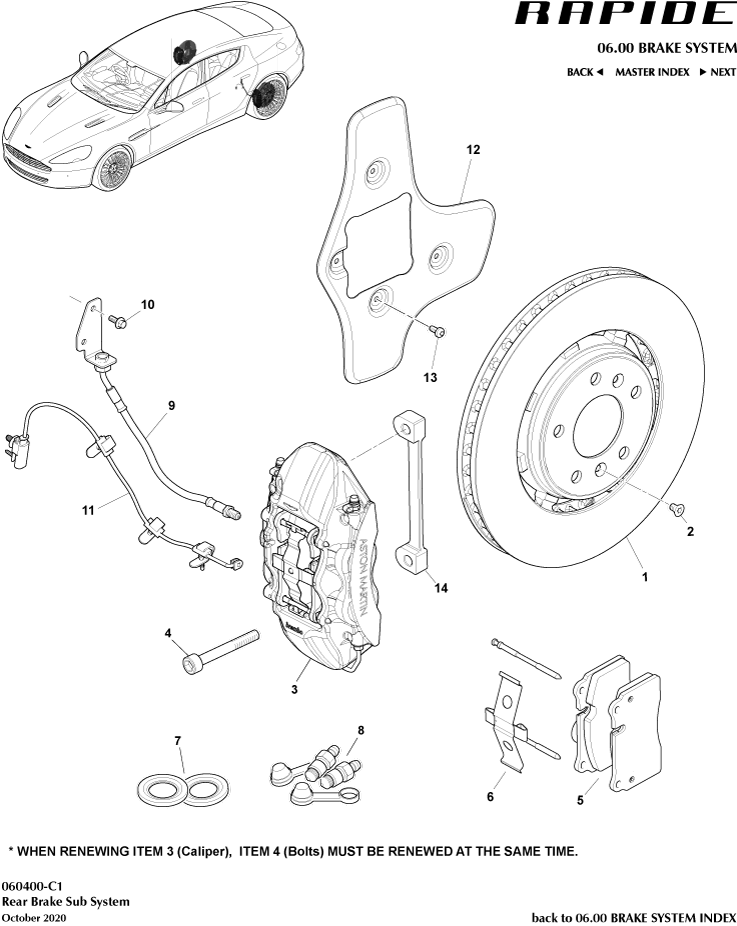

Aston Martin GT RAPIDE (2010-2019) - Rear Brake System

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	AD432C026AB	Disc, Brake	AD432C026AB Disc, Brake From VIN F02201, Grooved Disc	$556.60	2
-	AY932C026AA	Disc, Brake	AY932C026AA Disc, Brake AMR	$8,282.97	2
-	AD432C464AA	Caliper, Less Pads, RH	AD432C464AA Caliper, Less Pads, RH Up to 15MY. Grey	$639.52	1
-	AD432C465CA	Caliper, Less Pads, LH	AD432C465CA Caliper, Less Pads, LH Up to 15MY. Black	$598.66	1
-	AD432C464CA	Caliper, Less Pads, RH	AD432C464CA Caliper, Less Pads, RH Up to 15MY. Black	$598.66	1
-	AD432C465DA	Caliper, Less Pads, LH	AD432C465DA Caliper, Less Pads, LH Up to 15MY. Red	$639.52	1
-	AD432C464DA	Caliper, Less Pads, RH	AD432C464DA Caliper, Less Pads, RH Up to 15MY. Red	$639.52	1
-	AD432C465EA	Caliper, Less Pads, LH	AD432C465EA Caliper, Less Pads, LH Up to 15MY. Silver	$639.52	1
-	AD432C464EA	Caliper, Less Pads, RH	AD432C464EA Caliper, Less Pads, RH Up to 15MY. Silver	$639.52	1
-	AD432C465FA	Caliper, Less Pads, LH	AD432C465FA Caliper, Less Pads, LH Up to 15MY. Yellow	$680.37	1
-	AD432C464FA	Caliper, Less Pads, RH	AD432C464FA Caliper, Less Pads, RH Up to 15MY. Yellow	$680.37	1
-	AD43-2C465-JA	Caliper, Less Pads, LH	AD43-2C465-JA Caliper, Less Pads, LH Up to 15MY. Black Anodised	-	1	Enquire
-	AD43-2C464-JA	Caliper, Less Pads, RH	AD43-2C464-JA Caliper, Less Pads, RH Up to 15MY. Black Anodised	-	1	Enquire
-	FD432C465AA	Caliper, Less Pads, LH	FD432C465AA Caliper, Less Pads, LH From 15MY. Grey	$914.01	1
-	FD432C464AA	Caliper, Less Pads, RH	FD432C464AA Caliper, Less Pads, RH From 15MY. Grey	$914.01	1
-	FD432C465CA	Caliper, Less Pads, LH	FD432C465CA Caliper, Less Pads, LH From 15MY. Black	$854.34	1
-	FD432C464CA	Caliper, Less Pads, RH	FD432C464CA Caliper, Less Pads, RH From 15MY. Black	$854.34	1
-	FD432C465DA	Caliper, Less Pads, LH	FD432C465DA Caliper, Less Pads, LH From 15MY. Red	$914.01	1
-	FD432C464DA	Caliper, Less Pads, RH	FD432C464DA Caliper, Less Pads, RH From 15MY. Red	$914.01	1
-	FD432C465EA	Caliper, Less Pads, LH	FD432C465EA Caliper, Less Pads, LH From 15MY. Silver	$914.01	1
-	FD432C464EA	Caliper, Less Pads, RH	FD432C464EA Caliper, Less Pads, RH From 15MY. Silver	$914.01	1
-	FD432C465FA	Caliper, Less Pads, LH	FD432C465FA Caliper, Less Pads, LH From 15MY. Yellow	$914.01	1
-	FD432C464FA	Caliper, Less Pads, RH	FD432C464FA Caliper, Less Pads, RH From 15MY. Yellow	$914.01	1
-	FD432C465JA	Caliper, Less Pads, LH	FD432C465JA Caliper, Less Pads, LH From 15MY. Black Anodised	$914.01	1
-	FD432C464JA	Caliper, Less Pads, RH	FD432C464JA Caliper, Less Pads, RH From 15MY. Black Anodised	$914.01	1
-	AD232C465JA	CALIPER, LHR, less PADS	AD232C465JA CALIPER, LHR, less PADS AMR. Black Anodised	$1,108.97	1
-	AD232C464JA	CALIPER, RHR, less PADS	AD232C464JA CALIPER, RHR, less PADS AMR. Black Anodised	$1,108.97	1
-	AD232C465CB	CALIPER, LHR, less PADS	AD232C465CB CALIPER, LHR, less PADS AMR. Black	$1,061.32	1
-	AD232C464CB	CALIPER, RHR, less PADS	AD232C464CB CALIPER, RHR, less PADS AMR. Black	$1,061.32	1
-	AD232C465NA	Caliper, Less Pads, LH	AD232C465NA Caliper, Less Pads, LH AMR. Lime	$1,108.83	1
-	AD232C464NA	Caliper, Less Pads, RH	AD232C464NA Caliper, Less Pads, RH AMR. Lime	$1,108.83	1
-	AD432C562AB	Kit, Brake Pads, Axle Set, CCC	AD432C562AB Kit, Brake Pads, Axle Set, CCC China	$753.16	1
-	8D332C562BA	KIT, BRAKE PADS, REAR	8D332C562BA KIT, BRAKE PADS, REAR AMR	$995.78	1
-	8D332C588BA	KIT, SPRINGS & PINS	8D332C588BA KIT, SPRINGS & PINS AMR, Per Caliper	$82.98	2
-	FD43-32610-AA	Kit, dust boot	FD43-32610-AA Kit, dust boot From 15MY. Per Caliper	-	2	Enquire
-	AD232C465BB	Parkbrake Caliper Anodized, Rear LH w/o Pads	AD232C465BB Parkbrake Caliper Anodized, Rear LH w/o Pads AMR	$672.88	2
-	4G4333693AA	キャップ、ブリードスクリュー	4G4333693AA キャップ、ブリードスクリュー Per Caliper	$28.04	2
-	AD432282BA	Hose assy, Flexible, RH	AD432282BA Hose assy, Flexible, RH -	-	2	Enquire
-	8D332C028AA	SHIELD, REAR BRAKE, RH	8D332C028AA SHIELD, REAR BRAKE, RH -	$59.55	1
1	AD432C026AA	Disc, Brake	AD432C026AA Disc, Brake Up To VIN F02200, Plain Disc	-	2	Enquire
2	4G432N389AA	Screw, M8 x 14, Flat Hd Csk	4G432N389AA Screw, M8 x 14, Flat Hd Csk -	$0.45	4
3	AD432C465AA	Caliper, Less Pads, LH	AD432C465AA Caliper, Less Pads, LH Up to 15MY. Grey	$639.52	1
4	8D332C564AA	Bolt, caliper to knuckle	8D332C564AA Bolt, caliper to knuckle Always Replace, Do Not Re-use	$12.05	4
5	AD432C562AA	Kit, Brake Pads, Axle Set	AD432C562AA Kit, Brake Pads, Axle Set RoW	$667.48	1
6	AD432C588BA	Kit, Pad Spring and Pin	AD432C588BA Kit, Pad Spring and Pin Per Caliper	$62.33	2
7	AD43-32610-AA	Kit, dust boot	AD43-32610-AA Kit, dust boot Up to 15MY. Per Caliper	-	2	Enquire
8	4G432C563AA	KIT, BLEED SCREWS	4G432C563AA KIT, BLEED SCREWS Per Caliper	$17.97	2
9	AD432282AA	Hose assy, Flexible, LH	AD432282AA Hose assy, Flexible, LH -	-	2	Enquire
10	703265	ネジ、M6 X 16なべ頭	703265 ネジ、M6 X 16なべ頭 -	$0.59	2
11	6G332D009AB	SENSOR, BRAKE WEAR, REAR	6G332D009AB SENSOR, BRAKE WEAR, REAR -	$60.23	2
12	8D332C029AA	SHIELD, REAR BRAKE, LH	8D332C029AA SHIELD, REAR BRAKE, LH -	$59.55	1
13	4G4313D026AA	SCREW, M6x1.6x14	4G4313D026AA SCREW, M6x1.6x14 -	$1.00	8
14	4G4313D026AA	SCREW, M6x1.6x14	4G4313D026AA SCREW, M6x1.6x14 AMR only	$1.00	2
