Air Con Lines, R134a Gas of Aston Martin Aston Martin GT VANQUISH (2013-2018)

すべて見る

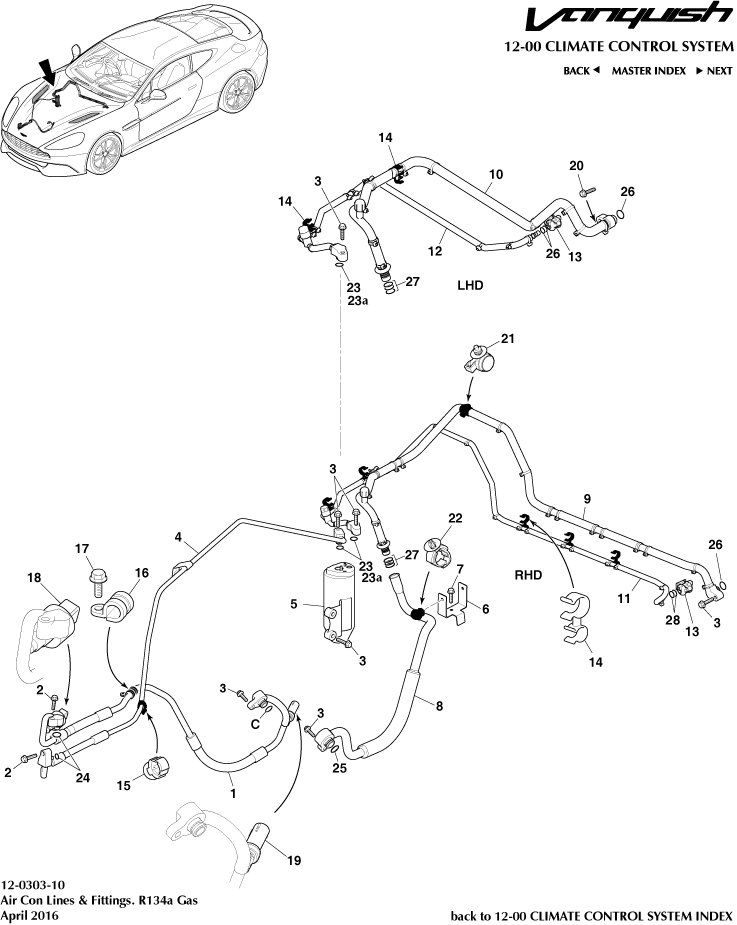

Aston Martin GT VANQUISH (2013-2018) - Air Con Lines, R134a Gas

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	HD3319972AA	TUBE ASSEMBLY, COMPRESSORto CONDENSER	HD3319972AA TUBE ASSEMBLY, COMPRESSORto CONDENSER From 17MY, With R134 Gas	$633.91	1
-	HD3319D719AA	TUBE ASSEMBY, CONDENSERto DRIER	HD3319D719AA TUBE ASSEMBY, CONDENSERto DRIER From 17MY, With R134 Gas	$264.12	1
-	HD3319A705AA	TUBE ASSEMBLY, EVAPORATOROUTLET	HD3319A705AA TUBE ASSEMBLY, EVAPORATOROUTLET From 17MY, With R134 Gas	$412.88	1
-	HG4319A705CA	TUBE ASSEMBLY, EVAPORATOROUTLET	HG4319A705CA TUBE ASSEMBLY, EVAPORATOROUTLET From 17MY, RHD, With R134 Gas	$358.85	1
-	HG4319A705BA	TUBE ASSEMBLY, EVAPORATOROUTLET	HG4319A705BA TUBE ASSEMBLY, EVAPORATOROUTLET From 17MY, LHD, With R134 Gas	$219.84	1
-	HG4319835CA	TUBE ASSEMBLY, DRIER toEVAPORATOR	HG4319835CA TUBE ASSEMBLY, DRIER toEVAPORATOR From 17MY, RHD, With R134 Gas	$298.35	1
-	HG4319835BA	TUBE ASSEMBLY, DRIER toEVAPORATOR	HG4319835BA TUBE ASSEMBLY, DRIER toEVAPORATOR From 17MY, LHD, With R134 Gas	$309.93	1
-	HD2387056AA	O Rings, Receiver / Drier	HD2387056AA O Rings, Receiver / Drier From 17MY	$6.97	2
-	HD2387024AA	O Ring, 6.70x1.80	HD2387024AA O Ring, 6.70x1.80 From 17MY	$6.97	2
-	HD2319394AA	O RING, EPDM, 16.25x2.5	HD2319394AA O RING, EPDM, 16.25x2.5 From 17MY	$8.62	1
-	HD2332117AA	EPDM O Ring, 13.40x2.40	HD2332117AA EPDM O Ring, 13.40x2.40 From 17MY	$5.87	2
-	HD2349745AA	O Ring, 12.93x1.86	HD2349745AA O Ring, 12.93x1.86 From 17MY	$8.44	3
1	CD3319972AC	Tube Assy, Compressor to Condenser	CD3319972AC Tube Assy, Compressor to Condenser Up To 17MY	$657.32	1
2	703201	Screw, M8 x 30 Hex Head Flange IN STOCK	703201 Screw, M8 x 30 Hex Head Flange - IN STOCK	$1.28	2
3	703199	Bolt M6x30 hex flg hd IN STOCK	703199 Bolt M6x30 hex flg hd - IN STOCK	$0.79	7
4	CD3319D719AC	Tube Assy, Condenser to Receiver/Drier	CD3319D719AC Tube Assy, Condenser to Receiver/Drier Up To 17MY	$140.62	1
5	4G4319E891AD	レシーバドライヤアセンブリ IN STOCK	4G4319E891AD レシーバドライヤアセンブリ - IN STOCK	$274.27	1
6	4G436147XAD	Bracket, A/C pipe support	4G436147XAD Bracket, A/C pipe support RHD	$41.66	1
7	703151	Nut/washr, M6 IN STOCK	703151 Nut/washr, M6 RHD IN STOCK	$0.90	1
8	CD3319A705AA	Tube Assy, Evaporator Outlet, Lower IN STOCK	CD3319A705AA Tube Assy, Evaporator Outlet, Lower Up To 17MY IN STOCK	$178.97	1
9	AG4319A705CA	チューブアセンブリ、A/Cエバポレータアウトレット、上部	AG4319A705CA チューブアセンブリ、A/Cエバポレータアウトレット、上部 Up To 17MY, RHD	$353.08	1
10	AG4319A705BA	チューブアセンブリ、A/Cエバポレータアウトレット、上部	AG4319A705BA チューブアセンブリ、A/Cエバポレータアウトレット、上部 Up To 17MY, LHD	$196.13	1
11	AG4319835CA	チューブASSY、レシーバードライヤー～エバポレーター IN STOCK	AG4319835CA チューブASSY、レシーバードライヤー～エバポレーター Up To 17MY, RHD IN STOCK	$180.34	1
12	AG4319835BA	Tube assy, reciever drier to evaporator	AG4319835BA Tube assy, reciever drier to evaporator Up To 17MY, LHD	$764.46	1
13	4G434073AAA	CLAMP, LIQUID	4G434073AAA CLAMP, LIQUID -	$5.26	1
14	701182	Clip, Pipe, Swivel	701182 Clip, Pipe, Swivel RHD Qty 5, LHD Qty 2	$2.05	A/R
15	701180	CLIP, 14.0, PUSH-IN	701180 CLIP, 14.0, PUSH-IN -	$1.40	1
16	699634	P-Clip, 13mm IN STOCK	699634 P-Clip, 13mm - IN STOCK	$3.29	1
17	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 - IN STOCK	$0.34	1
18	1R128910192	SENSOR, HIGH PRESSURE	1R128910192 SENSOR, HIGH PRESSURE -	$559.74	1
19	6F9319D594AA	Switch Assy, A/C Pressure Cut Off	6F9319D594AA Switch Assy, A/C Pressure Cut Off -	-	1	Enquire
20	703025	Bolt, flg M6 x 25 IN STOCK	703025 Bolt, flg M6 x 25 LHD IN STOCK	$0.34	1
21	4G436510059PK	Firtree clip, pad wear lead attch IN STOCK	4G436510059PK Firtree clip, pad wear lead attch Pack of 100 IN STOCK	$74.51	2
22	702291	Clip, 11-18x6.5x7	702291 Clip, 11-18x6.5x7 RHD	$1.56	1
23	4G438910908PK	O Rings, Receiver / Drier IN STOCK	4G438910908PK O Rings, Receiver / Drier Up To 17MY, Kit of 2 IN STOCK	$6.16	1
23a	HD2387071AA	O Ring, 10.8x2.40	HD2387071AA O Ring, 10.8x2.40 From 17MY	$6.97	1
24	4G438910910PK	O Rings, Condenser IN STOCK	4G438910910PK O Rings, Condenser Up To 17MY, Kit of 2 IN STOCK	$6.29	1
25	4G438910909PK	O Rings, Compressor IN STOCK	4G438910909PK O Rings, Compressor Up To 17MY, Kit of 2 IN STOCK	$6.29	1
26	4G438910911PK	O Rings, Evaporator IN STOCK	4G438910911PK O Rings, Evaporator Up To 17MY IN STOCK	$14.44	1
28	HD23-874024-AA	Oリング	HD23-874024-AA Oリング From 17MY	-	2	Enquire
