Aston Martin GT VANQUISH (2013-2018) - 空気分配コンポーネント

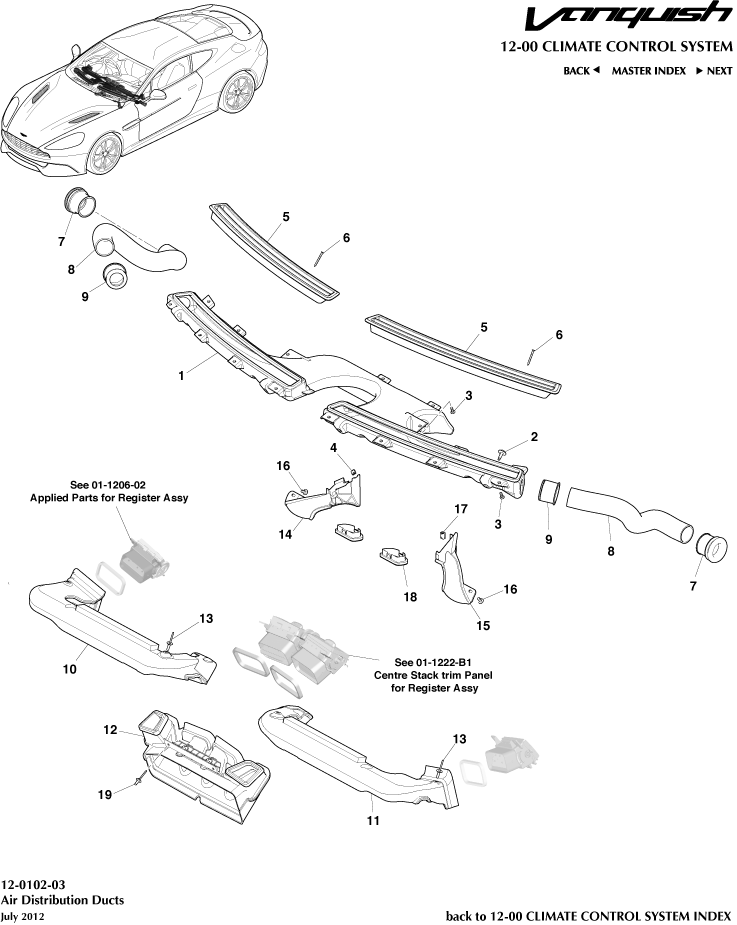

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	6G3304432AD	DUCT ASSEMBLY, WINDSCREEN	6G3304432AD DUCT ASSEMBLY, WINDSCREEN -	$145.99	1
-	CD3318D404AA	DUCT ASSEMBLY, CENTRE	CD3318D404AA DUCT ASSEMBLY, CENTRE -	$191.75	1
-	DD33014K96AA	DUCT, FOOTWELL, RH	DD33014K96AA DUCT, FOOTWELL, RH -	$63.97	1
-	DD33014K97AA	DUCT, FOOTWELL, LH	DD33014K97AA DUCT, FOOTWELL, LH -	$63.97	1
1	6G3304432BD	DUCT ASSEMBLY, WINDSCREEN	6G3304432BD DUCT ASSEMBLY, WINDSCREEN -	$145.99	1
2	703156	Screw / Washer, M6 x 18 IN STOCK	703156 Screw / Washer, M6 x 18 - IN STOCK	$1.38	4
3	703068	SCREW, 4.2x9, LARGEFLANGE	703068 SCREW, 4.2x9, LARGEFLANGE -	$0.13	8
4	W502660-S303	Screw, 4.2 x 13, Self Tapping	W502660-S303 Screw, 4.2 x 13, Self Tapping -	-	8	Enquire
5	4G4318C491AJ	GRILLE, WINDSCREENDEFROST	4G4318C491AJ GRILLE, WINDSCREENDEFROST -	$688.83	2
6	6G3379231AC	Screw, M3.5 x 38 Pozi IN STOCK	6G3379231AC Screw, M3.5 x 38 Pozi - IN STOCK	$0.72	4
7	4G43C046B80AC	SEAL, DEMISTER HOSE	4G43C046B80AC SEAL, DEMISTER HOSE -	$9.56	2
8	4G4319E658AC	HOSE, WINDOW DEMISTER	4G4319E658AC HOSE, WINDOW DEMISTER -	$57.75	2
9	4G4319E680AD	CONNECTOR, DEMISTER HOSE	4G4319E680AD CONNECTOR, DEMISTER HOSE -	$9.56	2
10	CD3319C804AA	HVAC DUCT, OUTER, RH	CD3319C804AA HVAC DUCT, OUTER, RH -	$163.08	1
11	CD3319C805AA	HVAC DUCT, OUTER, LH	CD3319C805AA HVAC DUCT, OUTER, LH -	$163.08	1
12	CD3318D404BA	DUCT ASSEMBLY, CENTRE	CD3318D404BA DUCT ASSEMBLY, CENTRE -	$191.75	1
13	6G33RA610123AA	POP RIVET, 4.8, ALUMINIUM	6G33RA610123AA POP RIVET, 4.8, ALUMINIUM -	$0.50	A/R
14	DD33014K96BA	DUCT, FOOTWELL, RH	DD33014K96BA DUCT, FOOTWELL, RH -	$63.97	1
15	DD33014K97BA	DUCT, FOOTWELL, LH	DD33014K97BA DUCT, FOOTWELL, LH -	$63.97	1
16	701157PK	Screw, 4.2 x 13 IN STOCK	701157PK Screw, 4.2 x 13 Pack of 10 IN STOCK	$3.07	2
17	8D3360302BB	Edge clip, 8.7 x 12.7 a/con	8D3360302BB Edge clip, 8.7 x 12.7 a/con -	$0.84	2
18	7G43014K00AA	PLUG, FOOTWELL DUCT	7G43014K00AA PLUG, FOOTWELL DUCT -	$13.54	2
19	4G4317A873AA	POP RIVET, 4.8x12.0	4G4317A873AA POP RIVET, 4.8x12.0 -	$1.90	2
