6 - PANELS - 6.6 - REAR PANELS - RH of McLaren McLaren Ultimate Series McLaren Senna GTR

すべて見る

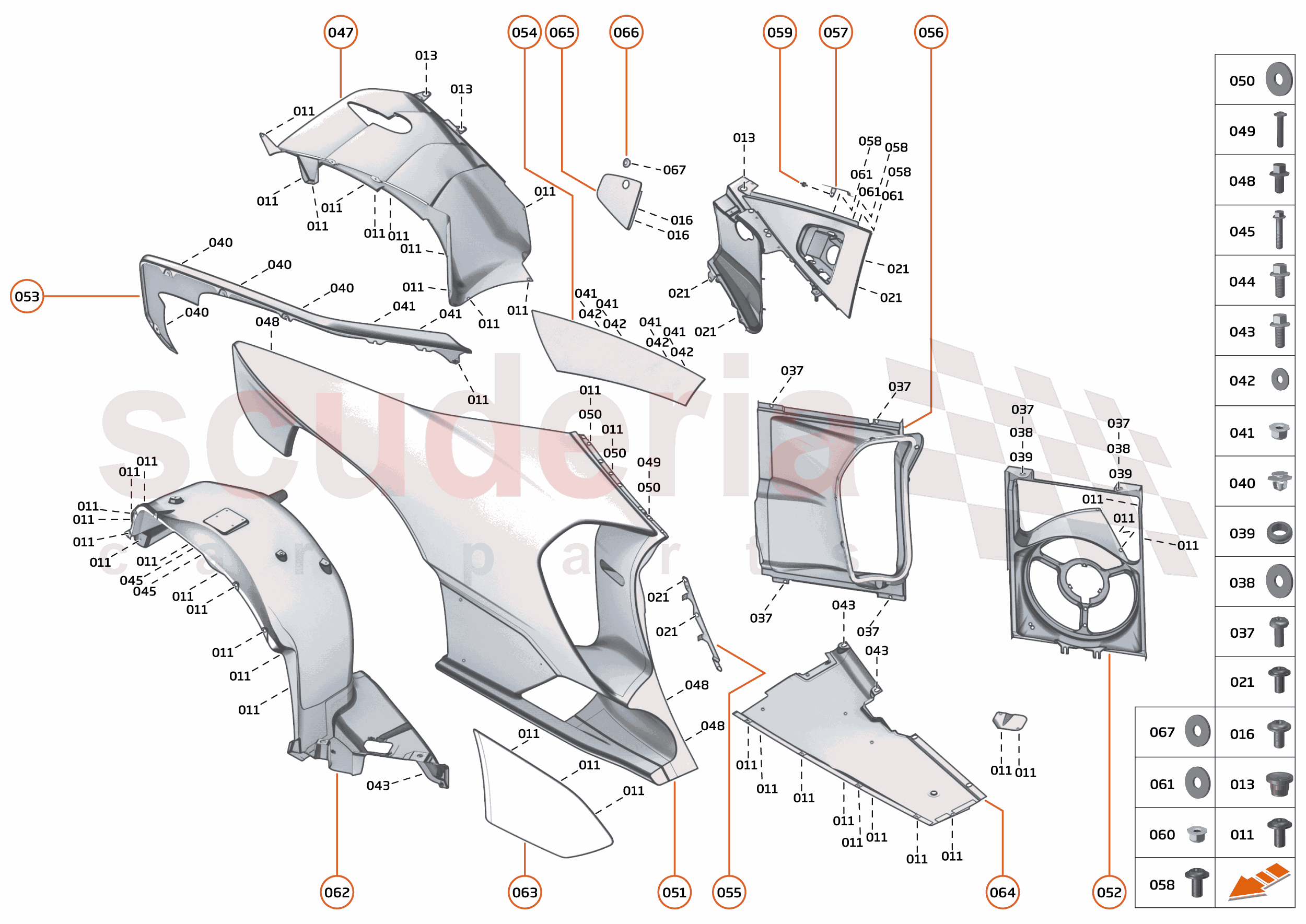

McLaren Ultimate Series McLaren Senna GTR - 6 - PANELS - 6.6 - REAR PANELS - RH

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
011	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Row ID: ID__00RA432_ContPgHS;	-	-	Enquire
013	00RA542	CLIP - SNAPLOC - 16X8	00RA542 CLIP - SNAPLOC - 16X8 Row ID: ID__00RA542_ContPgHS;	-	-	Enquire
016	00RA398	SCREW - SOCKET HEAD - FLANGED - M5X10	00RA398 SCREW - SOCKET HEAD - FLANGED - M5X10 Row ID: ID__00RA398_ContPgHS;	-	-	Enquire
021	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK Row ID: ID__00RA468_ContPgHS;	-	-	Enquire
037	00RA353	SCREW - 6X14 - THREADFORMING - TORX-FLANGE	00RA353 SCREW - 6X14 - THREADFORMING - TORX-FLANGE Row ID: ID__00RA353_ContPgHS;	-	-	Enquire
038	00RC043	WASHER - M6XOD25	00RC043 WASHER - M6XOD25 Row ID: ID__00RC043_ContPgHS;	-	-	Enquire
039	00RG011	GROMMET - DIA 19 - RUBBER	00RG011 GROMMET - DIA 19 - RUBBER Row ID: ID__00RG011_ContPgHS;	-	-	Enquire
040	00RB185	Clip - Cantrail Capping Panel	00RB185 Clip - Cantrail Capping Panel Row ID: ID__00RB185_ContPgHS;	-	-	Enquire
041	00RA582	NUT - M5 - HEX	00RA582 NUT - M5 - HEX Row ID: ID__00RA582_ContPgHS;	-	-	Enquire
042	00RC103	WASHER - M5X10	00RC103 WASHER - M5X10 Row ID: ID__00RC103_ContPgHS;	-	-	Enquire
043	00RA313	Screw - M6x16 - Hex - Silver	00RA313 Screw - M6x16 - Hex - Silver Row ID: ID__00RA313_ContPgHS;	-	-	Enquire
044	00RA515	Bolt - Hex - Flange - M6x16	00RA515 Bolt - Hex - Flange - M6x16 Row ID: ID__00RA515_ContPgHS;	-	-	Enquire
045	00RA486	BOLT-HEX HD-FL-M8X30-10.9-71	00RA486 BOLT-HEX HD-FL-M8X30-10.9-71 Row ID: ID__00RA486_ContPgHS;	-	-	Enquire
047	15AC957CP	LOUVRES - REAR DECK - RH - GLOSS CARBON	15AC957CP LOUVRES - REAR DECK - RH - GLOSS CARBON Row ID: ID__15AC957CP_ContPgHS;	-	1	Enquire
047	15AA083RP	ASSY DECK LOUVRES-RH - CFG	15AA083RP ASSY DECK LOUVRES-RH - CFG Row ID: ID__15AA083RP_ContPgHS;	-	1	Enquire
047	15AA531RP	ASSY DECK LOUVRES-RH - CFS	15AA531RP ASSY DECK LOUVRES-RH - CFS Row ID: ID__15AA531RP_ContPgHS;	-	1	Enquire
048	00RA064	BOLT - M5X12 - HEX	00RA064 BOLT - M5X12 - HEX Row ID: ID__00RA064_ContPgHS;	-	-	Enquire
049	00RA233	Screw - M6x40 - Button - Flange	00RA233 Screw - M6x40 - Button - Flange Row ID: ID__00RA233_ContPgHS;	-	1	Enquire
050	00RC077	CONVERTIBLE ROOF	00RC077 CONVERTIBLE ROOF Row ID: ID__00RC077_ContPgHS;	-	3	Enquire
051	15AD256CP	FENDER - REAR - GLOSS CARBON - RH	15AD256CP FENDER - REAR - GLOSS CARBON - RH Row ID: ID__15AD256CP_ContPgHS;	-	1	Enquire
051	15AA484RP	ASSY RR FENDER-RH - CFG	15AA484RP ASSY RR FENDER-RH - CFG Row ID: ID__15AA484RP_ContPgHS;	-	1	Enquire
051	15AA535RP	ASSY RR FENDER-RH - CFS	15AA535RP ASSY RR FENDER-RH - CFS Row ID: ID__15AA535RP_ContPgHS;	-	1	Enquire
052	15AC761CP	COWL - HIGH TEMPERATURE RADIATOR - RH	15AC761CP COWL - HIGH TEMPERATURE RADIATOR - RH Row ID: ID__15AC761CP_ContPgHS;	-	1	Enquire
052	15AD093CP	COWL - HIGH TEMPERATURE RADIATOR - RH	15AD093CP COWL - HIGH TEMPERATURE RADIATOR - RH Row ID: ID__15AD093CP_ContPgHS;	-	1	Enquire
053	15AC777CP	PANEL - HIGH TEMPERATURE RADIATOR - RH - GLOSS CARBON	15AC777CP PANEL - HIGH TEMPERATURE RADIATOR - RH - GLOSS CARBON Row ID: ID__15AC777CP_ContPgHS;	-	1	Enquire
053	15AA381RP	ASSY GURNEY FENDER RR RH - CFG	15AA381RP ASSY GURNEY FENDER RR RH - CFG Row ID: ID__15AA381RP_ContPgHS;	-	1	Enquire
053	15AA539RP	ASSY GURNEY FENDER RR RH - CFS	15AA539RP ASSY GURNEY FENDER RR RH - CFS Row ID: ID__15AA539RP_ContPgHS;	-	1	Enquire
054	15AC946CP	ASSY C PILLAR RH	15AC946CP ASSY C PILLAR RH Row ID: ID__15AC946CP_ContPgHS;	-	1	Enquire
055	15AA855CP	BRACKET - FENDER - REAR - RH	15AA855CP BRACKET - FENDER - REAR - RH Row ID: ID__15AA855CP_ContPgHS;	-	1	Enquire
056	15AA023CP	DUCT - FENDER INNER - RH	15AA023CP DUCT - FENDER INNER - RH Row ID: ID__15AA023CP_ContPgHS;	-	1	Enquire
057	15AA365RP	BRKT MTG-PIT KING-RR QTR PNL-R	15AA365RP BRKT MTG-PIT KING-RR QTR PNL-R Row ID: ID__15AA365RP_ContPgHS;	-	1	Enquire
058	00RA111	SCREW - M4X10 - BUTTON - 10.9	00RA111 SCREW - M4X10 - BUTTON - 10.9 Row ID: ID__00RA111_ContPgHS;	-	3	Enquire
059	15AA421RP	QR PIT KING TOP HAT - M6 X 1 X	15AA421RP QR PIT KING TOP HAT - M6 X 1 X Row ID: ID__15AA421RP_ContPgHS;	-	1	Enquire
060	00RA055	NUT - M6 - LOCKING - HEX	00RA055 NUT - M6 - LOCKING - HEX Row ID: ID__00RA055_ContPgHS;	-	1	Enquire
061	00RC030	WASHER - M4X12X1	00RC030 WASHER - M4X12X1 Row ID: ID__00RC030_ContPgHS;	-	3	Enquire
062	15AA090RP	ASSY RR SUPER WAL -RH	15AA090RP ASSY RR SUPER WAL -RH Row ID: ID__15AA090RP_ContPgHS;	-	1	Enquire
062	15AA350RP	ACCESS PNL RR SUPER WAL-RH	15AA350RP ACCESS PNL RR SUPER WAL-RH Row ID: ID__15AA350RP_ContPgHS;	-	1	Enquire
063	15AA362RP	ASSY BARGE BOARD RR RH	15AA362RP ASSY BARGE BOARD RR RH Row ID: ID__15AA362RP_ContPgHS;	-	1	Enquire
063	15AA197RP	ASSY BARGE BOARD RR RH - CFG	15AA197RP ASSY BARGE BOARD RR RH - CFG Row ID: ID__15AA197RP_ContPgHS;	-	1	Enquire
063	15AA570RP	BARGE BOARD RR RH -	15AA570RP BARGE BOARD RR RH - Row ID: ID__15AA570RP_ContPgHS;	-	1	Enquire
064	15AA158RP	ASSY FLOOR INFILL RH	15AA158RP ASSY FLOOR INFILL RH Row ID: ID__15AA158RP_ContPgHS;	-	1	Enquire
065	15AA244RP	ASSY FILLER BOWL FLAP-RH - 056	15AA244RP ASSY FILLER BOWL FLAP-RH - 056 Row ID: ID__15AA244RP_ContPgHS;	-	1	Enquire
065	15AA563RP	ASSY FILLER BOWL FLAP-RH - CFG	15AA563RP ASSY FILLER BOWL FLAP-RH - CFG Row ID: ID__15AA563RP_ContPgHS;	-	1	Enquire
065	15AA565RP	ASSY FILLER BOWL FLAP-RH - CFS	15AA565RP ASSY FILLER BOWL FLAP-RH - CFS Row ID: ID__15AA565RP_ContPgHS;	-	1	Enquire
066	15AA420RP	QR PIT KING HEAD	15AA420RP QR PIT KING HEAD Row ID: ID__15AA420RP_ContPgHS;	-	1	Enquire
067	12A4099RP	WASHER - NYLON 20X37X3	12A4099RP WASHER - NYLON 20X37X3 Row ID: ID__12A4099RP_ContPgHS;	-	1	Enquire
