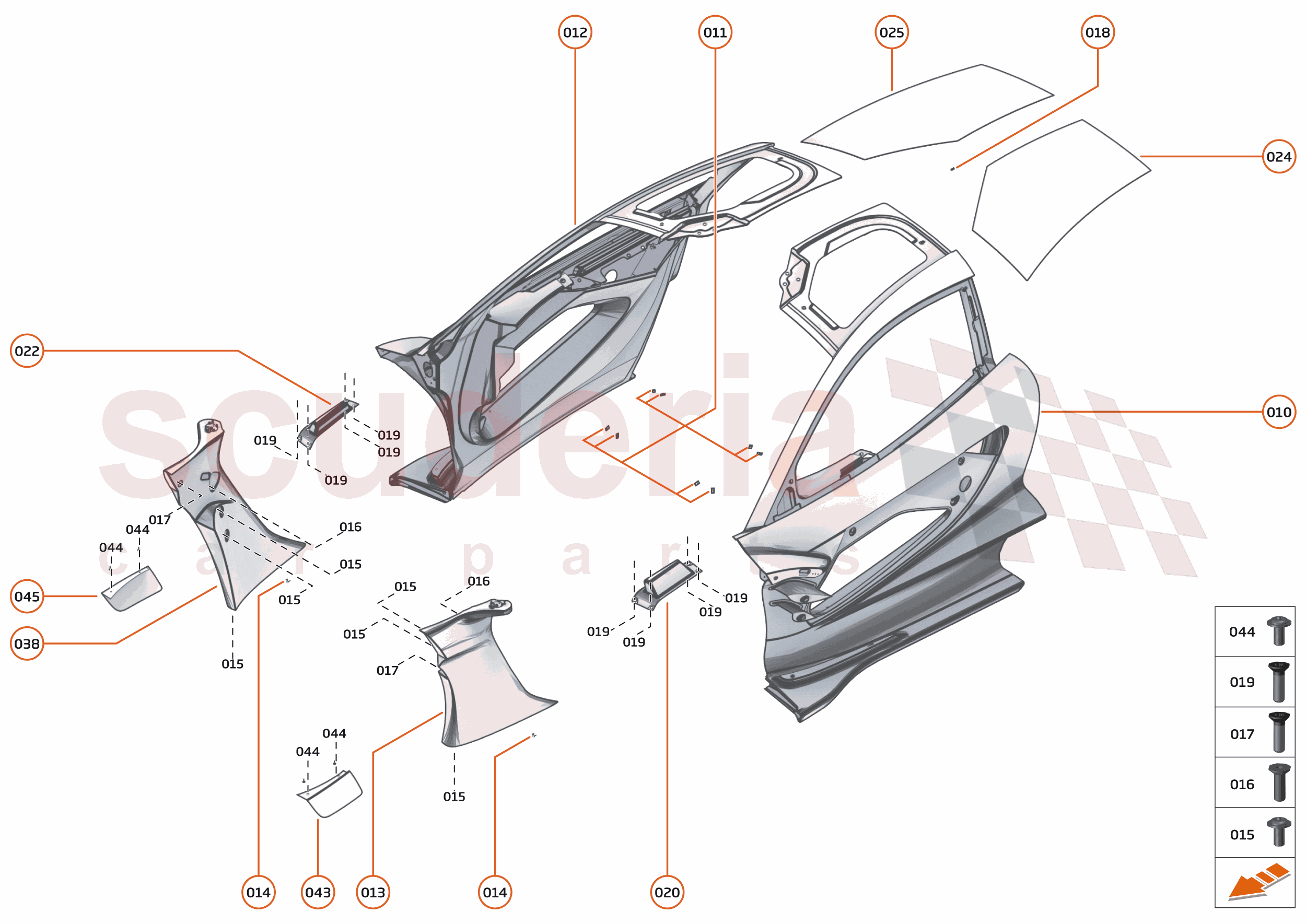

7 - CLOSURES - 7.2 - DOORS STRUCTURE of McLaren McLaren Ultimate Series McLaren Senna GTR

すべて見る

McLaren Ultimate Series McLaren Senna GTR - 7 - CLOSURES - 7.2 - DOORS STRUCTURE

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
010	15AC519CP	DOOR ASSY - NON AUDIO - LH	15AC519CP DOOR ASSY - NON AUDIO - LH Row ID: ID__15AC519CP_ContPgHS;	-	1	Enquire
010	15AD098CP	DOOR ASSY - NON AUDIO - LH	15AD098CP DOOR ASSY - NON AUDIO - LH Row ID: ID__15AD098CP_ContPgHS;	-	1	Enquire
010	15AD151CP	ASSY DOOR COUPE-NON-AUDIO-LH	15AD151CP ASSY DOOR COUPE-NON-AUDIO-LH Row ID: ID__15AD151CP_ContPgHS;	-	1	Enquire
011	00RA301	Clip - Spier - M5 - 0.5/2.1-SS	00RA301 Clip - Spier - M5 - 0.5/2.1-SS Row ID: ID__00RA301_ContPgHS;	-	4	Enquire
012	15AC523CP	DOOR ASSY - NON AUDIO - RH	15AC523CP DOOR ASSY - NON AUDIO - RH Row ID: ID__15AC523CP_ContPgHS;	-	1	Enquire
012	15AD099CP	DOOR ASSY - NON AUDIO - RH	15AD099CP DOOR ASSY - NON AUDIO - RH Row ID: ID__15AD099CP_ContPgHS;	-	1	Enquire
012	15AD152CP	DOOR ASSY - NON AUDIO - RH	15AD152CP DOOR ASSY - NON AUDIO - RH Row ID: ID__15AD152CP_ContPgHS;	-	1	Enquire
013	15AA093RP	ASSY DOOR BLADE LH	15AA093RP ASSY DOOR BLADE LH Row ID: ID__15AA093RP_ContPgHS;	-	1	Enquire
014	00RB103	Trim Panel Clip - Raymond - 017842	00RB103 Trim Panel Clip - Raymond - 017842 Row ID: ID__00RB103_ContPgHS;	-	1	Enquire
015	00RA409	BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS	00RA409 BOLT - M6X16 - BUTTON - BTNHDFLM6X16-SS Row ID: ID__00RA409_ContPgHS;	-	-	Enquire
015	00RA468	SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK	00RA468 SCREW - BUTTON HEAD - FLANGE - M6X12-BLACK Row ID: ID__00RA468_ContPgHS;	-	-	Enquire
016	00RA311	Screw - M6x16 - Hex Socket	00RA311 Screw - M6x16 - Hex Socket Row ID: ID__00RA311_ContPgHS;	-	1	Enquire
019	00RA635	COUNTERSUNK - TORX HEAD SCREW M5X16	00RA635 COUNTERSUNK - TORX HEAD SCREW M5X16 Row ID: ID__00RA635_ContPgHS;	-	4	Enquire
020	15AD159CP	DOOR FR ACCESS PANEL-LH-MACHIN	15AD159CP DOOR FR ACCESS PANEL-LH-MACHIN Row ID: ID__15AD159CP_ContPgHS;	-	1	Enquire
022	15AD160CP	DOOR FR ACCESS PNL-RH-MACHINED	15AD160CP DOOR FR ACCESS PNL-RH-MACHINED Row ID: ID__15AD160CP_ContPgHS;	-	1	Enquire
024	14AB825CP	ASSY PANEL DOOR UPR CF OPT LH	14AB825CP ASSY PANEL DOOR UPR CF OPT LH Row ID: ID__14AB825CP_ContPgHS;	-	1	Enquire
024	14AB797CP	DOOR PANEL - UPPER - CARBON - FOR PAINT - LH	14AB797CP DOOR PANEL - UPPER - CARBON - FOR PAINT - LH Row ID: ID__14AB797CP_ContPgHS;	$406.05	1
025	14AB831CP	ASSY PANEL DOOR UPR CF OPT RH	14AB831CP ASSY PANEL DOOR UPR CF OPT RH Row ID: ID__14AB831CP_ContPgHS;	-	1	Enquire
025	14AB816CP	DOOR PANEL - UPPER - CARBON - FOR PAINT - RH	14AB816CP DOOR PANEL - UPPER - CARBON - FOR PAINT - RH Row ID: ID__14AB816CP_ContPgHS;	$406.05	1
038	15AA095RP	ASSY DOOR BLADE RH	15AA095RP ASSY DOOR BLADE RH Row ID: ID__15AA095RP_ContPgHS;	-	1	Enquire
040	15AA753CP	PANEL - DOOR LOWER - LH	15AA753CP PANEL - DOOR LOWER - LH Row ID: ID__15AA753CP_ContPgHS;	-	1	Enquire
041	15AA754CP	PANEL - DOOR LOWER - RH	15AA754CP PANEL - DOOR LOWER - RH Row ID: ID__15AA754CP_ContPgHS;	-	1	Enquire
043	15AA229RP	ASSY EXTENSION DOOR BLADE FIN - FINISHER LH - CFG	15AA229RP ASSY EXTENSION DOOR BLADE FIN - FINISHER LH - CFG Row ID: ID__15AA229RP_ContPgHS;	-	1	Enquire
043	15AA543RP	ASSY EXTENSION DOOR BLADE FIN	15AA543RP ASSY EXTENSION DOOR BLADE FIN Row ID: ID__15AA543RP_ContPgHS;	-	1	Enquire
044	00RA432	SCREW - BUTTON HEAD FL - M5X12-SS - BLACK	00RA432 SCREW - BUTTON HEAD FL - M5X12-SS - BLACK Row ID: ID__00RA432_ContPgHS;	-	-	Enquire
045	15AA225RP	ASSY EXTENSION DOOR BLADE FIN - FINISHER RH - CFG	15AA225RP ASSY EXTENSION DOOR BLADE FIN - FINISHER RH - CFG Row ID: ID__15AA225RP_ContPgHS;	-	1	Enquire
045	15AA545RP	ASSY EXTENSION DOOR BLADE FIN	15AA545RP ASSY EXTENSION DOOR BLADE FIN Row ID: ID__15AA545RP_ContPgHS;	-	1	Enquire
