Air Cleaner and Emissions of Aston Martin Aston Martin GT DB11 (2017-2023)

すべて見る

Aston Martin GT DB11 (2017-2023) - Air Cleaner and Emissions

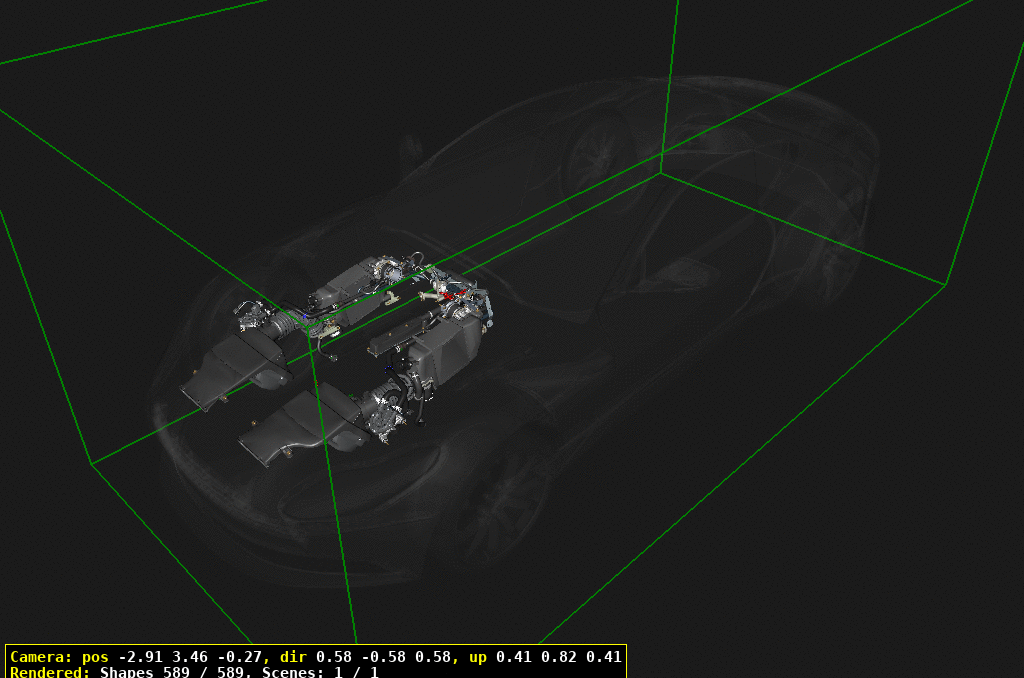

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
10	HY53401101BA	ホースクランプ	HY53401101BA ホースクランプ	$34.94	2
20	HY539G823AA	GROMMET, AIRBOX MOUNTING	HY539G823AA GROMMET, AIRBOX MOUNTING	$22.07	4
30	HY539C622AC	DUCT, CLEAN AIR, RH	HY539C622AC DUCT, CLEAN AIR, RH	$258.82	1
40	HY539C623AC	DUCT, CLEAN AIR, LH	HY539C623AC DUCT, CLEAN AIR, LH	$258.98	1
50	HY5352081AC	AIRBOX ASSEMBLY, LH	HY5352081AC AIRBOX ASSEMBLY, LH Includes items 60-100	$1,521.78	1
60	HY539S449AB	HOSE, PUMP INLET, LH	HY539S449AB HOSE, PUMP INLET, LH	$126.26	1
70	HY539601AA	FILTER, AIR	HY539601AA FILTER, AIR	$28.04	2
80	HY5312B579AA	SENSOR, MAF *	HY5312B579AA SENSOR, MAF *	$289.42	1
90	HY5319214AA	O RING, 86x5mm	HY5319214AA O RING, 86x5mm	$15.31	1
100	702944	Nut, M6 flg	702944 Nut, M6 flg	$1.82	2
110	HY5352080AB	AIRBOX ASSEMBLY, RH	HY5352080AB AIRBOX ASSEMBLY, RH Includes items 120-160	$1,504.42	1
120	HY539S464AB	HOSE, PUMP INLET, RH	HY539S464AB HOSE, PUMP INLET, RH	$138.08	1
130	702944	Nut, M6 flg	702944 Nut, M6 flg	$1.82	2
140	HY5312B579AA	SENSOR, MAF *	HY5312B579AA SENSOR, MAF *	$289.42	1
150	HY5319214AA	O RING, 86x5mm	HY5319214AA O RING, 86x5mm	$15.31	1
160	HY5317Z606AA	ケーブルクリップ	HY5317Z606AA ケーブルクリップ	$2.62	2
170	HY539N832AA	ホースクランプ	HY539N832AA ホースクランプ	$34.11	2
180	HY539A317AA	ケーブルクリップ	HY539A317AA ケーブルクリップ	$12.61	1
190	HY53-W790053-AA	SCREW, ST, M6x18	HY53-W790053-AA SCREW, ST, M6x18	-	4	Enquire
192	HY53-9F854-AA	ISOLATOR BUSH	HY53-9F854-AA ISOLATOR BUSH	-	4	Enquire
195	HY53-9F853-AA	COMPRESSION LIMITER	HY53-9F853-AA COMPRESSION LIMITER	-	4	Enquire
198	HY530410AA	SCREW, 5.2x32 ST	HY530410AA SCREW, 5.2x32 ST	$1.89	12
200	HY539C441AB	SECONDARY AIR PUMP, LH	HY539C441AB SECONDARY AIR PUMP, LH	$691.81	1
210	HY539C440AB	二次エアポンプ	HY539C440AB 二次エアポンプ	$733.44	1
220	703196PK	Bolt, M6 x 55, Hex Flange Head	703196PK Bolt, M6 x 55, Hex Flange Head Pack of 10	$9.52	4
230	704328	Screw M5x20 Pan Hd	704328 Screw M5x20 Pan Hd	$0.11	8
240	HY539B449BB	FEED TUBE, LH (SECONDARYAIR)	HY539B449BB FEED TUBE, LH (SECONDARYAIR)	$682.86	1
250	702544	BOLT, M6x50, HF PIL 8	702544 BOLT, M6x50, HF PIL 8	$0.62	2
260	HY539B448BB	FEED TUBE, RH (SECONDARYAIR)	HY539B448BB FEED TUBE, RH (SECONDARYAIR)	$682.86	1
270	HY539F491AA	AIR CONTROL VALVE(SECONDARY VALVE)	HY539F491AA AIR CONTROL VALVE(SECONDARY VALVE)	$590.35	2
280	HY536G089AA	GASKET (SECONDARY AIR)	HY536G089AA GASKET (SECONDARY AIR)	$11.59	4
290	HY539S476BA	HOSE, SAI, REAR, RH	HY539S476BA HOSE, SAI, REAR, RH	$367.47	1
295	HY539S476CA	HOSE, SAI, FRONT, RH	HY539S476CA HOSE, SAI, FRONT, RH	$81.57	1
300	HY539S477BA	HOSE, PUMP DELIVERY, LH(SECONDARY AIR)	HY539S477BA HOSE, PUMP DELIVERY, LH(SECONDARY AIR)	$337.93	1
305	HY539S477CA	HOSE, SAI, FRONT, LH	HY539S477CA HOSE, SAI, FRONT, LH	$81.57	1
310	HY539G491AC	BRACKET, WIRING HARNESSCARRIER	HY539G491AC BRACKET, WIRING HARNESSCARRIER -> VIN L04218	$312.72	1
311	HY539G491AD	BRACKET, WIRING HARNESSCARRIER	HY539G491AD BRACKET, WIRING HARNESSCARRIER VIN L04219->	$297.15	1
330	HY530810210	真空ソレノイド	HY530810210 真空ソレノイド	$155.20	2
340	707156	SCRIVET, M5	707156 SCRIVET, M5	-	2	Enquire
350	HY539D438AA	VACUUM HARNESS, MAIN(SECONDARY AIR)	HY539D438AA VACUUM HARNESS, MAIN(SECONDARY AIR)	$214.89	1
360	HY539D438BA	VACUUM HARNESS, ACV, LH(SECONDARY AIR)	HY539D438BA VACUUM HARNESS, ACV, LH(SECONDARY AIR)	$66.68	1
370	HY539D438CA	VACUUM HARNESS, ACV, RH(SECONDARY AIR)	HY539D438CA VACUUM HARNESS, ACV, RH(SECONDARY AIR)	$66.68	1
380	702298	Screw, flg, M8 x 16, duct	702298 Screw, flg, M8 x 16, duct	$0.16	4
390	HY533678AAAA	CLIP, TIE WRAP, HEGOSENSOR	HY533678AAAA CLIP, TIE WRAP, HEGOSENSOR	$3.94	2
400	HY536B752AA	GASKET, OIL SEPARATOR,FRONT	HY536B752AA GASKET, OIL SEPARATOR,FRONT	$33.93	1
405	HY536B752BA	GASKET, OIL SEPARATOR,REAR	HY536B752BA GASKET, OIL SEPARATOR,REAR	$33.93	1
410	HY536B673AB	SEPARATOR ASSEMBLY, OIL	HY536B673AB SEPARATOR ASSEMBLY, OIL -> VIN L04040	$259.02	1
411	HY536B673AD	SEPARATOR ASSEMBLY, OIL	HY536B673AD SEPARATOR ASSEMBLY, OIL VIN L04041->	$293.48	1
420	707155	BOLT, M6x65	707155 BOLT, M6x65	$1.18	2
430	HY536N66NAB	HOSE ASSEMBLY, CRANKCASEBREATHER	HY536N66NAB HOSE ASSEMBLY, CRANKCASEBREATHER -> 19.5MY	$201.77	1
431	HY536N66NBA	HOSE ASSEMBLY, CRANKCASEBREATHER	HY536N66NBA HOSE ASSEMBLY, CRANKCASEBREATHER 19.5MY->	$202.16	1
440	HY5313447BA	HOSE CLAMP, 35x7mm	HY5313447BA HOSE CLAMP, 35x7mm	$7.58	1
450	HY539E498AB	BREATHER PIPE, REAR, RH	HY539E498AB BREATHER PIPE, REAR, RH	$761.70	1
460	HY539E498BB	BREATHER PIPE, REAR, LH	HY539E498BB BREATHER PIPE, REAR, LH	$761.70	1
470	HY539E498EA	BREATHER PIPE, FRONT, RH	HY539E498EA BREATHER PIPE, FRONT, RH	$126.92	1
480	HY539E498DB	BREATHER PIPE, FRONT, LH	HY539E498DB BREATHER PIPE, FRONT, LH -> 19.5MY	$97.76	1
481	HY539E498FA	BREATHER PIPE, FRONT, LH	HY539E498FA BREATHER PIPE, FRONT, LH 19.5MY->	$126.92	1
490	HY5313447AA	HOSE CLAMP, 25x7mm	HY5313447AA HOSE CLAMP, 25x7mm	$9.41	2
500	702534	SCREW, M6x25, HEX FLG	702534 SCREW, M6x25, HEX FLG	$0.12	4
600	HY539B051AD	パージバルブアッセンブリー	HY539B051AD パージバルブアッセンブリー Includes Clip OnIsolator, item 780	$468.81	1
610	HY539S331BC	スロットルカフ	HY539S331BC スロットルカフ	$144.18	2
620	HY539W541AA	ADAPTOR, AIR INTAKECHARGE, THROTTLE BODY	HY539W541AA ADAPTOR, AIR INTAKECHARGE, THROTTLE BODY	$146.68	2
630	HY539E926AA	THROTTLE BODY ASSEMBLY,LH	HY539E926AA THROTTLE BODY ASSEMBLY,LH	$1,435.28	1
640	HY539E927AA	THROTTLE BODY ASSEMBLY,RH	HY539E927AA THROTTLE BODY ASSEMBLY,RH	$1,435.28	1
650	HY536K808CA	SUPPORT, LH	HY536K808CA SUPPORT, LH	$270.93	1
660	HY536K808BA	SUPPORT, RH	HY536K808BA SUPPORT, RH	$270.62	1
670	HY539W549BB	ADAPTOR, INLET MANIFOLD,LH	HY539W549BB ADAPTOR, INLET MANIFOLD,LH Aluminium	$524.28	1
680	HY53-9W549-EA	ADAPTOR, INLET MANIFOLD,LH	HY53-9W549-EA ADAPTOR, INLET MANIFOLD,LH Plastic	-	1	Enquire
690	HY539W549AB	ADAPTOR, INLET MANIFOLD,RH	HY539W549AB ADAPTOR, INLET MANIFOLD,RH Aluminium	$524.28	1
700	HY539W549FA	ADAPTOR, INLET MANIFOLD,RH	HY539W549FA ADAPTOR, INLET MANIFOLD,RH Plastic	$115.39	1
710	HY539E936AA	O RING, (69x2mm)	HY539E936AA O RING, (69x2mm) For Aluminium Adaptor	$7.79	2
720	HY53F9793AB	SEAL, DUCT to THROTTLE	HY53F9793AB SEAL, DUCT to THROTTLE For Plastic Adaptor	$34.00	2
730	707143	SCREW, M8x2,0 PAN	707143 SCREW, M8x2,0 PAN For Aluminium Adaptor	$11.62	4
731	703141	Screw, pan head	703141 Screw, pan head For Plastic Adaptor	$2.83	4
740	HY53F9793AB	SEAL, DUCT to THROTTLE	HY53F9793AB SEAL, DUCT to THROTTLE	$34.00	2
750	707131	BOLT, M6x55, HEX FLG	707131 BOLT, M6x55, HEX FLG	-	8	Enquire
760	707129	BOLT, M6x1x30, HEX FLG	707129 BOLT, M6x1x30, HEX FLG	$0.45	8
770	HY539E936AA	O RING, (69x2mm)	HY539E936AA O RING, (69x2mm)	$7.79	2
780	HY53-M2D28-DA	FOAM ISOLATOR	HY53-M2D28-DA FOAM ISOLATOR 18MY-> Clip On	-	1	Enquire
800	HY536K775AB	WCAC ASSEMBLY, LH	HY536K775AB WCAC ASSEMBLY, LH 2 Piece Charge Air Cooler	$4,486.67	1
805	HY536K775CB	WCAC ASSEMBLY, LH	HY536K775CB WCAC ASSEMBLY, LH 1 Piece Charge Air Cooler	$4,877.57	1
810	HY536K775BB	WCAC ASSEMBLY, RH	HY536K775BB WCAC ASSEMBLY, RH 2 Piece Charge Air Cooler	$4,176.52	1
815	HY536K775DB	WCAC ASSEMBLY, RH	HY536K775DB WCAC ASSEMBLY, RH 1 Piece Charge Air Cooler	$4,877.57	1
820	HY532976AB	HOSE, TURBO to WCAC, LH	HY532976AB HOSE, TURBO to WCAC, LH -> VIN L03722, 2 PieceWCAC	$158.68	1
821	HY532976CB	HOSE, TURBO to WCAC	HY532976CB HOSE, TURBO to WCAC VIN L03723->, 1 PieceWCAC	$182.66	1
830	HY532976BB	HOSE, TURBO to WCAC, RH	HY532976BB HOSE, TURBO to WCAC, RH -> VIN L03722, 2 PieceWCAC	$148.94	1
831	HY532976DB	HOSE, TURBO to WCAC	HY532976DB HOSE, TURBO to WCAC VIN L03723->, 1 PieceWCAC	$182.66	1
840	HY53320786AA	スピゴット	HY53320786AA スピゴット 2 Piece WCAC	$116.48	2
850	HY539E936BA	O RING, 62x2.5	HY539E936BA O RING, 62x2.5 2 Piece WCAC	$4.81	2
855	702637	Screw M6x20 Pan Hd lobe D	702637 Screw M6x20 Pan Hd lobe D	$0.21	4
860	HY53223035AA	再循環バルブ	HY53223035AA 再循環バルブ	$366.49	2
870	HY539K308AB	HOSE, AIR BYPASS VALVEINLET, LH	HY539K308AB HOSE, AIR BYPASS VALVEINLET, LH -> VIN L03722, 2 PieceWCAC	$86.83	1
871	HY539K308CB	HOSE, AIR BYPASS VALVEINLETE, LH	HY539K308CB HOSE, AIR BYPASS VALVEINLETE, LH VIN L03723->, 1 PieceWCAC	$181.32	1
880	HY539K308BB	HOSE, AIR BYPASS VALVEINLET, RH	HY539K308BB HOSE, AIR BYPASS VALVEINLET, RH -> VIN L03722, 2 PieceWCAC	$86.83	1
881	HY539K308DB	TUBE, WCAC RETURN	HY539K308DB TUBE, WCAC RETURN VIN L03723->, 1 PieceWCAC	$181.32	1
890	HY536K767BB	BRACKET, FRONT, WCAC	HY536K767BB BRACKET, FRONT, WCAC	$47.92	2
900	HY53-6K767-JA	BRACKET, FRONT, WCAC, LH	HY53-6K767-JA BRACKET, FRONT, WCAC, LH	-	1	Enquire
910	HY53-6K767-KA	BRACKET, FRONT, WCAC, RH	HY53-6K767-KA BRACKET, FRONT, WCAC, RH	-	1	Enquire
920	HY536790AA	BUSH, FRONT	HY536790AA BUSH, FRONT	$7.13	2
930	HY535144AA	SPACER, WCAC FRONT BUSH	HY535144AA SPACER, WCAC FRONT BUSH	$8.29	2
940	702573	Bolt, M8x35mm	702573 Bolt, M8x35mm	$0.37	2
950	702844	BOLT, M8x30, HEX FLG	702844 BOLT, M8x30, HEX FLG	$7.29	8
960	706423	SCREW, M8x25, HF PI 8.8	706423 SCREW, M8x25, HF PI 8.8	$1.62	2
970	HY536790BA	BUSH, REAR	HY536790BA BUSH, REAR	$11.45	2
980	HY53-6K767-LA	BRACKET, REAR, WCAC	HY53-6K767-LA BRACKET, REAR, WCAC	-	2	Enquire
990	702565	BOLT, M6x16, HEX FLG	702565 BOLT, M6x16, HEX FLG	$3.94	2
1000	702637	Screw M6x20 Pan Hd lobe D	702637 Screw M6x20 Pan Hd lobe D	$0.21	6
