Exhaust Manifolds and Turbos of Aston Martin Aston Martin GT DB11 (2017-2023)

すべて見る

Aston Martin GT DB11 (2017-2023) - Exhaust Manifolds and Turbos

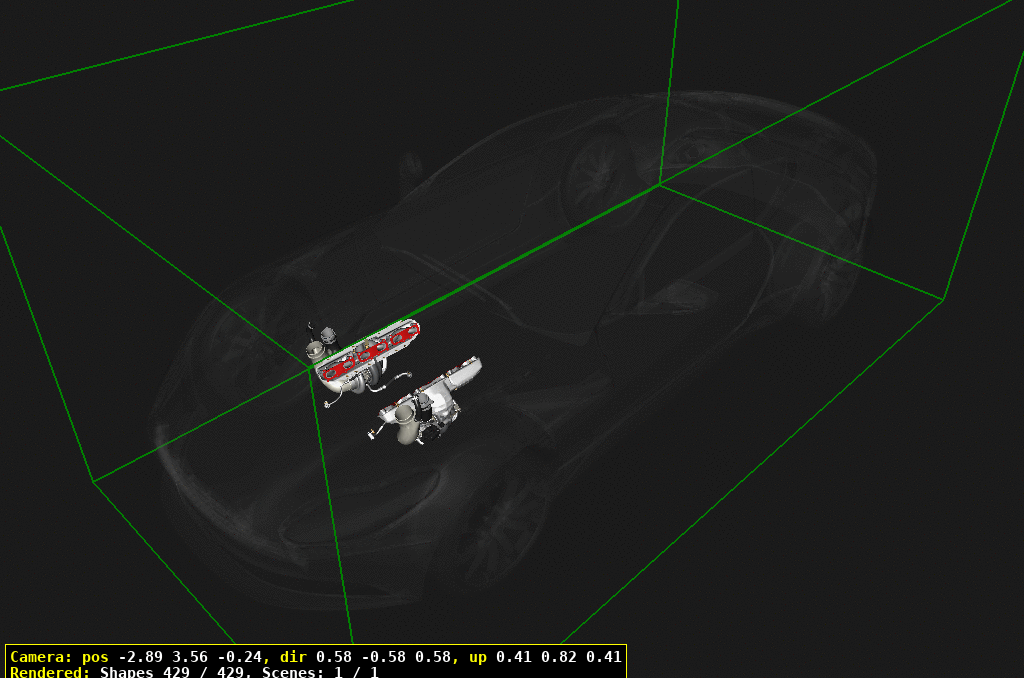

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
20	HY539429AD	エキゾーストマニホールド	HY539429AD エキゾーストマニホールド	$3,939.08	2
30	702565	BOLT, M6x16, HEX FLG IN STOCK	702565 BOLT, M6x16, HEX FLG IN STOCK	$3.97	20
40	HY539448AC	ガスケット、エキゾーストマニホールド	HY539448AC ガスケット、エキゾーストマニホールド	$28.96	6
50	HY539P441AA	NUT, EXHAUST MANIFOLD(INTEGRATED SPACER)	HY539P441AA NUT, EXHAUST MANIFOLD(INTEGRATED SPACER) ALWAYS REPLACE. DO NOTRE-USE	$11.01	24
60	HY539S425BC	BOLT, TURBOCHARGER toMANIFOLD, SHORT IN STOCK	HY539S425BC BOLT, TURBOCHARGER toMANIFOLD, SHORT ALWAYS REPLACE. DO NOTRE-USE IN STOCK	$51.45	4
70	702680	NUT, M6, HF 8	702680 NUT, M6, HF 8	$1.92	4
80	HY539A462AB	HEATSHIELD, MANIFOLD,CENTRE	HY539A462AB HEATSHIELD, MANIFOLD,CENTRE	$411.64	2
90	HY539A462DB	HEATSHIELD, MANIFOLD	HY539A462DB HEATSHIELD, MANIFOLD	$292.08	2
100	HY539A462CB	HEATSHIELD, MANIFOLD	HY539A462CB HEATSHIELD, MANIFOLD	$292.08	2
110	HY539A471AB	TAB, EXHAUST BOLT LOCK	HY539A471AB TAB, EXHAUST BOLT LOCK ALWAYS REPLACE. DO NOTRE-USE	$6.54	2
120	HY539A471BB	TAB, EXHAUST BOLT LOCK	HY539A471BB TAB, EXHAUST BOLT LOCK ALWAYS REPLACE. DO NOTRE-USE	$10.22	2
130	HY539S425AC	BOLT, TURBOCHARGER toMANIFOLD, LONG	HY539S425AC BOLT, TURBOCHARGER toMANIFOLD, LONG -> VIN L11064. ALWAYSREPLACE. DO NOT RE-USE	$96.77	2
131	NY739S425AA	BOLT, TURBOCHARGER toMANIFOLD, LONG	NY739S425AA BOLT, TURBOCHARGER toMANIFOLD, LONG VIN L11065->. ALWAYSREPLACE. DO NOT RE-USE	$78.56	2
200	HY536466AA	GASKET, TURBO to MANIFOLD	HY536466AA GASKET, TURBO to MANIFOLD	$83.77	2
210	HY539K308AB	HOSE, AIR BYPASS VALVEINLET, LH	HY539K308AB HOSE, AIR BYPASS VALVEINLET, LH LH	$87.48	1
220	HY539K308BB	HOSE, AIR BYPASS VALVEINLET, RH	HY539K308BB HOSE, AIR BYPASS VALVEINLET, RH RH	$87.48	1
230	HY532976AB	HOSE, TURBO to WCAC, LH	HY532976AB HOSE, TURBO to WCAC, LH LH	$159.88	1
240	HY532976BB	HOSE, TURBO to WCAC, RH	HY532976BB HOSE, TURBO to WCAC, RH RH	$150.07	1
250	HY539G438AE	TURBOCHARGER ASSEMBLY	HY539G438AE TURBOCHARGER ASSEMBLY LH	$9,313.30	1
260	HY539G438BE	TURBOCHARGER ASSEMBLY	HY539G438BE TURBOCHARGER ASSEMBLY RH	$9,314.07	1
270	HY539G440BB	OIL PIPE ASSEMBLY, FEED,LH	HY539G440BB OIL PIPE ASSEMBLY, FEED,LH	$315.25	1
280	HY539G440AC	OIL PIPE ASSEMBLY, FEED,RH	HY539G440AC OIL PIPE ASSEMBLY, FEED,RH	$327.11	1
290	HY539G441AA	OIL PIPE ASSEMBLY, DRAIN,RH	HY539G441AA OIL PIPE ASSEMBLY, DRAIN,RH	$349.54	1
300	HY539G441CC	OIL PIPE ASSEMBLY, DRAIN,LH	HY539G441CC OIL PIPE ASSEMBLY, DRAIN,LH	$361.56	1
310	4R8Q6N652AA	GASKET, TURBO OIL DRAIN	4R8Q6N652AA GASKET, TURBO OIL DRAIN	$1.42	2
320	HY539E936CB	O RING, DUCT to TURBO,78x2	HY539E936CB O RING, DUCT to TURBO,78x2	$7.96	2
330	HY53320786BA	SPIGOT, HOSE to WCAC	HY53320786BA SPIGOT, HOSE to WCAC	$117.36	2
340	HY539E936BA	O RING, 62x2.5	HY539E936BA O RING, 62x2.5	$4.85	2
350	HY53-9E770-CB	INTAKE DUCT ASSEMBLY, LH	HY53-9E770-CB INTAKE DUCT ASSEMBLY, LH	-	1	Enquire
360	HY539E770DB	INTAKE DUCT ASSEMBLY, RH	HY539E770DB INTAKE DUCT ASSEMBLY, RH	$540.43	1
370	HY53XSC2065AA	Vバンドクランプ	HY53XSC2065AA Vバンドクランプ	$97.29	2
380	702565	BOLT, M6x16, HEX FLG IN STOCK	702565 BOLT, M6x16, HEX FLG IN STOCK	$3.97	2
390	703264	Screw, M6 x 14 Flg Hd	703264 Screw, M6 x 14 Flg Hd	-	4	Enquire
400	702294	Screw, M6x16 Pan Hd 6 lobe IN STOCK	702294 Screw, M6x16 Pan Hd 6 lobe IN STOCK	$0.27	2
410	HY53100079BA	BANJO BOLT, OIL FEED	HY53100079BA BANJO BOLT, OIL FEED ALWAYS REPLACE. DO NOTRE-USE	$87.61	2
420	HY53232046BA	DOUBLE WASHER, COPPER	HY53232046BA DOUBLE WASHER, COPPER ALWAYS REPLACE. DO NOTRE-USE	$27.61	2
430	HY5361J17BA	O RING, 11x2.5, OIL FEED	HY5361J17BA O RING, 11x2.5, OIL FEED ALWAYS REPLACE. DO NOTRE-USE	$32.26	2
440	HY5361J17CA	O RING, 16x2.5, OILRETURN	HY5361J17CA O RING, 16x2.5, OILRETURN ALWAYS REPLACE. DO NOTRE-USE	$17.14	2
