Sump and Lubrication of Aston Martin Aston Martin GT DB11 (2017-2023)

すべて見る

Aston Martin GT DB11 (2017-2023) - Sump and Lubrication

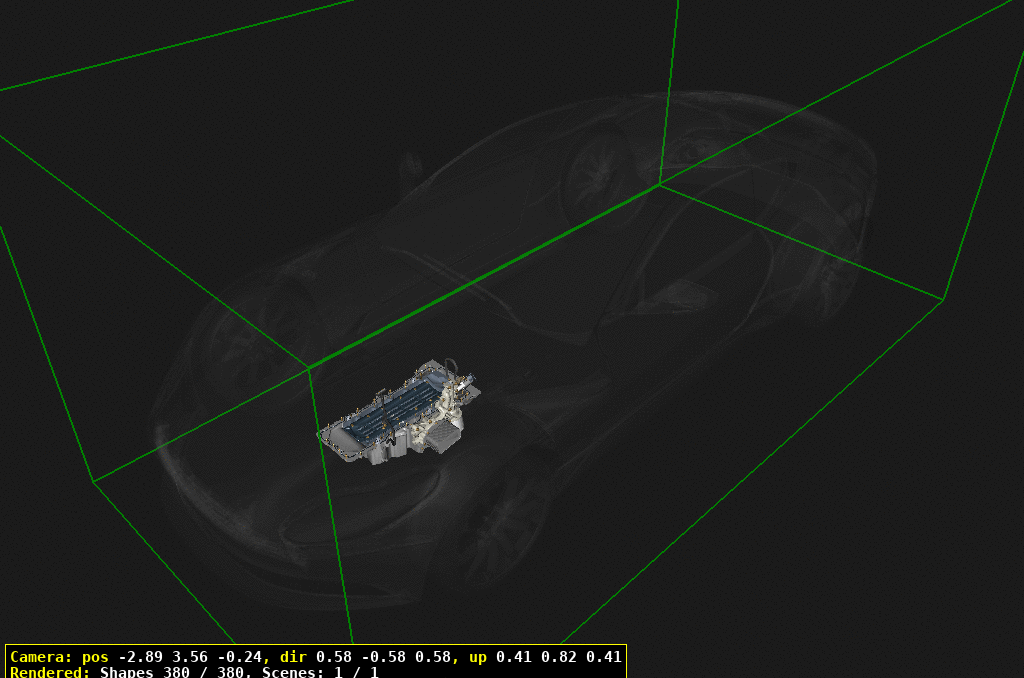

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
10	NY738B512AA	OIL COOLER & FILTERASSEMBLY	NY738B512AA OIL COOLER & FILTERASSEMBLY Includes item 20-40 & 520	$1,423.91	1
20	HY5361J17AA	O RING, TYPE A	HY5361J17AA O RING, TYPE A	$1.80	4
30	702542	Screw, M6X12, Flg Head IN STOCK	702542 Screw, M6X12, Flg Head IN STOCK	$2.32	6
40	HY536A642AB	エンジンオイルクーラー	HY536A642AB エンジンオイルクーラー	$720.39	1
60	HY536675AD	PAN ASSEMBLY, OIL	HY536675AD PAN ASSEMBLY, OIL No Longer Available	$3,702.64	1
61	HY536675AE	PAN ASSEMBLY, OIL	HY536675AE PAN ASSEMBLY, OIL Includes items 70-100	$4,369.94	1
70	702847	ねじ M6X20 六角 FLG HD IN STOCK	702847 ねじ M6X20 六角 FLG HD IN STOCK	$2.51	3
80	4G430410205	ドレンプラグ、オイルパン IN STOCK	4G430410205 ドレンプラグ、オイルパン Minimum order quantity of8. Not to be used withSump HY53-6675-AE IN STOCK	$22.76	1
81	697748	PLUG, OIL PAN DRAIN, M12(SHORT) IN STOCK	697748 PLUG, OIL PAN DRAIN, M12(SHORT) Use only with SumpHY53-6675-AE IN STOCK	$24.68	1
90	4G430410972	センサーASSY、エンジンオイルレベル低下 IN STOCK	4G430410972 センサーASSY、エンジンオイルレベル低下 Includes item 100 IN STOCK	$95.84	1
100	8W9387030BA	GASKET, SENSOR, LOW OILLEVEL	8W9387030BA GASKET, SENSOR, LOW OILLEVEL ALWAYS REPLACE. DO NOTRE-USE	$38.10	1
110	702542	Screw, M6X12, Flg Head IN STOCK	702542 Screw, M6X12, Flg Head IN STOCK	$2.32	12
120	HY536722AA	SEAL, OIL PAN, FRONT	HY536722AA SEAL, OIL PAN, FRONT -> 18.5MY, 205mm	$13.54	1
121	HY536722CA	SEAL, OIL PAN, FRONT	HY536722CA SEAL, OIL PAN, FRONT 18.5MY->, 200mm	$13.96	1
130	HY536L623AA	RETAINER, SCAVANGE PUMPOIL PIPES	HY536L623AA RETAINER, SCAVANGE PUMPOIL PIPES	$55.33	1
140	702844	BOLT, M8x30, HEX FLG	702844 BOLT, M8x30, HEX FLG	$7.35	4
150	702565	BOLT, M6x16, HEX FLG IN STOCK	702565 BOLT, M6x16, HEX FLG IN STOCK	$3.97	1
160	HY536632AA	SHIELD, OIL PUMP (PICKUP)	HY536632AA SHIELD, OIL PUMP (PICKUP)	$83.28	1
170	HY536617AB	OIL PICKUP PIPE ASSEMBLY	HY536617AB OIL PICKUP PIPE ASSEMBLY	$417.09	1
180	HY536B677AB	BREATHER DRAIN PIPE, RH	HY536B677AB BREATHER DRAIN PIPE, RH	$117.12	1
190	HY536B677BB	BREATHER DRAIN PIPE, LH	HY536B677BB BREATHER DRAIN PIPE, LH	$117.12	1
200	HY536A895AA	CHAIN, OIL PUMP DRIVE	HY536A895AA CHAIN, OIL PUMP DRIVE	$111.65	1
210	HY539G441BB	PIPE ASSEMBLY, INNERDRAIN, RH	HY539G441BB PIPE ASSEMBLY, INNERDRAIN, RH	$154.31	1
220	HY539G441DB	PIPE ASSEMBLY, INNERDRAIN, LH	HY539G441DB PIPE ASSEMBLY, INNERDRAIN, LH	$154.31	1
230	HY539G441EA	TUBE ASSEMBLY, TURBO OILRETURN, INNER, RH	HY539G441EA TUBE ASSEMBLY, TURBO OILRETURN, INNER, RH -> 18.5MY	$199.63	1
231	HY539G441EB	TUBE ASSEMBLY, TURBO OILRETURN, INNER, RH	HY539G441EB TUBE ASSEMBLY, TURBO OILRETURN, INNER, RH 18.5MY->	$209.12	1
240	HY539G441FA	TUBE ASSEMBLY, TURBO OILRETURN, INNER, LH	HY539G441FA TUBE ASSEMBLY, TURBO OILRETURN, INNER, LH -> 18.5MY	$199.63	1
241	HY539G441FB	TUBE ASSEMBLY, TURBO OILRETURN, INNER, LH	HY539G441FB TUBE ASSEMBLY, TURBO OILRETURN, INNER, LH 18.5MY->	$209.12	1
250	703145	Bolt, M6 x 1.00 x 30 IN STOCK	703145 Bolt, M6 x 1.00 x 30 IN STOCK	$0.90	1
260	HY535144AA	SPACER, WCAC FRONT BUSH	HY535144AA SPACER, WCAC FRONT BUSH	$8.35	1
270	HY536790AA	BUSH, FRONT	HY536790AA BUSH, FRONT	$7.19	1
280	HY536D603AA	ワンウェイバルブ	HY536D603AA ワンウェイバルブ	$37.45	4
290	HY536621AB	オイルポンプアッセンブリー	HY536621AB オイルポンプアッセンブリー	$3,198.16	1
300	HY536C880AA	SOLENOID, OIL CONTROL	HY536C880AA SOLENOID, OIL CONTROL	$391.70	1
310	HY536C747AA	BODY, VALVE PUMP	HY536C747AA BODY, VALVE PUMP	$528.53	1
320	701553	Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	701553 Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	$0.31	2
330	707160	BOLT, M8x140, HF8	707160 BOLT, M8x140, HF8	$5.55	2
340	702687	Bolt, M8x30 Hex flg	702687 Bolt, M8x30 Hex flg	-	21	Enquire
350	HY536W601AA	GASKET, OIL COOLERADAPTOR to CYL BLOCK	HY536W601AA GASKET, OIL COOLERADAPTOR to CYL BLOCK	$15.97	1
360	HY536710BA	ガスケット、オイルパン	HY536710BA ガスケット、オイルパン	$348.05	1
370	HY537527LEGAA	FIRTREE CONNECTOR INSERT	HY537527LEGAA FIRTREE CONNECTOR INSERT	$4.02	1
380	HY5317443AA	O RING, 33x3.5, SOLENOIDHOUSING	HY5317443AA O RING, 33x3.5, SOLENOIDHOUSING	$5.37	1
390	HY5332603AA	BRACKET, OIL PUMPSOLENOID	HY5332603AA BRACKET, OIL PUMPSOLENOID	$67.38	1
400	702532	BOLT, M8x50, HEX HEAD	702532 BOLT, M8x50, HEX HEAD	$0.50	6
410	HY536686AC	バッフルプレート、オイルパン	HY536686AC バッフルプレート、オイルパン	$1,376.67	1
420	HY536B634AA	BRACKET ASSEMBLY, OILCOOLER, LOWER	HY536B634AA BRACKET ASSEMBLY, OILCOOLER, LOWER	$44.32	1
430	Refer to 'REMARKS'	オイルレベルディップスティック	Refer to 'REMARKS' オイルレベルディップスティック Before ordering areplacement Dipstick,please refer to PartsBulletin I_PSB_2024_499V2	-	1	Enquire
440	HY536754AA	ディップスティックチューブ	HY536754AA ディップスティックチューブ	$106.31	1
450	4G436K804AA	DECAL, OIL LEVELINDICATOR	4G436K804AA DECAL, OIL LEVELINDICATOR	$8.10	1
451	HY536K804AA	DECAL, OIL LEVELINDICATOR	HY536K804AA DECAL, OIL LEVELINDICATOR GOLD, Jewellery Pack	$150.93	1
460	702565	BOLT, M6x16, HEX FLG IN STOCK	702565 BOLT, M6x16, HEX FLG IN STOCK	$3.97	3
470	702573	Bolt, M8x35mm	702573 Bolt, M8x35mm	$0.38	1
480	702542	Screw, M6X12, Flg Head IN STOCK	702542 Screw, M6X12, Flg Head IN STOCK	$2.32	11
490	703750	SCREW, M6x20, HEX FLD IN STOCK	703750 SCREW, M6x20, HEX FLD IN STOCK	$3.09	12
500	HY536B660AB	WINDAGE TRAY ASSEMBLY	HY536B660AB WINDAGE TRAY ASSEMBLY	$963.15	1
510	HY53116632AA	クリップ、スプリング	HY53116632AA クリップ、スプリング	$9.72	1
520	HY536K829AA	PLUG, TAPPED	HY536K829AA PLUG, TAPPED	$10.37	1
