Cooling System of Aston Martin Aston Martin GT DB12 (2024-

すべて見る

Aston Martin GT DB12 (2024- - 冷却システム

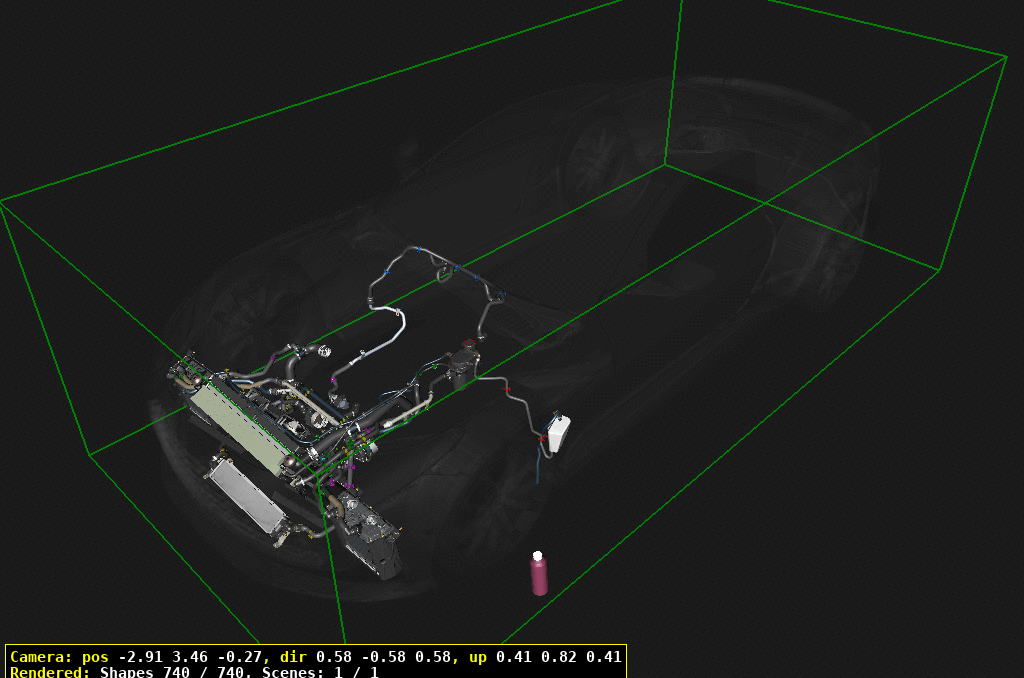

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
20	RY738D048AA	AUXILIARY RADIATOR,CENTRAL	RY738D048AA AUXILIARY RADIATOR,CENTRAL	$558.54	1
30	703264	Screw, M6 x 14 Flg Hd	703264 Screw, M6 x 14 Flg Hd	-	1	Enquire
40	RY738084AA	MOUNTING, RADIATOR, LH	RY738084AA MOUNTING, RADIATOR, LH	$34.78	1
50	RY738083AA	MOUNTING, RADIATOR, RH	RY738083AA MOUNTING, RADIATOR, RH	$79.16	1
60	702293	BOLT, M6x12, TX HD	702293 BOLT, M6x12, TX HD	$0.45	4
70	RY638C477FA	COOLER CASSETTE, UPPER,LH	RY638C477FA COOLER CASSETTE, UPPER,LH	$80.27	1
80	RY638C477GA	COOLER CASSETTE, LOWER,LH	RY638C477GA COOLER CASSETTE, LOWER,LH	$170.55	1
90	RY638C477EA	COOLER CASSETTE, UPPER,RH	RY638C477EA COOLER CASSETTE, UPPER,RH	$149.80	1
100	RY638C477HA	COOLER CASSETTE, LOWER,RH	RY638C477HA COOLER CASSETTE, LOWER,RH	$183.51	1
110	707146	SCREW, M5x16	707146 SCREW, M5x16	$0.80	13
120	RY53SE18D603AA	補助ラジエーター	RY53SE18D603AA 補助ラジエーター LTS	$404.38	2
130	PY83SE6A642AA	オイルクーラー	PY83SE6A642AA オイルクーラー For Oil Cooler Pipes, seeSection 03-1606	$944.56	1
140	RY53SE18D506AA	補助ラジエーター	RY53SE18D506AA 補助ラジエーター HTS	$353.26	1
150	703201	Screw, M8 x 30 Hex Head Flange	703201 Screw, M8 x 30 Hex Head Flange	$1.27	6
160	AG43384993AA	スリーブ	AG43384993AA スリーブ	$29.70	6
170	AG4328460AA	アイソレーター	AG4328460AA アイソレーター	$9.18	6
300	RY638333AC	トップホースアセンブリ	RY638333AC トップホースアセンブリ	$260.00	1
310	RY632922AA	HOSE ASSEMBLY, CENTRALAUXILLARY, INLET	RY632922AA HOSE ASSEMBLY, CENTRALAUXILLARY, INLET	$108.56	1
320	MY83W704533AA	HOSE RETENTION CLIP, 23xdia x 6.5	MY83W704533AA HOSE RETENTION CLIP, 23xdia x 6.5	$2.89	4
330	KY53W704533AA	Cクリップ	KY53W704533AA Cクリップ	$4.81	7
340	RY6361J31AC	BOTTOM HOSE ASSEMBLY	RY6361J31AC BOTTOM HOSE ASSEMBLY	$231.31	1
350	RY6361J31BA	BOTTOM HOSE ASSEMBLY,OUTLET, RH	RY6361J31BA BOTTOM HOSE ASSEMBLY,OUTLET, RH	$200.33	1
360	RY639263AA	HOSE ASSEMBLY, CENTRALAUXILLARY, OUTLET	RY639263AA HOSE ASSEMBLY, CENTRALAUXILLARY, OUTLET	$158.80	1
370	RY638A577AA	HOSE, OUTLET RUN-ON PUMP	RY638A577AA HOSE, OUTLET RUN-ON PUMP	$50.87	1
380	HY538B552AA	RUN-ON PUMP ASSEMBLY	HY538B552AA RUN-ON PUMP ASSEMBLY	$413.95	1
390	RY638A583AA	BRACKET, RUN-ON WATERPUMP	RY638A583AA BRACKET, RUN-ON WATERPUMP	$86.26	1
400	703203	Screw, Flange Head M6x20	703203 Screw, Flange Head M6x20	$0.34	2
420	RY638B566AA	PIPE, INLET, RUN-ON PUMP	RY638B566AA PIPE, INLET, RUN-ON PUMP Includes item 320	$526.66	1
430	JY53E804707AA	SCREW, M10x20, TORX T50	JY53E804707AA SCREW, M10x20, TORX T50	$2.62	2
440	RY638C350AA	DEGAS HOSE	RY638C350AA DEGAS HOSE Includes item 330	$702.24	1
450	703264	Screw, M6 x 14 Flg Hd	703264 Screw, M6 x 14 Flg Hd	-	2	Enquire
460	HY5319B518AE	クーラントリザーバ	HY5319B518AE クーラントリザーバ Includes item 470	$393.30	1
470	RY538101AA	CAP ASSEMBLY, 180kPa	RY538101AA CAP ASSEMBLY, 180kPa	$167.97	1
480	703264	Screw, M6 x 14 Flg Hd	703264 Screw, M6 x 14 Flg Hd	-	2	Enquire
490	HY538B081AA	HOSE, OVERFLOW BOTTLE	HY538B081AA HOSE, OVERFLOW BOTTLE	$125.34	1
500	6G33TBD2BA	Tank, overflow	6G33TBD2BA Tank, overflow	$57.91	1
510	703152	Screw and washer, M6 x 20	703152 Screw and washer, M6 x 20	-	2	Enquire
520	HY538N029AA	ドレンホース	HY538N029AA ドレンホース	$100.27	1
530	RY638C363AB	DEGAS HOSE ASSEMBLY	RY638C363AB DEGAS HOSE ASSEMBLY Includes item 540	$168.45	1
540	HY53482907AA	C CLIP, 8mm	HY53482907AA C CLIP, 8mm	$2.55	4
550	RY638063AA	DEGAS HOSE ASSEMBLY	RY638063AA DEGAS HOSE ASSEMBLY Includes item 540	$179.89	1
560	HY5317Z606AA	ケーブルクリップ	HY5317Z606AA ケーブルクリップ	$2.62	1
570	RY636A960BA	BRACKET, BOTTOM HOSE	RY636A960BA BRACKET, BOTTOM HOSE	$62.78	1
580	JY53322666AAPK	COOLANT, G40	JY53322666AAPK COOLANT, G40 1 Litre, Pack of 10	$227.16	A/R
600	RY639H298AA	OUTLET HOSE ASSEMBLY,WACAC	RY639H298AA OUTLET HOSE ASSEMBLY,WACAC Includes item 610	$110.84	1
610	KY53W704533AA	Cクリップ	KY53W704533AA Cクリップ	$4.81	2
620	RY6318K582AC	OUTLET HOSE ASSEMBLY	RY6318K582AC OUTLET HOSE ASSEMBLY Includes item 630	$106.31	1
630	KY53W704533AA	Cクリップ	KY53W704533AA Cクリップ	$4.81	2
640	RY639H299AA	INLET HOSE ASSEMBLY,WACAC	RY639H299AA INLET HOSE ASSEMBLY,WACAC	$79.39	1
650	RY638K101AA	OUTLET HOSE ASSEMBLY,AUXILIARY, LH	RY638K101AA OUTLET HOSE ASSEMBLY,AUXILIARY, LH	$702.24	1
660	703203	Screw, Flange Head M6x20	703203 Screw, Flange Head M6x20	$0.34	2
670	RY6315167AA	INLET HOSE ASSEMBLY, LH	RY6315167AA INLET HOSE ASSEMBLY, LH Includes item 680	$92.92	1
680	JY53109090AB	PIPE CLIP, 23x2mm	JY53109090AB PIPE CLIP, 23x2mm	$4.15	1
690	JY538K276AA	DEGAS HOSE ASSEMBLY	JY538K276AA DEGAS HOSE ASSEMBLY	$256.45	1
700	RY638K101BA	OUTLET HOSE ASSEMBLY,AUXILIARY, LH	RY638K101BA OUTLET HOSE ASSEMBLY,AUXILIARY, LH	$120.20	1
710	RY638K101DA	INLET HOSE ASSEMBLY,AUXILIARY, RH	RY638K101DA INLET HOSE ASSEMBLY,AUXILIARY, RH	$101.70	1
720	RY638K101CA	OUTLET HOSE ASSEMBLY,AUXILIARY, RH	RY638K101CA OUTLET HOSE ASSEMBLY,AUXILIARY, RH Includes item 730	$462.91	1
730	MY83W704533AA	HOSE RETENTION CLIP, 23xdia x 6.5	MY83W704533AA HOSE RETENTION CLIP, 23xdia x 6.5	$2.89	2
740	RY638B591AA	WATER PUMP, ELECTRIC, LH	RY638B591AA WATER PUMP, ELECTRIC, LH	$1,069.89	1
750	HY538B590AC	WATER PUMP, AUXILIARY, RH	HY538B590AC WATER PUMP, AUXILIARY, RH	$1,043.79	1
760	HY538N502AA	STRAP BRACKET, e-PUMP	HY538N502AA STRAP BRACKET, e-PUMP	$40.13	2
770	KY638N501AA	BRACKET, e-PUMP, LH	KY638N501AA BRACKET, e-PUMP, LH	$78.13	1
780	KY638N503AA	BRACKET, e-PUMP, RH	KY638N503AA BRACKET, e-PUMP, RH	$147.69	1
790	703264	Screw, M6 x 14 Flg Hd	703264 Screw, M6 x 14 Flg Hd	-	6	Enquire
800	RY638K101EA	OUTLET HOSE ASSEMBLY,RESERVOIR	RY638K101EA OUTLET HOSE ASSEMBLY,RESERVOIR Includes item 730	$356.08	1
900	RY6318D334AB	HOSE ASSEMBLY, HEATERINLET	RY6318D334AB HOSE ASSEMBLY, HEATERINLET LHD	$99.25	1
910	JY5318D359AB	HOSE ASSEMBLY, HEATEROUTLET	JY5318D359AB HOSE ASSEMBLY, HEATEROUTLET LHD	$287.86	1
920	HY53359568AA	C-CLIP, D 23mm	HY53359568AA C-CLIP, D 23mm	$2.55	5
930	RY6318D334BB	HOSE ASSEMBLY, HEATERINLET	RY6318D334BB HOSE ASSEMBLY, HEATERINLET RHD	$99.25	1
940	JY5318D359BB	HOSE ASSEMBLY, HEATEROUTLET	JY5318D359BB HOSE ASSEMBLY, HEATEROUTLET RHD	$287.86	1
1000	RY638005AB	ラジエターアッセンブリー	RY638005AB ラジエターアッセンブリー High Temperature System	$1,534.98	1
1010	HY534190AA	ラジエターアッセンブリー	HY534190AA ラジエターアッセンブリー Low Temperature System	$961.74	1
1020	HY537A095AA	HEAT EXCHANGER ASSEMBLY	HY537A095AA HEAT EXCHANGER ASSEMBLY	$491.86	1
1030	KY6361J05AA	FOAM SEAL, UPPER	KY6361J05AA FOAM SEAL, UPPER	$71.33	1
1040	703203	Screw, Flange Head M6x20	703203 Screw, Flange Head M6x20	$0.34	2
1050	HY538C607AB	FAN & SHROUD ASSEMBLY	HY538C607AB FAN & SHROUD ASSEMBLY	$1,942.92	1
1060	KY53W704533AA	Cクリップ	KY53W704533AA Cクリップ	$4.81	4
1070	HY53482907AA	C CLIP, 8mm	HY53482907AA C CLIP, 8mm	$2.55	2
1080	HY5390781AA	BOLT, M6x21.5, HEX HEAD	HY5390781AA BOLT, M6x21.5, HEX HEAD	$9.32	2
1090	HY53F8B170AA	SEAL, RUBBER, CONDENSER	HY53F8B170AA SEAL, RUBBER, CONDENSER	$6.63	2
1100	HY538N301AA	SEAL, RUBBER	HY538N301AA SEAL, RUBBER 400mm	$9.47	2
1110	KY638C477AA	フォームシール、下部	KY638C477AA フォームシール、下部	$84.12	1
1120	HY536C681AA	マウントラバー	HY536C681AA マウントラバー	$13.53	4
