Engine Structure of Aston Martin Aston Martin GT DBS SUPERLEGGERA (2019-2023)

すべて見る

Aston Martin GT DBS SUPERLEGGERA (2019-2023) - エンジン構造

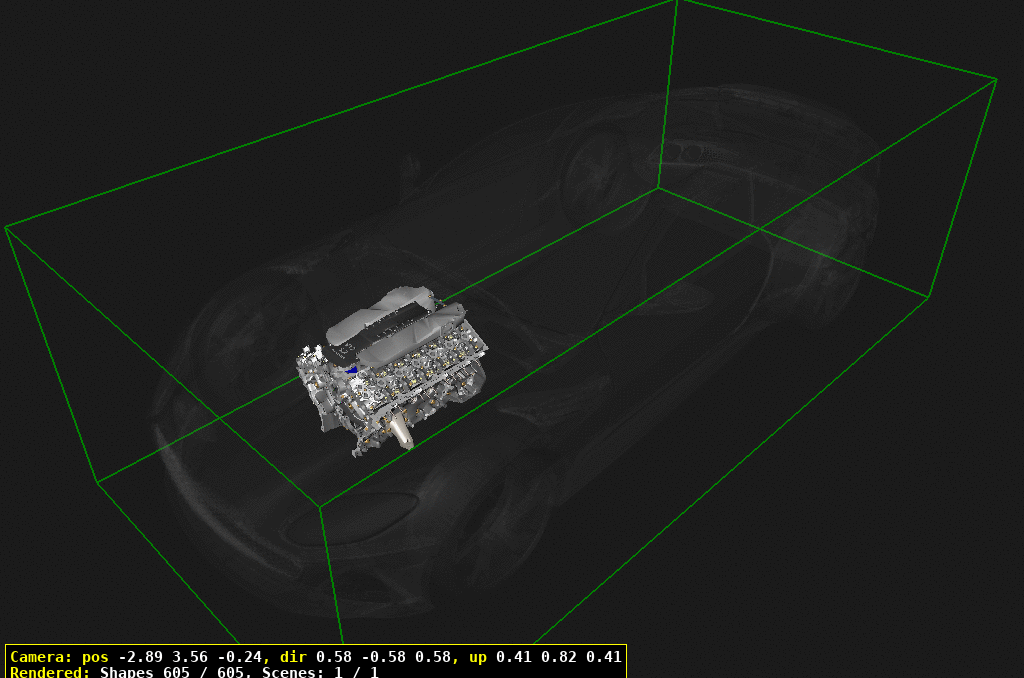

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
10	HY536007AA	ENGINE ASSEMBLY, AE31 V12	HY536007AA ENGINE ASSEMBLY, AE31 V12 -> VIN T02727. IncludesAncillaries & WCAC notillustrated	$28,124.32	1
11	HY536007AB	ENGINE ASSEMBLY, AE31aV12	HY536007AB ENGINE ASSEMBLY, AE31aV12 VIN T02728->. IncludesAncillaries & WCAC notillustrated	$62,253.83	1
20	HY53-6010-AE	CYLINDER BLOCK ASSEMBLY(ASSEMBLED) AE31 V12	HY53-6010-AE CYLINDER BLOCK ASSEMBLY(ASSEMBLED) AE31 V12 -> VIN T02727. Includesitems 40-140	-	1	Enquire
21	HY53-6010-BB	CYLINDER BLOCK ASSEMBLY(ASSEMBLED) AE31a V12	HY53-6010-BB CYLINDER BLOCK ASSEMBLY(ASSEMBLED) AE31a V12 VIN T02728->. Includesitems 40-140	-	1	Enquire
30	4G430110203	Bolt, M10x1.5x91 IN STOCK	4G430110203 Bolt, M10x1.5x91 Main Bearing Cap Inner.ALWAYS REPLACE. DO NOTRE-USE IN STOCK	$15.09	14
40	4G430110819	ボルト、メインベアリングキャップ IN STOCK	4G430110819 ボルト、メインベアリングキャップ Crankcase. ALWAYSREPLACE. DO NOT RE-USE IN STOCK	$36.09	14
50	4G430110202	BOLT, M8x1.25x82, HEX IN STOCK	4G430110202 BOLT, M8x1.25x82, HEX Main Bearing Cap Outer.ALWAYS REPLACE. DO NOTRE-USE IN STOCK	$6.66	14
60	HY53205029AA	VALVE, ANTI-DRAIN	HY53205029AA VALVE, ANTI-DRAIN	$14.89	2
70	184997	PLUG, CUP 1.25	184997 PLUG, CUP 1.25	$5.07	4
80	703705	Plug, 3/4-14 PTF, Internal Hex	703705 Plug, 3/4-14 PTF, Internal Hex	$7.76	5
90	707150	PIN, 8.0x18.25, DOWELCHAMFER, HARD	707150 PIN, 8.0x18.25, DOWELCHAMFER, HARD	$1.47	2
100	707151	PIN, 6x16, DOWEL CHAMFER,HARD	707151 PIN, 6x16, DOWEL CHAMFER,HARD	$23.03	5
110	699134	HOLLOW DOWEL	699134 HOLLOW DOWEL	$18.18	2
120	185000	Plug, Cup	185000 Plug, Cup	$16.44	1
130	704775	Plug, 19.35 dia, Expansion cup	704775 Plug, 19.35 dia, Expansion cup	$1.26	1
140	707161	PIN, HOLLOW DOWEL,16.4x19 SPLIT	707161 PIN, HOLLOW DOWEL,16.4x19 SPLIT	$1.19	4
150	702210PK	Bolt, flg, M10x30 IN STOCK	702210PK Bolt, flg, M10x30 Pack of 10 IN STOCK	$23.37	8
160	HY536031AA	BRACKET, ENGINE MOUNTING	HY536031AA BRACKET, ENGINE MOUNTING	$334.97	2
170	HY536869BB	VENT, CRANKCASE, FRONT	HY536869BB VENT, CRANKCASE, FRONT	$52.31	1
180	HY536869AB	VENT, CRANKCASE, REAR	HY536869AB VENT, CRANKCASE, REAR	$50.57	1
190	HY536B752BA	GASKET, OIL SEPARATOR,REAR	HY536B752BA GASKET, OIL SEPARATOR,REAR	$34.19	1
200	702565	BOLT, M6x16, HEX FLG IN STOCK	702565 BOLT, M6x16, HEX FLG IN STOCK	$3.97	3
210	HY536B752AA	GASKET, OIL SEPARATOR,FRONT	HY536B752AA GASKET, OIL SEPARATOR,FRONT	$34.19	1
220	HY536M099AA	CYLINDER HEAD ASSEMBLY,LH	HY536M099AA CYLINDER HEAD ASSEMBLY,LH AE31, With Valves,Adjusters & Springs	$18,204.17	1
221	HY53-6050-AD	シリンダーヘッド、左側	HY53-6050-AD シリンダーヘッド、左側 AE31, Less Valves,Adjusters, Springs &Camshafts	-	1	Enquire
222	HY53-6M099-BA	CYLINDER HEAD ASSEMBLY,LH	HY53-6M099-BA CYLINDER HEAD ASSEMBLY,LH AE31a, With Valves,Adjusters & Springs	-	1	Enquire
223	HY53-6050-BA	シリンダーヘッド、左側	HY53-6050-BA シリンダーヘッド、左側 AE31a, Less Valves,Adjusters, Springs &Camshafts	-	1	Enquire
230	HY536F093AA	CYLINDER HEAD ASSEMBLY,RH	HY536F093AA CYLINDER HEAD ASSEMBLY,RH AE31, With Valves,Adjusters & Springs	$18,204.38	1
231	HY53-6049-AD	シリンダーヘッド、右側	HY53-6049-AD シリンダーヘッド、右側 AE31, Less Valves,Adjusters, Springs &Camshafts	-	1	Enquire
232	HY53-6F093-BA	CYLINDER HEAD ASSEMBLY,RH	HY53-6F093-BA CYLINDER HEAD ASSEMBLY,RH AE31a, With Valves,Adjusters & Springs	-	1	Enquire
233	HY53-6049-BA	シリンダーヘッド、右側	HY53-6049-BA シリンダーヘッド、右側 AE31a, Less Valves,Adjusters, Springs &Camshafts	-	1	Enquire
235	HY536065AA	BOLT, M12, CYLINDER HEADto BLOCK	HY536065AA BOLT, M12, CYLINDER HEADto BLOCK ALWAYS REPLACE. DO NOTRE-USE	$11.71	28
240	186452	Plug, 1/4-18 x10.8	186452 Plug, 1/4-18 x10.8	$16.44	10
245	HY536K799AA	RESTRICTOR, OIL	HY536K799AA RESTRICTOR, OIL Camshaft oil feed	$17.05	4
250	707130	Bolt, M6x40	707130 Bolt, M6x40	$0.68	56
260	686441	Plug, 3/8", 18 socket head	686441 Plug, 3/8", 18 socket head	$0.88	2
280	703705	Plug, 3/4-14 PTF, Internal Hex	703705 Plug, 3/4-14 PTF, Internal Hex	$7.76	2
290	707152	PIN, 10x49.25, DOWEL	707152 PIN, 10x49.25, DOWEL	$2.64	2
300	707153	PLUG, 1/2-14, SOCKET HEX	707153 PLUG, 1/2-14, SOCKET HEX	$9.74	2
310	HY533823AC	STUD (Exhaust Manifold toCylinder Head)	HY533823AC STUD (Exhaust Manifold toCylinder Head) ALWAYS REPLACE. DO NOTRE-USE	$19.33	24
320	703690	Bolt, M8x63, Hex Flange Head IN STOCK	703690 Bolt, M8x63, Hex Flange Head ALWAYS REPLACE. DO NOTRE-USE IN STOCK	$27.40	4
330	HY5312K530AB	BRACKET, KNOCK SENSORCONNECTOR	HY5312K530AB BRACKET, KNOCK SENSORCONNECTOR	$36.61	1
340	HY536083BA	ガスケット、シリンダーヘッド、左側	HY536083BA ガスケット、シリンダーヘッド、左側	$720.28	1
350	HY536051BA	ガスケット、シリンダーヘッド、右側	HY536051BA ガスケット、シリンダーヘッド、右側	$720.28	1
360	1R120810077PK	ガスケット、インテークマニホールド IN STOCK	1R120810077PK ガスケット、インテークマニホールド Pack of 2 IN STOCK	$390.18	1
370	4G430810002	アイソレーター IN STOCK	4G430810002 アイソレーター IN STOCK	$26.96	14
380	702852	BOLT, M6x1.0x53, HEX FLG	702852 BOLT, M6x1.0x53, HEX FLG	$16.54	14
390	HY539J444AB	SUPPORT, INLET MANIFOLD	HY539J444AB SUPPORT, INLET MANIFOLD	$2,313.83	1
400	702637	Screw M6x20 Pan Hd lobe D	702637 Screw M6x20 Pan Hd lobe D	$0.22	8
410	HY539E360AA	FUEL/VAPOUR PURGE BRACKET	HY539E360AA FUEL/VAPOUR PURGE BRACKET	$52.83	1
420	702565	BOLT, M6x16, HEX FLG IN STOCK	702565 BOLT, M6x16, HEX FLG IN STOCK	$3.97	2
430	702542	Screw, M6X12, Flg Head IN STOCK	702542 Screw, M6X12, Flg Head IN STOCK	$2.32	1
440	HY539425BD	MANIFOLD INLET, LH	HY539425BD MANIFOLD INLET, LH	$2,548.35	1
450	HY539425AC	MANIFOLD INLET, RH	HY539425AC MANIFOLD INLET, RH	$2,548.35	1
460	HY536N078AA	PISTON OIL SQUIRTER (VLVOIL JET)	HY536N078AA PISTON OIL SQUIRTER (VLVOIL JET)	$39.22	12
470	707149	SCREW, M6x10, EXTRA LOBE	707149 SCREW, M6x10, EXTRA LOBE	$0.50	12
480	MY6Y9S447AA	PLUG ASSEMBLY, INTAKEMANIFOLD	MY6Y9S447AA PLUG ASSEMBLY, INTAKEMANIFOLD Includes item 490	$306.79	1
490	HY53532387AA	O RING, (23.39x3.53)	HY53532387AA O RING, (23.39x3.53)	$4.85	1
500	703264	Screw, M6 x 14 Flg Hd	703264 Screw, M6 x 14 Flg Hd	-	1	Enquire
