Air Cleaner And Emissions

Aston Martin GT DBS SUPERLEGGERA (2019-2023)

自分の役割を見つける

Aston Martin GT DBS SUPERLEGGERA (2019-2023) - Air Cleaner and Emissions

分解部品図を表示して、探している部品を見つけます:
  • 図をドラッグして位置を変更できます
  • スクロール、ピンチ、または and buttons
  • 部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。
パートキー
IN
在庫あり
AS
もうすぐ到着します
TO
注文するには
PE
お問い合わせください

すべて見る

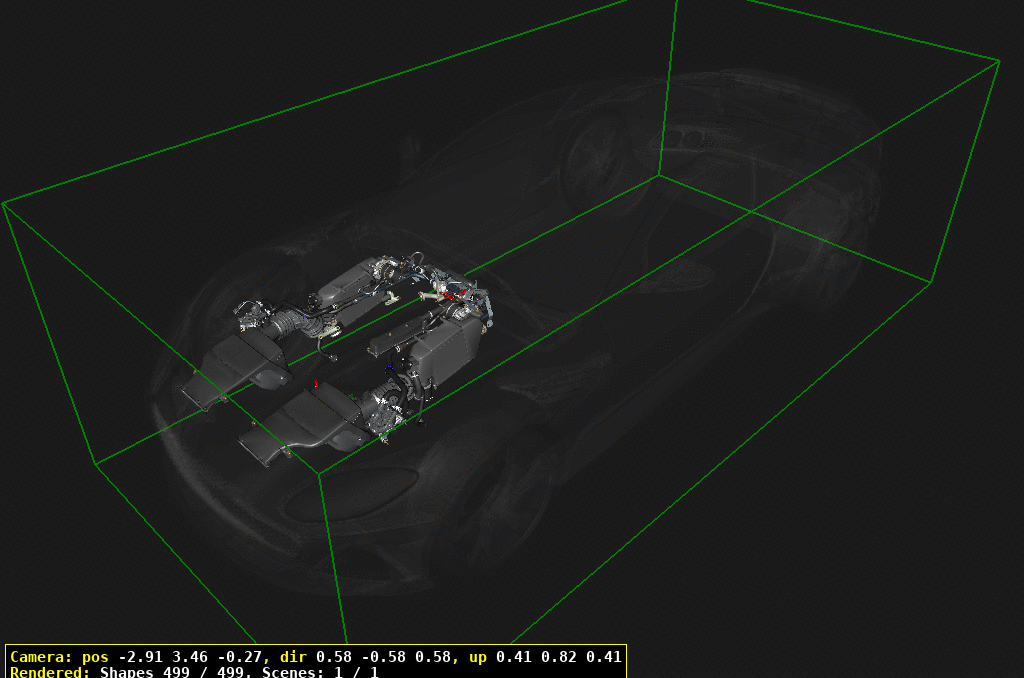

Air Cleaner and Emissions of Aston Martin Aston Martin GT DBS SUPERLEGGERA (2019-2023) ダイアグラム タップして拡大します
# 部品詳細 価格 （各） 図の数量 カートに追加
10 HY53401101BA
ホースクランプ 		$35.21 2
20 HY539G823AA
GROMMET, AIRBOX MOUNTING 		$22.24 4
30 HY539C622AC
DUCT, CLEAN AIR, RH 		$260.78 1
40 HY539C623AC
DUCT, CLEAN AIR, LH 		$260.94 1
50 HY5352081AC
AIRBOX ASSEMBLY, LH
Includes items 60-100 		$1,533.31 1
60 HY539S449AB
HOSE, PUMP INLET, LH 		$127.22 1
70 HY539601AA
FILTER, AIR
IN STOCK 		$28.26 2
80 HY5312B579AA
SENSOR, MAF * 		$291.61 1
90 HY5319214AA
O RING, 86x5mm 		$15.43 1
100 702944
Nut, M6 flg
IN STOCK 		$1.83 2
110 HY5352080AB
AIRBOX ASSEMBLY, RH
Includes items 120-160 		$1,515.82 1
120 HY539S464AB
HOSE, PUMP INLET, RH 		$139.13 1
130 702944
Nut, M6 flg
IN STOCK 		$1.83 2
140 HY5312B579AA
SENSOR, MAF * 		$291.61 1
150 HY5319214AA
O RING, 86x5mm 		$15.43 1
160 HY539N832AA
ホースクランプ 		$34.37 2
170 HY5317Z606AA
ケーブルクリップ 		$2.64 2
180 HY539A317AA
ケーブルクリップ 		$12.70 1
190 HY53-9F853-AA
COMPRESSION LIMITER 		- 4 Enquire
200 HY53-W790053-AA
SCREW, ST, M6x18 		- 4 Enquire
210 4G430410AA
SCREW, 5.2x32, SELF TAP
IN STOCK 		$3.56 12
220 HY53-9F854-AA
ISOLATOR BUSH 		- 4 Enquire
300 HY539C441AB
SECONDARY AIR PUMP, LH 		$697.05 1
310 HY539C440AB
二次エアポンプ 		$739.00 1
320 703196PK
Bolt, M6 x 55, Hex Flange Head
Pack of 10
IN STOCK 		$9.59 4
330 704328
Screw M5x20 Pan Hd 		$0.11 8
340 HY539B449BB
FEED TUBE, LH (SECONDARYAIR) 		$688.04 1
350 702544
BOLT, M6x50, HF PIL 8
IN STOCK 		$0.63 2
360 HY539B448BB
FEED TUBE, RH (SECONDARYAIR) 		$688.04 1
370 HY539F491AA
AIR CONTROL VALVE(SECONDARY VALVE) 		$594.82 2
380 HY536G089BA
GASKET (SECONDARY AIR) 		$1.17 4
390 HY539S476BA
HOSE, SAI, REAR, RH 		$370.25 1
395 HY539S476CA
HOSE, SAI, FRONT, RH 		$82.19 1
400 HY539S477BA
HOSE, PUMP DELIVERY, LH(SECONDARY AIR) 		$340.49 1
405 HY539S477CA
HOSE, SAI, FRONT, LH 		$82.19 1
410 HY539G491AD
BRACKET, WIRING HARNESSCARRIER 		$299.40 1
430 HY530810210
真空ソレノイド 		$156.38 2
440 707156
SCRIVET, M5 		- 2 Enquire
450 HY539D438AA
VACUUM HARNESS, MAIN(SECONDARY AIR) 		$216.52 1
460 HY539D438BA
VACUUM HARNESS, ACV, LH(SECONDARY AIR) 		$67.19 1
470 HY539D438CA
VACUUM HARNESS, ACV, RH(SECONDARY AIR) 		$67.19 1
480 702298
Screw, flg, M8 x 16, duct 		$0.16 2
490 HY533678AAAA
CLIP, TIE WRAP, HEGOSENSOR 		$3.97 2
500 HY536B673AD
SEPARATOR ASSEMBLY, OIL 		$295.70 1
510 HY536B752AA
GASKET, OIL SEPARATOR,FRONT 		$34.19 1
515 HY536B752BA
GASKET, OIL SEPARATOR,REAR 		$34.19 1
520 707155
BOLT, M6x65 		$1.19 2
530 HY536N66NAB
HOSE ASSEMBLY, CRANKCASEBREATHER 		$203.30 1
540 HY5313447BA
HOSE CLAMP, 35x7mm 		$7.63 1
550 HY539E498AB
BREATHER PIPE, REAR, RH 		$767.47 1
560 HY539E498BB
BREATHER PIPE, REAR, LH 		$767.47 1
570 HY539E498EA
BREATHER PIPE, FRONT, RH 		$127.89 1
580 HY539E498DB
BREATHER PIPE, FRONT, LH 		$98.50 1
590 HY5313447AA
HOSE CLAMP, 25x7mm 		$9.48 2
600 702534
SCREW, M6x25, HEX FLG 		$0.13 4
700 HY539B051AD
パージバルブアッセンブリー
Clip On Isolator 		$472.36 1
710 HY539S331BC
スロットルカフ 		$145.27 2
720 HY539W541AA
ADAPTOR, AIR INTAKECHARGE, THROTTLE BODY 		$147.79 2
730 HY539E926AA
THROTTLE BODY ASSEMBLY,LH 		$1,446.15 1
740 HY539E927AA
THROTTLE BODY ASSEMBLY,RH 		$1,446.15 1
750 HY536K808CA
SUPPORT, LH 		$272.98 1
760 HY536K808BA
SUPPORT, RH 		$272.67 1
780 HY53-9W549-EA
ADAPTOR, INLET MANIFOLD,LH 		- 1 Enquire
800 HY539W549FA
ADAPTOR, INLET MANIFOLD,RH 		$116.26 1
820 HY53F9793AB
SEAL, DUCT to THROTTLE 		$34.26 2
830 703141
Screw, pan head
IN STOCK 		$2.86 4
840 HY53F9793AB
SEAL, DUCT to THROTTLE 		$34.26 2
850 707131
BOLT, M6x55, HEX FLG 		- 8 Enquire
860 707129
BOLT, M6x1x30, HEX FLG 		$0.45 8
870 HY539E936AA
O RING, (69x2mm) 		$7.85 2
900 HY536K775CB
WCAC ASSEMBLY, LH 		$4,914.52 1
910 HY536K775DB
WCAC ASSEMBLY, RH 		$4,914.52 1
920 HY532976CB
HOSE, TURBO to WCAC 		$184.04 1
930 HY532976DB
HOSE, TURBO to WCAC 		$184.04 1
940 HY539K308CB
HOSE, AIR BYPASS VALVEINLETE, LH 		$182.69 1
950 HY539K308DB
TUBE, WCAC RETURN 		$182.69 1
960 HY536K767BB
BRACKET, FRONT, WCAC 		$48.29 2
970 HY53-6K767-JA
BRACKET, FRONT, WCAC, LH 		- 1 Enquire
980 HY53-6K767-KA
BRACKET, FRONT, WCAC, RH 		- 1 Enquire
990 HY536790AA
BUSH, FRONT 		$7.19 2
1000 HY535144AA
SPACER, WCAC FRONT BUSH 		$8.35 2
1010 702573
Bolt, M8x35mm 		$0.38 2
1020 702844
BOLT, M8x30, HEX FLG 		$7.35 8
1030 707421
SCREW, M8x25 		- 2 Enquire
1040 HY536790BA
BUSH, REAR 		$11.53 2
1050 HY53-6K767-LA
BRACKET, REAR, WCAC 		- 2 Enquire
1060 702565
BOLT, M6x16, HEX FLG
IN STOCK 		$3.97 2
1070 702637
Screw M6x20 Pan Hd lobe D 		$0.22 6
1080 HY53223035AA
再循環バルブ 		$369.27 2
