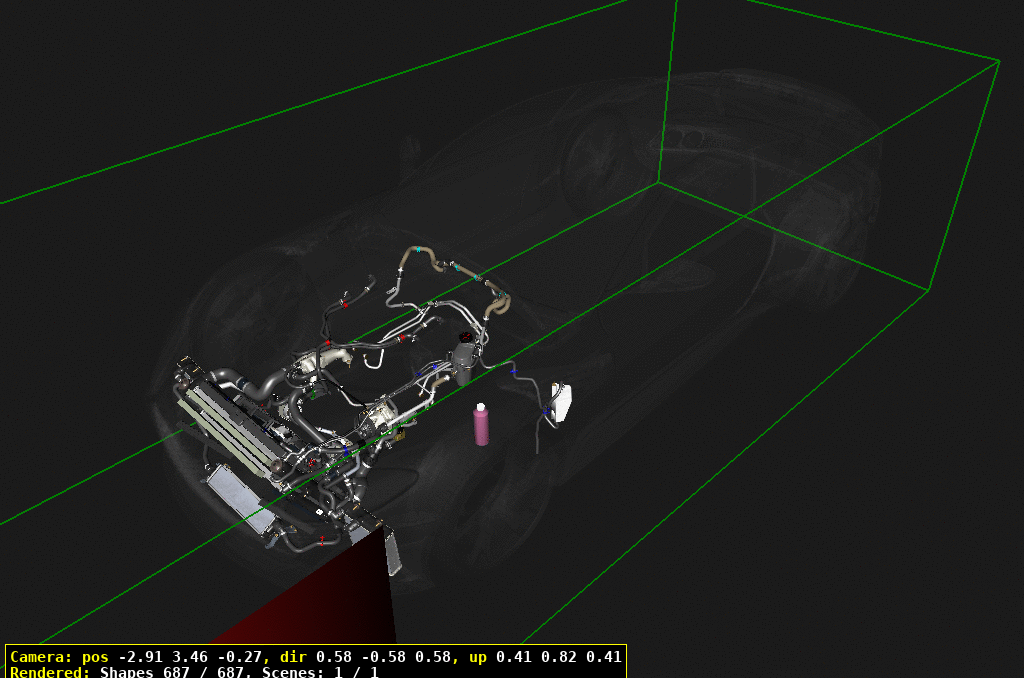

Aston Martin GT DBS SUPERLEGGERA (2019-2023) - 冷却システム

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
10	HY5361520AA	COOLANT MODULE	HY5361520AA COOLANT MODULE Includes items 570 & 870	$3,113.47	1
20	JY53322666AAPK	COOLANT, G40	JY53322666AAPK COOLANT, G40 1 Litre, Pack of 10	$228.88	A/R
30	KY738D048AB	RADIATOR, AUXILIARY	KY738D048AB RADIATOR, AUXILIARY Centre	$568.52	1
50	KY738084AA	MOUNTING, RADIATOR	KY738084AA MOUNTING, RADIATOR LH	$91.99	1
60	KY738083AA	MOUNTING, RADIATOR	KY738083AA MOUNTING, RADIATOR RH	$91.99	1
70	HY538C363AA	HOSE ASSEMBLY, DE-GAS	HY538C363AA HOSE ASSEMBLY, DE-GAS Radiator	$56.39	1
80	HY538063AB	HOSE ASSEMBLY, DE-GAS	HY538063AB HOSE ASSEMBLY, DE-GAS Engine Harness	$288.75	4
90	703152PK	Screw and Washer M6x20 Hex IN STOCK	703152PK Screw and Washer M6x20 Hex Pack of 10 IN STOCK	$6.95	2
100	KY7361J31AA	BOTTOM HOSE ASSEMBLY	KY7361J31AA BOTTOM HOSE ASSEMBLY Engine to Radiator	$624.43	1
110	6G33TBD2BA	Tank, overflow IN STOCK	6G33TBD2BA Tank, overflow IN STOCK	$58.35	1
120	HY538N029AA	ドレンホース	HY538N029AA ドレンホース	$101.03	1
130	HY538B081AA	HOSE, OVERFLOW BOTTLE	HY538B081AA HOSE, OVERFLOW BOTTLE	$126.29	1
140	HY5319B518AD	クーラントリザーバ	HY5319B518AD クーラントリザーバ Includes item 150	$345.23	1
150	HY538101AA	CAP ASSEMBLY, 180kPa	HY538101AA CAP ASSEMBLY, 180kPa	$160.96	1
170	HY538556AC	HOSE ASSEMBLY, BYPASS	HY538556AC HOSE ASSEMBLY, BYPASS	$176.33	1
190	KY738D050AB	OUTLET HOSE, AUXILIARY,RH	KY738D050AB OUTLET HOSE, AUXILIARY,RH	$225.50	1
200	HY538C350AC	HOSE, DE-GAS	HY538C350AC HOSE, DE-GAS	$282.97	1
210	HY53482907AA	C CLIP, 8mm	HY53482907AA C CLIP, 8mm	$2.57	2
220	KY738333AA	トップホースアセンブリ	KY738333AA トップホースアセンブリ	$377.35	1
230	HY5318D506AA	RADIATOR, AUXILIARY, RH	HY5318D506AA RADIATOR, AUXILIARY, RH	$698.49	1
240	703201	Screw, M8 x 30 Hex Head Flange IN STOCK	703201 Screw, M8 x 30 Hex Head Flange IN STOCK	$1.28	3
250	HY536C681AA	マウントラバー IN STOCK	HY536C681AA マウントラバー Cooling Pack IN STOCK	$13.63	4
260	HY5318C553AA	PIPE ASSEMBLY, HEATER	HY5318C553AA PIPE ASSEMBLY, HEATER Heater Inlet	$198.27	1
270	HY536B850AC	PIPE ASSEMBLY, OIL COOLERRETURN	HY536B850AC PIPE ASSEMBLY, OIL COOLERRETURN Includes item 275	$274.15	1
275	HY53SE9E936BA	O RING, 27x2mm	HY53SE9E936BA O RING, 27x2mm	$3.70	1
280	HY5318674AC	PIPE ASSEMBLY, HEATER	HY5318674AC PIPE ASSEMBLY, HEATER Heater Return	$226.33	1
290	HY5398659AB	PIPE ASSEMBLY, CROSSOVER	HY5398659AB PIPE ASSEMBLY, CROSSOVER To RH Turbocharger	$431.31	1
300	HY539U468AA	PIPE ASSEMBLY, TURBOINLET, LH	HY539U468AA PIPE ASSEMBLY, TURBOINLET, LH LH	$350.89	1
310	HY539U468BA	PIPE ASSEMBLY, TURBOINLET, RH	HY539U468BA PIPE ASSEMBLY, TURBOINLET, RH RH	$152.19	1
320	HY539U469AA	PIPE ASSEMBLY, TURBORETURN, LH	HY539U469AA PIPE ASSEMBLY, TURBORETURN, LH LH	$144.34	1
330	HY539U469BA	PIPE ASSEMBLY, TURBORETURN, RH	HY539U469BA PIPE ASSEMBLY, TURBORETURN, RH RH	$267.23	1
340	HY538A595AB	パイプアッセンブリー	HY538A595AB パイプアッセンブリー To Run On Coolant Pump	$208.04	1
350	702565	BOLT, M6x16, HEX FLG IN STOCK	702565 BOLT, M6x16, HEX FLG IN STOCK	$3.97	2
360	HY538A583AA	BRACKET, RUN-ON COOLANTPUMP	HY538A583AA BRACKET, RUN-ON COOLANTPUMP	$99.83	1
370	HY538B552AA	RUN-ON PUMP ASSEMBLY	HY538B552AA RUN-ON PUMP ASSEMBLY Auxiliary Run On Pump	$417.09	1
380	HY538A586AB	サーモスタットアセンブリ	HY538A586AB サーモスタットアセンブリ Includes items 390-470	$1,937.59	1
390	HY539YA90AA	スタッドボルトM6X40+M6X20	HY539YA90AA スタッドボルトM6X40+M6X20	$72.72	1
400	HY5312A648AA	SENSOR, COOLANTTEMPERATURE	HY5312A648AA SENSOR, COOLANTTEMPERATURE Coolant	$69.66	1
410	CD338575AA	サーモスタットアセンブリ	CD338575AA サーモスタットアセンブリ Bare	$776.51	1
430	HY5325081AA	CLIP, TEMPERATURE SENSOR	HY5325081AA CLIP, TEMPERATURE SENSOR	$17.87	1
440	3285113	O RING, OUTLET IN STOCK	3285113 O RING, OUTLET Thermostat to Engine IN STOCK	$1.35	1
450	3285114	O RING,L HOUSING IN STOCK	3285114 O RING,L HOUSING IN STOCK	$2.75	1
460	3285112	O RING, WATER OUTLET IN STOCK	3285112 O RING, WATER OUTLET Thermostat to Engine IN STOCK	$6.11	1
470	702525	BOLT, M6x35, HEX HEAD	702525 BOLT, M6x35, HEX HEAD	-	2	Enquire
480	HY538274AB	PIPE ASSEMBLY, WATER PUMPINLET	HY538274AB PIPE ASSEMBLY, WATER PUMPINLET Includes item 490	$320.78	1
490	HY539E936DA	O RING, 46x3mm	HY539E936DA O RING, 46x3mm Pipe to Water Pump	$2.87	1
500	HY538K168AA	PUMP ASSEMBLY, ENGINECOOLANT	HY538K168AA PUMP ASSEMBLY, ENGINECOOLANT Complete	$1,885.01	1
510	585382	O Ring, Waterpump IN STOCK	585382 O Ring, Waterpump To Engine IN STOCK	$51.18	1
520	702542	Screw, M6X12, Flg Head IN STOCK	702542 Screw, M6X12, Flg Head IN STOCK	$2.32	3
530	HY536N867AD	PIPE, OIL COOLER FEED	HY536N867AD PIPE, OIL COOLER FEED Includes items 535	$397.33	1
535	HY53SE9E936AA	O RING, 20x2mm	HY53SE9E936AA O RING, 20x2mm	$3.49	2
540	HY53116632AA	クリップ、スプリング	HY53116632AA クリップ、スプリング	$9.72	1
550	702855	Bolt and Washer, M6x30	702855 Bolt and Washer, M6x30	$2.86	3
560	702565	BOLT, M6x16, HEX FLG IN STOCK	702565 BOLT, M6x16, HEX FLG IN STOCK	$3.97	3
570	HY538005AA	ラジエターアッセンブリー	HY538005AA ラジエターアッセンブリー High Temperature System	$1,687.08	1
580	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 IN STOCK	$0.34	2
590	KY53W704533AA	Cクリップ	KY53W704533AA Cクリップ	$4.85	1
600	702573	Bolt, M8x35mm	702573 Bolt, M8x35mm	$0.38	4
610	HY53232046AA	DOUBLE WASHER, COPPER	HY53232046AA DOUBLE WASHER, COPPER ALWAYS REPLACE. DO NOTRE-USE	$26.95	4
620	HY53100079AA	BANJO BOLT, M14	HY53100079AA BANJO BOLT, M14	$87.56	4
630	HY5361J05AA	FOAM SEAL, UPPER	HY5361J05AA FOAM SEAL, UPPER Cooling Pack	$51.38	2
640	KY7361J05AB	フォームシール、下部	KY7361J05AB フォームシール、下部 LHD, Cooling Pack	$152.94	1
641	KY7361J05BA	フォームシール、下部	KY7361J05BA フォームシール、下部 RHD, Cooling Pack	$152.94	1
710	HY538N502AA	STRAP BRACKET, e-PUMP	HY538N502AA STRAP BRACKET, e-PUMP	$40.44	2
720	HY538B590AB	WATER PUMP, ELECTRIC, RH	HY538B590AB WATER PUMP, ELECTRIC, RH Auxiliary, Electric, RH	$874.79	1
740	HY538B591AB	WATER PUMP, ELECTRIC, LH	HY538B591AB WATER PUMP, ELECTRIC, LH Auxiliary, Electric, LH	$874.79	1
750	HY538N503AC	MOUNTING BRACKET, WATERPUMP	HY538N503AC MOUNTING BRACKET, WATERPUMP	$173.01	2
760	HY5318D603AA	RADIATOR, AUXILARY, LH IN STOCK	HY5318D603AA RADIATOR, AUXILARY, LH IN STOCK	$662.22	1
770	703201	Screw, M8 x 30 Hex Head Flange IN STOCK	703201 Screw, M8 x 30 Hex Head Flange IN STOCK	$1.28	3
780	HY5315167AA	INLET HOSE ASSEMBLY	HY5315167AA INLET HOSE ASSEMBLY	$85.65	1
790	KY739H298AA	HOSE ASSEMBLY, WCACRETURN	KY739H298AA HOSE ASSEMBLY, WCACRETURN	$275.80	1
800	HY538K276AA	HOSE ASSEMBLY, DE-GAS	HY538K276AA HOSE ASSEMBLY, DE-GAS	$258.39	1
810	HY539H299AA	HOSE ASSEMBLY, WCAC INLET	HY539H299AA HOSE ASSEMBLY, WCAC INLET	$91.36	1
820	KY738K101AA	HOSE ASSEMBLY, DE-GAS	KY738K101AA HOSE ASSEMBLY, DE-GAS Pump to LH Radiator	$339.68	1
830	HY5318K582AA	HOSE ASSEMBLY, OUTLET	HY5318K582AA HOSE ASSEMBLY, OUTLET Centre Radiator to RHPump	$94.69	1
840	HY539N491BA	PIPE ASSEMBLY, WCACRETURN	HY539N491BA PIPE ASSEMBLY, WCACRETURN	$342.43	1
850	~0~	LHD Illustrated	~0~ LHD Illustrated See 03-12 Air Intake	-	1	Enquire
860	HY539N491AB	PIPE ASSEMBLY, WCAC FEED	HY539N491AB PIPE ASSEMBLY, WCAC FEED	$354.02	1
870	HY534190AA	ラジエターアッセンブリー	HY534190AA ラジエターアッセンブリー Low Temperature System	$969.03	1
880	HY53F8B170AA	SEAL, RUBBER, CONDENSER	HY53F8B170AA SEAL, RUBBER, CONDENSER Radiator Pack	$6.68	2
890	HY538N301AA	SEAL, RUBBER	HY538N301AA SEAL, RUBBER Ducting, 400mm	$9.54	2
900	KY53W704533AA	Cクリップ	KY53W704533AA Cクリップ	$4.85	1
910	HY538A588AC	BRACKET, HOSE SUPPORT	HY538A588AC BRACKET, HOSE SUPPORT	$107.14	1
1000	HY5318D359BB	HOSE ASSEMBLY, HEATEROUTLET	HY5318D359BB HOSE ASSEMBLY, HEATEROUTLET RHD	$290.08	1
1010	HY5318D334BA	HOSE ASSEMBLY, HEATERINLET	HY5318D334BA HOSE ASSEMBLY, HEATERINLET RHD	$129.27	1
1020	HY5318D359AB	HOSE ASSEMBLY, HEATEROUTLET	HY5318D359AB HOSE ASSEMBLY, HEATEROUTLET LHD	$301.88	1
1030	HY5318D334AC	HOSE ASSEMBLY, HEATERINLET	HY5318D334AC HOSE ASSEMBLY, HEATERINLET LHD	$290.57	1
1040	HY53359568AA	C-CLIP, D 23mm	HY53359568AA C-CLIP, D 23mm	$2.57	4
1100	HY538C607AB	FAN & SHROUD ASSEMBLY	HY538C607AB FAN & SHROUD ASSEMBLY Radiator Pack	$1,957.64	1
1110	HY53482907AA	C CLIP, 8mm	HY53482907AA C CLIP, 8mm 8mm	$2.57	3
1120	HY5390781AA	BOLT, M6x21.5, HEX HEAD	HY5390781AA BOLT, M6x21.5, HEX HEAD Patchlocked	$9.40	2
1130	KY53W704533AA	Cクリップ	KY53W704533AA Cクリップ	$4.85	4
