Air Con Lines, HFO1234yf, RHD of Aston Martin Aston Martin GT RAPIDE (2010-2019)

すべて見る

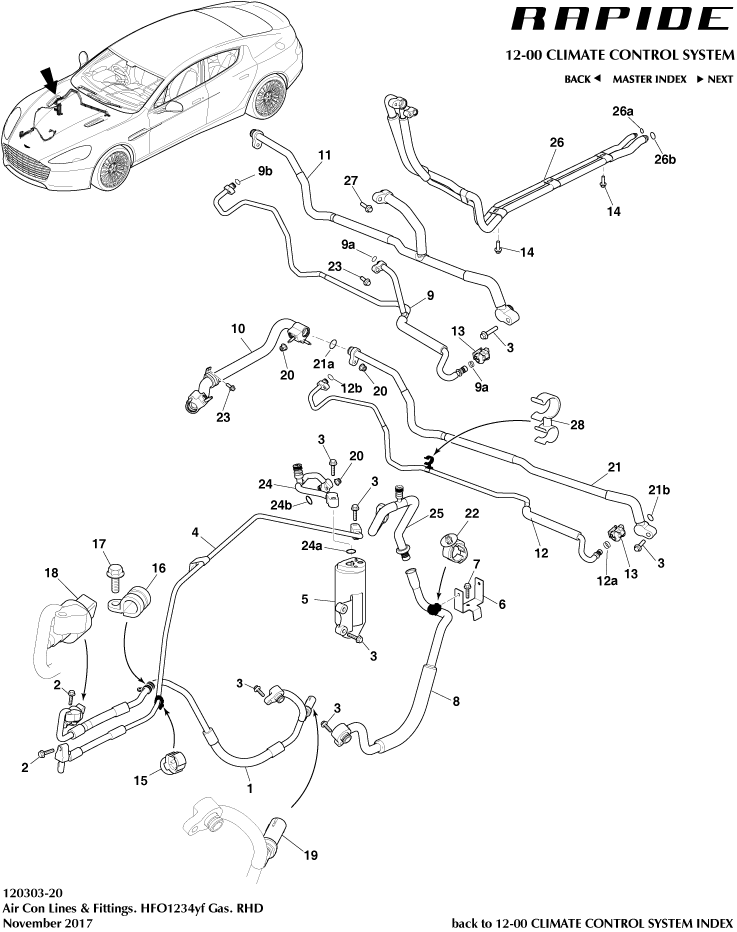

Aston Martin GT RAPIDE (2010-2019) - Air Con Lines, HFO1234yf, RHD

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
1	HD3319972AA	TUBE ASSEMBLY, COMPRESSORto CONDENSER	HD3319972AA TUBE ASSEMBLY, COMPRESSORto CONDENSER -	$633.91	1
2	703201	Screw, M8 x 30 Hex Head Flange IN STOCK	703201 Screw, M8 x 30 Hex Head Flange - IN STOCK	$1.28	2
3	703199	Bolt M6x30 hex flg hd IN STOCK	703199 Bolt M6x30 hex flg hd - IN STOCK	$0.79	7
4	HD3319D719AA	TUBE ASSEMBY, CONDENSERto DRIER	HD3319D719AA TUBE ASSEMBY, CONDENSERto DRIER -	$264.12	1
5	4G4319E891AD	レシーバドライヤアセンブリ IN STOCK	4G4319E891AD レシーバドライヤアセンブリ - IN STOCK	$274.27	1
6	4G436147XAD	Bracket, A/C pipe support	4G436147XAD Bracket, A/C pipe support -	$41.66	1
7	703151	Nut/washr, M6 IN STOCK	703151 Nut/washr, M6 - IN STOCK	$0.90	1
8	HD3319A705AA	TUBE ASSEMBLY, EVAPORATOROUTLET	HD3319A705AA TUBE ASSEMBLY, EVAPORATOROUTLET -	$412.88	1
9	HD4319D603BA	Tube Assy, A/C Evap Inlet (Liquid)	HD4319D603BA Tube Assy, A/C Evap Inlet (Liquid) For Rear HVAC only	$342.93	1
9a	HD2387024AA	O Ring, 6.70x1.80	HD2387024AA O Ring, 6.70x1.80 -	$6.97	3
9b	HD2387072AA	Tube Assy, Evaporator Inlet	HD2387072AA Tube Assy, Evaporator Inlet -	$6.97	1
10	HD2318D487BB	TUBE ASSEMBLY, A/C INX	HD2318D487BB TUBE ASSEMBLY, A/C INX For Rear HVAC only	$336.91	1
11	HD4319D602BA	Tube Assy, A/C Evap Outlet	HD4319D602BA Tube Assy, A/C Evap Outlet For Rear HVAC only	$342.93	1
12	HD43-19D603-DA	Tube Assy, A/C Evp Inlet (Liquid)	HD43-19D603-DA Tube Assy, A/C Evp Inlet (Liquid) Not for Rear HVAC	-	1	Enquire
12a	HD2387024AA	O Ring, 6.70x1.80	HD2387024AA O Ring, 6.70x1.80 -	$6.97	2
12b	HD2387072AA	Tube Assy, Evaporator Inlet	HD2387072AA Tube Assy, Evaporator Inlet -	$6.97	1
13	4G434073AAA	CLAMP, LIQUID	4G434073AAA CLAMP, LIQUID -	$5.26	1
14	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 - IN STOCK	$0.34	2
15	701180	CLIP, 14.0, PUSH-IN	701180 CLIP, 14.0, PUSH-IN -	$1.40	1
16	699634	P-Clip, 13mm IN STOCK	699634 P-Clip, 13mm - IN STOCK	$3.29	1
17	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 - IN STOCK	$0.34	1
18	1R128910192	SENSOR, HIGH PRESSURE	1R128910192 SENSOR, HIGH PRESSURE -	$559.74	1
19	6F9319D594AA	Switch Assy, A/C Pressure Cut Off	6F9319D594AA Switch Assy, A/C Pressure Cut Off -	-	1	Enquire
20	703163	Nut, M06, hex flange head IN STOCK	703163 Nut, M06, hex flange head - IN STOCK	$0.23	3
21	HD4319D602DA	Tube Assy, A/C Evp Outlet (Suction)	HD4319D602DA Tube Assy, A/C Evp Outlet (Suction) Not for Rear HVAC	$226.31	1
21a	HD2319394AA	O RING, EPDM, 16.25x2.5	HD2319394AA O RING, EPDM, 16.25x2.5 -	$8.62	1
21b	HD2332117AA	EPDM O Ring, 13.40x2.40	HD2332117AA EPDM O Ring, 13.40x2.40 -	$5.87	1
22	702291	Clip, 11-18x6.5x7	702291 Clip, 11-18x6.5x7 -	$1.56	1
23	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 - IN STOCK	$0.34	1
24	HG4319N649AA	TUBE ASSEMBLY, A/C IHX,INLET	HG4319N649AA TUBE ASSEMBLY, A/C IHX,INLET -	$251.94	1
24a	HD2387071AA	O Ring, 10.8x2.40	HD2387071AA O Ring, 10.8x2.40 -	$6.97	1
24b	HD2387072AA	Tube Assy, Evaporator Inlet	HD2387072AA Tube Assy, Evaporator Inlet -	$6.97	1
25	HG4319N648AA	TUBE ASSEMBLY, A/C IHX,OUTLET	HG4319N648AA TUBE ASSEMBLY, A/C IHX,OUTLET -	$393.36	1
26	HD4319A705DA	Tube Assy, A/C Evap Outlet	HD4319A705DA Tube Assy, A/C Evap Outlet For Rear HVAC only	$492.89	1
26a	HD23100603AA	EPDM O Ring, 7.5x2.0	HD23100603AA EPDM O Ring, 7.5x2.0 -	$4.33	1
26b	HD23101001AA	EPDM O Ring, 14x2.0	HD23101001AA EPDM O Ring, 14x2.0 -	$7.20	1
27	703025	Bolt, flg M6 x 25 IN STOCK	703025 Bolt, flg M6 x 25 - IN STOCK	$0.34	1
