Air Con Lines, R134a, LHD of Aston Martin Aston Martin GT RAPIDE (2010-2019)

すべて見る

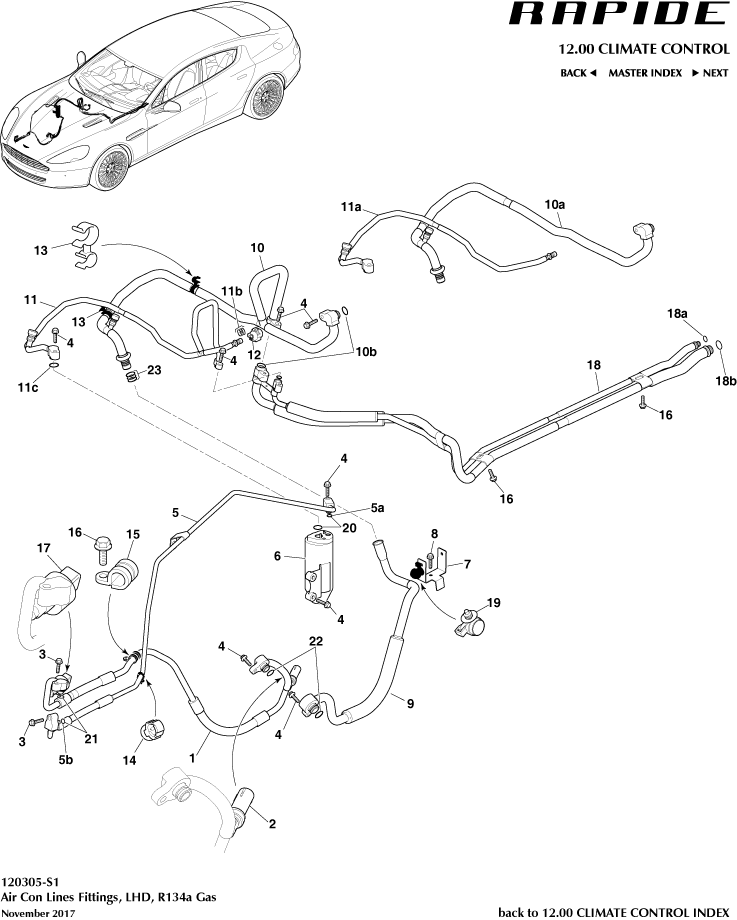

Aston Martin GT RAPIDE (2010-2019) - Air Con Lines, R134a, LHD

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	CD3319972AC	Tube Assy, Compressor to Condenser	CD3319972AC Tube Assy, Compressor to Condenser From 13MY to 17MY	$652.38	1
-	HD3319972AA	TUBE ASSEMBLY, COMPRESSORto CONDENSER	HD3319972AA TUBE ASSEMBLY, COMPRESSORto CONDENSER From 17MY, With R134 Gas	$629.15	1
-	CD3319D719AC	Tube Assy, Condenser to Receiver/Drier	CD3319D719AC Tube Assy, Condenser to Receiver/Drier From 13MY To 17MY	$139.56	1
-	HD3319D719AA	TUBE ASSEMBY, CONDENSERto DRIER	HD3319D719AA TUBE ASSEMBY, CONDENSERto DRIER From 17MY, with R134 Gas	$262.14	1
-	CD3319A705AA	Tube Assy, Evaporator Outlet, Lower	CD3319A705AA Tube Assy, Evaporator Outlet, Lower From 13MY To 17MY	$177.63	1
-	HD3319A705AA	TUBE ASSEMBLY, EVAPORATOROUTLET	HD3319A705AA TUBE ASSEMBLY, EVAPORATOROUTLET From 17MY, With R134 Gas	$409.78	1
-	HD4319A705BA	Tube Assy, Evaporator Outlet, Upper	HD4319A705BA Tube Assy, Evaporator Outlet, Upper From 17MY, With Rear A/C, With R134 Gas	$329.58	1
-	HD4319835AA	Tube Assy, Drier to Evaporator	HD4319835AA Tube Assy, Drier to Evaporator From 17MY, With Rear A/C, With R134 Gas	$248.77	1
-	HD4319A705CA	Tube Assy, A/C Evap Outlet	HD4319A705CA Tube Assy, A/C Evap Outlet From 17MY, With Rear A/C, With R134 Gas	$489.19	1
-	HD2349745AA	O Ring, 12.93x1.86	HD2349745AA O Ring, 12.93x1.86 From 17MY	$8.38	3
1	AD4319972AA	Tube Assy, Compressor to Condenser	AD4319972AA Tube Assy, Compressor to Condenser Up To 13MY	$435.24	1
2	6F9319D594AA	Switch Assy, A/C Pressure Cut Off	6F9319D594AA Switch Assy, A/C Pressure Cut Off -	-	1	Enquire
3	703201	Screw, M8 x 30 Hex Head Flange	703201 Screw, M8 x 30 Hex Head Flange -	$1.27	2
4	703199	Bolt M6x30 hex flg hd	703199 Bolt M6x30 hex flg hd -	$0.78	7
5	AD4319D719AA	チューブASSY、コンデンサー～レシーバードライヤー	AD4319D719AA チューブASSY、コンデンサー～レシーバードライヤー Up To 13MY	$171.62	1
5a	HD2387024AA	O Ring, 6.70x1.80	HD2387024AA O Ring, 6.70x1.80 From 17MY	$6.92	1
5b	HD2387056AA	O Rings, Receiver / Drier	HD2387056AA O Rings, Receiver / Drier From 17MY	$6.92	1
6	4G4319E891AC	レシーバー/ドライヤー	4G4319E891AC レシーバー/ドライヤー -	-	1	Enquire
8	703151	Nut/washr, M6	703151 Nut/washr, M6 -	$0.89	1
9	AD4319A705AA	Tube Assy, Evaporator Outlet, Lower	AD4319A705AA Tube Assy, Evaporator Outlet, Lower Up To 13MY	$326.36	1
10	AD4319A705BA	Tube Assy, Evaporator Outlet, Upper	AD4319A705BA Tube Assy, Evaporator Outlet, Upper Up To 17MY	$320.30	1
10a	HD4319B881AA	Tube Assy, Evaporator Outlet, Upper	HD4319B881AA Tube Assy, Evaporator Outlet, Upper From 17MY, Less Rear A/C, With R134 Gas	$312.22	1
10b	HD2332117AA	EPDM O Ring, 13.40x2.40	HD2332117AA EPDM O Ring, 13.40x2.40 From 17MY	$5.83	2
11	AD4319835AA	Tube Assy, Drier to Evaporator	AD4319835AA Tube Assy, Drier to Evaporator Up To 17MY	$310.61	1
11a	HD4319919AA	Tube Assy, Drier to Evaporator	HD4319919AA Tube Assy, Drier to Evaporator From 17MY, Less Rear A/C, With R134 Gas	$337.64	1
11b	HD2387024AA	O Ring, 6.70x1.80	HD2387024AA O Ring, 6.70x1.80 From 17MY	$6.92	3
11c	HD2387071AA	O Ring, 10.8x2.40	HD2387071AA O Ring, 10.8x2.40 From 17MY	$6.92	1
12	4G434073AAA	CLAMP, LIQUID	4G434073AAA CLAMP, LIQUID -	$5.22	1
13	701182	Clip, Pipe, Swivel	701182 Clip, Pipe, Swivel -	$2.03	4
14	701180	CLIP, 14.0, PUSH-IN	701180 CLIP, 14.0, PUSH-IN -	$1.39	1
15	699634	P-Clip, 13mm	699634 P-Clip, 13mm -	$3.26	1
16	703203	Screw, Flange Head M6x20	703203 Screw, Flange Head M6x20 -	$0.34	3
17	1R128910192	SENSOR, HIGH PRESSURE	1R128910192 SENSOR, HIGH PRESSURE -	$555.53	1
18	AD43-19A705-CC	Tube Assy, To Rear Evaporator	AD43-19A705-CC Tube Assy, To Rear Evaporator Up To 17MY	-	1	Enquire
18a	HD23100603AA	EPDM O Ring, 7.5x2.0	HD23100603AA EPDM O Ring, 7.5x2.0 From 17MY	$4.30	1
18b	HD23101001AA	EPDM O Ring, 14x2.0	HD23101001AA EPDM O Ring, 14x2.0 From 17MY	$7.15	1
19	4G436510059	Clip, Firtree, 5x6.5x2	4G436510059 Clip, Firtree, 5x6.5x2 -	-	2	Enquire
20	4G438910908PK	O Rings, Receiver / Drier	4G438910908PK O Rings, Receiver / Drier Up To 17MY	$6.12	1
21	4G438910910PK	O Rings, Condenser	4G438910910PK O Rings, Condenser Up To 17MY	$6.24	1
22	4G438910909PK	O Rings, Compressor	4G438910909PK O Rings, Compressor Up To 17MY	$6.24	1
23	4G438910911PK	O Rings, Evaporator	4G438910911PK O Rings, Evaporator Up To 17MY	$14.33	1
