Air Distribution Components of Aston Martin Aston Martin GT RAPIDE (2010-2019)

すべて見る

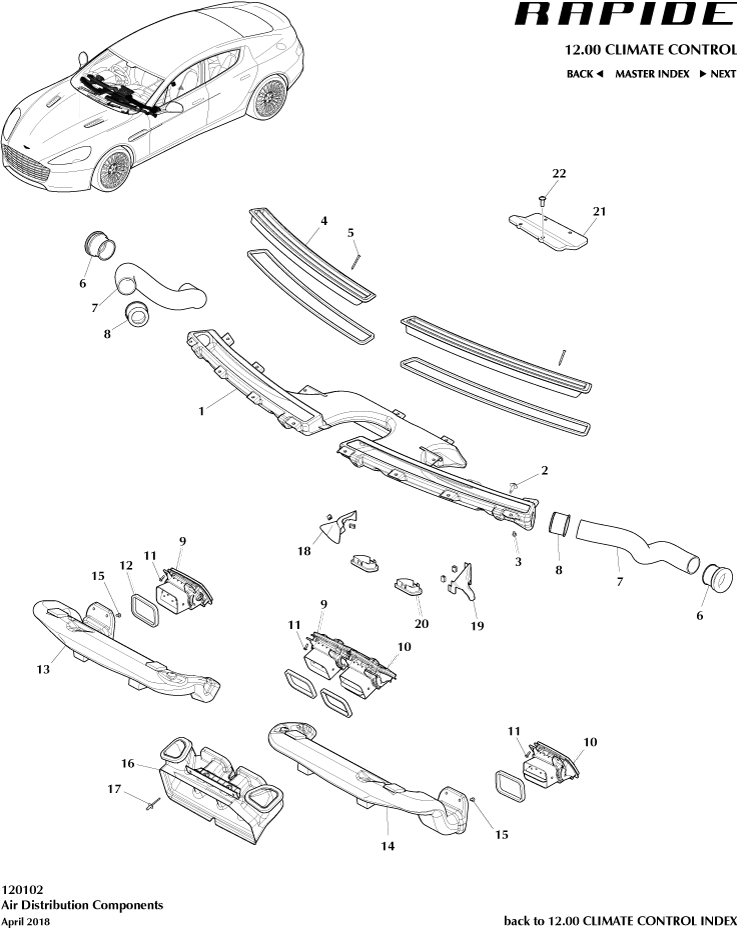

Aston Martin GT RAPIDE (2010-2019) - 空気分配コンポーネント

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	6G3304432AA	Duct Assembly, windshield deflector	6G3304432AA Duct Assembly, windshield deflector LHD	$138.32	1
-	701157PK	Screw, 4.2 x 13 IN STOCK	701157PK Screw, 4.2 x 13 - IN STOCK	$3.07	2
-	4G43046B30BB	Register Assembly, RH	4G43046B30BB Register Assembly, RH Graphite	$149.98	2
-	FD43046B30AA	Register Assembly, RH	FD43046B30AA Register Assembly, RH Piano Black	$407.40	2
-	FD43046B30BA	Register Assembly, RH	FD43046B30BA Register Assembly, RH Ice Mocha	$268.99	2
-	4G43046B31BB	Register Assembly, LH	4G43046B31BB Register Assembly, LH Graphite	$146.95	2
-	FD43046B31AA	Register Assembly, LH	FD43046B31AA Register Assembly, LH Piano Black	$420.28	2
-	FD43046B31BA	Register Assembly, LH	FD43046B31BA Register Assembly, LH Ice Mocha	$268.99	2
-	8G4318D404AC	Duct Assembly, Heater Air Dstr ctr, LHD	8G4318D404AC Duct Assembly, Heater Air Dstr ctr, LHD LHD	$83.10	1
-	9D33014K97AA	Duct Assembly, vent air lower, Lwr LH, LHD	9D33014K97AA Duct Assembly, vent air lower, Lwr LH, LHD LHD	$7.85	1
1	6G3304432BA	Duct Assembly, windshield deflector	6G3304432BA Duct Assembly, windshield deflector RHD	$137.24	1
2	703156	Screw / Washer, M6 x 18 IN STOCK	703156 Screw / Washer, M6 x 18 - IN STOCK	$1.38	4
3	703068	SCREW, 4.2x9, LARGEFLANGE	703068 SCREW, 4.2x9, LARGEFLANGE -	$0.13	14
4	4G4318C491AJ	GRILLE, WINDSCREENDEFROST	4G4318C491AJ GRILLE, WINDSCREENDEFROST -	$688.83	2
5	6G3379231AB	Screw, M3.5x38 Pozi	6G3379231AB Screw, M3.5x38 Pozi Screen defog gril	-	4	Enquire
6	4G43C046B80AC	SEAL, DEMISTER HOSE	4G43C046B80AC SEAL, DEMISTER HOSE -	$9.56	4
7	4G4319E658AC	HOSE, WINDOW DEMISTER	4G4319E658AC HOSE, WINDOW DEMISTER -	$57.75	2
8	4G4319E680AD	CONNECTOR, DEMISTER HOSE	4G4319E680AD CONNECTOR, DEMISTER HOSE -	$9.56	2
9	8D33046B30BB	Register Assembly, RH	8D33046B30BB Register Assembly, RH Iridium Silver	$150.07	2
10	8D33046B31BB	Register Assembly, LH	8D33046B31BB Register Assembly, LH Iridium Silver	$150.07	2
11	701447	Screw M4x12 Pan collar IN STOCK	701447 Screw M4x12 Pan collar Register to IP IN STOCK	$0.56	12
12	4G4318D404CA	SEAL, AIR DUCT	4G4318D404CA SEAL, AIR DUCT -	$2.53	4
13	8G4319C804AD	Duct Assembly, Instrument Panel RH	8G4319C804AD Duct Assembly, Instrument Panel RH -	-	1	Enquire
14	8G4319C805AD	Duct Assembly, Instrument Panel LH	8G4319C805AD Duct Assembly, Instrument Panel LH -	$73.24	1
15	6G33RA610123AA	POP RIVET, 4.8, ALUMINIUM	6G33RA610123AA POP RIVET, 4.8, ALUMINIUM Duct to mldg	$0.50	10
16	8G4318D404BB	Duct Assembly, Heater Air Dstr ctr, RHD	8G4318D404BB Duct Assembly, Heater Air Dstr ctr, RHD RHD	$86.10	1
17	4G4317A873AA	POP RIVET, 4.8x12.0	4G4317A873AA POP RIVET, 4.8x12.0 -	$1.90	4
18	9D33014K96AA	Duct Assembly, vent air lower, Lwr RH, RHD	9D33014K96AA Duct Assembly, vent air lower, Lwr RH, RHD -	$7.85	1
19	8G43014K97BB	Duct Assembly, vent air lower, Lwr LH, RHD	8G43014K97BB Duct Assembly, vent air lower, Lwr LH, RHD RHD	$40.45	1
20	7G43014K00AA	PLUG, FOOTWELL DUCT	7G43014K00AA PLUG, FOOTWELL DUCT -	$13.54	2
21	KD43112D10AA	Seal, Tunnel, Floor Pan Lower	KD43112D10AA Seal, Tunnel, Floor Pan Lower AMR	$57.56	1
22	703746	SCREW, M6x16, PAN FLGHEAD TORX, BLACK	703746 SCREW, M6x16, PAN FLGHEAD TORX, BLACK AMR	$0.50	4
