Glass and Regulators of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

すべて見る

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Glass and Regulators

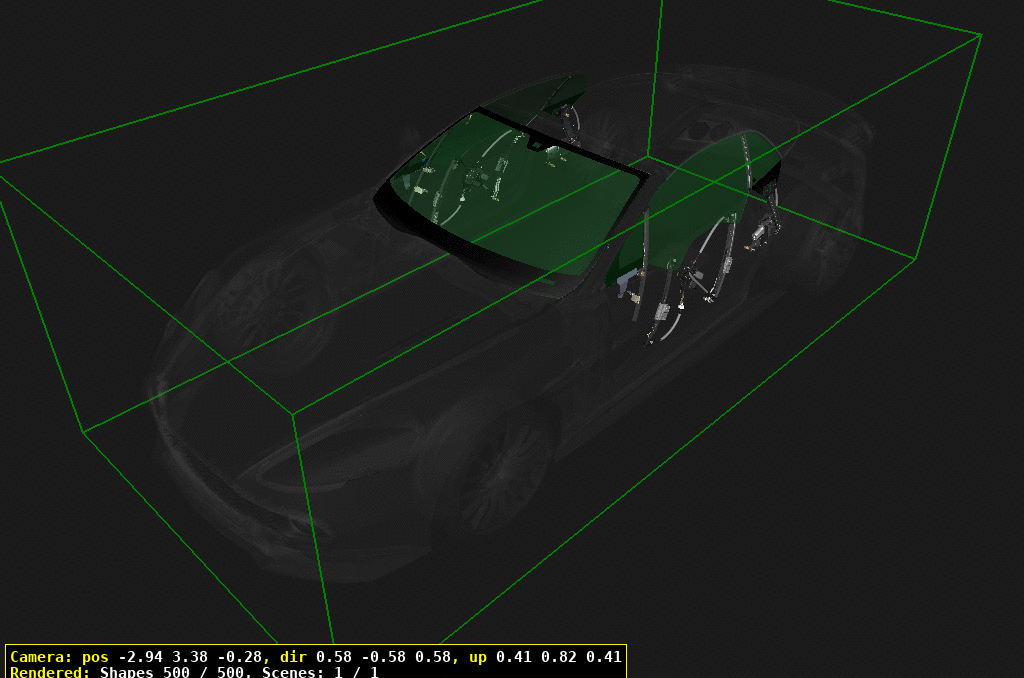

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
20	ED337610026	WINDSCREEN, FRONT	ED337610026 WINDSCREEN, FRONT	-	1	Enquire
30	6G33C03102BP1A02	FINISHER, WINDSCREEN IN STOCK	6G33C03102BP1A02 FINISHER, WINDSCREEN IN STOCK	$309.32	1
40	6G33C03102AP1A04	FOAM, 10x10 IN STOCK	6G33C03102AP1A04 FOAM, 10x10 IN STOCK	$10.80	1
100	CD33F21411BA	GLASS ASSEMBLY, DOOR, LH	CD33F21411BA GLASS ASSEMBLY, DOOR, LH	$896.87	1
110	CD33F21410BA	GLASS ASSEMBLY, DOOR, RH	CD33F21410BA GLASS ASSEMBLY, DOOR, RH	$900.08	1
120	702944	Nut, M6 flg IN STOCK	702944 Nut, M6 flg IN STOCK	$1.83	2
130	6G33FA0115ABPK	Screw, M8 x 21 IN STOCK	6G33FA0115ABPK Screw, M8 x 21 Pack of 20 IN STOCK	$24.50	2
140	697517	Washer, M6 x 19 x 1.5	697517 Washer, M6 x 19 x 1.5	-	2	Enquire
150	703144	BOLT, M6x45, PAN IN STOCK	703144 BOLT, M6x45, PAN IN STOCK	$3.13	2
160	CD33C262A37BD	DIVISION BAR CHANNELASSEMBLY, LH	CD33C262A37BD DIVISION BAR CHANNELASSEMBLY, LH	-	1	Enquire
170	CD33C262A36BD	DIVISION BAR CHANNELASSEMBLY, RH	CD33C262A36BD DIVISION BAR CHANNELASSEMBLY, RH	-	1	Enquire
200	ED33N29751BA	GLASS ASSEMBLY, QUARTERWINDOW, LH	ED33N29751BA GLASS ASSEMBLY, QUARTERWINDOW, LH	$400.29	1
210	ED33N29750BA	GLASS ASSEMBLY, QUARTERWINDOW, RH	ED33N29750BA GLASS ASSEMBLY, QUARTERWINDOW, RH	$410.30	1
220	4G43L30271AB	RETAINER, QUARTER WINDOW,LH	4G43L30271AB RETAINER, QUARTER WINDOW,LH	$112.54	1
230	4G43L30270AB	RETAINER, QUARTER WINDOW,RH	4G43L30270AB RETAINER, QUARTER WINDOW,RH	$112.54	1
300	ED33F23201AA	REGULATOR ASSEMBLY, DOOR,LH	ED33F23201AA REGULATOR ASSEMBLY, DOOR,LH	$618.43	1
310	ED33F23200AA	REGULATOR ASSEMBLY, DOOR,RH	ED33F23200AA REGULATOR ASSEMBLY, DOOR,RH	$618.43	1
330	703134	SCREW, M6x16, CSK HEADTORQ	703134 SCREW, M6x16, CSK HEADTORQ	$1.38	4
340	W505976-S303	SCREW, SELF TAP, PAN HD	W505976-S303 SCREW, SELF TAP, PAN HD	-	6	Enquire
350	703160PK	NUT, M10, HEX FLG IN STOCK	703160PK NUT, M10, HEX FLG Pack of 10 IN STOCK	$22.01	2
400	ED33F27001AB	REGULATOR ASSEMBLY, REARQUARTER, LH	ED33F27001AB REGULATOR ASSEMBLY, REARQUARTER, LH	$453.73	1
410	ED33F27000AB	REGULATOR ASSEMBLY, REARQUARTER, RH	ED33F27000AB REGULATOR ASSEMBLY, REARQUARTER, RH	$453.73	1
420	703167	NUT, M10, HEX FLG IN STOCK	703167 NUT, M10, HEX FLG IN STOCK	$3.07	2
430	9G43-J773-AA	コンケーブワッシャー	9G43-J773-AA コンケーブワッシャー	-	4	Enquire
440	9G43DBM589LAA	CONVEX WASHER	9G43DBM589LAA CONVEX WASHER	$1.47	2
450	BG43389619AA	THREADED STUD, 10x25	BG43389619AA THREADED STUD, 10x25	$4.53	2
460	EG4343422AA	スペーサーワッシャー	EG4343422AA スペーサーワッシャー	$1.60	2
470	702847	ねじ M6X20 六角 FLG HD IN STOCK	702847 ねじ M6X20 六角 FLG HD IN STOCK	$2.51	4
480	4G43-SET80086-AA	PLUG, 20mm dia	4G43-SET80086-AA PLUG, 20mm dia	-	4	Enquire
490	703160PK	NUT, M10, HEX FLG IN STOCK	703160PK NUT, M10, HEX FLG Pack of 10 IN STOCK	$22.01	4
