Handles and Lock Mechanisms of Aston Martin Aston Martin GT VANQUISH ZAGATO (2016-2019)

すべて見る

Aston Martin GT VANQUISH ZAGATO (2016-2019) - Handles and Lock Mechanisms

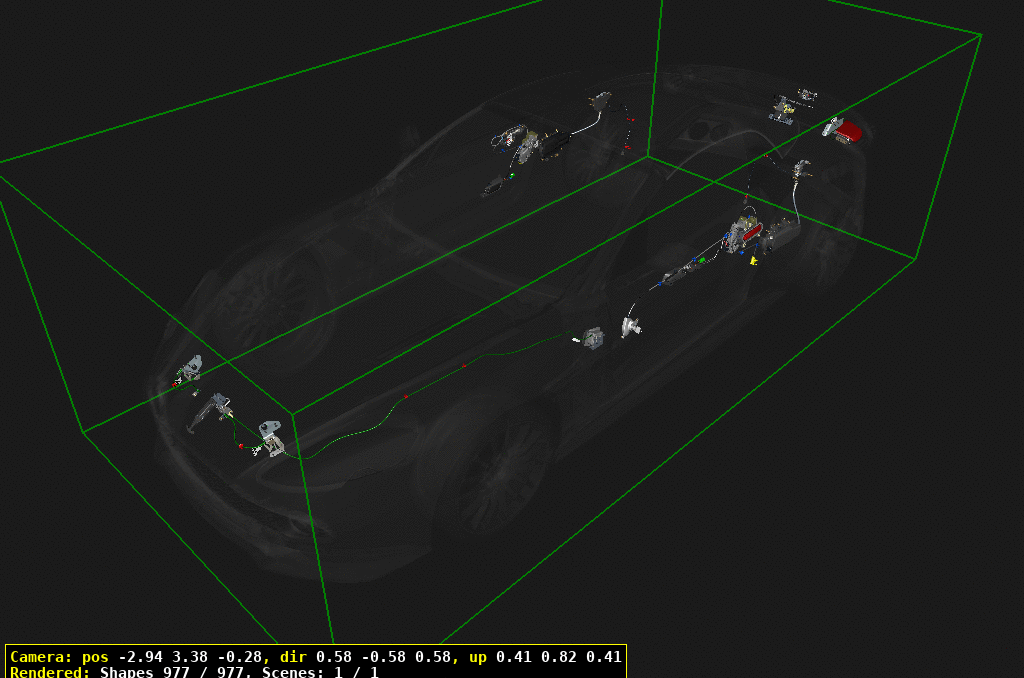

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
20	CD3316K662AB	CABLE ABUTMENT, SECONDARYRELEASE	CD3316K662AB CABLE ABUTMENT, SECONDARYRELEASE	$8.59	2
30	DD4316B768AD	LATCH, SECONDARY, LH	DD4316B768AD LATCH, SECONDARY, LH	$129.06	1
40	4G436510059PK	Firtree clip, pad wear lead attch	4G436510059PK Firtree clip, pad wear lead attch Pack of 100	$73.95	2
50	703143	BOLT/WASHER, M6x12.0	703143 BOLT/WASHER, M6x12.0	$1.89	2
60	9G436411062	HANDLE, BONNET RELEASE	9G436411062 HANDLE, BONNET RELEASE	$187.84	1
70	701553	Screw, M6 x 16 pan hd, hood release handle to bracket	701553 Screw, M6 x 16 pan hd, hood release handle to bracket	$0.30	1
80	DD4316B769AD	LATCH, SECONDARY, RH	DD4316B769AD LATCH, SECONDARY, RH	$129.06	1
90	DD43915A01AA	LABEL, BONNET LATCHWARNING	DD43915A01AA LABEL, BONNET LATCHWARNING	$36.50	2
100	CD3316C730AA	BRACKET, BONNET RELEASEHANDLE	CD3316C730AA BRACKET, BONNET RELEASEHANDLE	$25.21	1
110	DD4316A945AA	STRIKER BAR, SECONDARYLATCH, RH	DD4316A945AA STRIKER BAR, SECONDARYLATCH, RH	$156.59	1
120	DD4316A944AA	STRIKER BAR, SECONDARYLATCH, LH	DD4316A944AA STRIKER BAR, SECONDARYLATCH, LH	$142.26	1
130	DD43405C45AD	CABLE RELEASE, SECONDARY	DD43405C45AD CABLE RELEASE, SECONDARY	$96.17	1
140	HD3Y-5284-AA	RELEASE LEVER, SECONDARY	HD3Y-5284-AA RELEASE LEVER, SECONDARY	-	1	Enquire
150	4G436410063	ラッチASSY、フード	4G436410063 ラッチASSY、フード	$35.60	1
160	AD4316C656AC	RELEASE CABLE ASSEMBLY	AD4316C656AC RELEASE CABLE ASSEMBLY	$68.98	1
170	704443	Clip Plastic	704443 Clip Plastic	$1.48	2
180	705464	Screw, M4 x 9.5	705464 Screw, M4 x 9.5	$0.18	2
190	701448	Nut, U-Type	701448 Nut, U-Type	$2.16	2
200	7G4310609EAAPK	CLIP, SPRING, M6, U TYPE1.5-4.0 ARRIVING SOON	7G4310609EAAPK CLIP, SPRING, M6, U TYPE1.5-4.0 ARRIVING SOON	$12.41	2
210	CD33A15K610AA	TORX CAP, TX3,0 OD 16.2mm	CD33A15K610AA TORX CAP, TX3,0 OD 16.2mm	$0.53	2
220	6G33FA0115ABPK	Screw, M8 x 21	6G33FA0115ABPK Screw, M8 x 21 Pack of 20	$24.32	10
300	CD33F218A01AA	CABLE, INTERIOR HANDLERELEASE	CD33F218A01AA CABLE, INTERIOR HANDLERELEASE	$64.65	2
310	CD3322615AG	HANDLE MECHANISM, LH	CD3322615AG HANDLE MECHANISM, LH	$1,312.13	1
320	CD3322614AE	HANDLE MECHANISM, RH	CD3322614AE HANDLE MECHANISM, RH	-	1	Enquire
330	AD433710064	マイクロスイッチ	AD433710064 マイクロスイッチ	$204.87	2
350	CD33F22050AB	DOOR LOCK CYLINDERASSEMBLY	CD33F22050AB DOOR LOCK CYLINDERASSEMBLY	$361.39	1
360	8D33654024AAN	KEY ASSEMBLY, to number	8D33654024AAN KEY ASSEMBLY, to number	$258.96	1
370	704443	Clip Plastic	704443 Clip Plastic	$1.48	3
380	4G43-22404-AG	Handle Blade Assembly	4G43-22404-AG Handle Blade Assembly	-	2	Enquire
381	CD3322405AC	HANDLE ASSEMBLY, LH	CD3322405AC HANDLE ASSEMBLY, LH Carbon	$1,962.09	1
382	CD3322404AC	HANDLE ASSEMBLY, RH	CD3322404AC HANDLE ASSEMBLY, RH Carbon	$1,962.09	1
400	CD33221A00AA	CABLE ASSEMBLY, FRONTDOOR	CD33221A00AA CABLE ASSEMBLY, FRONTDOOR	$64.65	2
410	CD33226A28AB	HANDLE MECHANISM,EXTERIOR	CD33226A28AB HANDLE MECHANISM,EXTERIOR	$226.80	2
420	ED3321813AB	LATCH ASSEMBLY, LH	ED3321813AB LATCH ASSEMBLY, LH	$398.80	1
430	ED3321814AB	LATCH ASSEMBLY, RH	ED3321814AB LATCH ASSEMBLY, RH	$362.34	1
440	3790075	CABLE TIE, 290mm x 3.5mm	3790075 CABLE TIE, 290mm x 3.5mm	$0.18	1
450	4G43224A72AH	レンズ	4G43224A72AH レンズ	$4.64	2
460	4G43224A68AA	PIN, HANDLE PIVOT	4G43224A68AA PIN, HANDLE PIVOT	$5.90	2
470	703612	Nut and Washer, M6 Hex	703612 Nut and Washer, M6 Hex	$0.82	6
480	GG43AA0231AA	SCREW, M8x34, FLAT CSKTORX	GG43AA0231AA SCREW, M8x34, FLAT CSKTORX	$6.38	4
500	703073	SCREW, M6x16, CSK, BLACK	703073 SCREW, M6x16, CSK, BLACK	$0.16	2
510	701158	SCREW, M6x10, BUTTON HD,TORX, BLACK	701158 SCREW, M6x10, BUTTON HD,TORX, BLACK	$1.30	4
520	703128	LOCKWASHER, M6, SINGLECOIL	703128 LOCKWASHER, M6, SINGLECOIL	$0.23	2
530	697517PK	Washer M6x1.6, Black	697517PK Washer M6x1.6, Black Pack of 20	$22.80	4
540	703746	SCREW, M6x16, PAN FLGHEAD TORX, BLACK	703746 SCREW, M6x16, PAN FLGHEAD TORX, BLACK	$0.50	6
550	707147	NUT, M5, HEX FLG	707147 NUT, M5, HEX FLG	$0.45	2
560	ED43226A28AA	BUMPSTOP, TWIN	ED43226A28AA BUMPSTOP, TWIN	$4.30	2
600	6G436710237	Handle, Emergency	6G436710237 Handle, Emergency	$17.42	1
610	DD4314B529AD	パワーラッチ	DD4314B529AD パワーラッチ	$229.81	1
620	6G436710235	ストライカー	6G436710235 ストライカー	$47.92	1
630	DD43F442A66AA	LATCH, DECKLID	DD43F442A66AA LATCH, DECKLID Includes item 640	$309.71	1
640	6G436710236	ベゼル、ラッチ	6G436710236 ベゼル、ラッチ	$21.13	1
650	707956	SCREW, 4.8x16	707956 SCREW, 4.8x16	$0.23	3
660	701556PK	SCREW, M5x16, PAN HD	701556PK SCREW, M5x16, PAN HD Pack of 10	$4.39	3
670	702517	BOLT, M8x14, PC T1 PIL 10	702517 BOLT, M8x14, PC T1 PIL 10	$0.70	3
680	6G33FA0115ABPK	Screw, M8 x 21	6G33FA0115ABPK Screw, M8 x 21 Pack of 20	$24.32	2
690	4G4346662AAPK	SPACER, 2mm, NYLON	4G4346662AAPK SPACER, 2mm, NYLON Pack of 10	$4.33	4
710	HD3Y-3896-AB	BRACKET, POWER LATCH	HD3Y-3896-AB BRACKET, POWER LATCH	-	1	Enquire
800	JD3Y-L405A02-AA	PANEL, FUEL FILLER FLAP	JD3Y-L405A02-AA PANEL, FUEL FILLER FLAP	-	1	Enquire
830	6G33F9C070AA	Latch assy, actuator, glovebox	6G33F9C070AA Latch assy, actuator, glovebox	$147.37	1
840	JD3YL405B96AB	HINGE ASSEMBLY, FUELFILLER FLAP	JD3YL405B96AB HINGE ASSEMBLY, FUELFILLER FLAP	$594.22	1
850	HD3Y405B46AA	ブラケット、アクチュエータ	HD3Y405B46AA ブラケット、アクチュエータ	$153.86	1
860	6G3340180BA	CABLE, FILLER FLAPRELEASE	6G3340180BA CABLE, FILLER FLAPRELEASE	$51.56	1
870	JD3Y-9N447-AA	ブラケット、アクチュエータ	JD3Y-9N447-AA ブラケット、アクチュエータ	-	1	Enquire
890	703149	ねじ M6X16 六角穴付き	703149 ねじ M6X16 六角穴付き	$1.27	2
900	703265	ネジ、M6 X 16なべ頭	703265 ネジ、M6 X 16なべ頭	$0.59	2
910	703203	Screw, Flange Head M6x20	703203 Screw, Flange Head M6x20	$0.34	2
1000	4G439611272	ENCLOSURE ASSEMBLY,TONNEAU LATCH, LH	4G439611272 ENCLOSURE ASSEMBLY,TONNEAU LATCH, LH Includes item 1020	$77.73	1
1010	4G439611273	ENCLOSURE ASSEMBLY,TONNEAU LATCH, RH	4G439611273 ENCLOSURE ASSEMBLY,TONNEAU LATCH, RH Includes item 1020	$77.73	1
1020	4G43-3956-AB	SEAL, MOTOR ENCLOSURE	4G43-3956-AB SEAL, MOTOR ENCLOSURE	-	2	Enquire
1030	4G4353548AC	LID, MOTOR ENCLOSURE	4G4353548AC LID, MOTOR ENCLOSURE	$26.33	2
1050	4G436C691AD	グロメット	4G436C691AD グロメット	$4.53	2
1060	703151	Nut/washr, M6	703151 Nut/washr, M6	$0.89	6
1070	4G43301347AA	グロメット	4G43301347AA グロメット	$2.46	2
1080	ED33L43161AA	MOUNTING PLATE, TONNEAULATCH, LH	ED33L43161AA MOUNTING PLATE, TONNEAULATCH, LH	-	1	Enquire
1090	ED33L43160AA	MOUNTING PLATE, TONNEAULATCH, RH	ED33L43160AA MOUNTING PLATE, TONNEAULATCH, RH	-	1	Enquire
1100	GD3354797AA	TONNEAU LATCH, LH	GD3354797AA TONNEAU LATCH, LH Stamped "R"	$339.87	1
1110	GD3354796AA	TONNEAU LATCH, RH	GD3354796AA TONNEAU LATCH, RH Stamped "L"	$414.33	1
1120	4G433710477	モーターアッセンブリー	4G433710477 モーターアッセンブリー	$1,222.08	2
1130	4G43239600AA	CLIP, CABLE GUIDE	4G43239600AA CLIP, CABLE GUIDE Order with Motor	$17.88	2
1150	4G4353922AB	TONNEAU LATCH MOTOR DRIVECABLE	4G4353922AB TONNEAU LATCH MOTOR DRIVECABLE	$159.37	2
1170	702290	Screw, M6 x 20, Thread Forming	702290 Screw, M6 x 20, Thread Forming	$0.46	14
1180	704327	ナットおよびワッシャ	704327 ナットおよびワッシャ	$5.38	2
1190	697517PK	Washer M6x1.6, Black	697517PK Washer M6x1.6, Black Pack of 20	$22.80	6
1200	702839PK	Screw and Washer M6x20 Hex	702839PK Screw and Washer M6x20 Hex Pack of 10	$6.81	6
1210	702946	Bolt, M6 x 35mm	702946 Bolt, M6 x 35mm	$1.34	8
1230	ED33L43165AA	SPACER, TONNEAU LATCH	ED33L43165AA SPACER, TONNEAU LATCH	$10.14	2
1240	6G3325919AA	PLUG, 12mm	6G3325919AA PLUG, 12mm	$1.03	A/R
