Aston Martin GT VANQUISH ZAGATO (2016-2019) - コンバーチブルルーフ

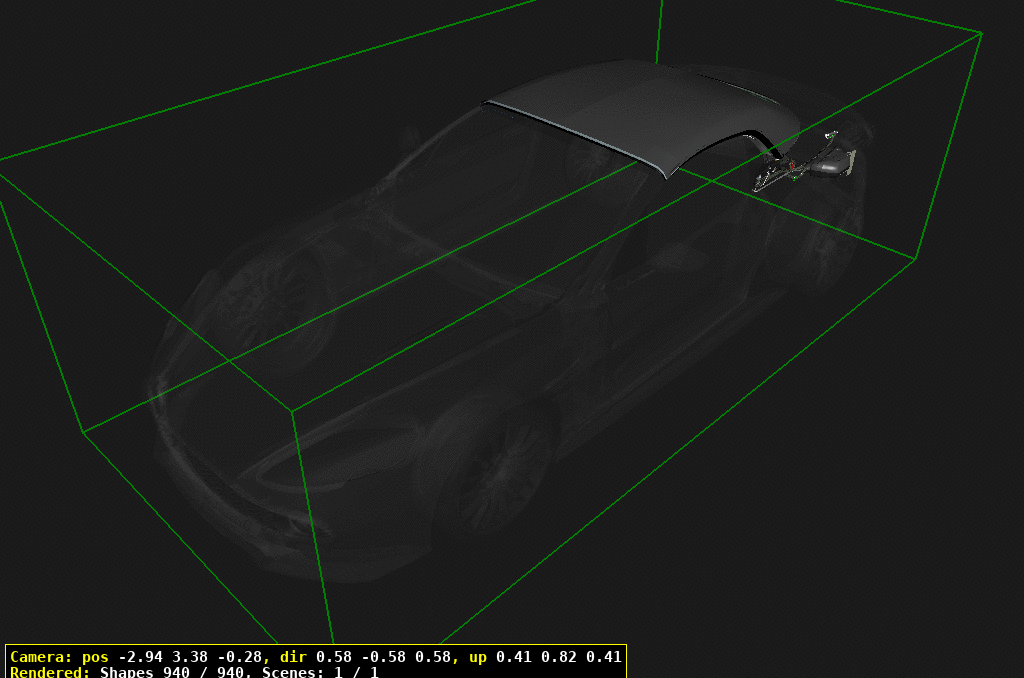

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
10	ED3376501B00CA	CONVERTIBLE ROOF ASSEMBLY	ED3376501B00CA CONVERTIBLE ROOF ASSEMBLY Standard	$28,662.36	1
11	ED3376501B10CA	CONVERTIBLE ROOF ASSEMBLY	ED3376501B10CA CONVERTIBLE ROOF ASSEMBLY Special	$24,445.79	1
20	9G4370351AA	KIT, OUTER CANOPY	9G4370351AA KIT, OUTER CANOPY Black	$8,694.65	1
21	9G4370351BA	KIT, OUTER CANOPY	9G4370351BA KIT, OUTER CANOPY Blue	$8,694.65	1
22	9G4370351CA	KIT, OUTER CANOPY	9G4370351CA KIT, OUTER CANOPY Java	$8,694.67	1
23	9G4370351DA	KIT, OUTER CANOPY	9G4370351DA KIT, OUTER CANOPY Westminster Green	$8,694.67	1
24	9G4370351EA	KIT, OUTER CANOPY	9G4370351EA KIT, OUTER CANOPY Titan Grey	$8,694.69	1
25	9G4370351FA	KIT, OUTER CANOPY	9G4370351FA KIT, OUTER CANOPY Burgundy	$14,667.48	1
26	9G4370351GA	KIT, OUTER CANOPY	9G4370351GA KIT, OUTER CANOPY Singed Brown	$14,667.48	1
29	4G431005038AAPK	スプリングクリップ	4G431005038AAPK スプリングクリップ Pack of 4	$7.85	4
30	9G4370352AB	KIT, INNER LINING	9G4370352AB KIT, INNER LINING Obsidian Black	$2,720.85	1
31	9G4370352BB	KIT, INNER LINING	9G4370352BB KIT, INNER LINING Ivory	$2,720.85	1
32	9G4370352CB	KIT, INNER LINING	9G4370352CB KIT, INNER LINING Moon Shadow	$2,720.85	1
33	9G4370352DB	KIT, INNER LINING	9G4370352DB KIT, INNER LINING Tailors grey	$2,720.85	1
34	9G4370352EB	KIT, INNER LINING	9G4370352EB KIT, INNER LINING Tan	$2,720.85	1
40	4G43L51210AB	KIT, FRONT SEAL ASSEMBLY	4G43L51210AB KIT, FRONT SEAL ASSEMBLY	$1,190.45	1
50	4G43L51220AA	KIT, MID SEAL, LH	4G43L51220AA KIT, MID SEAL, LH	$635.58	1
60	4G43L51221AA	KIT, MID SEAL, RH	4G43L51221AA KIT, MID SEAL, RH	$635.58	1
70	4G43L51230AB	KIT, REAR SEAL ASSEMBLY	4G43L51230AB KIT, REAR SEAL ASSEMBLY	$1,043.65	1
80	9G439G803AA	HYDRAULIC PUMP, PIPES &CYLINDERS ASSEMBLY	9G439G803AA HYDRAULIC PUMP, PIPES &CYLINDERS ASSEMBLY Incl items 90-120	$4,489.15	1
90	4G4350639AC	HYDRAULIC CYLINDER, MAIN,LH IN STOCK	4G4350639AC HYDRAULIC CYLINDER, MAIN,LH IN STOCK	$680.83	1
100	4G4350638AB	HYDRAULIC CYLINDER, MAIN,RH IN STOCK	4G4350638AB HYDRAULIC CYLINDER, MAIN,RH IN STOCK	$1,333.01	1
110	4G43539A79AA	HYDRAULIC CYLINDER,TENSION BOW, LH	4G43539A79AA HYDRAULIC CYLINDER,TENSION BOW, LH	$1,519.95	1
120	4G43539A78AA	HYDRAULIC CYLINDER,TENSION BOW, RH	4G43539A78AA HYDRAULIC CYLINDER,TENSION BOW, RH	$1,519.95	1
130	TBC	Rivnut, M8, low profile	TBC Rivnut, M8, low profile	-	1	Enquire
140	4G433710685	HARNESS, HYDRAULIC ROOF,LH	4G433710685 HARNESS, HYDRAULIC ROOF,LH	$170.80	1
141	4G433710686	HARNESS, HYDRAULIC ROOF,RH	4G433710686 HARNESS, HYDRAULIC ROOF,RH	$199.04	1
150	4G43L51240AA	LATCH MOTOR ASSEMBLY KIT	4G43L51240AA LATCH MOTOR ASSEMBLY KIT	$368.17	1
160	4G431001991AA	ナット、六角	4G431001991AA ナット、六角	$1.44	4
170	4G43L51260AA	KIT, AUTOMATIC LATCHING,LH	4G43L51260AA KIT, AUTOMATIC LATCHING,LH	$827.20	1
180	4G43L51270AA	KIT, AUTOMATIC LATCHING,RH	4G43L51270AA KIT, AUTOMATIC LATCHING,RH	$836.72	1
220	702944	Nut, M6 flg IN STOCK	702944 Nut, M6 flg IN STOCK	$1.83	4
230	4G431012525AA	FLEXIBLE SHAFT, LH	4G431012525AA FLEXIBLE SHAFT, LH	$95.69	1
240	4G431012524AA	FLEXIBLE SHAFT, RH	4G431012524AA FLEXIBLE SHAFT, RH	$95.69	1
250	4G439310617	TRIM COVER SET	4G439310617 TRIM COVER SET Obsidian Black	$1,580.49	1
251	4G439310614	TRIM COVER SET	4G439310614 TRIM COVER SET Ivory	$1,580.49	1
252	4G439310615	TRIM COVER SET	4G439310615 TRIM COVER SET Moon Shadow	$1,580.49	1
253	4G439310616	TRIM COVER SET	4G439310616 TRIM COVER SET Tailors Grey	$1,580.49	1
290	4G431013271AA	SCREW. PIVOT HOOK	4G431013271AA SCREW. PIVOT HOOK	-	2	Enquire
320	702839PK	Screw and Washer M6x20 Hex IN STOCK	702839PK Screw and Washer M6x20 Hex Pack of 10 IN STOCK	$6.86	2
330	703749	Nut, M5 Hex flg hd IN STOCK	703749 Nut, M5 Hex flg hd IN STOCK	$1.28	1
340	ED33-76501B21-AB	FULL BEARING BRACKETSHIM, LH	ED33-76501B21-AB FULL BEARING BRACKETSHIM, LH	-	1	Enquire
350	ED33-76501B20-AB	FULL BEARING BRACKETSHIM, RH	ED33-76501B20-AB FULL BEARING BRACKETSHIM, RH	-	1	Enquire
380	6G33104101BA	SCREW, M4x9, THREADFORMING IN STOCK	6G33104101BA SCREW, M4x9, THREADFORMING IN STOCK	$0.86	1
400	4G439310506	ARAL VITAMOL ZH-M HOODFLUID, 1ltr	4G439310506 ARAL VITAMOL ZH-M HOODFLUID, 1ltr	$61.80	A/R
450	ED3313B524AA	MODULE, ROOF	ED3313B524AA MODULE, ROOF	$495.00	1
