Aston Martin GT VANQUISH ZAGATO (2016-2019) - 冷却システム

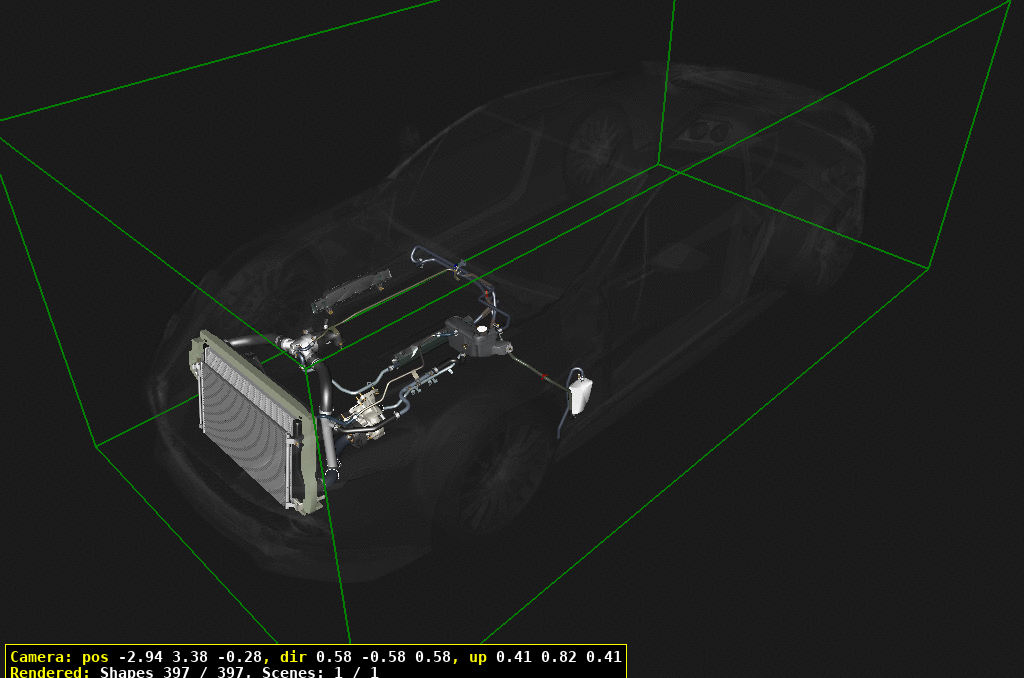

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	~O~	バッテリー	~O~ バッテリー	-	-	Enquire
-	~0~	LHD Illustrated	~0~ LHD Illustrated	-	-	Enquire
30	4G432A155AD	BRACKET, HOSE CLIP	4G432A155AD BRACKET, HOSE CLIP	$33.39	1
40	4G4358AA	PIPE CLIP, DOUBLE	4G4358AA PIPE CLIP, DOUBLE	$23.26	1
50	CD3318D359AA	HOSE, HEATER OUTLET	CD3318D359AA HOSE, HEATER OUTLET	$93.07	1
70	701335	HOSR CLIP, SPRING, 20x15	701335 HOSR CLIP, SPRING, 20x15	$1.17	2
80	701570	C CLIP, 20-24.5 DIA	701570 C CLIP, 20-24.5 DIA	$0.81	1
100	4G438063AE	HOSE ASSEMBLY, DEGAS	4G438063AE HOSE ASSEMBLY, DEGAS	$90.02	1
110	4G438B081AG	HOSE, OVERFLOW	4G438B081AG HOSE, OVERFLOW	$53.39	1
120	6G33TBD2BA	Tank, overflow IN STOCK	6G33TBD2BA Tank, overflow IN STOCK	$58.35	1
130	703734	BOLT/WASHER, M6x25	703734 BOLT/WASHER, M6x25	$1.28	2
140	4G438N029AG	HOSE, OVERFLOW	4G438N029AG HOSE, OVERFLOW	$26.80	1
170	4G4319B518BC	クーラントリザーバ	4G4319B518BC クーラントリザーバ Includes items 180-190	$293.42	1
180	4G438101BA	キャップアセンブリ	4G438101BA キャップアセンブリ	$108.65	1
190	1R123710166	SENSOR, COOLANT LEVEL IN STOCK	1R123710166 SENSOR, COOLANT LEVEL IN STOCK	$79.81	1
200	702514	Screw, flg, M6 x 16 torx IN STOCK	702514 Screw, flg, M6 x 16 torx IN STOCK	$2.87	1
210	703145	Bolt, M6 x 1.00 x 30 IN STOCK	703145 Bolt, M6 x 1.00 x 30 IN STOCK	$0.90	1
220	CD331660AA	スペーサー	CD331660AA スペーサー	$31.06	1
230	CD338C363AC	HOSE ASSEMBLY, DEGAS	CD338C363AC HOSE ASSEMBLY, DEGAS	$137.44	1
240	707641	HOSE CLAMP, 27x15mm	707641 HOSE CLAMP, 27x15mm	$2.28	2
250	CD338C350AB	HOSE, COOLANT RESERVOIR	CD338C350AB HOSE, COOLANT RESERVOIR	$148.90	1
260	703264	Screw, M6 x 14 Flg Hd	703264 Screw, M6 x 14 Flg Hd	-	3	Enquire
270	CD338556AC	TUBE ASSEMBLY, BYPASS IN STOCK	CD338556AC TUBE ASSEMBLY, BYPASS IN STOCK	$966.30	1
280	8D338333AA	トップホースアセンブリ	8D338333AA トップホースアセンブリ	$117.88	1
290	4G436793BB	HOSE COVER, TOP	4G436793BB HOSE COVER, TOP	$14.69	2
300	4G434867BC	HOSE COVER, LOWER	4G434867BC HOSE COVER, LOWER	$19.94	2
310	703731	Bolt, M8 flange head, dip stick tube	703731 Bolt, M8 flange head, dip stick tube	$0.72	4
330	CD3318D359BA	HOSE, HEATER OUTLET	CD3318D359BA HOSE, HEATER OUTLET	$41.42	1
400	CD338A586AA	THERMOSTAT HOUSINGASSEMBLY	CD338A586AA THERMOSTAT HOUSINGASSEMBLY Includes items 410-450	$1,630.34	1
410	702855	Bolt and Washer, M6x30	702855 Bolt and Washer, M6x30	$2.86	3
440	3285114	O RING,L HOUSING IN STOCK	3285114 O RING,L HOUSING IN STOCK	$2.75	1
450	CD333910072	SENSOR, TEMPERATURE	CD333910072 SENSOR, TEMPERATURE	$257.42	1
460	702855	Bolt and Washer, M6x30	702855 Bolt and Washer, M6x30	$2.86	3
470	3285112	O RING, WATER OUTLET IN STOCK	3285112 O RING, WATER OUTLET IN STOCK	$6.11	1
480	3285113	O RING, OUTLET IN STOCK	3285113 O RING, OUTLET IN STOCK	$1.35	1
500	CD338003AA	HOSE ASSEMBLY, DEGAS	CD338003AA HOSE ASSEMBLY, DEGAS	$140.24	1
510	702901	HOSE CLAMP, SPRING, 23x15	702901 HOSE CLAMP, SPRING, 23x15	$2.17	1
520	ED238584AA	HOSE ASSEMBLY,THERMOSTAT, UPPER	ED238584AA HOSE ASSEMBLY,THERMOSTAT, UPPER	$655.88	1
530	CD338K168AA	ウォーターポンプ	CD338K168AA ウォーターポンプ Includes items 540-570	$6,802.44	1
540	702843	Screw and Washer, M8x19	702843 Screw and Washer, M8x19	$1.24	4
560	702846	Bolt, flg, M8x45	702846 Bolt, flg, M8x45	-	4	Enquire
570	1R123210531	O RING, 4.0x0.139 IN STOCK	1R123210531 O RING, 4.0x0.139 IN STOCK	$34.42	1
580	702573	Bolt, M8x35mm	702573 Bolt, M8x35mm	$0.38	3
590	703694	BOLT/WASHER, M8x45, HF 8	703694 BOLT/WASHER, M8x45, HF 8	$5.87	2
600	585382	O Ring, Waterpump IN STOCK	585382 O Ring, Waterpump IN STOCK	$51.18	1
610	AD2318674AB	HOSE ASSEMBLY, HEATERRETURN	AD2318674AB HOSE ASSEMBLY, HEATERRETURN	$450.39	1
710	707159	SCREW, M6x20, HEX FLD ADH	707159 SCREW, M6x20, HEX FLD ADH	-	1	Enquire
730	3285101PK	ブシュマウント IN STOCK	3285101PK ブシュマウント Pack of 2 IN STOCK	$10.56	4
740	CD33F8B171AA	FOAM SEAL, LH IN STOCK	CD33F8B171AA FOAM SEAL, LH IN STOCK	$21.77	1
750	CD33F8B170BA	FOAM SEAL, RH IN STOCK	CD33F8B170BA FOAM SEAL, RH IN STOCK	$25.56	1
770	CD338W000BB	COMBINED RADIATOR / TRANSOIL COOLER	CD338W000BB COMBINED RADIATOR / TRANSOIL COOLER Includes items 780-790	$5,305.47	1
780	CD338005BB	ラジエターアッセンブリー	CD338005BB ラジエターアッセンブリー	$2,741.91	1
790	CD337A095BA	HEAT EXCHANGER ASSEMBLY	CD337A095BA HEAT EXCHANGER ASSEMBLY	$3,148.86	1
810	703728	SCREW, M6x19, SQUARE HD IN STOCK	703728 SCREW, M6x19, SQUARE HD IN STOCK	$15.11	2
820	8D338C607AD	Fan and motor assy, radiator IN STOCK	8D338C607AD Fan and motor assy, radiator IN STOCK	$956.60	1
830	FD43E830667AAPK	WASHER, 25mm ODx6.4mm ID IN STOCK	FD43E830667AAPK WASHER, 25mm ODx6.4mm ID Pack of 10 IN STOCK	$6.66	2
840	703169	M6, NUT, HEX FLG IN STOCK	703169 M6, NUT, HEX FLG IN STOCK	$1.04	2
