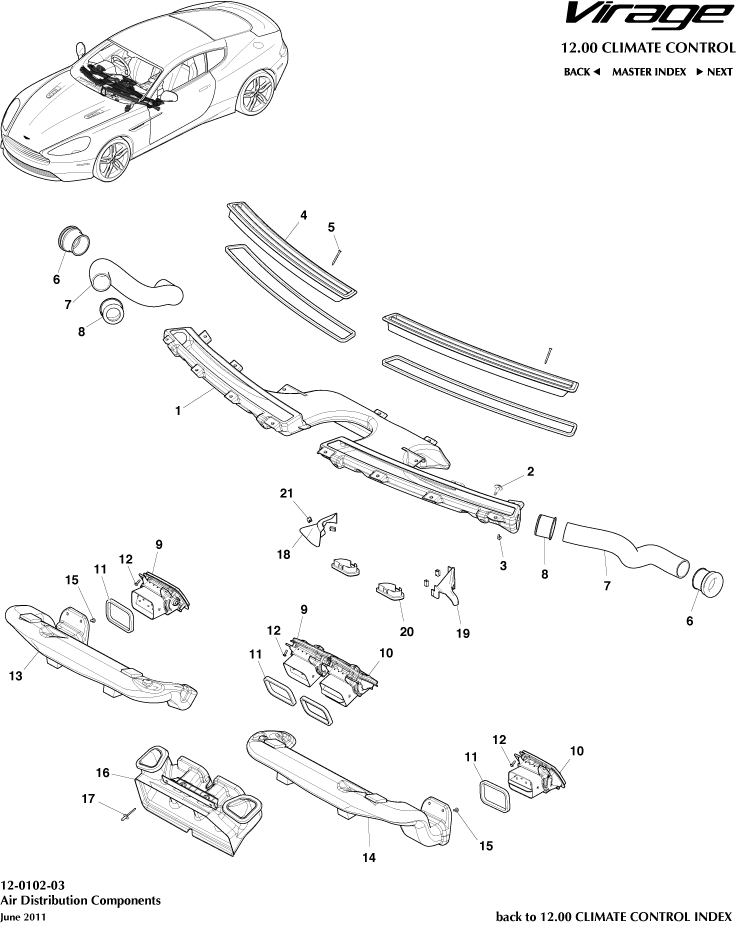

Aston Martin GT VIRAGE (2012-2013) - 空気分配コンポーネント

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	6G3304432AD	DUCT ASSEMBLY, WINDSCREEN	6G3304432AD DUCT ASSEMBLY, WINDSCREEN -	$145.99	1
-	701157PK	Screw, 4.2 x 13 IN STOCK	701157PK Screw, 4.2 x 13 - IN STOCK	$3.07	2
-	4G43046B30BB	Register Assembly, RH	4G43046B30BB Register Assembly, RH Graphite with White Symbols	$149.98	2
-	4G43046B31BB	Register Assembly, LH	4G43046B31BB Register Assembly, LH Graphite with White Symbols	$146.95	2
-	8G4318D404AC	Duct Assembly, Heater Air Dstr ctr, LHD	8G4318D404AC Duct Assembly, Heater Air Dstr ctr, LHD -	$83.10	1
-	8G43014K96AB	Duct Assembly, vent air lower, Lwr RH, LHD	8G43014K96AB Duct Assembly, vent air lower, Lwr RH, LHD -	$40.45	1
-	9D33014K97AA	Duct Assembly, vent air lower, Lwr LH, LHD	9D33014K97AA Duct Assembly, vent air lower, Lwr LH, LHD -	$7.85	1
1	6G3304432BD	DUCT ASSEMBLY, WINDSCREEN	6G3304432BD DUCT ASSEMBLY, WINDSCREEN -	$145.99	1
2	703156	Screw / Washer, M6 x 18 IN STOCK	703156 Screw / Washer, M6 x 18 - IN STOCK	$1.38	4
3	703068	SCREW, 4.2x9, LARGEFLANGE	703068 SCREW, 4.2x9, LARGEFLANGE -	$0.13	14
4	4G4318C491AJ	GRILLE, WINDSCREENDEFROST	4G4318C491AJ GRILLE, WINDSCREENDEFROST -	$688.83	2
5	6G3379231AC	Screw, M3.5 x 38 Pozi IN STOCK	6G3379231AC Screw, M3.5 x 38 Pozi Screen Defog Grille IN STOCK	$0.72	4
6	4G43C046B80AC	SEAL, DEMISTER HOSE	4G43C046B80AC SEAL, DEMISTER HOSE -	$9.56	4
7	4G4319E658AC	HOSE, WINDOW DEMISTER	4G4319E658AC HOSE, WINDOW DEMISTER -	$57.75	2
8	4G4319E680AD	CONNECTOR, DEMISTER HOSE	4G4319E680AD CONNECTOR, DEMISTER HOSE -	$9.56	2
9	8D33046B30BB	Register Assembly, RH	8D33046B30BB Register Assembly, RH Iridium Silver with White Symbols	$150.07	2
10	8D33046B31BB	Register Assembly, LH	8D33046B31BB Register Assembly, LH Iridium Silver with White Symbols	$150.07	2
11	4G4318D404CA	SEAL, AIR DUCT	4G4318D404CA SEAL, AIR DUCT -	$2.53	4
12	701447	Screw M4x12 Pan collar IN STOCK	701447 Screw M4x12 Pan collar Register to IP IN STOCK	$0.56	12
13	8G4319C804AE	Duct Assembly, Instrument Panel RH	8G4319C804AE Duct Assembly, Instrument Panel RH -	$57.84	1
14	8G4319C805AE	Duct Assembly, Instrument Panel LH	8G4319C805AE Duct Assembly, Instrument Panel LH -	$85.49	1
15	TBC	Rivnut, M8, low profile	TBC Rivnut, M8, low profile Duct to Moulding	-	4	Enquire
16	8G4318D404BB	Duct Assembly, Heater Air Dstr ctr, RHD	8G4318D404BB Duct Assembly, Heater Air Dstr ctr, RHD -	$86.10	1
17	4G4317A873AA	POP RIVET, 4.8x12.0	4G4317A873AA POP RIVET, 4.8x12.0 -	$1.90	4
18	9D33014K96AA	Duct Assembly, vent air lower, Lwr RH, RHD	9D33014K96AA Duct Assembly, vent air lower, Lwr RH, RHD -	$7.85	1
19	8G43014K97BB	Duct Assembly, vent air lower, Lwr LH, RHD	8G43014K97BB Duct Assembly, vent air lower, Lwr LH, RHD -	$40.45	1
21	8D3360302BB	Edge clip, 8.7 x 12.7 a/con	8D3360302BB Edge clip, 8.7 x 12.7 a/con -	$0.84	1
