HVAC Unit of Aston Martin Aston Martin GT VIRAGE (2012-2013)

すべて見る

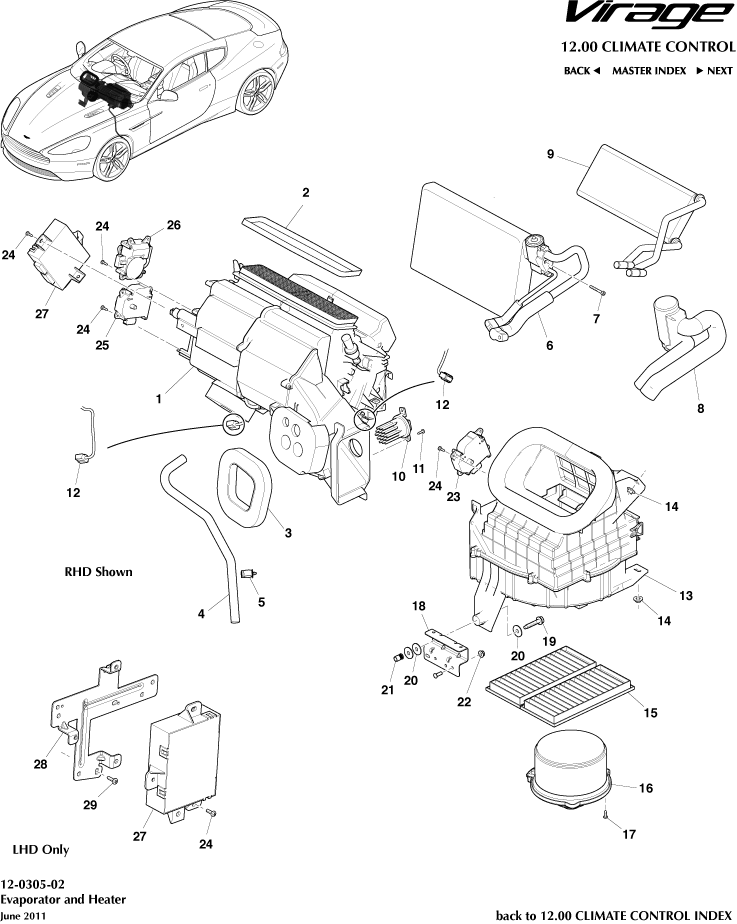

Aston Martin GT VIRAGE (2012-2013) - HVACユニット

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	4G4318N407AD	HVAC ASSEMBLY & ECU	4G4318N407AD HVAC ASSEMBLY & ECU See SB-12-0306	$2,444.51	1
-	AG438911208	Cam, heater and servo, RHD (white)	AG438911208 Cam, heater and servo, RHD (white) See SB-12-0306	$20.93	1
-	AG438911209	Cam, heater and servo, LHD (white)	AG438911209 Cam, heater and servo, LHD (white) See SB-12-0306	$20.93	1
-	AG4319502BA	Cam, heater and servo, RHD (black)	AG4319502BA Cam, heater and servo, RHD (black) See SB-12-0306	$20.93	1
-	AG4319502AA	Cam, heater and servo, LHD (black)	AG4319502AA Cam, heater and servo, LHD (black) See SB-12-0306	$20.93	1
-	703151	Nut/washr, M6 IN STOCK	703151 Nut/washr, M6 - IN STOCK	$0.90	2
-	4G4319A699AB	DRAIN TUBE ASSEMBLY IN STOCK	4G4319A699AB DRAIN TUBE ASSEMBLY - IN STOCK	$27.47	1
-	4G4319A889AA	Evaporator, A/C	4G4319A889AA Evaporator, A/C LHD	$1,296.13	1
-	4G4319A641AA	Evp & tube assy A/C	4G4319A641AA Evp & tube assy A/C RHD	-	1	Enquire
-	4G4319F614AA	Evp & tube assy A/C	4G4319F614AA Evp & tube assy A/C LHD	$407.98	1
-	4G4319849AA	Valve assy A/C evp exp IN STOCK	4G4319849AA Valve assy A/C evp exp - IN STOCK	$85.54	1
-	4G4318D673AA	Sealing, htr core tube to htr case	4G4318D673AA Sealing, htr core tube to htr case LHD	$14.34	1
-	4G4318D671AA	HEATER CORE ASSEMBLY	4G4318D671AA HEATER CORE ASSEMBLY -	$180.07	1
-	4G4319925AB	BLOWER ASSEMBLY	4G4319925AB BLOWER ASSEMBLY -	$718.11	1
-	4G4319F613AA	BLOWER MOTOR ASSEMBLY	4G4319F613AA BLOWER MOTOR ASSEMBLY -	$233.53	1
-	4G4318535AE	BRACKET, BLOWER MOUNTING	4G4318535AE BRACKET, BLOWER MOUNTING -	$69.20	1
-	4G4318A251AA	SERVO ASSEMBLY,FRESH/RECIRCULATE AIR	4G4318A251AA SERVO ASSEMBLY,FRESH/RECIRCULATE AIR -	$358.40	1
-	4G4318D675AA	SERVO ASSEMBLY, AIR MIX	4G4318D675AA SERVO ASSEMBLY, AIR MIX -	$358.40	1
-	4G4318E247AA	SERVO ASSEMBLY, HEATERMODE	4G4318E247AA SERVO ASSEMBLY, HEATERMODE -	$358.40	1
-	4G4318D669AA	Sealing,htr core	4G4318D669AA Sealing,htr core LHD	$21.36	1
-	4G43-18C676-AA	Sealing,htr core	4G43-18C676-AA Sealing,htr core RHD	-	1	Enquire
1	4G4318N407BC	HVAC ASSEMBLY & ECU	4G4318N407BC HVAC ASSEMBLY & ECU See SB-12-0306	$2,444.51	1
2	4G4319N574AA	Seal, air duct	4G4319N574AA Seal, air duct -	$1.65	1
3	4G43-19D692-A	Seal Foam, Sealing Plate	4G43-19D692-A Seal Foam, Sealing Plate -	-	1	Enquire
4	4G4319A699BB	DRAIN TUBE ASSEMBLY	4G4319A699BB DRAIN TUBE ASSEMBLY -	$25.51	1
5	701172	CLIP, 16.0x2.8-3.3 IN STOCK	701172 CLIP, 16.0x2.8-3.3 - IN STOCK	$0.79	1
6	4G4319850AA	Evaporator, A/C	4G4319850AA Evaporator, A/C RHD	$989.69	1
7	4G43ALR8679AA	SCREW, M5x40, HEX SKT IN STOCK	4G43ALR8679AA SCREW, M5x40, HEX SKT - IN STOCK	$2.14	2
8	4G4318693AA	SEAL, EVAPORATOR VALVE	4G4318693AA SEAL, EVAPORATOR VALVE RHD	$14.44	1
9	4G4318A271BA	HEATER CORE ASSEMBLY	4G4318A271BA HEATER CORE ASSEMBLY -	$488.04	1
10	4G4319F615AA	RESISTOR, AIRCON IN STOCK	4G4319F615AA RESISTOR, AIRCON - IN STOCK	$408.01	1
11	4G43104084AA	Screw, M4 x 16, Pan Hd	4G43104084AA Screw, M4 x 16, Pan Hd -	-	2	Enquire
13	4G4319924BB	BLOWER ASSEMBLY	4G4319924BB BLOWER ASSEMBLY -	$718.11	1
14	703612	Nut and Washer, M6 Hex IN STOCK	703612 Nut and Washer, M6 Hex - IN STOCK	$0.83	5
15	4G4313ZE1AAPK	花粉フィルター IN STOCK	4G4313ZE1AAPK 花粉フィルター - IN STOCK	$84.27	1
16	4G4319F612AA	BLOWER MOTOR ASSEMBLY	4G4319F612AA BLOWER MOTOR ASSEMBLY -	$779.33	1
17	4G43N104301AA	SCREW, M5x16, HX SPECIAL	4G43N104301AA SCREW, M5x16, HX SPECIAL -	$0.20	3
18	4G4318535BF	BRACKET, BLOWER MOUNTING	4G4318535BF BRACKET, BLOWER MOUNTING -	$69.20	1
19	703745	Bolt, M8x35, HVAC to heater	703745 Bolt, M8x35, HVAC to heater -	$0.75	1
20	697452	ワッシャ、M8、空調～ブラケット	697452 ワッシャ、M8、空調～ブラケット -	$7.54	2
21	TBC	Rivnut, M8, low profile	TBC Rivnut, M8, low profile -	-	1	Enquire
22	702944	Nut, M6 flg IN STOCK	702944 Nut, M6 flg - IN STOCK	$1.83	2
23	4G4318A250AA	SERVO ASSEMBLY,FRESH/RECIRCULATE AIR	4G4318A250AA SERVO ASSEMBLY,FRESH/RECIRCULATE AIR -	$358.40	1
24	4G43104084AA	Screw, M4 x 16, Pan Hd	4G43104084AA Screw, M4 x 16, Pan Hd -	-	12	Enquire
25	4G4318D674AA	SERVO ASSEMBLY, AIR MIX	4G4318D674AA SERVO ASSEMBLY, AIR MIX -	$358.40	1
26	4G4318E246AA	SERVO ASSEMBLY, HEATERMODE	4G4318E246AA SERVO ASSEMBLY, HEATERMODE -	$358.40	1
27	NSS	ウォッシャー	NSS ウォッシャー Part of item 1	-	1	Enquire
28	4G43-19C715-AA	Bracket, ECU mounting	4G43-19C715-AA Bracket, ECU mounting LHD	-	1	Enquire
29	4G43104084AA	Screw, M4 x 16, Pan Hd	4G43104084AA Screw, M4 x 16, Pan Hd -	-	3	Enquire
