Transaxle Cooling, Auto of Aston Martin Aston Martin GT DB9 (2004-2017)

すべて見る

Aston Martin GT DB9 (2004-2017) - Transaxle Cooling, Auto

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	4G433111060	Oil pipe kit - without oil cooler IN STOCK	4G433111060 Oil pipe kit - without oil cooler From (V)05543 to 09783 IN STOCK	$583.20	1
-	4G433110938	Kit, Oil cooler and pipes IN STOCK	4G433110938 Kit, Oil cooler and pipes From VIN A09784, Contains items marked KT IN STOCK	$1,177.39	1
-	7G43445396AA	Oil cooler, AUTO transmission (included in Kit)	7G43445396AA Oil cooler, AUTO transmission (included in Kit) From (V) A09784 KT	$807.14	1
-	7G437F120BA	Pipe, Air/ oil cooler inlet (included in Kit) IN STOCK	7G437F120BA Pipe, Air/ oil cooler inlet (included in Kit) From (V) A09784 KT IN STOCK	$353.67	1
-	7G437F120AA	Pipe, Air/ oil cooler outlet (included in Kit) IN STOCK	7G437F120AA Pipe, Air/ oil cooler outlet (included in Kit) From (V) A09784 KT IN STOCK	$352.11	1
-	9G437W093BA	Pipe Assy, Engine Bay, Outlet	9G437W093BA Pipe Assy, Engine Bay, Outlet From (V) A09784 KT	$227.10	1
-	7G437W093AA	Pipe, Engine bay	7G437W093AA Pipe, Engine bay From (V) A09784 KT	$378.90	1
-	9G43321363AA	Oil Pipe Assy Rear Transmission	9G43321363AA Oil Pipe Assy Rear Transmission From (V) A09784	$978.96	1
-	703189	Screw M8x16 hex flg hd, latch plate	703189 Screw M8x16 hex flg hd, latch plate 08MY From (V) A09110	$0.38	2
-	702944	Nut, M6 flg IN STOCK	702944 Nut, M6 flg 08MY From (V) A09110 IN STOCK	$1.83	3
-	700606	SCREW, M6x12, HEX HD IN STOCK	700606 SCREW, M6x12, HEX HD 08MY From (V) A09110 IN STOCK	$0.34	4
-	703265	ネジ、M6 X 16なべ頭 IN STOCK	703265 ネジ、M6 X 16なべ頭 08MY From (V) A09110 IN STOCK	$0.59	2
-	703265	ネジ、M6 X 16なべ頭 IN STOCK	703265 ネジ、M6 X 16なべ頭 08MY From (V) A09110 IN STOCK	$0.59	2
1	4G43445396BC	Oil cooler, AUTO transmission	4G43445396BC Oil cooler, AUTO transmission Up to (V) A09783	-	1	Enquire
2	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile -	-	8	Enquire
3	4G437F120CB	Pipe, Air/ oil cooler inlet	4G437F120CB Pipe, Air/ oil cooler inlet Up to (V) A09783	-	1	Enquire
4	4G437F120BC	Pipe, Air/ oil cooler outlet	4G437F120BC Pipe, Air/ oil cooler outlet Up to (V) A09783	-	1	Enquire
5	4G437W093CC	Pipe, Engine bay	4G437W093CC Pipe, Engine bay Up to (V) A09783	-	1	Enquire
6	4G437W093BD	Pipe, Engine bay	4G437W093BD Pipe, Engine bay Up to (V) A09783	-	1	Enquire
7	4G43321363AC	Pipe assy, Transmission oil cooler, incl item 23. 4G43-6L635-AA Thermostat	4G43321363AC Pipe assy, Transmission oil cooler, incl item 23. 4G43-6L635-AA Thermostat Up to (V) A09783	$1,234.66	1
8	2W93-7B147-AC	クランププレート、オイルクーラーパイプ	2W93-7B147-AC クランププレート、オイルクーラーパイプ -	-	1	Enquire
9	701612	Bolt, M8x16	701612 Bolt, M8x16 07MY	-	2	Enquire
10	701170	Nut, M6, Hex Flange Hd	701170 Nut, M6, Hex Flange Hd 07MY	-	3	Enquire
11	701179	Screw, M6x12	701179 Screw, M6x12 07MY	$0.14	4
12	699545	ホースクランプ	699545 ホースクランプ -	$3.54	2

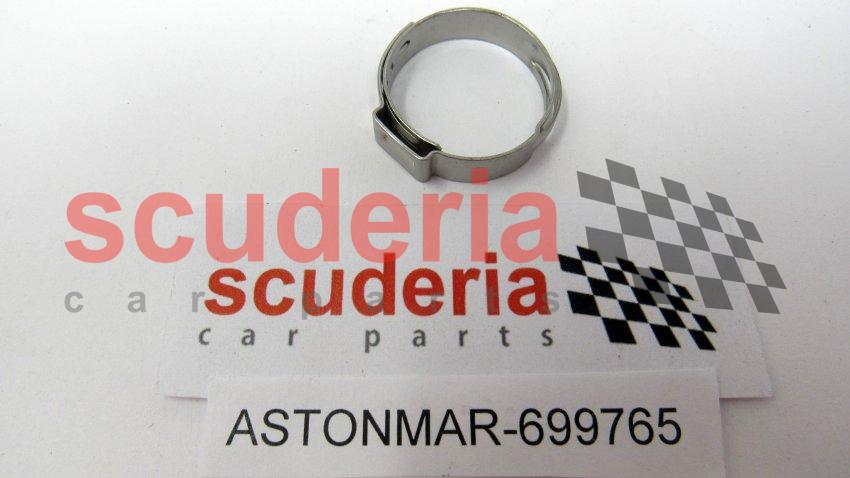

13	699765	Hose clamp, Oil hose to oil pipe (included in Kit) IN STOCK	699765 Hose clamp, Oil hose to oil pipe (included in Kit) KT IN STOCK	$9.50	4
14	4G437869AA	Cooler and bracket assy, Trans oil	4G437869AA Cooler and bracket assy, Trans oil -	$1,061.35	1
15	4G437B142AA	ブラケット、トランスミッションオイルクーラー取り付け	4G437B142AA ブラケット、トランスミッションオイルクーラー取り付け -	$30.39	1
16	4G437B142BA	ブラケット、トランスミッションオイルクーラー取り付け	4G437B142BA ブラケット、トランスミッションオイルクーラー取り付け -	$30.39	1
17	700250	Screw, M6 x 16 cap attach	700250 Screw, M6 x 16 cap attach 07MY	-	2	Enquire
18	699547	HOSE CLAMP, 18.5mm IN STOCK	699547 HOSE CLAMP, 18.5mm - IN STOCK	$3.25	2
19	4G437C309CB	Plate, Gear shift cover	4G437C309CB Plate, Gear shift cover -	$65.89	1
20	700250	Screw, M6 x 16 cap attach	700250 Screw, M6 x 16 cap attach 07MY	-	2	Enquire
21	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile -	-	4	Enquire
22	4G43-6A626-AA	ブラケット、オイルパイプ	4G43-6A626-AA ブラケット、オイルパイプ -	-	1	Enquire
23	4G436L635AA	Thermostat, Auto Trans Oil Control	4G436L635AA Thermostat, Auto Trans Oil Control -	$1,102.29	1
24	9G43445396AA	Cooler Assy, Oil	9G43445396AA Cooler Assy, Oil 09MY	-	1	Enquire
25	3285306	Foam Seal, Rear Header	3285306 Foam Seal, Rear Header 09MY	$17.21	1
26	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile 09MY Oil cooler, AUTO trans	-	4	Enquire
27	9G437F120AA	Hose assy, Cooler Outlet	9G437F120AA Hose assy, Cooler Outlet 09MY	$150.18	1
28	9G437F120BA	Hose assy, Cooler Inlet	9G437F120BA Hose assy, Cooler Inlet 09MY	$211.88	1
29	9G438777CA	Clamp, Oetiker 25.5 - 1008R IN STOCK	9G438777CA Clamp, Oetiker 25.5 - 1008R 09MY IN STOCK	$7.11	2
30	9G437F120AA	Hose assy, Cooler Outlet	9G437F120AA Hose assy, Cooler Outlet 09MY	$150.18	2
31	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile 09MY Inlet/ Outlet hoses	-	2	Enquire
32	9G437R041AA	Grommet, hose support	9G437R041AA Grommet, hose support 09MY	$19.69	2
