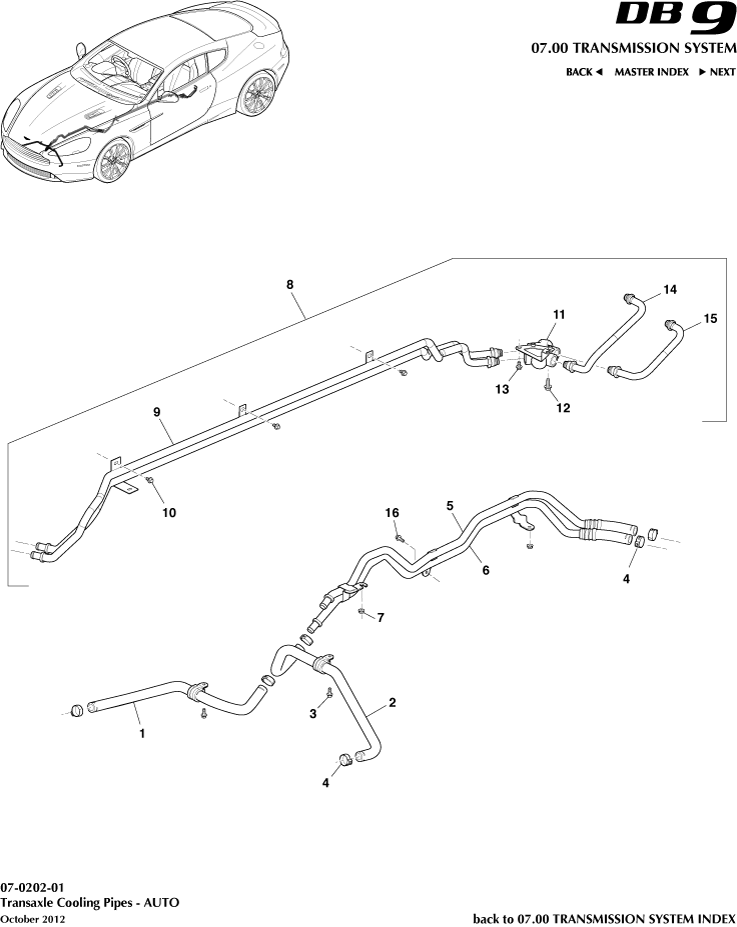

分解部品図を表示して、探している部品を見つけます:

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
1	9D337F120BB	HOSE ASSEMBLY, HX INLET	9D337F120BB HOSE ASSEMBLY, HX INLET Includes P clips	$239.98	1
2	9D337F120AB	HOSE ASSEMBLY, HX OUTLET	9D337F120AB HOSE ASSEMBLY, HX OUTLET Includes P clips	$296.90	1
3	703264	Screw, M6 x 14 Flg Hd	703264 Screw, M6 x 14 Flg Hd -	-	3	Enquire
5	CD337W093AC	PIPE ASSEMBLY, INLET	CD337W093AC PIPE ASSEMBLY, INLET -	$291.54	1
6	CD337W093BC	PIPE ASSEMBLY, OUTLET	CD337W093BC PIPE ASSEMBLY, OUTLET -	$260.96	1
7	702944	Nut, M6 flg	702944 Nut, M6 flg -	$1.82	2
8	9G43321363AA	Oil Pipe Assy Rear Transmission	9G43321363AA Oil Pipe Assy Rear Transmission -	$971.60	1
9	9G43-7D353-AA	Tube & Brkt Assy, Trans Oil Fill	9G43-7D353-AA Tube & Brkt Assy, Trans Oil Fill -	-	1	Enquire
10	700606	SCREW, M6x12, HEX HD	700606 SCREW, M6x12, HEX HD -	$0.34	3
11	4G436L635AA	Thermostat, Auto Trans Oil Control	4G436L635AA Thermostat, Auto Trans Oil Control -	$1,094.00	1
12	703189	Screw M8x16 hex flg hd, latch plate	703189 Screw M8x16 hex flg hd, latch plate -	$0.37	1
13	700606	SCREW, M6x12, HEX HD	700606 SCREW, M6x12, HEX HD -	$0.34	1
14	4G43-35568-BA	Pipe, Trans Oil, Inlet	4G43-35568-BA Pipe, Trans Oil, Inlet -	-	1	Enquire
15	4G43-35568-AA	Pipe, Trans Oil, Outlet	4G43-35568-AA Pipe, Trans Oil, Outlet -	-	1	Enquire
16	tbc	Rivnut, M8, low profile	tbc Rivnut, M8, low profile -	-	1	Enquire
