Body Structure - EV Structure, Coupe of Aston Martin Aston Martin GT DBS (2007-2012)

すべて見る

Aston Martin GT DBS (2007-2012) - Body Structure - EV Structure, Coupe

分解部品図を表示して、探している部品を見つけます:

図をドラッグして位置を変更できます
スクロール、ピンチ、または and buttons

部品図内のホットスポット 1 をクリックすると、テーブル内の部品を見つけることができます。

パートキー

在庫あり

もうすぐ到着します

注文するには

お問い合わせください

すべて見る

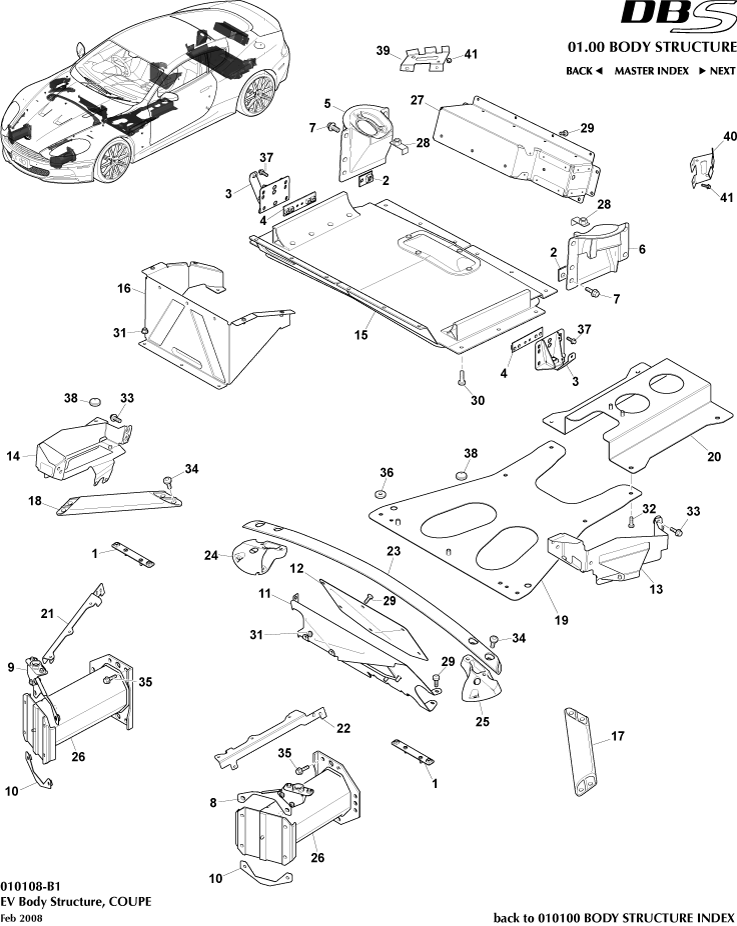

ダイアグラムタップして拡大します

#	部品番号	部品説明	部品詳細	価格（各）	図の数量	カートに追加
-	703074	Screw, M6 x 20 hex flange head	703074 Screw, M6 x 20 hex flange head -	-	2	Enquire
-	703074	Screw, M6 x 20 hex flange head	703074 Screw, M6 x 20 hex flange head -	-	2	Enquire
-	4G43111C61AD	Panel, Dummy Floor Front, LH	4G43111C61AD Panel, Dummy Floor Front, LH -	$357.54	1
1	8D33199901AA	Nutplate, M6 Hood Striker Plate	8D33199901AA Nutplate, M6 Hood Striker Plate -	$16.06	2
2	6G3380997AA	NUTPLATE, M12, REARDAMPER MOUNT	6G3380997AA NUTPLATE, M12, REARDAMPER MOUNT -	$6.65	2
3	6G335D022AD	BRACKET, SUBFRAME	6G335D022AD BRACKET, SUBFRAME -	$72.93	2
4	6G335N394AB	Nutplate	6G335N394AB Nutplate -	$17.26	2
5	6G3318A000AD	MOUNTING, REAR SHOCKABSORBER, RH	6G3318A000AD MOUNTING, REAR SHOCKABSORBER, RH -	$961.27	2
6	6G3318A001AD	MOUNTING, REAR SHOCKABSORBER, LH	6G3318A001AD MOUNTING, REAR SHOCKABSORBER, LH -	$961.27	2
7	703185	Screw, M12x25, Hex Flange Head	703185 Screw, M12x25, Hex Flange Head -	$10.85	8
8	8D3313069AB	Bracket, Headlamp Mnting LH	8D3313069AB Bracket, Headlamp Mnting LH -	$911.31	1
9	8D3313068AB	Head lamp mounting panel RH	8D3313068AB Head lamp mounting panel RH -	$911.31	1
10	4G436367912AC	Nut Plate Assembly, Crash Can Lower	4G436367912AC Nut Plate Assembly, Crash Can Lower -	-	2	Enquire
11	4G43111C60AD	Panel, dummy floor, front LHD	4G43111C60AD Panel, dummy floor, front LHD -	$438.54	1
12	4G43111B48AB	PANEL, DUMMY FLOOR COVER,FRONT	4G43111B48AB PANEL, DUMMY FLOOR COVER,FRONT -	$47.64	1
13	4G435341AJ	Bracket, ECU mounting LH	4G435341AJ Bracket, ECU mounting LH -	$190.97	1
14	4G435340AJ	Bracket, ECU mounting RH	4G435340AJ Bracket, ECU mounting RH -	$190.97	1
15	4G4338580AJ	パネル、燃料タンクコンパートメント、下部	4G4338580AJ パネル、燃料タンクコンパートメント、下部 -	-	1	Enquire
16	4G4367518AE	Panel, Rear Seat Heel Board	4G4367518AE Panel, Rear Seat Heel Board -	$220.45	1
17	P04G43F00199BA	Crush bar, reinforcement body, front LH	P04G43F00199BA Crush bar, reinforcement body, front LH -	-	1	Enquire
18	P04G43F00198BA	Crush bar, reinforcement body, front RH	P04G43F00198BA Crush bar, reinforcement body, front RH -	-	1	Enquire
19	4G43111K36AE	トンネルレインフォースメント、フロント	4G43111K36AE トンネルレインフォースメント、フロント -	-	1	Enquire
21	4G43043B19AB	Tube, passenger airbag initr RH	4G43043B19AB Tube, passenger airbag initr RH -	-	1	Enquire
22	4G43043B20AB	Tube, passenger airbag initr LH	4G43043B20AB Tube, passenger airbag initr LH -	-	1	Enquire
23	4G43108A75AA	ブレース、フロントクラッシュ	4G43108A75AA ブレース、フロントクラッシュ -	$136.17	1
24	8D33108A86AA	Bracket, Cross Brace, RH	8D33108A86AA Bracket, Cross Brace, RH -	$130.47	1
25	8D33108A87AA	Bracket, Cross Brace, LH	8D33108A87AA Bracket, Cross Brace, LH -	$130.47	1
26	AD43V17N800AC	Crash Can, Frt Bumper	AD43V17N800AC Crash Can, Frt Bumper Structural Cat. A only	$2,175.94	2
27	7G43-14A162-AD	コンパートメント、タイヤ空気入れ	7G43-14A162-AD コンパートメント、タイヤ空気入れ -	-	1	Enquire
28	4G43501B0AC	Nutplate, rear subframe	4G43501B0AC Nutplate, rear subframe -	$16.37	2
29	701553	Screw, M6 x 16 pan hd, hood release handle to bracket IN STOCK	701553 Screw, M6 x 16 pan hd, hood release handle to bracket - IN STOCK	$0.31	25
30	703121	SCREW, M8x2,0 HEX FLG IN STOCK	703121 SCREW, M8x2,0 HEX FLG - IN STOCK	$0.49	18
31	703169	M6, NUT, HEX FLG IN STOCK	703169 M6, NUT, HEX FLG - IN STOCK	$1.04	5
32	703172	Screw, M8x25 pan hd	703172 Screw, M8x25 pan hd -	-	8	Enquire
33	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 - IN STOCK	$0.34	12
34	6G33-ALR6871-AA	Screw, M10 x 25mm	6G33-ALR6871-AA Screw, M10 x 25mm -	-	8	Enquire
35	704495	SCREW, M8x35, HEX FLG IN STOCK	704495 SCREW, M8x35, HEX FLG - IN STOCK	$14.28	12
36	4G431660AA	Spacer, frt tunnel reinforce	4G431660AA Spacer, frt tunnel reinforce -	$25.04	4
37	703120	Screw, flg, M8 x 25 IN STOCK	703120 Screw, flg, M8 x 25 - IN STOCK	$22.08	-
38	4G43061B70AA	Cover, Dust Cap	4G43061B70AA Cover, Dust Cap -	$0.72	2
39	8D33392678AB	Bracket, rear quarter support, RH	8D33392678AB Bracket, rear quarter support, RH -	$30.59	1
40	8D33392679AB	Bracket, rear quarter support, LH	8D33392679AB Bracket, rear quarter support, LH -	$30.59	1
41	703203	Screw, Flange Head M6x20 IN STOCK	703203 Screw, Flange Head M6x20 2 per brkt IN STOCK	$0.34	4
